STRUCTURES AND ELEMENTS, REAR OF VEHICLE

Find Your Part

Ferrari SF90 XX Spider USA - STRUCTURES AND ELEMENTS, REAR OF VEHICLE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985883301 REAR SUBFRAME $50,962.25 To Order
Photo Part No Description Price (each) Stock
865055 REAR STRUCTURAL UNDERTRAY $516.03 To Order
Photo Part No Description Price (each) Stock
985866351 COMPL. LOWER GEARBOX MOUNTING CROSS MEMBER $845.72 To Order
Photo Part No Description Price (each) Stock
985829433 COMPL. RH REAR SUSPENSION CASTING Enquire To Order
Photo Part No Description Price (each) Stock
985829432 COMPL. LH REAR SUSPENSION CASTING Enquire To Order
Photo Part No Description Price (each) Stock
985829436 COMPL. RH ENGINE STRUT MOUNTING $3,249.64 To Order
Photo Part No Description Price (each) Stock
985829435 COMPL. LH ENGINE STRUT MOUNTING $3,143.55 To Order
Photo Part No Description Price (each) Stock
985829434 COMPL. GEARBOX CROSS MEMBER CASTING $5,993.27 To Order
Photo Part No Description Price (each) Stock
985865537 REAR RH STRUT $3,954.90 To Order
Photo Part No Description Price (each) Stock
985877104 LH REAR SPAR $3,685.41 To Order
Photo Part No Description Price (each) Stock
985874570 REAR BUMPER CROSS-MEMBER $2,414.90 To Order
Photo Part No Description Price (each) Stock
985830432 COMPL. RH LOCK TRELLIS MOUNTING BRACKET $587.70 To Order
Photo Part No Description Price (each) Stock
985830426 COMPL. LH LOCK TRELLIS MOUNTING BRACKET $587.70 To Order
Photo Part No Description Price (each) Stock
820098 COMPL. TRELLIS MOUNTING BRACKET $37.25 To Order
Photo Part No Description Price (each) Stock
985827116 COMPL. RH CASTING $2,186.00 To Order
Photo Part No Description Price (each) Stock
985827113 COMPL. LH CASTING $2,186.00 To Order
Photo Part No Description Price (each) Stock
811998 SCREW $10.60 To Order
Photo Part No Description Price (each) Stock
16289834 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
985865541 RH REAR LATERAL DIAGONAL BRACE $931.74 To Order
Photo Part No Description Price (each) Stock
985865527 LH REAR LATERAL DIAGONAL BRACE $888.72 To Order
Photo Part No Description Price (each) Stock
985896528 RH OUTER UPPER REAR DIAGONAL BRACE $931.74 To Order
Photo Part No Description Price (each) Stock
985896524 LH OUTER UPPER REAR DIAGONAL BRACE $1,046.41 To Order
Photo Part No Description Price (each) Stock
985957947 LH REAR SUBSTRUCTURE MOUNTING BRACKET $387.02 To Order
Photo Part No Description Price (each) Stock
985957946 LH REAR SUBSTRUCTURE MOUNTING BRACKET $387.02 To Order
Photo Part No Description Price (each) Stock
985865591 RH TANK GUARD BRACKET $688.05 To Order
Photo Part No Description Price (each) Stock
985865525 LH TANK GUARD BRACKET $688.05 To Order
Photo Part No Description Price (each) Stock
903295 SCREW $0.66 To Order
Photo Part No Description Price (each) Stock
985820842 RH FRONT STRUT MOUNTING CROSS MEMBER $1,189.75 To Order
Photo Part No Description Price (each) Stock
985820839 LH FRONT STRUT MOUNTING CROSS MEMBER $1,247.10 To Order
Photo Part No Description Price (each) Stock
985965201 RH TANK GUARD REINFORCEMENT $272.77 To Order
Photo Part No Description Price (each) Stock
985965200 LH TANK GUARD REINFORCEMENT $272.77 To Order
Photo Part No Description Price (each) Stock
985924638 FRONT CROSS MEMBER OF REAR CHASSIS $1,586.82 To Order
Photo Part No Description Price (each) Stock
16288474 SCREW $1.26 To Order
Photo Part No Description Price (each) Stock
81591700 SCREW $2.22 To Order
16286121 SCREW $0.70 To Order
Photo Part No Description Price (each) Stock
16288434 SCREW $0.66 To Order
Photo Part No Description Price (each) Stock
928000 REAR RH BRAKE BRACKET $116.10 To Order
Photo Part No Description Price (each) Stock
927999 REAR LH BRAKE BRACKET $116.10 To Order
Photo Part No Description Price (each) Stock
865534 COMPL. REAR BRACKET $70.21 To Order
Photo Part No Description Price (each) Stock
837374 LOWER BRACKET FOR REAR RH NODE $140.46 To Order
Photo Part No Description Price (each) Stock
865532 LOWER BRACKET FOR REAR LH NODE $93.16 To Order
View All

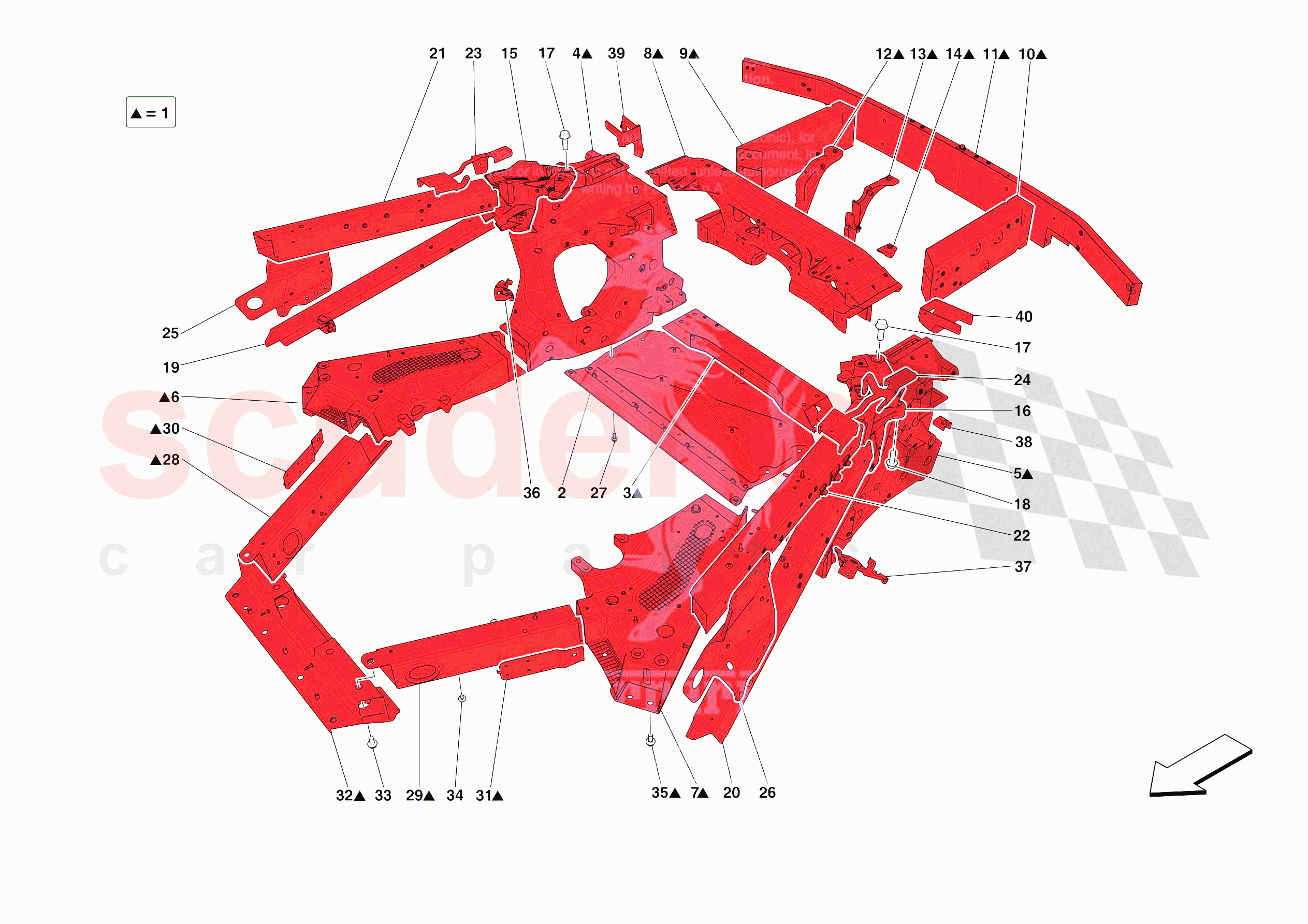

STRUCTURES AND ELEMENTS, REAR OF VEHICLE of Ferrari Ferrari SF90 XX Spider USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 985883301
REAR SUBFRAME
Request ASM authorisation 		$50,962.25 1
0002 865055
REAR STRUCTURAL UNDERTRAY
Request ASM authorisation 		$516.03 1
0003 985866351
COMPL. LOWER GEARBOX MOUNTING CROSS MEMBER
Request ASM authorisation 		$845.72 1
0004 985829433
COMPL. RH REAR SUSPENSION CASTING
Request ASM authorisation 		- 1 Enquire
0005 985829432
COMPL. LH REAR SUSPENSION CASTING
Request ASM authorisation 		- 1 Enquire
0006 985829436
COMPL. RH ENGINE STRUT MOUNTING
Request ASM authorisation 		$3,249.64 1
0007 985829435
COMPL. LH ENGINE STRUT MOUNTING
Request ASM authorisation 		$3,143.55 1
0008 985829434
COMPL. GEARBOX CROSS MEMBER CASTING
Request ASM authorisation 		$5,993.27 1
0009 985865537
REAR RH STRUT
Request ASM authorisation 		$3,954.90 1
0010 985877104
LH REAR SPAR
Request ASM authorisation 		$3,685.41 1
0011 985874570
REAR BUMPER CROSS-MEMBER
Request ASM authorisation 		$2,414.90 1
0012 985830432
COMPL. RH LOCK TRELLIS MOUNTING BRACKET 		$587.70 1
0013 985830426
COMPL. LH LOCK TRELLIS MOUNTING BRACKET 		$587.70 1
0014 820098
COMPL. TRELLIS MOUNTING BRACKET 		$37.25 2
0015 985827116
COMPL. RH CASTING
Request ASM authorisation 		$2,186.00 1
0016 985827113
COMPL. LH CASTING 		$2,186.00 1
0017 811998
SCREW
M14 X 1.5 X 40 		$10.60 4
0018 16289834
SCREW
M10 X 1.25 X 30 		$1.36 4
0019 985865541
RH REAR LATERAL DIAGONAL BRACE
Request ASM authorisation 		$931.74 1
0020 985865527
LH REAR LATERAL DIAGONAL BRACE
Request ASM authorisation 		$888.72 1
0021 985896528
RH OUTER UPPER REAR DIAGONAL BRACE 		$931.74 1
0022 985896524
LH OUTER UPPER REAR DIAGONAL BRACE 		$1,046.41 1
0023 985957947
LH REAR SUBSTRUCTURE MOUNTING BRACKET 		$387.02 1
0024 985957946
LH REAR SUBSTRUCTURE MOUNTING BRACKET 		$387.02 1
0025 985865591
RH TANK GUARD BRACKET
Request ASM authorisation 		$688.05 1
0026 985865525
LH TANK GUARD BRACKET
Request ASM authorisation 		$688.05 1
0027 903295
SCREW
M8 X 1.25 X 25 		$0.66 6
0028 985820842
RH FRONT STRUT MOUNTING CROSS MEMBER
Request ASM authorisation 		$1,189.75 1
0029 985820839
LH FRONT STRUT MOUNTING CROSS MEMBER
Request ASM authorisation 		$1,247.10 1
0030 985965201
RH TANK GUARD REINFORCEMENT 		$272.77 1
0031 985965200
LH TANK GUARD REINFORCEMENT 		$272.77 1
0032 985924638
FRONT CROSS MEMBER OF REAR CHASSIS
Request ASM authorisation 		$1,586.82 1
0033 16288474
SCREW
M10 X 1.25 X 25 		$1.26 24
0034 81591700
SCREW
M6 X 18 		$2.22 12
0034 16286121
SCREW
M6 X 18 		$0.70 (48.1% off) 12
0035 16288434
SCREW
M10 X 1.25 X 25 		$0.66 8
0036 928000
REAR RH BRAKE BRACKET 		$116.10 1
0037 927999
REAR LH BRAKE BRACKET 		$116.10 1
0038 865534
COMPL. REAR BRACKET 		$70.21 1
0039 837374
LOWER BRACKET FOR REAR RH NODE 		$140.46 1
0040 865532
LOWER BRACKET FOR REAR LH NODE 		$93.16 1
