Name: REAR SCREEN
Rating: 4.4 (1 reviews)

View All

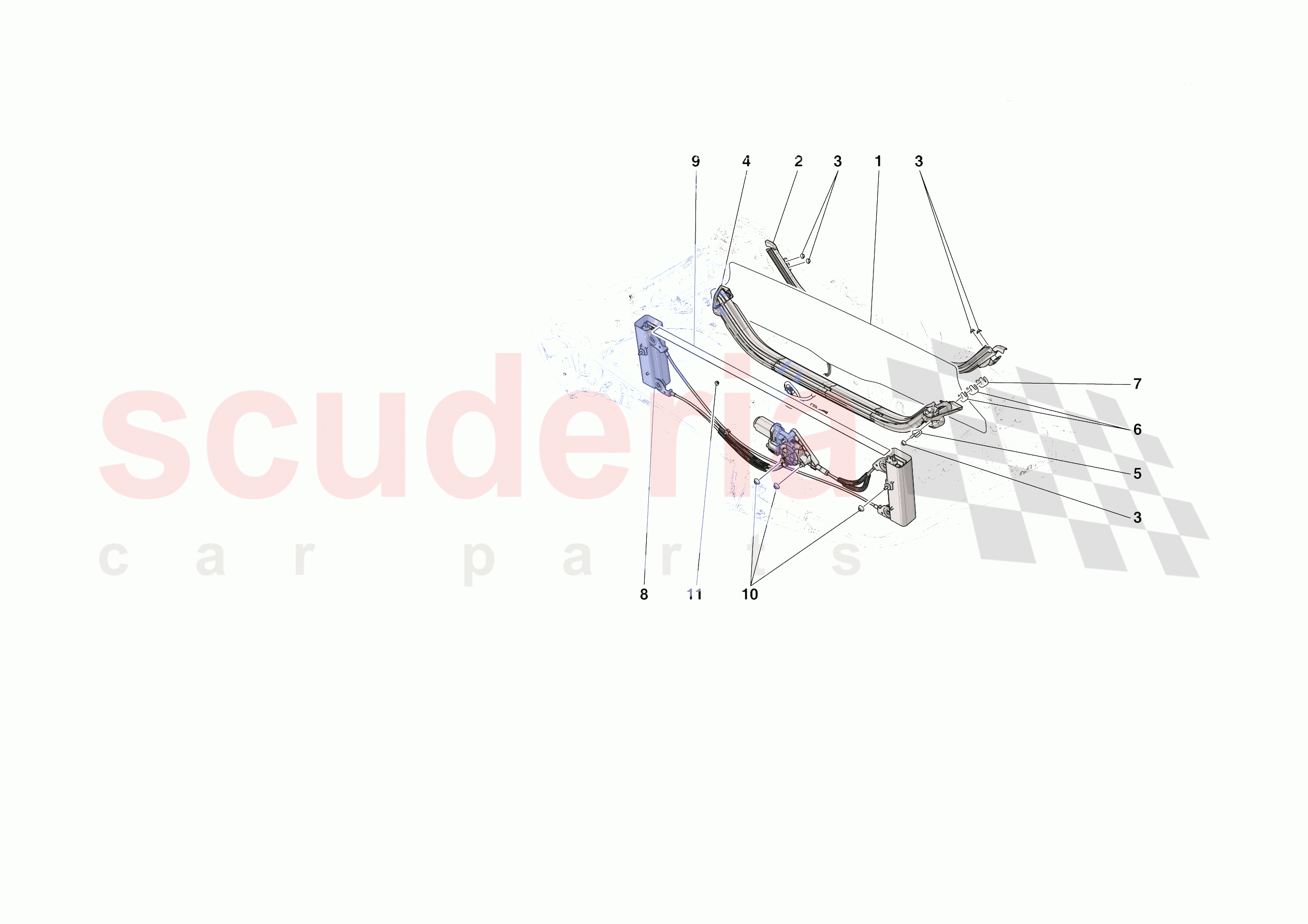

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	941704	REAR SCREEN	$705.10	To Order

Photo	Part No	Description	Price (each)	Stock
	857099	INTERNAL REAR SCREEN SEAL	$384.11	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	857101	EXTERNAL REAR SCREEN SEAL	$410.60	To Order

Photo	Part No	Description	Price (each)	Stock
	84413000	PLATE	$17.20	To Order

Photo	Part No	Description	Price (each)	Stock
	84413900	SHIM	$2.74	To Order

Photo	Part No	Description	Price (each)	Stock
	85422500	SHIM	$4.59	To Order

Photo	Part No	Description	Price (each)	Stock
	900536	REAR SCREEN LIFTER	$936.08	To Order

Photo	Part No	Description	Price (each)	Stock
	84801200	ADHESIVE STRIP	$9.13	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	941704	REAR SCREEN	941704 REAR SCREEN	$705.10	1
0002	857099	INTERNAL REAR SCREEN SEAL	857099 INTERNAL REAR SCREEN SEAL	$384.11	1
0003	13046011	NUT	13046011 NUT M5 X 5	$0.39	8
0004	857101	EXTERNAL REAR SCREEN SEAL	857101 EXTERNAL REAR SCREEN SEAL	$410.60	1
0005	84413000	PLATE	84413000 PLATE	$17.20	2
0006	84413900	SHIM	84413900 SHIM	$2.74	4
0007	85422500	SHIM	85422500 SHIM Th. 3 mm	$4.59	2
0008	900536	REAR SCREEN LIFTER	900536 REAR SCREEN LIFTER	$936.08	1
0009	84801200	ADHESIVE STRIP	84801200 ADHESIVE STRIP	$9.13	1
0010	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M6 X 6.2	$1.51	7
0011	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M5	$1.51	1
