FORCED INDUCTION SYSTEM PIPES of Ferrari Ferrari SF90 Stradale Europe RH

View All

Ferrari SF90 Stradale Europe RH - FORCED INDUCTION SYSTEM PIPES

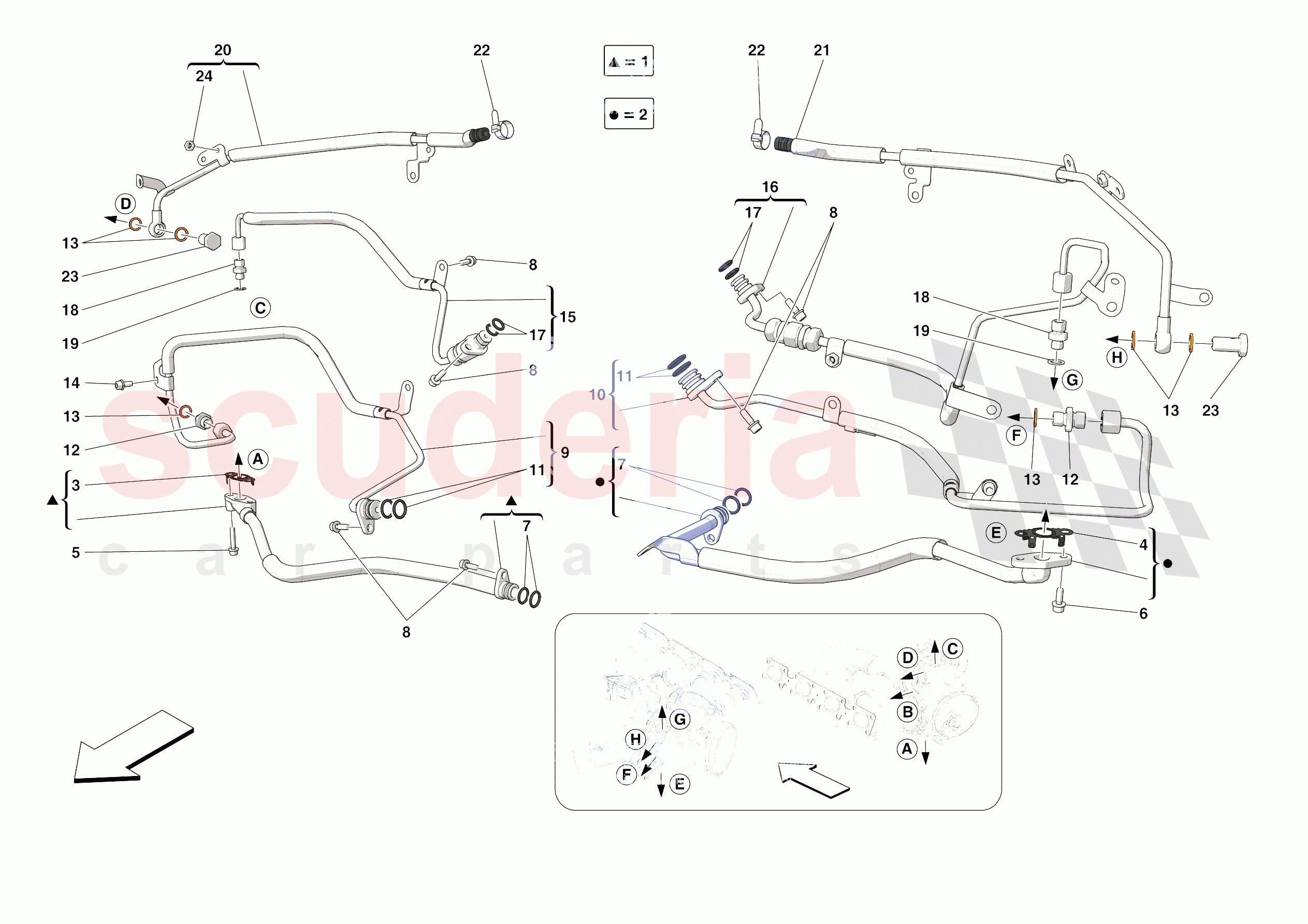

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985623	OIL RETURN PIPE FROM RH TURBO	Enquire	To Order
	802274	OIL RETURN PIPE FROM RH TURBO	Enquire	To Order
	968447	OIL RETURN PIPE FROM RH TURBO	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	985624	OIL RETURN PIPE FROM LH TURBO	Enquire	To Order
	802275	OIL RETURN PIPE FROM LH TURBO	Enquire	To Order
	968448	OIL RETURN PIPE FROM LH TURBO	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	342213	OIL RECOVERY PIPE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308203	OIL RECOVERY PIPE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287722	O-RING 15.08 x 2.62	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	865067	WATER DELIVERY PIPE TO RH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	796496	LH TURBO WATER DELIVERY PIPE	Enquire	To Order
	835088	LH TURBO WATER DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14457281	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	290216	THREADED CONNECTOR WITH SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261060	GASKET COPPER 12 - 16 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	923390	OIL DELIVERY PIPE TO RH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	925718	OIL DELIVERY PIPE TO LH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14456981	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	923014	THREADED CONNECTOR WITH SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10260160	Copper Washer D. 10 - 14 x 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	901164	WATER RETURN PIPE FROM RH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	865444	WATER RETURN PIPE FROM LH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262107	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308429	HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14094010	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	985623	OIL RETURN PIPE FROM RH TURBO	985623 OIL RETURN PIPE FROM RH TURBO No longer supplied - Replaced by 802274	-	1	Enquire
0001	802274	OIL RETURN PIPE FROM RH TURBO	802274 OIL RETURN PIPE FROM RH TURBO No longer supplied - Replaced by 788105	-	1	Enquire
0001	968447	OIL RETURN PIPE FROM RH TURBO	968447 OIL RETURN PIPE FROM RH TURBO	-	1	Enquire
0001	968447	OIL RETURN PIPE FROM RH TURBO	968447 OIL RETURN PIPE FROM RH TURBO	-	1	Enquire
0002	985624	OIL RETURN PIPE FROM LH TURBO	985624 OIL RETURN PIPE FROM LH TURBO No longer supplied - Replaced by 802275	-	1	Enquire
0002	802275	OIL RETURN PIPE FROM LH TURBO	802275 OIL RETURN PIPE FROM LH TURBO No longer supplied - Replaced by 788106	-	1	Enquire
0002	968448	OIL RETURN PIPE FROM LH TURBO	968448 OIL RETURN PIPE FROM LH TURBO	-	1	Enquire
0002	968448	OIL RETURN PIPE FROM LH TURBO	968448 OIL RETURN PIPE FROM LH TURBO	-	1	Enquire
0003	342213	OIL RECOVERY PIPE SEAL	342213 OIL RECOVERY PIPE SEAL Also included in Short block gasket series - Also included in engine gasket set	-	1	Enquire
0004	308203	OIL RECOVERY PIPE SEAL	308203 OIL RECOVERY PIPE SEAL Also included in Short block gasket series - Also included in engine gasket set	-	1	Enquire
0005	231620	SCREW	231620 SCREW M6 X 30	-	2	Enquire
0006	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	2	Enquire
0007	287722	O-RING 15.08 x 2.62	287722 O-RING 15.08 x 2.62 Also included in Short block gasket series - Also included in engine gasket set	-	4	Enquire
0008	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	7	Enquire
0009	865067	WATER DELIVERY PIPE TO RH TURBO	865067 WATER DELIVERY PIPE TO RH TURBO	-	1	Enquire
0010	796496	LH TURBO WATER DELIVERY PIPE	796496 LH TURBO WATER DELIVERY PIPE Applies until depletion	-	1	Enquire
0010	835088	LH TURBO WATER DELIVERY PIPE	835088 LH TURBO WATER DELIVERY PIPE Applicable after depletion of 796496	-	1	Enquire
0011	14457281	GASKET	14457281 GASKET Also included in Short block gasket series - Also included in engine gasket set	-	4	Enquire
0012	290216	THREADED CONNECTOR WITH SEAL RING	290216 THREADED CONNECTOR WITH SEAL RING	-	2	Enquire
0013	10261060	GASKET COPPER 12 - 16 X 1.5	10261060 GASKET COPPER 12 - 16 X 1.5 Also included in engine gasket set	-	6	Enquire
0014	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	10	Enquire
0015	923390	OIL DELIVERY PIPE TO RH TURBO	923390 OIL DELIVERY PIPE TO RH TURBO	-	1	Enquire
0016	925718	OIL DELIVERY PIPE TO LH TURBO	925718 OIL DELIVERY PIPE TO LH TURBO	-	1	Enquire
0017	14456981	GASKET	14456981 GASKET Also included in Short block gasket series - Also included in engine gasket set	-	4	Enquire
0018	923014	THREADED CONNECTOR WITH SEAL RING	923014 THREADED CONNECTOR WITH SEAL RING	-	2	Enquire
0019	10260160	Copper Washer D. 10 - 14 x 1	10260160 Copper Washer D. 10 - 14 x 1 Also included in engine gasket set	-	2	Enquire
0020	901164	WATER RETURN PIPE FROM RH TURBO	901164 WATER RETURN PIPE FROM RH TURBO	-	1	Enquire
0021	865444	WATER RETURN PIPE FROM LH TURBO	865444 WATER RETURN PIPE FROM LH TURBO	-	1	Enquire
0022	262107	SCREW COLLAR	262107 SCREW COLLAR	-	2	Enquire
0023	308429	HOSE CONNECTOR	308429 HOSE CONNECTOR	-	2	Enquire
0024	14094010	NUT	14094010 NUT	-	1	Enquire
