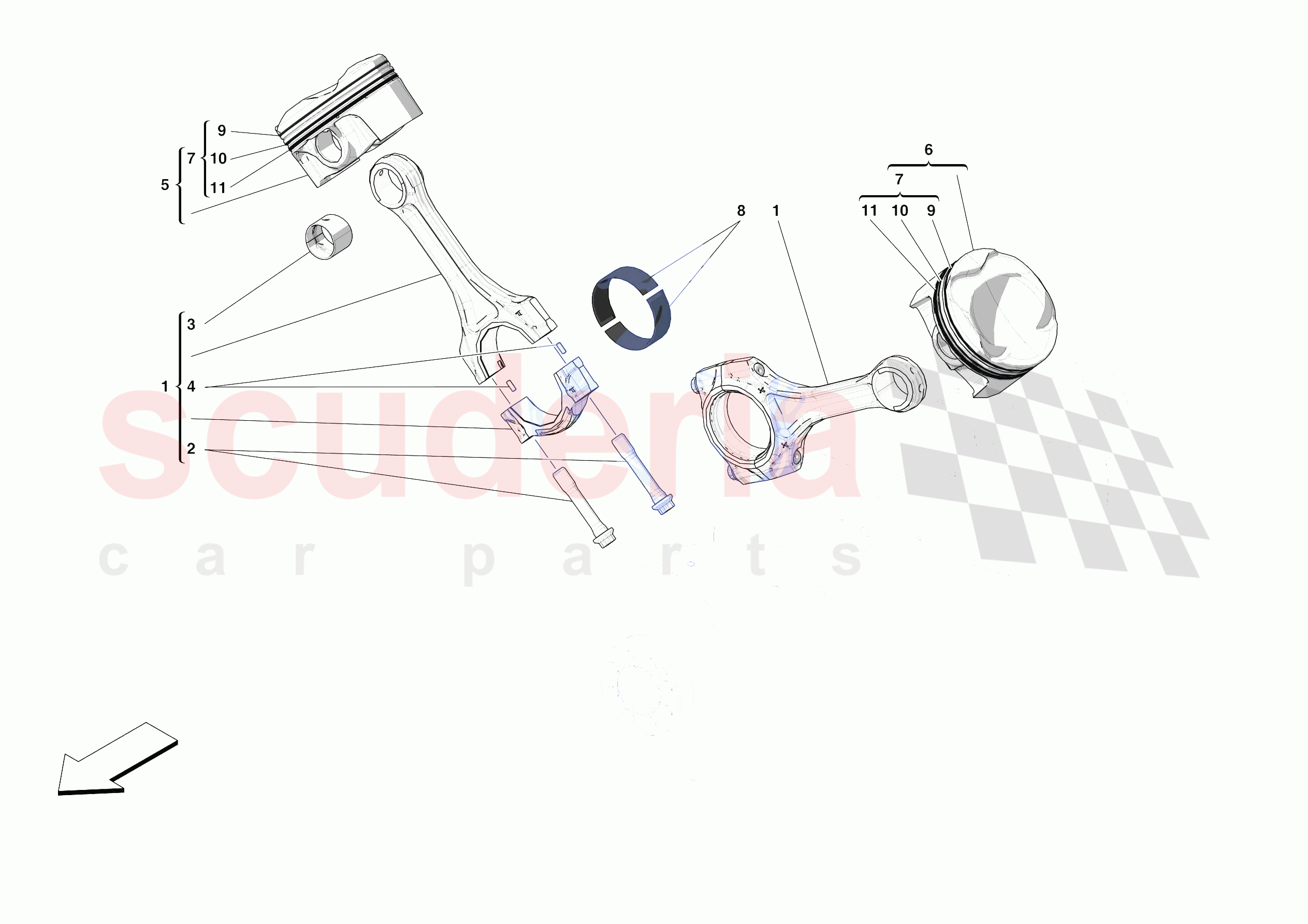

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	849385	COMPL. CONNECTING ROD AND CAP	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	270248	SCREW	$23.50	To Order

Photo	Part No	Description	Price (each)	Stock
	849393	BUSH	$34.38	To Order

Photo	Part No	Description	Price (each)	Stock
	292751	ALIGNMENT PIN	$28.66	To Order

Photo	Part No	Description	Price (each)	Stock
	882750	COMPL. RH PISTON	$602.03	To Order

Photo	Part No	Description	Price (each)	Stock
	882751	COMPL. LH PISTON	$602.03	To Order

Photo	Part No	Description	Price (each)	Stock
	867916	SEAL RING	$78.82	To Order

Photo	Part No	Description	Price (each)	Stock
	867917	SEAL RING	$45.85	To Order

Photo	Part No	Description	Price (each)	Stock
	860820	OIL SCRAPER RING	$64.49	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	849385	COMPL. CONNECTING ROD AND CAP	849385 COMPL. CONNECTING ROD AND CAP	$240.67	8
0002	270248	SCREW	270248 SCREW	$23.50	16
0003	849393	BUSH	849393 BUSH	$34.38	8
0004	292751	ALIGNMENT PIN	292751 ALIGNMENT PIN	$28.66	16
0005	882750	COMPL. RH PISTON	882750 COMPL. RH PISTON	$602.03	4
0006	882751	COMPL. LH PISTON	882751 COMPL. LH PISTON	$602.03	4
0008	312692	CONNECTING ROD HALF-BEARING	312692 CONNECTING ROD HALF-BEARING Blue	$20.05	16
0008	312693	CONNECTING ROD HALF-BEARING	312693 CONNECTING ROD HALF-BEARING Red	$20.05	16
0008	312694	CONNECTING ROD HALF-BEARING	312694 CONNECTING ROD HALF-BEARING Pink	$20.05	16
0009	867916	SEAL RING	867916 SEAL RING 1st groove	$78.82	8
0010	867917	SEAL RING	867917 SEAL RING 2nd groove	$45.85	8
0011	860820	OIL SCRAPER RING	860820 OIL SCRAPER RING 3rd groove	$64.49	8
