CENTRE TUNNEL AND CONSOLE of Ferrari Ferrari SF90 Spider USA

View All

Ferrari SF90 Spider USA - CENTRE TUNNEL AND CONSOLE

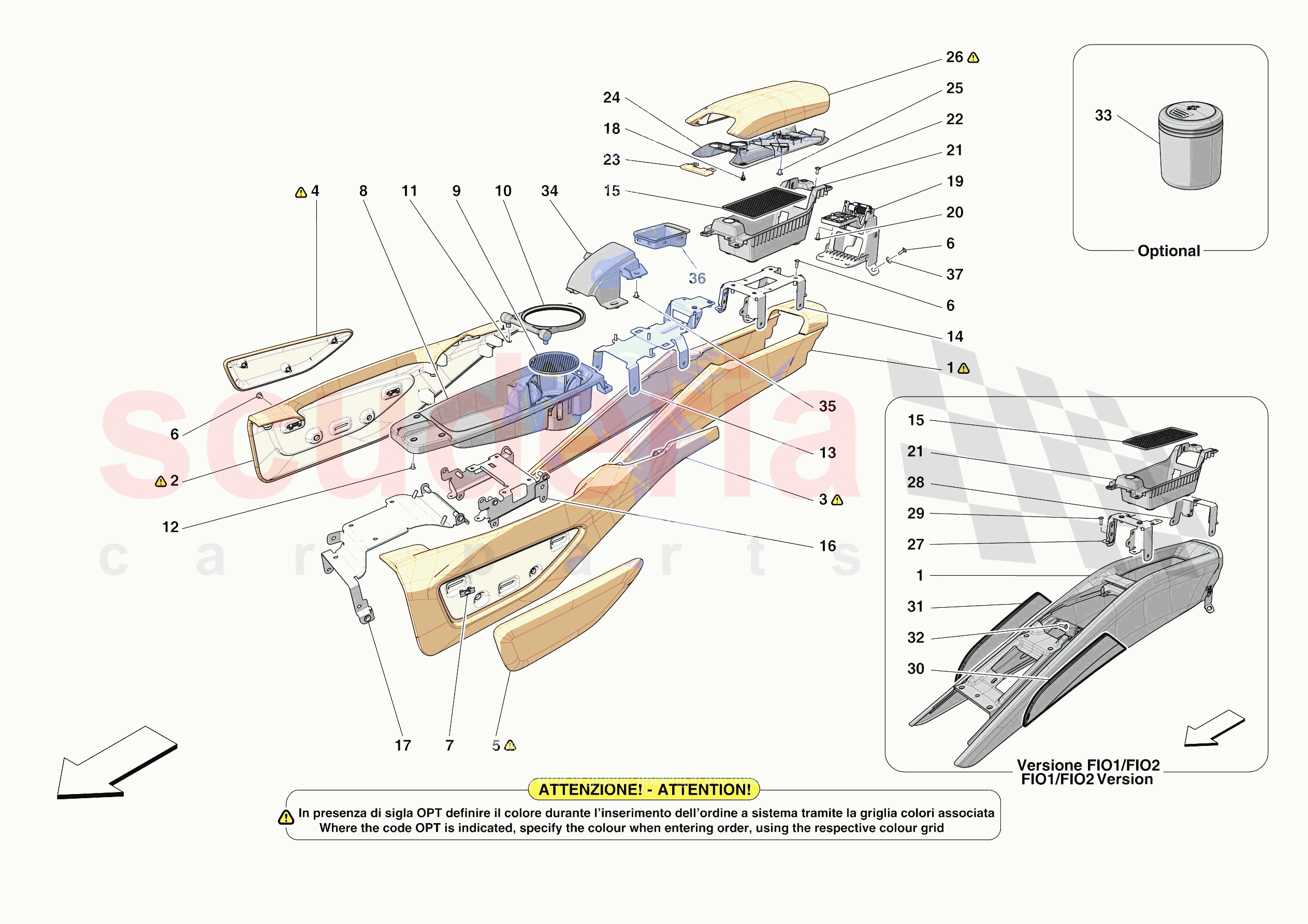

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	866645	COMPL. REAR CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order
	873902	REAR CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order
	70007032	REAR CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	878013	COMPL. RH FRONT CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order
	873900	COMPL. RH FRONT CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order
	70007033	COMPL. RH FRONT CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	877986	COMPL. LH FRONT CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order
	873899	COMPL. LH FRONT CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order
	70007034	COMPL. LH FRONT CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	847914	COMPL. RH CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	847915	COMPL. LH CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700200	SNAP FASTENING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	878016	COMPL. CUP HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	813697	CUP HOLDER BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	879820	COMPL. CUP HOLDER RING	Enquire	To Order
	70007035	COMPL. CUP HOLDER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639901	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	875061	CENTRE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	916573	CENTRE CONSOLE UNIT TRAY BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	866644	CONSOLE UNIT TRAY BASE MAT	Enquire	To Order
	826179	CONSOLE UNIT TRAY BASE MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	814385	FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	871803	HEAT SHIELD BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84918500	RUBBER PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	892655	COMPL. TUNNEL HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	892654	COMPL. UNIT TRAY	Enquire	To Order
	857554	COMPL. UNIT TRAY	Enquire	To Order
	873901	CENTRE CONSOLE UNIT TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	892650	HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	910535	COMPL. GLOVE COMPARTMENT DOOR BACKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	892645	COMPL. FLAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	879442	FRONT BRACKET OF CENTRE CONSOLE UNIT TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	916559	REAR CENTRE CONSOLE UNIT TRAY BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	826173	LH CENTRE SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	826176	RH CENTRE SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15902601	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83003500	ASHTRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	909913	E-CALL PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	791875	KEY HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	866645	COMPL. REAR CENTRE CONSOLE UNIT STRUCTURE	866645 COMPL. REAR CENTRE CONSOLE UNIT STRUCTURE Leather - Not for Assetto Fiorano FIO1/FIO2; STC1- -STC2	-	1	Enquire
0001	873902	REAR CENTRE CONSOLE UNIT STRUCTURE	873902 REAR CENTRE CONSOLE UNIT STRUCTURE Gloss carbon - Applicable for Assetto Fiorano FIO1/FIO2	-	1	Enquire
0001	70007032	REAR CENTRE CONSOLE UNIT STRUCTURE	70007032 REAR CENTRE CONSOLE UNIT STRUCTURE Version in coloured naked weave carbon - CICM - CICM for carbon colour selection - Applicable for Assetto Fiorano FIO1/FIO2 - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0002	878013	COMPL. RH FRONT CENTRE CONSOLE UNIT STRUCTURE	878013 COMPL. RH FRONT CENTRE CONSOLE UNIT STRUCTURE Alcantara; INTA	-	1	Enquire
0002	873900	COMPL. RH FRONT CENTRE CONSOLE UNIT STRUCTURE	873900 COMPL. RH FRONT CENTRE CONSOLE UNIT STRUCTURE Gloss carbon	-	1	Enquire
0002	70007033	COMPL. RH FRONT CENTRE CONSOLE UNIT STRUCTURE	70007033 COMPL. RH FRONT CENTRE CONSOLE UNIT STRUCTURE Version in coloured naked weave carbon - CICM - CICM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0003	877986	COMPL. LH FRONT CENTRE CONSOLE UNIT STRUCTURE	877986 COMPL. LH FRONT CENTRE CONSOLE UNIT STRUCTURE Alcantara; INTA	-	1	Enquire
0003	873899	COMPL. LH FRONT CENTRE CONSOLE UNIT STRUCTURE	873899 COMPL. LH FRONT CENTRE CONSOLE UNIT STRUCTURE Gloss carbon	-	1	Enquire
0003	70007034	COMPL. LH FRONT CENTRE CONSOLE UNIT STRUCTURE	70007034 COMPL. LH FRONT CENTRE CONSOLE UNIT STRUCTURE Version in coloured naked weave carbon - CICM - CICM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0004	847914	COMPL. RH CUSHION	847914 COMPL. RH CUSHION Alcantara; INTA	-	1	Enquire
0005	847915	COMPL. LH CUSHION	847915 COMPL. LH CUSHION Alcantara; INTA	-	1	Enquire
0006	85833700	SCREW	85833700 SCREW Not for Assetto Fiorano FIO1/FIO2; M5 X 14	-	2	Enquire
0007	68700200	SNAP FASTENING CLIP	68700200 SNAP FASTENING CLIP Version for front centre tunnel console in gloss carbon	-	3	Enquire
0008	878016	COMPL. CUP HOLDER	878016 COMPL. CUP HOLDER Black felt	-	1	Enquire
0009	813697	CUP HOLDER BASE	813697 CUP HOLDER BASE Black felt	-	1	Enquire
0010	879820	COMPL. CUP HOLDER RING	879820 COMPL. CUP HOLDER RING Matte black	-	1	Enquire
0010	70007035	COMPL. CUP HOLDER RING	70007035 COMPL. CUP HOLDER RING Coloured aluminium version - AINP - AINP for aluminium colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0011	12639901	WASHER	12639901 WASHER	-	2	Enquire
0012	85833700	SCREW	85833700 SCREW M5 X 10	-	22	Enquire
0013	875061	CENTRE BRACKET	875061 CENTRE BRACKET	-	1	Enquire
0014	916573	CENTRE CONSOLE UNIT TRAY BRACKET	916573 CENTRE CONSOLE UNIT TRAY BRACKET Not for Assetto Fiorano FIO1/FIO2	-	1	Enquire
0015	866644	CONSOLE UNIT TRAY BASE MAT	866644 CONSOLE UNIT TRAY BASE MAT Not for Assetto Fiorano FIO1/FIO2	-	1	Enquire
0015	826179	CONSOLE UNIT TRAY BASE MAT	826179 CONSOLE UNIT TRAY BASE MAT Applicable for Assetto Fiorano FIO1/FIO2	-	1	Enquire
0016	814385	FRONT BRACKET	814385 FRONT BRACKET	-	1	Enquire
0017	871803	HEAT SHIELD BRACKET	871803 HEAT SHIELD BRACKET	-	1	Enquire
0018	84918500	RUBBER PAD	84918500 RUBBER PAD Not for Assetto Fiorano FIO1/FIO2	-	2	Enquire
0019	892655	COMPL. TUNNEL HINGE	892655 COMPL. TUNNEL HINGE Not for Assetto Fiorano FIO1/FIO2	-	1	Enquire
0020	85833700	SCREW	85833700 SCREW M5 X 14	-	2	Enquire
0021	892654	COMPL. UNIT TRAY	892654 COMPL. UNIT TRAY Not for Assetto Fiorano FIO1/FIO2; Applies until depletion	-	1	Enquire
0021	857554	COMPL. UNIT TRAY	857554 COMPL. UNIT TRAY Not for Assetto Fiorano FIO1/FIO2; Applicable after depletion of 892654	-	1	Enquire
0021	873901	CENTRE CONSOLE UNIT TRAY	873901 CENTRE CONSOLE UNIT TRAY Applicable for Assetto Fiorano FIO1/FIO2	-	1	Enquire
0022	85833700	SCREW	85833700 SCREW M5 X 12	-	1	Enquire
0023	892650	HANDLE	892650 HANDLE Not for Assetto Fiorano FIO1/FIO2	-	1	Enquire
0024	910535	COMPL. GLOVE COMPARTMENT DOOR BACKING	910535 COMPL. GLOVE COMPARTMENT DOOR BACKING Not for Assetto Fiorano FIO1/FIO2	-	1	Enquire
0025	85833700	SCREW	85833700 SCREW M5 X 8	-	2	Enquire
0026	892645	COMPL. FLAP	892645 COMPL. FLAP Leather - Not for Assetto Fiorano FIO1/FIO2; INTP- -STC1- -STC2	-	1	Enquire
0027	879442	FRONT BRACKET OF CENTRE CONSOLE UNIT TRAY	879442 FRONT BRACKET OF CENTRE CONSOLE UNIT TRAY Applicable for Assetto Fiorano FIO1/FIO2	-	1	Enquire
0028	916559	REAR CENTRE CONSOLE UNIT TRAY BRACKET	916559 REAR CENTRE CONSOLE UNIT TRAY BRACKET Applicable for Assetto Fiorano FIO1/FIO2	-	1	Enquire
0029	85833700	SCREW	85833700 SCREW M5 X 16	-	3	Enquire
0030	826173	LH CENTRE SURROUND	826173 LH CENTRE SURROUND Applicable for Assetto Fiorano FIO1/FIO2	-	1	Enquire
0031	826176	RH CENTRE SURROUND	826176 RH CENTRE SURROUND Applicable for Assetto Fiorano FIO1/FIO2	-	1	Enquire
0032	15902601	SCREW	15902601 SCREW Applicable for Assetto Fiorano FIO1/FIO2; 3.5 X 9.5	-	6	Enquire
0033	83003500	ASHTRAY	83003500 ASHTRAY Applicable for smoker's kit	-	1	Enquire
0034	909913	E-CALL PLUG	909913 E-CALL PLUG Not for E-CALL/ERA GLONASS system	-	1	Enquire
0035	85833700	SCREW	85833700 SCREW M5 X 10	-	4	Enquire
0036	791875	KEY HOLDER	791875 KEY HOLDER	-	1	Enquire
0037	13577724	WASHER	13577724 WASHER	-	2	Enquire
