STRUCTURES AND ELEMENTS, FRONT OF VEHICLE of Ferrari Ferrari SF90 Spider USA

View All

Ferrari SF90 Spider USA - STRUCTURES AND ELEMENTS, FRONT OF VEHICLE

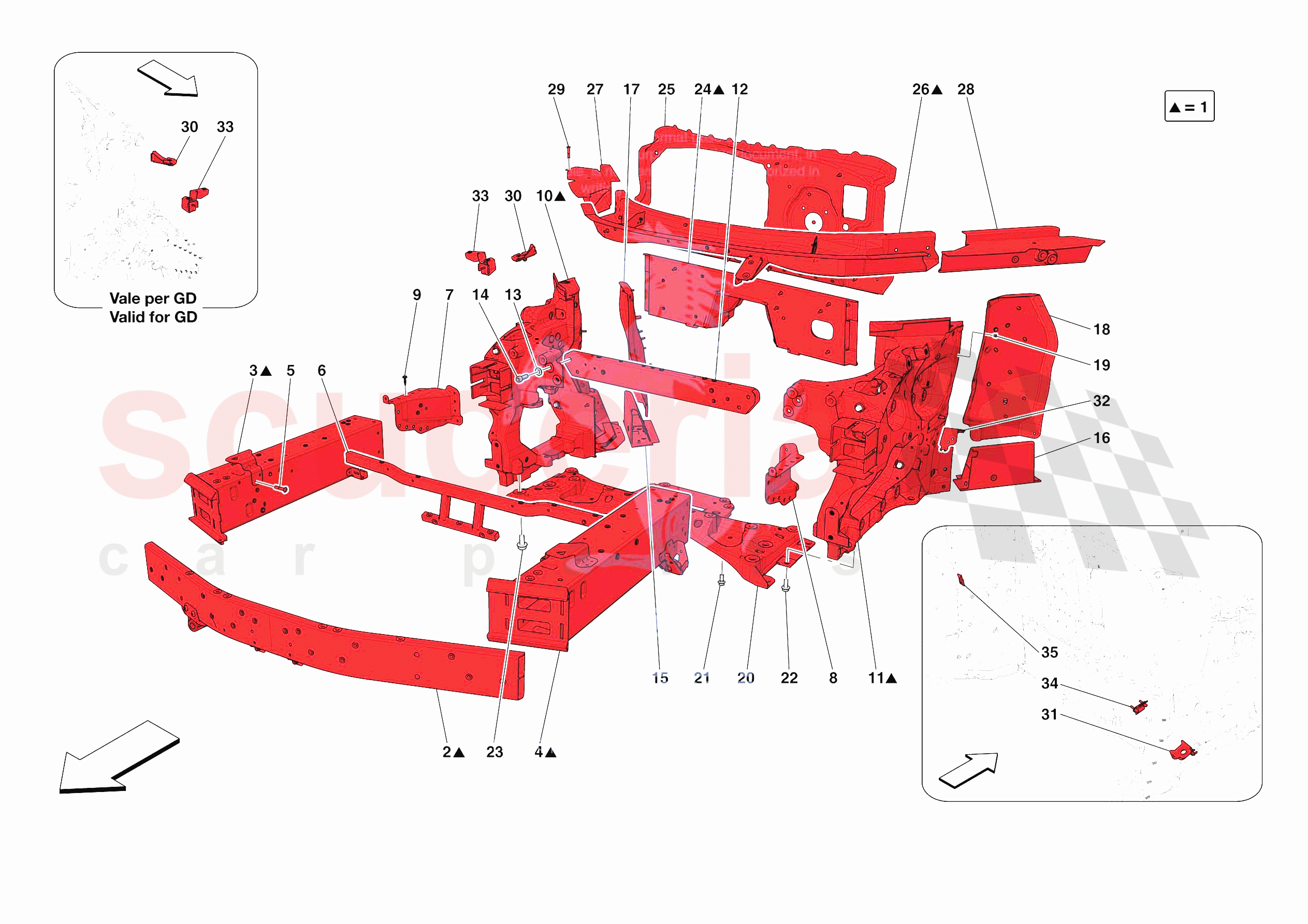

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985896563	COMPL. FRONT MODULE	Enquire	To Order
	985967724	COMPL. FRONT MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985865370	FRONT BUMPER CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985952559	RH FRONT SPAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985952467	LH FRONT SPAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204430	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985852963	COMPL. CENTRE REAR RADIATOR MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985864315	COMPL. RH FRONT STRUT TRUSS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985864318	COMPL. LH FRONT STRUT TRUSS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330777	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985854565	COMPL. RH FRONT SHOCK TOWER	Enquire	To Order
	985936100	COMPL. RH FRONT SHOCK TOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985854561	COMPL. LH FRONT SHOCK TOWER	Enquire	To Order
	985895792	COMPL. LH FRONT SHOCK TOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985850402	UPPER FRONT CASTING CONNECTOR CROSS-PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14307534	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985896973	RH LOWER PASSENGER COMPARTMENT CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985896970	LH LOWER PASSENGER COMPARTMENT CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985850195	COMPL. RH WHEEL BAY COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985850193	COMPL. LH WHEEL BAY COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985865095	LOWER FRONT SUSPENSION CROSS MEMBER CASTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16288434	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16288474	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16289834	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985896584	FRONT FLOOR CROSS MEMBER	Enquire	To Order
	985979274	FRONT FLOOR CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985850198	COMPL. FRONT FIREWALL BULKHEAD	Enquire	To Order
	985935726	COMPL. FRONT FIREWALL BULKHEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985866712	CURVED WINDSCREEN VALENCE PANEL	Enquire	To Order
	985890552	CURVED WINDSCREEN VALENCE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985897006	RH UPPER FRONT DIAGONAL BRACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985896966	LH UPPER FRONT DIAGONAL BRACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14639791	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	839847	COMPL. REAR FASTENER BRACKET FOR RH SCUTTLE DRAIN	Enquire	To Order
	893448	COMPL. REAR FASTENER BRACKET FOR LH SCUTTLE DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	928225	RH FRONT BRAKE HOSE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	928224	LH FRONT BRAKE HOSE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	866705	COMPL. RH FRONT SUBSTRUCTURE SCUTTLE DRAIN BRACKET	Enquire	To Order
	890245	COMPL. LH FRONT SUBSTRUCTURE SCUTTLE DRAIN BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	844307	COMPL. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	830598	BOWDEN CABLE BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	985896563	COMPL. FRONT MODULE	985896563 COMPL. FRONT MODULE Request ASM authorisation	-	1	Enquire
0001	985967724	COMPL. FRONT MODULE	985967724 COMPL. FRONT MODULE Request ASM authorisation	-	1	Enquire
0002	985865370	FRONT BUMPER CROSS MEMBER	985865370 FRONT BUMPER CROSS MEMBER Request ASM authorisation	-	1	Enquire
0003	985952559	RH FRONT SPAR	985952559 RH FRONT SPAR Request ASM authorisation	-	1	Enquire
0004	985952467	LH FRONT SPAR	985952467 LH FRONT SPAR Request ASM authorisation	-	1	Enquire
0005	204430	RIVET	204430 RIVET	-	24	Enquire
0006	985852963	COMPL. CENTRE REAR RADIATOR MOUNT	985852963 COMPL. CENTRE REAR RADIATOR MOUNT Request ASM authorisation	-	1	Enquire
0007	985864315	COMPL. RH FRONT STRUT TRUSS	985864315 COMPL. RH FRONT STRUT TRUSS	-	1	Enquire
0008	985864318	COMPL. LH FRONT STRUT TRUSS	985864318 COMPL. LH FRONT STRUT TRUSS	-	1	Enquire
0009	330777	RIVET	330777 RIVET	-	68	Enquire
0010	985854565	COMPL. RH FRONT SHOCK TOWER	985854565 COMPL. RH FRONT SHOCK TOWER Request ASM authorisation	-	1	Enquire
0010	985936100	COMPL. RH FRONT SHOCK TOWER	985936100 COMPL. RH FRONT SHOCK TOWER Request ASM authorisation	-	1	Enquire
0011	985854561	COMPL. LH FRONT SHOCK TOWER	985854561 COMPL. LH FRONT SHOCK TOWER Request ASM authorisation	-	1	Enquire
0011	985895792	COMPL. LH FRONT SHOCK TOWER	985895792 COMPL. LH FRONT SHOCK TOWER Request ASM authorisation	-	1	Enquire
0012	985850402	UPPER FRONT CASTING CONNECTOR CROSS-PIECE	985850402 UPPER FRONT CASTING CONNECTOR CROSS-PIECE Request ASM authorisation	-	1	Enquire
0013	13578324	WASHER	13578324 WASHER	-	4	Enquire
0014	14307534	SCREW	14307534 SCREW M10 X 1.25 X 30	-	4	Enquire
0015	985896973	RH LOWER PASSENGER COMPARTMENT CONNECTION	985896973 RH LOWER PASSENGER COMPARTMENT CONNECTION	-	1	Enquire
0016	985896970	LH LOWER PASSENGER COMPARTMENT CONNECTION	985896970 LH LOWER PASSENGER COMPARTMENT CONNECTION	-	1	Enquire
0017	985850195	COMPL. RH WHEEL BAY COVER	985850195 COMPL. RH WHEEL BAY COVER	-	1	Enquire
0018	985850193	COMPL. LH WHEEL BAY COVER	985850193 COMPL. LH WHEEL BAY COVER	-	1	Enquire
0020	985865095	LOWER FRONT SUSPENSION CROSS MEMBER CASTING	985865095 LOWER FRONT SUSPENSION CROSS MEMBER CASTING Request ASM authorisation	-	1	Enquire
0021	16288434	SCREW	16288434 SCREW M10 X 1.25 X 25	-	6	Enquire
0022	16288474	SCREW	16288474 SCREW M10 X 1.25 X 25	-	10	Enquire
0023	16289834	SCREW	16289834 SCREW M10 X 1.25 X 30	-	8	Enquire
0024	985896584	FRONT FLOOR CROSS MEMBER	985896584 FRONT FLOOR CROSS MEMBER Request ASM authorisation	-	1	Enquire
0024	985979274	FRONT FLOOR CROSS MEMBER	985979274 FRONT FLOOR CROSS MEMBER Request ASM authorisation	-	1	Enquire
0025	985850198	COMPL. FRONT FIREWALL BULKHEAD	985850198 COMPL. FRONT FIREWALL BULKHEAD Request ASM authorisation	-	1	Enquire
0025	985935726	COMPL. FRONT FIREWALL BULKHEAD	985935726 COMPL. FRONT FIREWALL BULKHEAD Request ASM authorisation	-	1	Enquire
0026	985866712	CURVED WINDSCREEN VALENCE PANEL	985866712 CURVED WINDSCREEN VALENCE PANEL Request ASM authorisation	-	1	Enquire
0026	985890552	CURVED WINDSCREEN VALENCE PANEL	985890552 CURVED WINDSCREEN VALENCE PANEL Request ASM authorisation	-	1	Enquire
0027	985897006	RH UPPER FRONT DIAGONAL BRACE	985897006 RH UPPER FRONT DIAGONAL BRACE Request ASM authorisation	-	1	Enquire
0028	985896966	LH UPPER FRONT DIAGONAL BRACE	985896966 LH UPPER FRONT DIAGONAL BRACE Request ASM authorisation	-	1	Enquire
0029	14639791	RIVET	14639791 RIVET	-	4	Enquire
0030	839847	COMPL. REAR FASTENER BRACKET FOR RH SCUTTLE DRAIN	839847 COMPL. REAR FASTENER BRACKET FOR RH SCUTTLE DRAIN	-	1	Enquire
0030	893448	COMPL. REAR FASTENER BRACKET FOR LH SCUTTLE DRAIN	893448 COMPL. REAR FASTENER BRACKET FOR LH SCUTTLE DRAIN	-	1	Enquire
0031	928225	RH FRONT BRAKE HOSE BRACKET	928225 RH FRONT BRAKE HOSE BRACKET	-	1	Enquire
0032	928224	LH FRONT BRAKE HOSE BRACKET	928224 LH FRONT BRAKE HOSE BRACKET	-	1	Enquire
0033	866705	COMPL. RH FRONT SUBSTRUCTURE SCUTTLE DRAIN BRACKET	866705 COMPL. RH FRONT SUBSTRUCTURE SCUTTLE DRAIN BRACKET	-	1	Enquire
0033	890245	COMPL. LH FRONT SUBSTRUCTURE SCUTTLE DRAIN BRACKET	890245 COMPL. LH FRONT SUBSTRUCTURE SCUTTLE DRAIN BRACKET	-	1	Enquire
0034	844307	COMPL. BRACKET	844307 COMPL. BRACKET	-	1	Enquire
0035	830598	BOWDEN CABLE BRACKET	830598 BOWDEN CABLE BRACKET	-	1	Enquire
