Name: REAR WHEELHOUSE
Rating: 4.5 (1 reviews)

View All

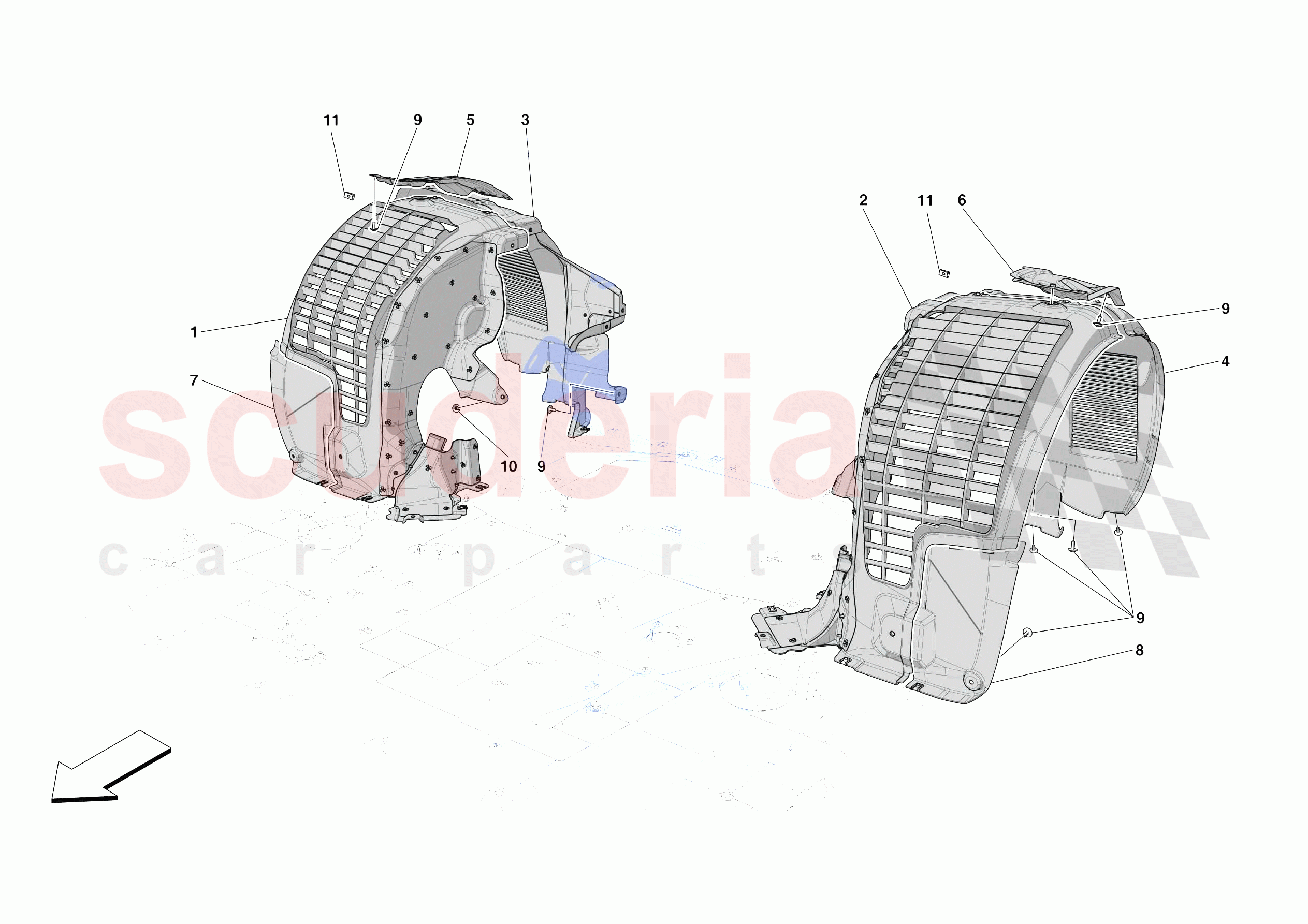

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	849833	COMPL. RH REAR WHEELHOUSE	$450.34	To Order

Photo	Part No	Description	Price (each)	Stock
	849829	COMPL. LH REAR WHEELHOUSE	$450.34	To Order

Photo	Part No	Description	Price (each)	Stock
	849848	COMPL. RH REAR FENDER BLANKING CAP	$67.38	To Order

Photo	Part No	Description	Price (each)	Stock
	849846	COMPL. LH REAR FENDER BLANKING CAP	$67.38	To Order

Photo	Part No	Description	Price (each)	Stock
	849836	COVER PLATE ON RH REAR WHEELHOUSE	$14.93	To Order

Photo	Part No	Description	Price (each)	Stock
	849831	COVER PLATE ON LH REAR WHEELHOUSE	$14.93	To Order

Photo	Part No	Description	Price (each)	Stock
	936581	SCREW	$0.66	To Order

Photo	Part No	Description	Price (each)	Stock
	14591687	FASTENER BUTTON	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14189071	BRACKET FOR SCREW	$0.76	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	849833	COMPL. RH REAR WHEELHOUSE	849833 COMPL. RH REAR WHEELHOUSE	$450.34	1
0002	849829	COMPL. LH REAR WHEELHOUSE	849829 COMPL. LH REAR WHEELHOUSE	$450.34	1
0003	849842	COMPL. RH GRAVEL GUARD	849842 COMPL. RH GRAVEL GUARD	$172.18	1
0003	913420	COMPL. RH GRAVEL GUARD	913420 COMPL. RH GRAVEL GUARD	$211.92	1
0004	849839	COMPL. LH GRAVEL GUARD	849839 COMPL. LH GRAVEL GUARD	$119.19	1
0004	913419	COMPL. LH GRAVEL GUARD	913419 COMPL. LH GRAVEL GUARD	$172.18	1
0005	849848	COMPL. RH REAR FENDER BLANKING CAP	849848 COMPL. RH REAR FENDER BLANKING CAP	$67.38	1
0006	849846	COMPL. LH REAR FENDER BLANKING CAP	849846 COMPL. LH REAR FENDER BLANKING CAP	$67.38	1
0007	849836	COVER PLATE ON RH REAR WHEELHOUSE	849836 COVER PLATE ON RH REAR WHEELHOUSE	$14.93	1
0008	849831	COVER PLATE ON LH REAR WHEELHOUSE	849831 COVER PLATE ON LH REAR WHEELHOUSE	$14.93	1
0009	936581	SCREW	936581 SCREW M6 X 18	$0.66	35
0010	14591687	FASTENER BUTTON	14591687 FASTENER BUTTON	$0.06 MSRP: ~~0.49~~ (87.8% off)	2
0011	14189071	BRACKET FOR SCREW	14189071 BRACKET FOR SCREW	$0.76 MSRP: ~~1.49~~ (49% off)	4
