CENTRE TUNNEL AND CONSOLE of Ferrari Ferrari Roma Spider Europe

View All

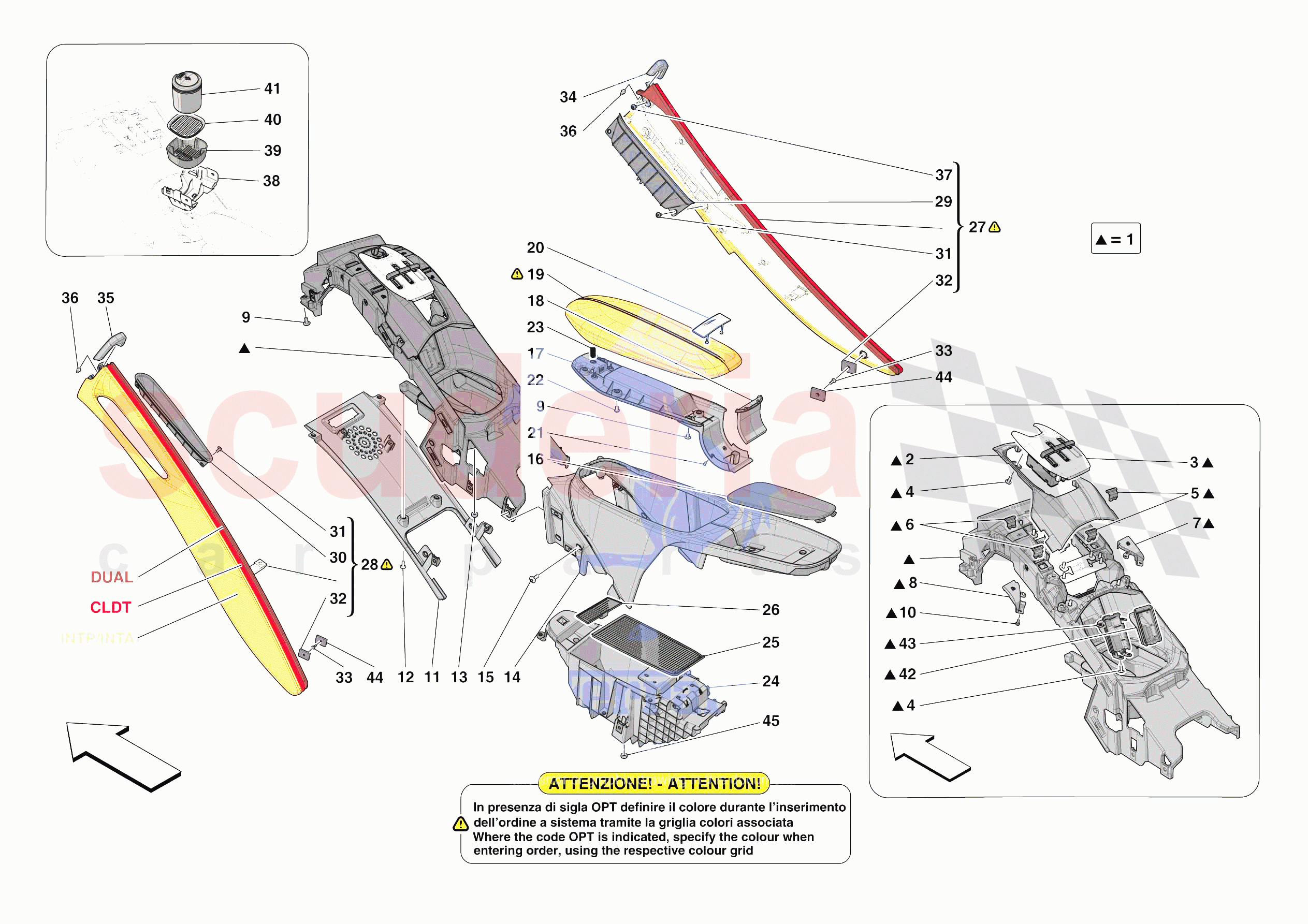

Ferrari Roma Spider Europe - CENTRE TUNNEL AND CONSOLE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	870160	CONSOLE UNIT CARRIER	Enquire	To Order
	946752	CONSOLE UNIT CARRIER	Enquire	To Order
	870157	CONSOLE UNIT CARRIER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	902788	UPPER CENTRE SURROUND	Enquire	To Order
	904105	UPPER CENTRE SURROUND	Enquire	To Order
	910316	UPPER CENTRE SURROUND	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	810085	COMPL. F1 CONTROL PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902764	RH POWER WINDOW SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902786	LH POWER WINDOW SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	343526	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902770	CARRIER UNDERTRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65708600	SPACER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902794	COMPL. REAR CENTRE CONSOLE UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902776	COMPL. REAR COMPARTMENT MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902808	COMPL. GLOVE COMPARTMENT DOOR BACKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902763	REAR COMPARTMENT LID BACKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902803	TUNNEL FLAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	779022	TUNNEL PLAQUE	Enquire	To Order
	779035	TUNNEL PLAQUE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12678877	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	817501	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89096400	REAR COMPARTMENT LID BACKING HANDLE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	857523	COMPL. UNIT TRAY	Enquire	To Order
	857519	COMPL. UNIT TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902789	CONSOLE UNIT TRAY BASE MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902920	FRONT CONSOLE UNIT TRAY BASE MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902813	RH SIDE PANEL	Enquire	To Order
	904198	RH SIDE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902810	LH SIDE PANEL	Enquire	To Order
	904211	LH SIDE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902767	RH SIDE PANEL POCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902778	LH SIDE PANEL POCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	795930	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	921994	DUAL LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80365900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	810083	RH FLANK CHROME ACCENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	810082	LH FLANK CHROME ACCENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	964386	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902802	CUP HOLDER CONNECTOR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	922784	ASHTRAY BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902819	CUP HOLDER BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88765900	ASHTRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902774	KEY CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902836	KEY SURROUND BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	921994	DUAL LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65708600	SPACER BUSHING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	870160	CONSOLE UNIT CARRIER	870160 CONSOLE UNIT CARRIER	-	1	Enquire
0001	946752	CONSOLE UNIT CARRIER	946752 CONSOLE UNIT CARRIER	-	1	Enquire
0001	870157	CONSOLE UNIT CARRIER	870157 CONSOLE UNIT CARRIER Gloss finish carbon version	-	1	Enquire
0001	946750	CONSOLE UNIT CARRIER	946750 CONSOLE UNIT CARRIER Gloss finish carbon version	-	1	Enquire
0001	888002	CONSOLE UNIT CARRIER	888002 CONSOLE UNIT CARRIER Applicable for E-CALL system	-	1	Enquire
0001	870159	CONSOLE UNIT CARRIER	870159 CONSOLE UNIT CARRIER Gloss finish carbon version - Applicable for E-CALL system	-	1	Enquire
0002	902788	UPPER CENTRE SURROUND	902788 UPPER CENTRE SURROUND	-	1	Enquire
0002	904105	UPPER CENTRE SURROUND	904105 UPPER CENTRE SURROUND Gloss finish carbon version	-	1	Enquire
0002	910316	UPPER CENTRE SURROUND	910316 UPPER CENTRE SURROUND Applicable for E-CALL system	-	1	Enquire
0002	910226	UPPER CENTRE SURROUND	910226 UPPER CENTRE SURROUND Gloss finish carbon version - Applicable for E-CALL system	-	1	Enquire
0003	810085	COMPL. F1 CONTROL PANEL	810085 COMPL. F1 CONTROL PANEL	-	1	Enquire
0004	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	16	Enquire
0007	902764	RH POWER WINDOW SURROUND	902764 RH POWER WINDOW SURROUND	-	1	Enquire
0008	902786	LH POWER WINDOW SURROUND	902786 LH POWER WINDOW SURROUND	-	1	Enquire
0009	85833700	SCREW	85833700 SCREW M5 X 14	-	12	Enquire
0010	343526	SCREW	343526 SCREW M3 X 8	-	18	Enquire
0011	902770	CARRIER UNDERTRAY	902770 CARRIER UNDERTRAY	-	1	Enquire
0012	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	4	Enquire
0013	65708600	SPACER BUSHING	65708600 SPACER BUSHING	-	2	Enquire
0014	902794	COMPL. REAR CENTRE CONSOLE UNIT	902794 COMPL. REAR CENTRE CONSOLE UNIT	-	1	Enquire
0015	85833700	SCREW	85833700 SCREW M5 X 14	-	12	Enquire
0016	902776	COMPL. REAR COMPARTMENT MAT	902776 COMPL. REAR COMPARTMENT MAT	-	1	Enquire
0017	902808	COMPL. GLOVE COMPARTMENT DOOR BACKING	902808 COMPL. GLOVE COMPARTMENT DOOR BACKING	-	1	Enquire
0018	902763	REAR COMPARTMENT LID BACKING	902763 REAR COMPARTMENT LID BACKING	-	1	Enquire
0019	902803	TUNNEL FLAP	902803 TUNNEL FLAP Leather; DUAL- -STC1- -STC2	-	1	Enquire
0020	779022	TUNNEL PLAQUE	779022 TUNNEL PLAQUE Version with silver dedication plaque - Version with vehicle logo	-	1	Enquire
0020	779035	TUNNEL PLAQUE	779035 TUNNEL PLAQUE Version with customisable silver dedication plaque - 1DED for selection of dedication wording	-	1	Enquire
0021	12678877	SCREW	12678877 SCREW M3 X 8	-	4	Enquire
0022	817501	SCREW	817501 SCREW M5 X 10	-	8	Enquire
0023	89096400	REAR COMPARTMENT LID BACKING HANDLE SPRING	89096400 REAR COMPARTMENT LID BACKING HANDLE SPRING	-	1	Enquire
0024	857523	COMPL. UNIT TRAY	857523 COMPL. UNIT TRAY	-	1	Enquire
0024	857519	COMPL. UNIT TRAY	857519 COMPL. UNIT TRAY Version with Smartphone Interface	-	1	Enquire
0025	902789	CONSOLE UNIT TRAY BASE MAT	902789 CONSOLE UNIT TRAY BASE MAT	-	1	Enquire
0026	902920	FRONT CONSOLE UNIT TRAY BASE MAT	902920 FRONT CONSOLE UNIT TRAY BASE MAT	-	1	Enquire
0027	902813	RH SIDE PANEL	902813 RH SIDE PANEL INTA - INTA for colour selection of lateral Alcantara part - CLDT - CLDT for colour selection of details in leather - DUAL - DUAL for colour selection of leather part	-	1	Enquire
0027	904198	RH SIDE PANEL	904198 RH SIDE PANEL INTP - INTP for colour selection of lateral leather part - CLDT - CLDT for colour selection of details in leather - DUAL - DUAL for colour selection of leather part	-	1	Enquire
0028	902810	LH SIDE PANEL	902810 LH SIDE PANEL INTA - INTA for colour selection of lateral Alcantara part - CLDT - CLDT for colour selection of details in leather - DUAL - DUAL for colour selection of leather part	-	1	Enquire
0028	904211	LH SIDE PANEL	904211 LH SIDE PANEL INTP - INTP for colour selection of lateral leather part - CLDT - CLDT for colour selection of details in leather - DUAL - DUAL for colour selection of leather part	-	1	Enquire
0029	902767	RH SIDE PANEL POCKET	902767 RH SIDE PANEL POCKET Black felt	-	1	Enquire
0030	902778	LH SIDE PANEL POCKET	902778 LH SIDE PANEL POCKET Black felt	-	1	Enquire
0031	795930	SCREW	795930 SCREW M4 X 8	-	4	Enquire
0032	921994	DUAL LOCK	921994 DUAL LOCK	-	2	Enquire
0033	80365900	SCREW	80365900 SCREW M4 X 12	-	2	Enquire
0034	810083	RH FLANK CHROME ACCENT	810083 RH FLANK CHROME ACCENT	-	1	Enquire
0035	810082	LH FLANK CHROME ACCENT	810082 LH FLANK CHROME ACCENT	-	1	Enquire
0036	964386	PIN	964386 PIN	-	2	Enquire
0037	85833700	SCREW	85833700 SCREW M5 X 8	-	4	Enquire
0038	902802	CUP HOLDER CONNECTOR BRACKET	902802 CUP HOLDER CONNECTOR BRACKET	-	1	Enquire
0039	922784	ASHTRAY BASE	922784 ASHTRAY BASE Applicable for smoker's kit	-	1	Enquire
0040	902819	CUP HOLDER BASE	902819 CUP HOLDER BASE	-	1	Enquire
0041	88765900	ASHTRAY	88765900 ASHTRAY Applicable for smoker's kit	-	1	Enquire
0042	902774	KEY CONTAINER	902774 KEY CONTAINER	-	1	Enquire
0043	902836	KEY SURROUND BODY	902836 KEY SURROUND BODY	-	1	Enquire
0044	921994	DUAL LOCK	921994 DUAL LOCK	-	2	Enquire
0045	65708600	SPACER BUSHING	65708600 SPACER BUSHING 7.5 X 18 X 5.0	-	4	Enquire
