LUGGAGE COMPARTMENT MATS of Ferrari Ferrari Roma Spider Europe

View All

Ferrari Roma Spider Europe - LUGGAGE COMPARTMENT MATS

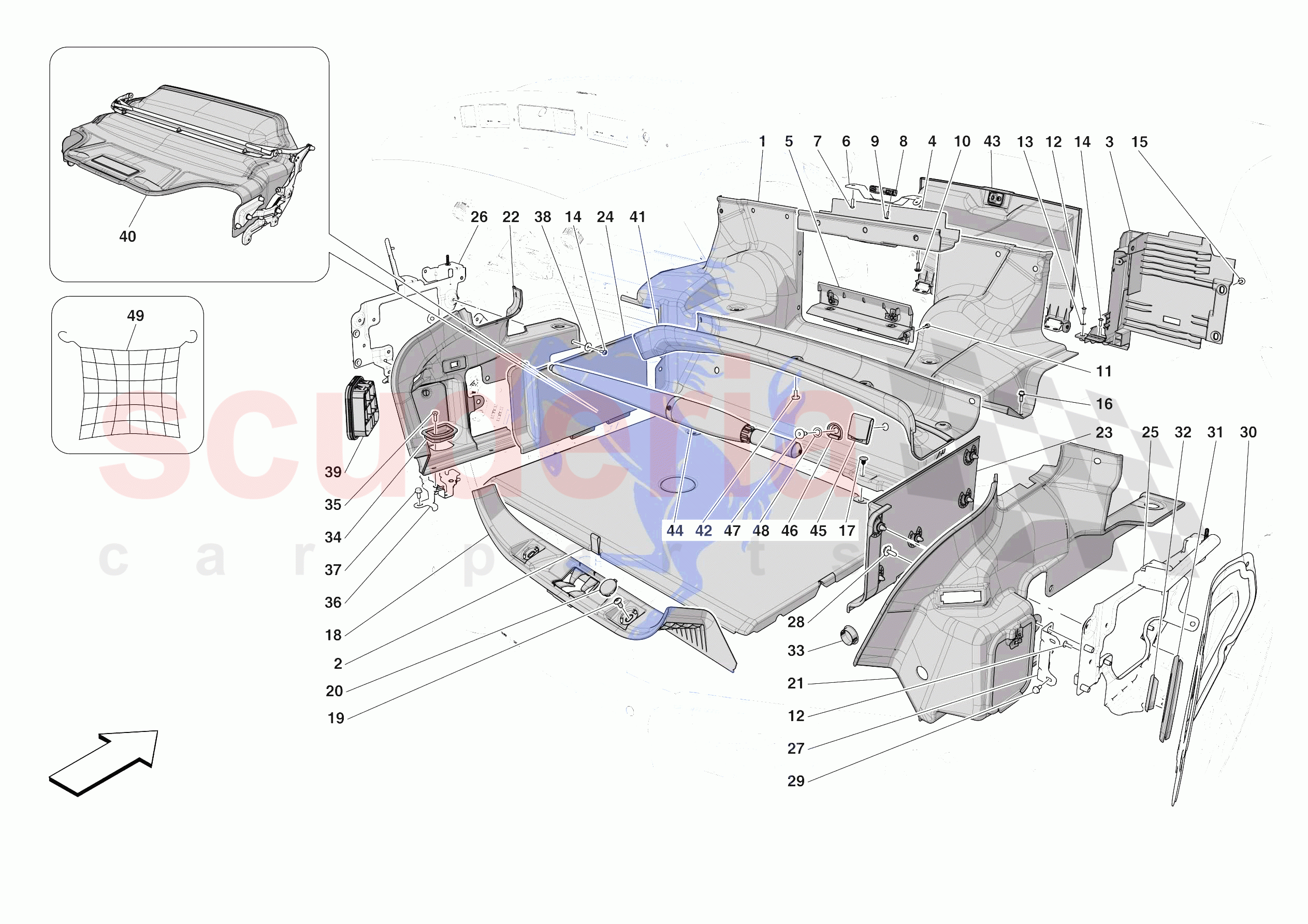

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	869058	LUGGAGE COMPARTMENT TRIM, FRONT PART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869042	COMPL. LOAD FLOOR TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869051	RH ROLL BAR COVER TRIM	Enquire	To Order
	869140	LH ROLL BAR COVER TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869038	FRONT ROLL BAR COVER TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	944818	INSPECTION CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869040	LUGGAGE COMPARTMENT SEPARATOR FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86276300	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	832548	LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	826584	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	774707	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65361300	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85629300	SCREW M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14591687	FASTENER BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	904793	SILL PROTECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85740000	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85895100	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869137	LUGGAGE COMPARTMENT TRIM, RH SIDE PART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869045	COMPL. LH SIDE LUGGAGE COMPARTMENT TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869036	RH LATERAL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869138	LH LATERAL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869041	RH SEPARATOR FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869123	LH SEPARATOR FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902086	PROP FREE PLAY ADJUSTMENT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	851835	LUGGAGE COMPARTMENT CANISTER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250480	INSPECTION CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14507187	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	750104	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82541600	LUGGAGE RETAINER HOOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	800549	LH LUGGAGE COMPARTMENT TRIM MOUNTING BRACKET	Enquire	To Order
	800550	RH LUGGAGE COMPARTMENT TRIM MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69763100	AIR VENT GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869135	LUGGAGE SEPARATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869136	UPPER LUGGAGE COMPARTMENT TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85199200	FIXING BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869124	COMPL. LUGGAGE COMPARTMENT SEPARATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902308	COMPL. UMBRELLA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	961665	UMBRELLA MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81916700	COMPL. PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81916800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81916900	ANTI-ABRASION WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87236000	LUGGAGE RETAINER NET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	869058	LUGGAGE COMPARTMENT TRIM, FRONT PART	869058 LUGGAGE COMPARTMENT TRIM, FRONT PART	-	1	Enquire
0002	869042	COMPL. LOAD FLOOR TRIM	869042 COMPL. LOAD FLOOR TRIM	-	1	Enquire
0003	869051	RH ROLL BAR COVER TRIM	869051 RH ROLL BAR COVER TRIM	-	1	Enquire
0003	869140	LH ROLL BAR COVER TRIM	869140 LH ROLL BAR COVER TRIM	-	1	Enquire
0004	869038	FRONT ROLL BAR COVER TRIM	869038 FRONT ROLL BAR COVER TRIM	-	1	Enquire
0005	944818	INSPECTION CAP	944818 INSPECTION CAP	-	1	Enquire
0006	869040	LUGGAGE COMPARTMENT SEPARATOR FASTENER BRACKET	869040 LUGGAGE COMPARTMENT SEPARATOR FASTENER BRACKET	-	1	Enquire
0007	86276300	SCREW	86276300 SCREW M6 X 20	-	2	Enquire
0008	832548	LOCK	832548 LOCK	-	1	Enquire
0009	826584	SCREW	826584 SCREW M4 X 16	-	2	Enquire
0010	774707	SCREW	774707 SCREW M6 X 18	-	4	Enquire
0011	65361300	PIN	65361300 PIN	-	2	Enquire
0012	85833700	SCREW	85833700 SCREW M5 X 14	-	17	Enquire
0013	62769800	WASHER	62769800 WASHER	-	2	Enquire
0014	85833700	SCREW	85833700 SCREW M5 X 16	-	6	Enquire
0015	85629300	SCREW M6 X 20	85629300 SCREW M6 X 20 M6 X 18	-	8	Enquire
0016	85833700	SCREW	85833700 SCREW M5 X 16	-	2	Enquire
0017	14591687	FASTENER BUTTON	14591687 FASTENER BUTTON	-	27	Enquire
0018	904793	SILL PROTECTOR	904793 SILL PROTECTOR	-	1	Enquire
0019	85740000	SCREW	85740000 SCREW M6 X 15	-	4	Enquire
0020	85895100	PLATE	85895100 PLATE	-	2	Enquire
0021	869137	LUGGAGE COMPARTMENT TRIM, RH SIDE PART	869137 LUGGAGE COMPARTMENT TRIM, RH SIDE PART	-	1	Enquire
0022	869045	COMPL. LH SIDE LUGGAGE COMPARTMENT TRIM	869045 COMPL. LH SIDE LUGGAGE COMPARTMENT TRIM	-	1	Enquire
0023	869036	RH LATERAL PLATE	869036 RH LATERAL PLATE	-	1	Enquire
0024	869138	LH LATERAL PLATE	869138 LH LATERAL PLATE	-	1	Enquire
0025	869041	RH SEPARATOR FASTENER BRACKET	869041 RH SEPARATOR FASTENER BRACKET	-	1	Enquire
0026	869123	LH SEPARATOR FASTENER BRACKET	869123 LH SEPARATOR FASTENER BRACKET	-	1	Enquire
0027	902086	PROP FREE PLAY ADJUSTMENT BRACKET	902086 PROP FREE PLAY ADJUSTMENT BRACKET	-	2	Enquire
0028	16286121	SCREW	16286121 SCREW M6 X 18	-	4	Enquire
0029	86574700	SCREW	86574700 SCREW M5 X 12	-	9	Enquire
0030	851835	LUGGAGE COMPARTMENT CANISTER COVER	851835 LUGGAGE COMPARTMENT CANISTER COVER	-	1	Enquire
0031	250480	INSPECTION CAP	250480 INSPECTION CAP	-	1	Enquire
0032	14507187	PLUG	14507187 PLUG	-	1	Enquire
0033	750104	PLUG	750104 PLUG	-	2	Enquire
0034	82541600	LUGGAGE RETAINER HOOK	82541600 LUGGAGE RETAINER HOOK	-	2	Enquire
0035	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20 M6 X 20	-	4	Enquire
0036	800549	LH LUGGAGE COMPARTMENT TRIM MOUNTING BRACKET	800549 LH LUGGAGE COMPARTMENT TRIM MOUNTING BRACKET	-	1	Enquire
0036	800550	RH LUGGAGE COMPARTMENT TRIM MOUNTING BRACKET	800550 RH LUGGAGE COMPARTMENT TRIM MOUNTING BRACKET	-	1	Enquire
0037	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM M6 X 14	-	4	Enquire
0038	12643778	WASHER	12643778 WASHER	-	2	Enquire
0039	69763100	AIR VENT GRILLE	69763100 AIR VENT GRILLE	-	1	Enquire
0040	869135	LUGGAGE SEPARATOR	869135 LUGGAGE SEPARATOR	-	1	Enquire
0041	869136	UPPER LUGGAGE COMPARTMENT TRIM	869136 UPPER LUGGAGE COMPARTMENT TRIM	-	1	Enquire
0042	85199200	FIXING BUTTON	85199200 FIXING BUTTON L. 15 mm	-	5	Enquire
0043	869124	COMPL. LUGGAGE COMPARTMENT SEPARATOR	869124 COMPL. LUGGAGE COMPARTMENT SEPARATOR	-	1	Enquire
0044	902308	COMPL. UMBRELLA	902308 COMPL. UMBRELLA Version with umbrella mount	-	1	Enquire
0045	961665	UMBRELLA MOUNT	961665 UMBRELLA MOUNT Version with umbrella mount	-	2	Enquire
0046	81916700	COMPL. PLATE	81916700 COMPL. PLATE	-	2	Enquire
0047	81916800	SCREW	81916800 SCREW	-	2	Enquire
0048	81916900	ANTI-ABRASION WASHER	81916900 ANTI-ABRASION WASHER	-	2	Enquire
0049	87236000	LUGGAGE RETAINER NET	87236000 LUGGAGE RETAINER NET Version with umbrella mount	-	1	Enquire
