Name: FRONT DOOR SUBSTRUCTURE
Rating: 5.0 (1 reviews)

View All

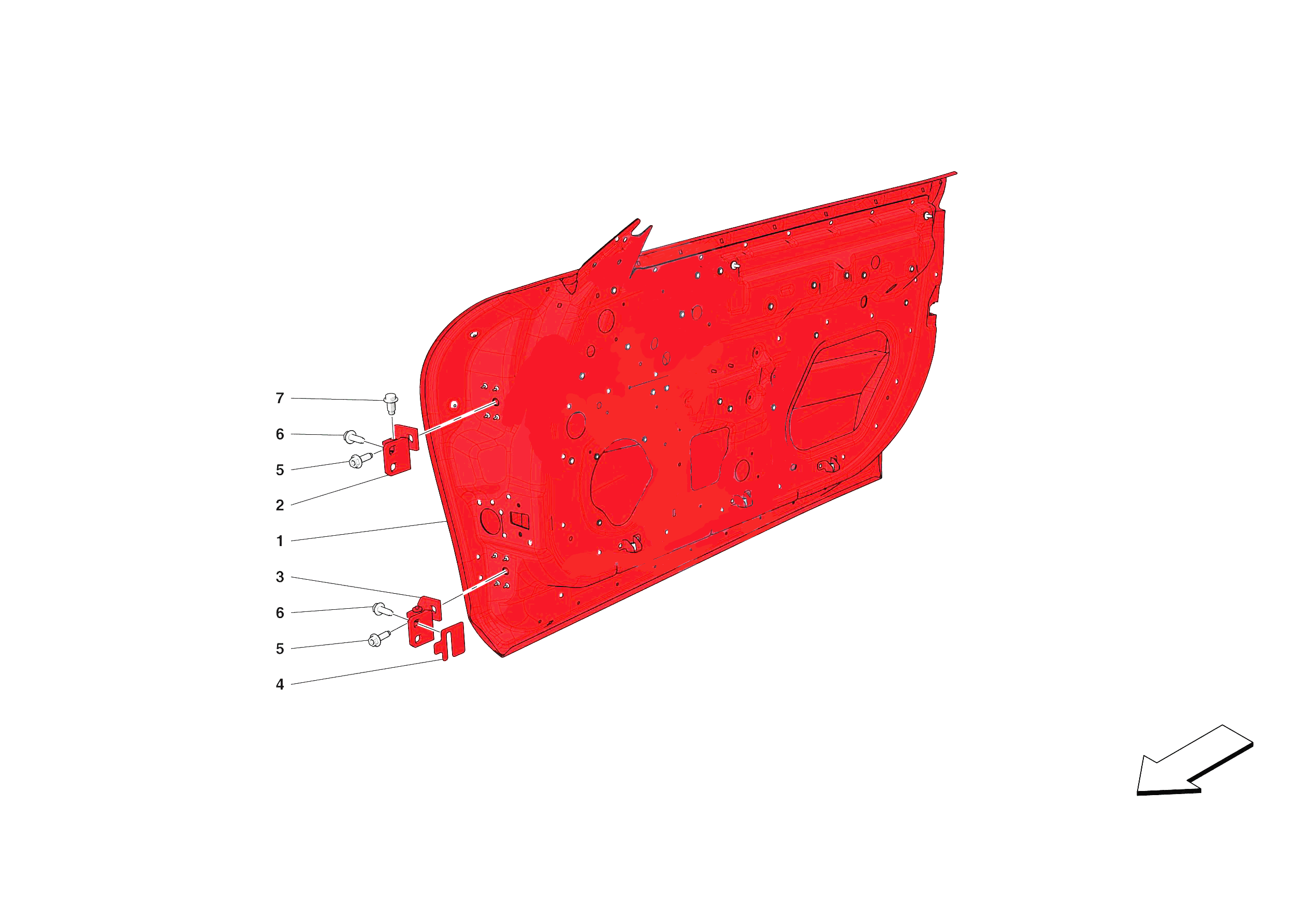

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	88927700	SHIM	$2.43	To Order

Photo	Part No	Description	Price (each)	Stock
	81267100	SCREW	$5.19	To Order

Photo	Part No	Description	Price (each)	Stock
	18754324	SCREW	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	85133600	SCREW	$1.46	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	985921173	COMPL. RH DOOR STRUCTURE	985921173 COMPL. RH DOOR STRUCTURE	$11,494.74	1
0001	985921163	COMPL. LH DOOR STRUCTURE	985921163 COMPL. LH DOOR STRUCTURE	$11,494.74	1
0002	83856000	RH DOOR HINGE	83856000 RH DOOR HINGE	$51.33	1
0002	83864900	LH DOOR HINGE	83864900 LH DOOR HINGE	$51.33	1
0003	83856100	RH DOOR HINGE	83856100 RH DOOR HINGE	$51.33	1
0003	83865100	LH DOOR HINGE	83865100 LH DOOR HINGE	$51.33	1
0004	88927700	SHIM	88927700 SHIM Th. 1 mm	$2.43	2
0005	81267100	SCREW	81267100 SCREW M10 X 30	$5.19 MSRP: ~~5.35~~ (3% off)	4
0006	18754324	SCREW	18754324 SCREW M10 X 1.25 X 32	$1.56	8
0007	85133600	SCREW	85133600 SCREW M8 X 15	$1.46	2
