Name: VENTS
Rating: 4.8 (1 reviews)

VENTS of Ferrari Ferrari Roma Spider Europe

View All

Ferrari Roma Spider Europe - VENTS

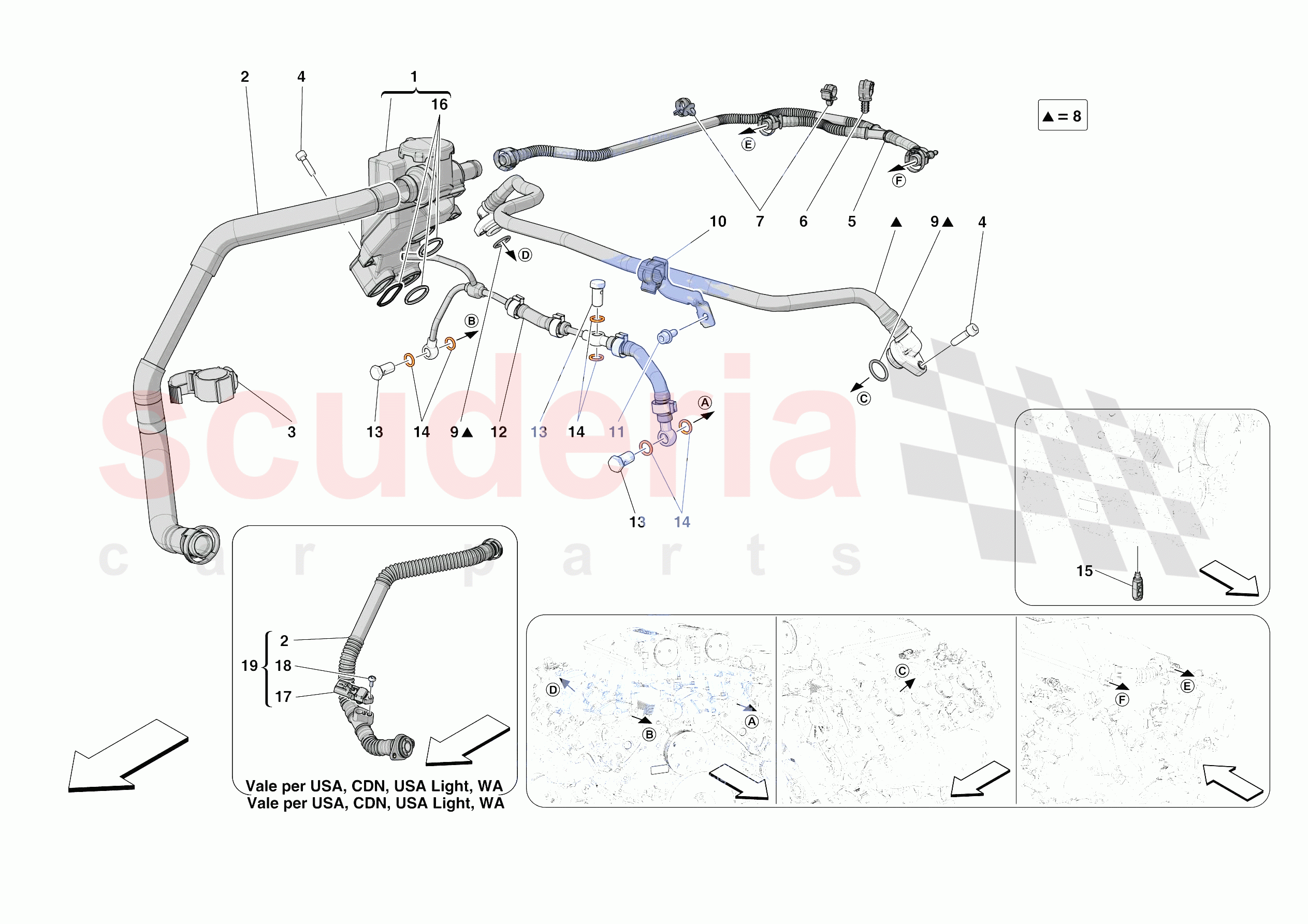

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	299742	OIL VAPOUR SEPARATOR	$353.00	To Order
	948335	OIL VAPOUR SEPARATOR WITH PERFORATED MEMBRANE	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	786968	BLOW-BY PIPE	$101.07	To Order
	327976	BLOW-BY PIPE	$336.95	To Order
	859844	BLOW-BY PIPE WITH SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248061	CLIP	$2.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	910904	PIPE FROM SEPARATOR TO INTAKE MANIFOLD	$129.96	To Order

Photo	Part No	Description	Price (each)	Stock
	291552	CLIP	$1.28	To Order

Photo	Part No	Description	Price (each)	Stock
	198273	CLIP	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	320055	COMPENSATION PIPE	$139.58	To Order

Photo	Part No	Description	Price (each)	Stock
	130295	O-RING	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	309274	BRACKET	$20.29	To Order

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	307637	WATER VENT PIPE	$288.81	To Order

Photo	Part No	Description	Price (each)	Stock
	11903811	HOSE CONNECTOR	$4.39	To Order

Photo	Part No	Description	Price (each)	Stock
	10260960	GASKET	$0.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	285403	VALVE	$36.89	To Order

Photo	Part No	Description	Price (each)	Stock
	849688	OIL RETURN LINE GASKET	$41.53	To Order

Photo	Part No	Description	Price (each)	Stock
	871810	VAPOUR PRESSURE SENSOR	$147.59	To Order

Photo	Part No	Description	Price (each)	Stock
	85077900	SCREW	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	953167	BLOW-BY PIPE WITH SENSOR	$545.55	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	299742	OIL VAPOUR SEPARATOR	299742 OIL VAPOUR SEPARATOR	$353.00	1
0001	948335	OIL VAPOUR SEPARATOR WITH PERFORATED MEMBRANE	948335 OIL VAPOUR SEPARATOR WITH PERFORATED MEMBRANE	$336.95	1
0002	786968	BLOW-BY PIPE	786968 BLOW-BY PIPE	$101.07	1
0002	327976	BLOW-BY PIPE	327976 BLOW-BY PIPE	$336.95	1
0002	859844	BLOW-BY PIPE WITH SENSOR	859844 BLOW-BY PIPE WITH SENSOR No longer supplied - Replaced by 953167	-	1	Enquire
0003	248061	CLIP IN STOCK	248061 CLIP IN STOCK	$2.14	1
0004	231619	SCREW IN STOCK	231619 SCREW M6 X 22 IN STOCK	$0.31	5
0005	910904	PIPE FROM SEPARATOR TO INTAKE MANIFOLD	910904 PIPE FROM SEPARATOR TO INTAKE MANIFOLD	$129.96	1
0006	291552	CLIP	291552 CLIP	$1.28	1
0007	198273	CLIP	198273 CLIP D. 13	$1.65	2
0008	320055	COMPENSATION PIPE	320055 COMPENSATION PIPE	$139.58	1
0009	130295	O-RING	130295 O-RING Also included in Short block gasket series	$1.43	2
0010	309274	BRACKET	309274 BRACKET	$20.29	1
0011	282393	SCREW	282393 SCREW M6 X 14	$0.75	1
0012	307637	WATER VENT PIPE	307637 WATER VENT PIPE	$288.81	1
0013	11903811	HOSE CONNECTOR	11903811 HOSE CONNECTOR	$4.39	3
0014	10260960	GASKET IN STOCK	10260960 GASKET IN STOCK	$0.16	6
0015	285403	VALVE	285403 VALVE	$36.89	1
0016	849688	OIL RETURN LINE GASKET	849688 OIL RETURN LINE GASKET Also included in Short block gasket kit	$41.53	1
0017	871810	VAPOUR PRESSURE SENSOR	871810 VAPOUR PRESSURE SENSOR	$147.59	1
0018	85077900	SCREW	85077900 SCREW M5 X 16	$0.18	1
0019	953167	BLOW-BY PIPE WITH SENSOR	953167 BLOW-BY PIPE WITH SENSOR	$545.55	1
