FORCED INDUCTION SYSTEM PIPES of Ferrari Ferrari Roma Spider Europe

View All

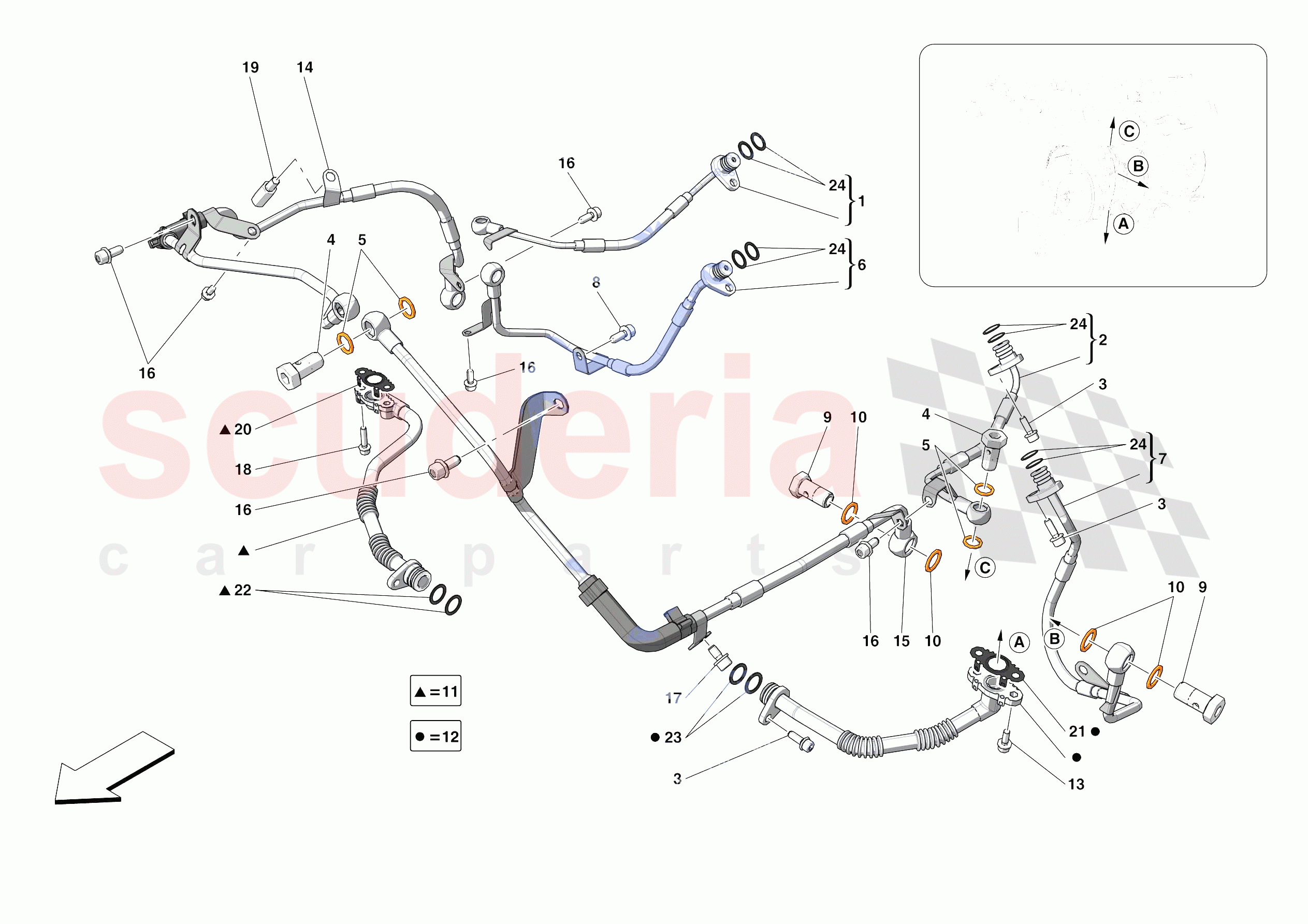

Ferrari Roma Spider Europe - FORCED INDUCTION SYSTEM PIPES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	787611	OIL DELIVERY PIPE TO RH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	787612	OIL DELIVERY PIPE TO LH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297185	HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261060	GASKET COPPER 12 - 16 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	787609	WATER DELIVERY PIPE TO RH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	787610	WATER DELIVERY PIPE TO LH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248471	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297184	HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	787613	OIL RETURN PIPE FROM RH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	787614	OIL RETURN PIPE FROM LH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303509	WATER RETURN PIPE FROM RH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297747	WATER RETURN PIPE FROM LH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	336488	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298091	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271457	OIL DRAIN PIPE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287722	O-RING 15.08 x 2.62	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287722	O-RING 15.08 x 2.62	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14456981	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	787611	OIL DELIVERY PIPE TO RH TURBO	787611 OIL DELIVERY PIPE TO RH TURBO	-	1	Enquire
0002	787612	OIL DELIVERY PIPE TO LH TURBO	787612 OIL DELIVERY PIPE TO LH TURBO	-	1	Enquire
0003	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	6	Enquire
0004	297185	HOSE CONNECTOR	297185 HOSE CONNECTOR	-	4	Enquire
0005	10261060	GASKET COPPER 12 - 16 X 1.5	10261060 GASKET COPPER 12 - 16 X 1.5 Also included in engine gasket set	-	8	Enquire
0006	787609	WATER DELIVERY PIPE TO RH TURBO	787609 WATER DELIVERY PIPE TO RH TURBO	-	1	Enquire
0007	787610	WATER DELIVERY PIPE TO LH TURBO	787610 WATER DELIVERY PIPE TO LH TURBO	-	1	Enquire
0008	248471	SCREW	248471 SCREW M8 X 20	-	1	Enquire
0009	297184	HOSE CONNECTOR	297184 HOSE CONNECTOR	-	4	Enquire
0010	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5 Also included in engine gasket set	-	8	Enquire
0011	787613	OIL RETURN PIPE FROM RH TURBO	787613 OIL RETURN PIPE FROM RH TURBO	-	1	Enquire
0012	787614	OIL RETURN PIPE FROM LH TURBO	787614 OIL RETURN PIPE FROM LH TURBO	-	1	Enquire
0013	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	2	Enquire
0014	303509	WATER RETURN PIPE FROM RH TURBO	303509 WATER RETURN PIPE FROM RH TURBO	-	1	Enquire
0015	297747	WATER RETURN PIPE FROM LH TURBO	297747 WATER RETURN PIPE FROM LH TURBO	-	1	Enquire
0016	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	6	Enquire
0017	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	1	Enquire
0018	231620	SCREW	231620 SCREW M6 X 25	-	2	Enquire
0019	336488	STUD BOLT	336488 STUD BOLT	-	1	Enquire
0020	298091	GASKET	298091 GASKET	-	1	Enquire
0021	271457	OIL DRAIN PIPE GASKET	271457 OIL DRAIN PIPE GASKET Also included in Short block gasket series	-	1	Enquire
0022	287722	O-RING 15.08 x 2.62	287722 O-RING 15.08 x 2.62 Also included in Short block gasket series	-	2	Enquire
0023	287722	O-RING 15.08 x 2.62	287722 O-RING 15.08 x 2.62	-	2	Enquire
0024	14456981	GASKET	14456981 GASKET Also included in Short block gasket series	-	8	Enquire
