Name: PISTONS AND CONNECTING RODS
Rating: 4.7 (1 reviews)

View All

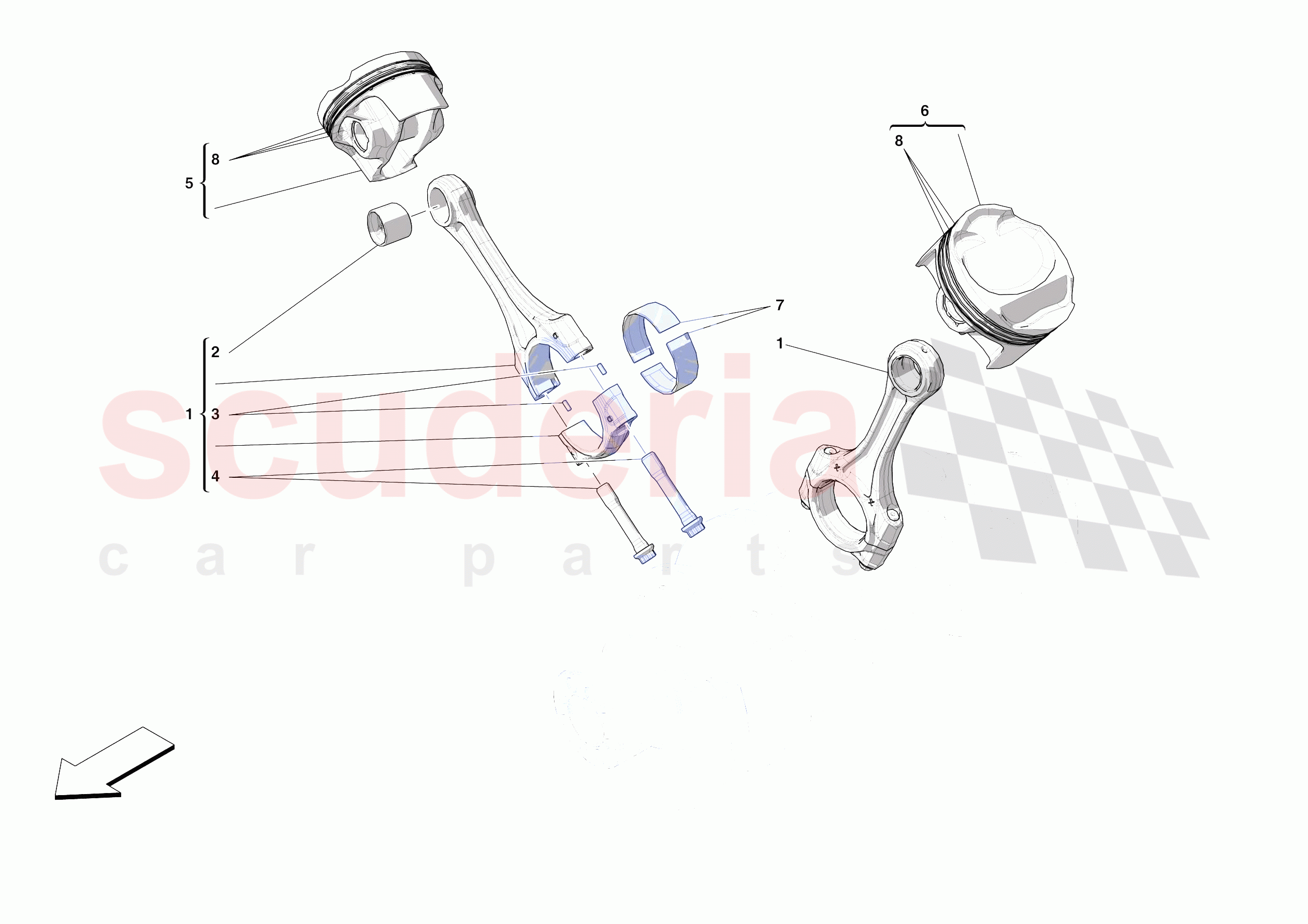

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	304333	COMPL. CONNECTING ROD	$213.07	To Order

Photo	Part No	Description	Price (each)	Stock
	301753	BUSH	$57.75	To Order

Photo	Part No	Description	Price (each)	Stock
	292751	ALIGNMENT PIN	$28.66	To Order

Photo	Part No	Description	Price (each)	Stock
	270248	SCREW	$23.50	To Order

Photo	Part No	Description	Price (each)	Stock
	326005	COMPL. PISTON, RH BANK	$602.03	To Order

Photo	Part No	Description	Price (each)	Stock
	326006	COMPL. PISTON, LH BANK	$625.78	To Order

Photo	Part No	Description	Price (each)	Stock
	322910	COMPL. PISTON RING SET	$208.58	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	304333	COMPL. CONNECTING ROD	304333 COMPL. CONNECTING ROD	$213.07	8
0002	301753	BUSH	301753 BUSH	$57.75	8
0003	292751	ALIGNMENT PIN	292751 ALIGNMENT PIN	$28.66	16
0004	270248	SCREW	270248 SCREW	$23.50	16
0005	326005	COMPL. PISTON, RH BANK	326005 COMPL. PISTON, RH BANK	$602.03	4
0006	326006	COMPL. PISTON, LH BANK	326006 COMPL. PISTON, LH BANK	$625.78	4
0007	312692	CONNECTING ROD HALF-BEARING	312692 CONNECTING ROD HALF-BEARING Blue	$20.05	16
0007	312693	CONNECTING ROD HALF-BEARING	312693 CONNECTING ROD HALF-BEARING Red	$20.05	16
0007	312694	CONNECTING ROD HALF-BEARING	312694 CONNECTING ROD HALF-BEARING Pink	$20.05	16
0008	322910	COMPL. PISTON RING SET	322910 COMPL. PISTON RING SET	$208.58	8
