Emissions Control System

Ferrari Purosangue Europe

Find Your Part

Ferrari Purosangue Europe - EMISSIONS CONTROL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
247795 SECONDARY AIR SYSTEM PUMP $754.15 IN STOCK
Photo Part No Description Price (each) Stock
303385 CLIP $0.29 IN STOCK
Photo Part No Description Price (each) Stock
253769 CLIP $0.60 To Order
Photo Part No Description Price (each) Stock
876392 BRACKET $93.05 To Order
Photo Part No Description Price (each) Stock
14040611 NUT $0.28 IN STOCK
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 $5.93 IN STOCK
Photo Part No Description Price (each) Stock
876337 SECONDARY AIR SYSTEM PIPE FROM PUMP TO ENGINE $208.58 To Order
Photo Part No Description Price (each) Stock
833474 VALVE SIDE SECONDARY AIR SYSTEM PIPE $203.04 To Order
Photo Part No Description Price (each) Stock
282849 PRESSURE SENSOR $36.89 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
248061 CLIP $2.14 IN STOCK
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.80 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
917513 CLIP $5.64 To Order
Photo Part No Description Price (each) Stock
284235 SECONDARY AIR SYSTEM VALVE $256.72 To Order
Photo Part No Description Price (each) Stock
178053 CLAMP $1.43 IN STOCK
Photo Part No Description Price (each) Stock
264020 SPACER ASSEMBLY $67.38 To Order
Photo Part No Description Price (each) Stock
286011 SPACER ASSEMBLY $47.57 To Order
Photo Part No Description Price (each) Stock
186781 GASKET $5.28 IN STOCK
Photo Part No Description Price (each) Stock
331919 RH SECONDARY AIR PIPE MOUNTING BRACKET $12.33 To Order
Photo Part No Description Price (each) Stock
331920 LH SECONDARY AIR PIPE MOUNTING BRACKET $12.33 To Order
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET $2.20 IN STOCK
Photo Part No Description Price (each) Stock
819489 FLANGED BUSHING $14.75 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
12601274 WASHER $0.58 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 IN STOCK
Photo Part No Description Price (each) Stock
782955 COMPL. RH SECONDARY AIR INLET PIPE $224.63 To Order
Photo Part No Description Price (each) Stock
985795 COMPL. LH SECONDARY AIR INLET PIPE $217.54 To Order
Photo Part No Description Price (each) Stock
202980 GASKET $3.03 IN STOCK
Photo Part No Description Price (each) Stock
16286524 SCREW $0.65 To Order
Photo Part No Description Price (each) Stock
16286124 SCREW $0.37 To Order
View All

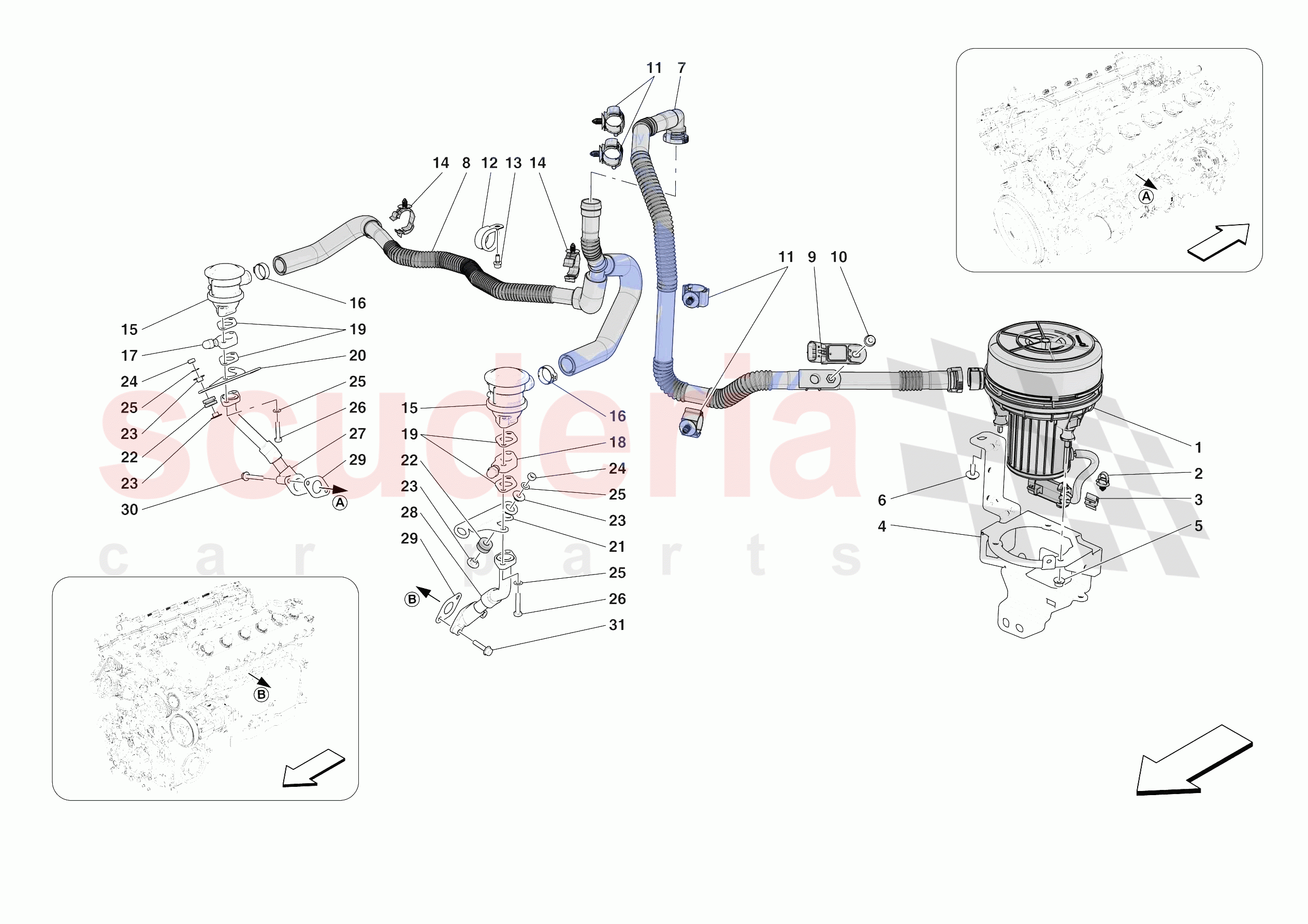

EMISSIONS CONTROL SYSTEM of Ferrari Ferrari Purosangue Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 247795
SECONDARY AIR SYSTEM PUMP
IN STOCK 		$754.15 (28.5% off) 1
0002 303385
CLIP
170 mm
IN STOCK 		$0.29 1
0003 253769
CLIP 		$0.60 1
0004 876392
BRACKET 		$93.05 1
0005 14040611
NUT
IN STOCK 		$0.28 3
0006 880041
Allen Head Bolt M6 X 26
M6 X 18
IN STOCK 		$5.93 3
0007 876337
SECONDARY AIR SYSTEM PIPE FROM PUMP TO ENGINE 		$208.58 1
0008 833474
VALVE SIDE SECONDARY AIR SYSTEM PIPE 		$203.04 1
0009 282849
PRESSURE SENSOR 		$36.89 1
0010 248334
SCREW
M6 X 12 		$0.68 1
0011 248061
CLIP
IN STOCK 		$2.14 4
0012 291225
P clip Bracket With Sheath
IN STOCK 		$4.80 1
0013 248334
SCREW
M6 X 14 		$0.68 1
0014 917513
CLIP 		$5.64 2
0015 284235
SECONDARY AIR SYSTEM VALVE 		$256.72 2
0016 178053
CLAMP
IN STOCK 		$1.43 (7.7% off) 2
0017 264020
SPACER ASSEMBLY
RH side 		$67.38 1
0018 286011
SPACER ASSEMBLY
LH side 		$47.57 1
0019 186781
GASKET
IN STOCK 		$5.28 (16.9% off) 4
0020 331919
RH SECONDARY AIR PIPE MOUNTING BRACKET 		$12.33 1
0021 331920
LH SECONDARY AIR PIPE MOUNTING BRACKET 		$12.33 1
0022 177576
CABLE GROMMET
IN STOCK 		$2.20 4
0023 819489
FLANGED BUSHING 		$14.75 8
0024 14059290
FLANGED NUT M6
IN STOCK 		$1.43 4
0025 12601274
WASHER
D. 6.40-12 X 0.5
IN STOCK 		$0.58 (27.5% off) 8
0026 231620
SCREW
M6 X 20 X 22
IN STOCK 		$0.32 (8.6% off) 4
0027 782955
COMPL. RH SECONDARY AIR INLET PIPE 		$224.63 1
0028 985795
COMPL. LH SECONDARY AIR INLET PIPE 		$217.54 1
0029 202980
GASKET
Also included in engine gasket set
IN STOCK 		$3.03 (19% off) 2
0030 16286524
SCREW
M6 X 40 		$0.65 2
0031 16286124
SCREW
M6 X 20 		$0.37 2
