Find Your Part

FUEL TANK of Ferrari Ferrari Purosangue Europe

View All

Ferrari Purosangue Europe - FUEL TANK

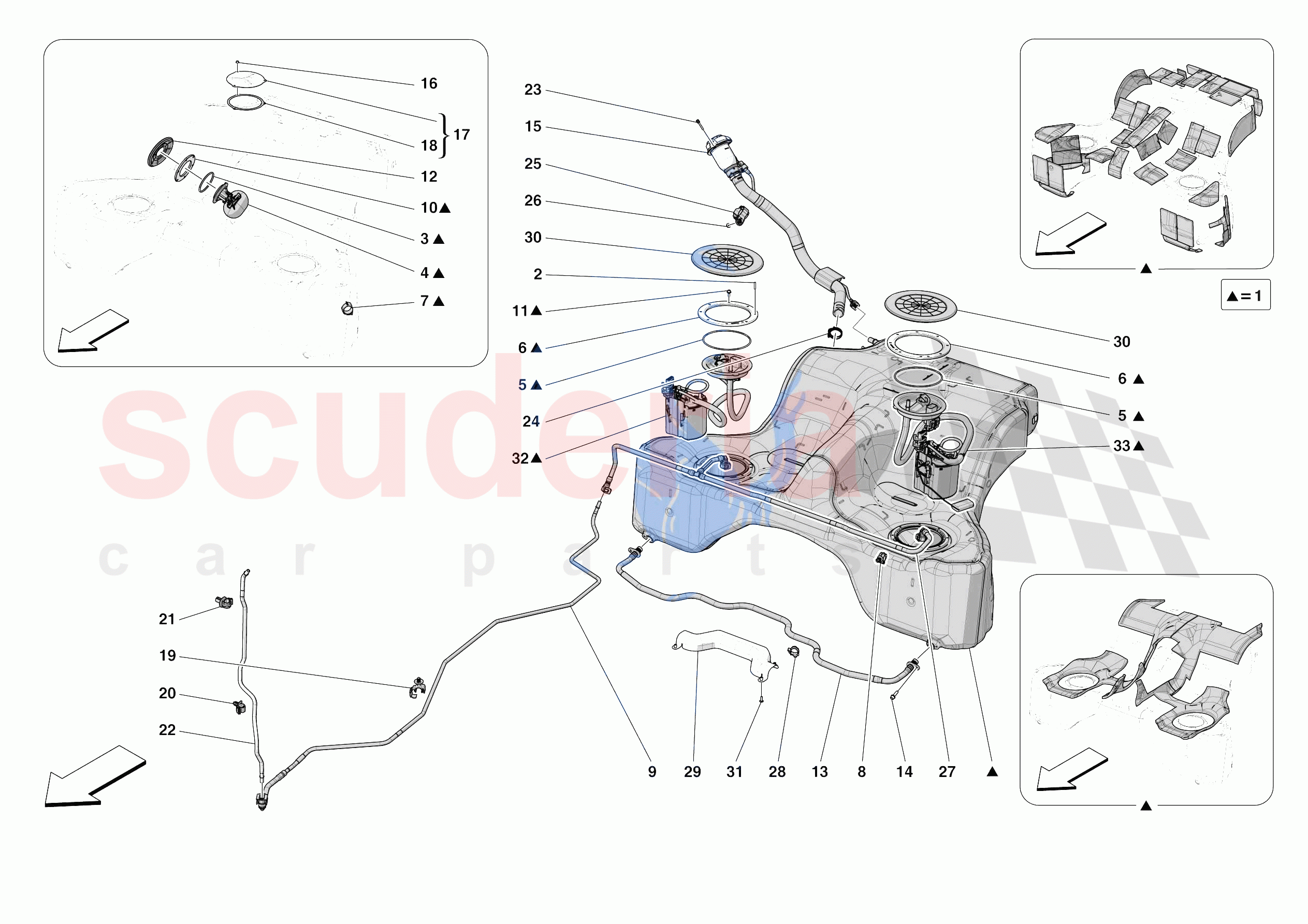

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	949079	FUEL TANK COMPLETE WITH SOUNDPROOFING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11001124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	796307	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	868956	COMPL. FLANGE ADAPTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	899649	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	753437	FLANGE FASTENER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254078	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291552	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	887231	UNDERBODY FUEL DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	797719	FLANGE FASTENER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	774706	INSPECTION CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	967004	FUEL DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	815020	COMPL. FUEL FILLER NECK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272714	COMPL. REAR INSPECTION COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	244764	REAR INSPECTION COVER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331518	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81840800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250318	SNAP CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	784805	FIREWALL FUEL DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	791355	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11449470	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304380	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	845563	LOWER TANK COLLAR PIPE	Enquire	To Order
	943237	LOWER TANK CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198273	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	799986	LOWER FUEL TANK PIPE HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	774705	FUEL PUMP INSPECTION CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	850148	COMPL. RH FUEL PUMP KIT	Enquire	To Order
	838726	COMPL. RH FUEL PUMP KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	838730	COMPL. LH FUEL PUMP KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	949079	FUEL TANK COMPLETE WITH SOUNDPROOFING	949079 FUEL TANK COMPLETE WITH SOUNDPROOFING	-	1	Enquire
0002	11001124	STUD BOLT	11001124 STUD BOLT	-	1	Enquire
0003	796307	O-RING	796307 O-RING	-	1	Enquire
0004	868956	COMPL. FLANGE ADAPTER	868956 COMPL. FLANGE ADAPTER	-	1	Enquire
0005	899649	O-RING	899649 O-RING	-	2	Enquire
0006	753437	FLANGE FASTENER RING	753437 FLANGE FASTENER RING	-	2	Enquire
0007	254078	CLIP	254078 CLIP	-	4	Enquire
0008	291552	CLIP	291552 CLIP	-	7	Enquire
0009	887231	UNDERBODY FUEL DELIVERY PIPE	887231 UNDERBODY FUEL DELIVERY PIPE	-	1	Enquire
0010	797719	FLANGE FASTENER RING	797719 FLANGE FASTENER RING	-	1	Enquire
0011	85833700	SCREW	85833700 SCREW M5 X 16	-	22	Enquire
0012	774706	INSPECTION CAP	774706 INSPECTION CAP	-	1	Enquire
0013	967004	FUEL DELIVERY PIPE	967004 FUEL DELIVERY PIPE	-	1	Enquire
0014	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	2	Enquire
0015	815020	COMPL. FUEL FILLER NECK	815020 COMPL. FUEL FILLER NECK	-	1	Enquire
0016	13046011	NUT	13046011 NUT	-	3	Enquire
0017	272714	COMPL. REAR INSPECTION COVER	272714 COMPL. REAR INSPECTION COVER	-	1	Enquire
0018	244764	REAR INSPECTION COVER SEAL	244764 REAR INSPECTION COVER SEAL	-	1	Enquire
0019	331518	CLIP	331518 CLIP	-	2	Enquire
0020	81840800	CLIP	81840800 CLIP	-	1	Enquire
0021	250318	SNAP CLIP	250318 SNAP CLIP	-	2	Enquire
0022	784805	FIREWALL FUEL DELIVERY PIPE	784805 FIREWALL FUEL DELIVERY PIPE	-	1	Enquire
0023	791355	SCREW	791355 SCREW M5 X 30	-	3	Enquire
0024	11449470	COLLAR	11449470 COLLAR	-	1	Enquire
0025	304380	CLIP	304380 CLIP	-	1	Enquire
0026	14040614	NUT	14040614 NUT	-	1	Enquire
0027	845563	LOWER TANK COLLAR PIPE	845563 LOWER TANK COLLAR PIPE Applies until depletion	-	1	Enquire
0027	943237	LOWER TANK CONNECTOR PIPE	943237 LOWER TANK CONNECTOR PIPE Applicable after depletion of 845563	-	1	Enquire
0028	198273	CLIP	198273 CLIP	-	6	Enquire
0029	799986	LOWER FUEL TANK PIPE HEAT SHIELD	799986 LOWER FUEL TANK PIPE HEAT SHIELD	-	1	Enquire
0030	774705	FUEL PUMP INSPECTION CAP	774705 FUEL PUMP INSPECTION CAP	-	2	Enquire
0031	85833700	SCREW	85833700 SCREW M5 X 16	-	4	Enquire
0032	850148	COMPL. RH FUEL PUMP KIT	850148 COMPL. RH FUEL PUMP KIT Applies until depletion	-	1	Enquire
0032	838726	COMPL. RH FUEL PUMP KIT	838726 COMPL. RH FUEL PUMP KIT Applicable after depletion of 850148	-	1	Enquire
0033	838730	COMPL. LH FUEL PUMP KIT	838730 COMPL. LH FUEL PUMP KIT	-	1	Enquire
