ENGINE INJECTION CONTROL of Ferrari Ferrari Purosangue Europe

View All

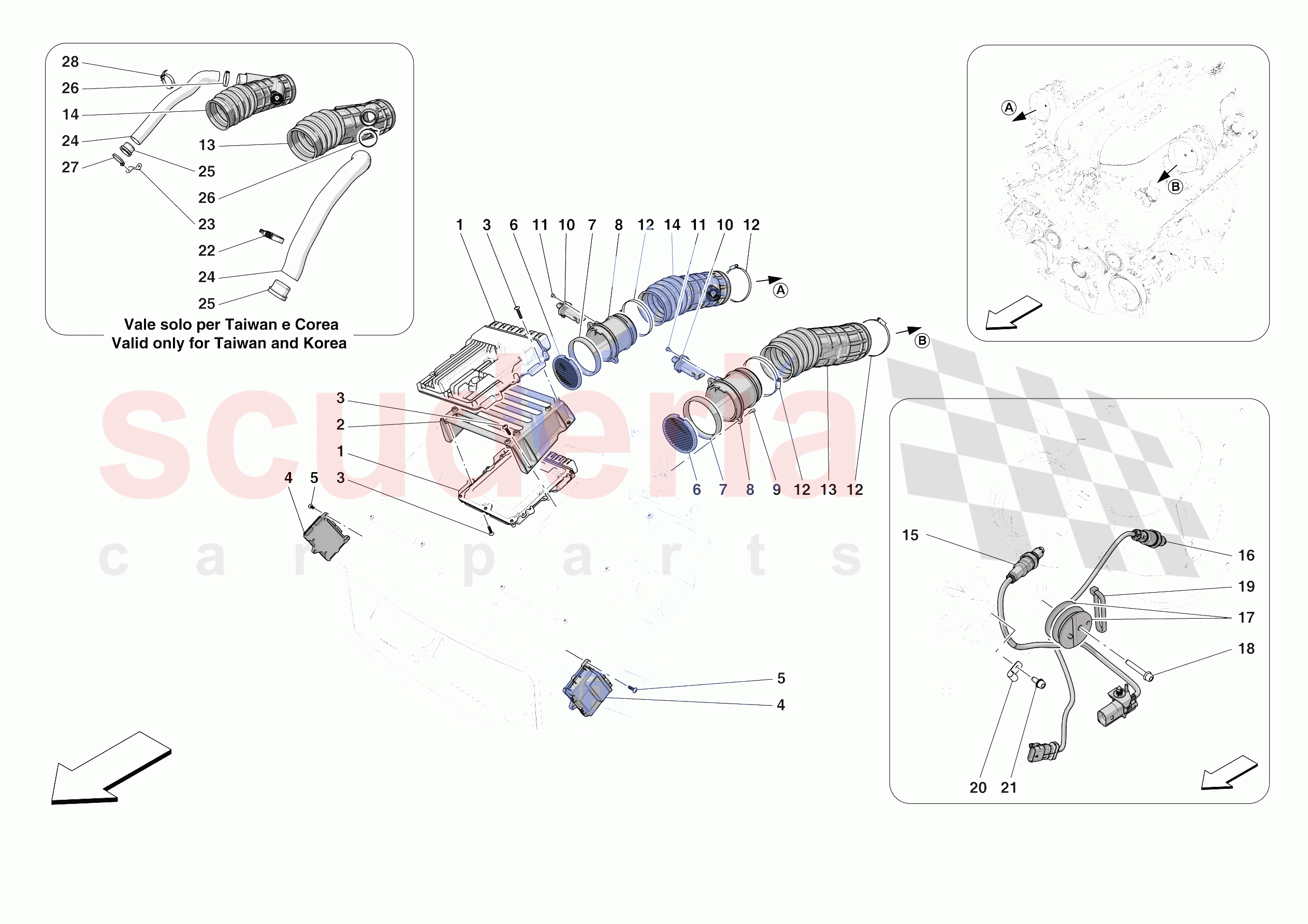

Ferrari Purosangue Europe - ENGINE INJECTION CONTROL

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	935117	IGNITION ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	885758	IGNITION ECU MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308398	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	942601	ION ECU CASING	Enquire	To Order
	941421	ION ECU CASING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	340221	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	841336	SQUARE MESH GRILLE FOR MASS AIR FLOW SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	327132	ADHESIVE FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	845077	INTAKE LINE AIR FLOW SENSOR HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297280	AIR FLOW SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	900284	SCREW COLLAR	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	778398	COMPL. RH AIR INTAKE HOSE UNION	Enquire	To Order
	778398	COMPL. RH AIR INTAKE HOSE UNION	Enquire	To Order
	778398	COMPL. RH AIR INTAKE HOSE UNION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	778496	COMPL. LH AIR INTAKE HOSE UNION	Enquire	To Order
	778496	COMPL. LH AIR INTAKE HOSE UNION	Enquire	To Order
	778496	COMPL. LH AIR INTAKE HOSE UNION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	787778	FRONT OXYGEN SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	787780	REAR OXYGEN SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	850280	OXYGEN SENSOR CABLE SPOOL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206739	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10418301	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85141400	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	999769	LAMBDA PLUG MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	997445	COILED PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	888005	LAMBDA PIPE PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262116	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	801866	CLAMP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	935117	IGNITION ECU	935117 IGNITION ECU Unprogrammed	-	2	Enquire
0002	885758	IGNITION ECU MOUNTING BRACKET	885758 IGNITION ECU MOUNTING BRACKET	-	1	Enquire
0003	308398	SCREW	308398 SCREW	-	12	Enquire
0004	942601	ION ECU CASING	942601 ION ECU CASING Applies until depletion; Unprogrammed	-	2	Enquire
0004	941421	ION ECU CASING	941421 ION ECU CASING For vehicles up to Ass.ly No. 221177, replace as a pair; Applicable after depletion of 942601; Unprogrammed	-	2	Enquire
0005	340221	SCREW	340221 SCREW M6 X 18	-	6	Enquire
0006	841336	SQUARE MESH GRILLE FOR MASS AIR FLOW SENSOR	841336 SQUARE MESH GRILLE FOR MASS AIR FLOW SENSOR	-	2	Enquire
0007	327132	ADHESIVE FOAM	327132 ADHESIVE FOAM	-	2	Enquire
0008	845077	INTAKE LINE AIR FLOW SENSOR HOUSING	845077 INTAKE LINE AIR FLOW SENSOR HOUSING	-	2	Enquire
0009	85833700	SCREW	85833700 SCREW M5 X 14	-	4	Enquire
0010	297280	AIR FLOW SENSOR	297280 AIR FLOW SENSOR	-	2	Enquire
0011	85833700	SCREW	85833700 SCREW M5 X 14	-	4	Enquire
0012	900284	SCREW COLLAR ARRIVING SOON	900284 SCREW COLLAR ARRIVING SOON	-	4	Enquire
0013	778398	COMPL. RH AIR INTAKE HOSE UNION	778398 COMPL. RH AIR INTAKE HOSE UNION Not for Taiwan and Korea	-	1	Enquire
0013	778398	COMPL. RH AIR INTAKE HOSE UNION	778398 COMPL. RH AIR INTAKE HOSE UNION	-	1	Enquire
0013	778398	COMPL. RH AIR INTAKE HOSE UNION	778398 COMPL. RH AIR INTAKE HOSE UNION	-	1	Enquire
0013	999556	COMPL. RH AIR INTAKE HOSE UNION	999556 COMPL. RH AIR INTAKE HOSE UNION Applicable for Taiwan and Korea only	-	1	Enquire
0014	778496	COMPL. LH AIR INTAKE HOSE UNION	778496 COMPL. LH AIR INTAKE HOSE UNION Not for Taiwan and Korea	-	1	Enquire
0014	778496	COMPL. LH AIR INTAKE HOSE UNION	778496 COMPL. LH AIR INTAKE HOSE UNION	-	1	Enquire
0014	778496	COMPL. LH AIR INTAKE HOSE UNION	778496 COMPL. LH AIR INTAKE HOSE UNION	-	1	Enquire
0014	999553	COMPL. LH AIR INTAKE HOSE UNION	999553 COMPL. LH AIR INTAKE HOSE UNION Applicable for Taiwan and Korea only	-	1	Enquire
0015	787778	FRONT OXYGEN SENSOR	787778 FRONT OXYGEN SENSOR	-	2	Enquire
0016	787780	REAR OXYGEN SENSOR	787780 REAR OXYGEN SENSOR	-	2	Enquire
0017	850280	OXYGEN SENSOR CABLE SPOOL	850280 OXYGEN SENSOR CABLE SPOOL	-	4	Enquire
0018	231625	SCREW	231625 SCREW L. 40 mm	-	2	Enquire
0019	206739	CLAMP	206739 CLAMP	-	4	Enquire
0020	10418301	BRACKET	10418301 BRACKET	-	2	Enquire
0021	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	2	Enquire
0022	85141400	CLIP	85141400 CLIP Applicable for Taiwan and Korea only	-	1	Enquire
0023	999769	LAMBDA PLUG MOUNTING BRACKET	999769 LAMBDA PLUG MOUNTING BRACKET Applicable for Taiwan and Korea only	-	1	Enquire
0024	997445	COILED PIPE	997445 COILED PIPE Applicable for Taiwan and Korea only	-	2	Enquire
0025	888005	LAMBDA PIPE PLUG	888005 LAMBDA PIPE PLUG Applicable for Taiwan and Korea only	-	2	Enquire
0026	262116	COLLAR	262116 COLLAR Applicable for Taiwan and Korea only	-	4	Enquire
0027	303385	CLIP	303385 CLIP 170 mm	-	1	Enquire
0028	801866	CLAMP	801866 CLAMP Applicable for Taiwan and Korea only	-	1	Enquire
