Name: CYLINDER HEADS - LH HEAD
Rating: 4.4 (1 reviews)

CYLINDER HEADS - LH HEAD of Ferrari Ferrari Purosangue Europe

View All

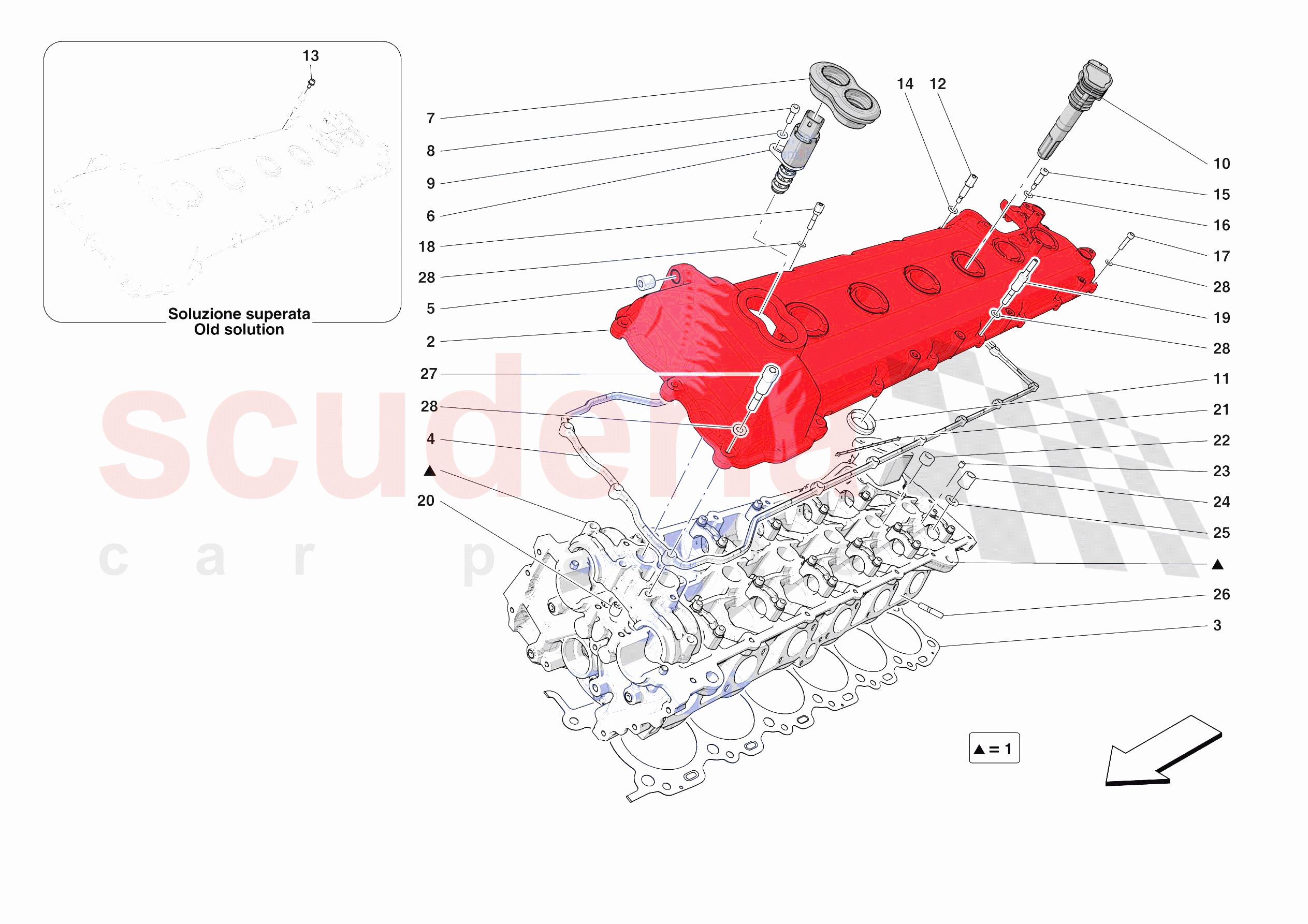

Ferrari Purosangue Europe - CYLINDER HEADS - LH HEAD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	949233	LH HEAD ASSEMBLY	$4,899.45	To Order

Photo	Part No	Description	Price (each)	Stock
	816000	LH CYLINDER HEAD COVER	$1,187.39	To Order

Photo	Part No	Description	Price (each)	Stock
	324014	LH HEAD-CRANKCASE GASKET	$288.81	To Order

Photo	Part No	Description	Price (each)	Stock
	243802	LH HEAD COVER GASKET	$85.03	To Order

Photo	Part No	Description	Price (each)	Stock
	235754	THREADED PLUG	$8.33	To Order

Photo	Part No	Description	Price (each)	Stock
	801187	OIL PRESSURE REGULATOR VALVE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	229353	SOLENOID VALVE GASKET	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	14304221	SCREW	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	772927	SINGLE IGNITION COIL	$149.21	To Order

Photo	Part No	Description	Price (each)	Stock
	223982	SPARK PLUG TUBE SEAL	$2.54	To Order

Photo	Part No	Description	Price (each)	Stock
	333779	CALIBRATED STUD BOLT	$17.63	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	293278	SCREW	$14.68	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	214412	STUD BOLT	$13.14	To Order

Photo	Part No	Description	Price (each)	Stock
	339948	STUD BOLT	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	269228	STUD BOLT	$6.66	To Order

Photo	Part No	Description	Price (each)	Stock
	200458	CHECK VALVE	$9.77	To Order

Photo	Part No	Description	Price (each)	Stock
	239614	GASKET	$6.73	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	183524	NUT	$3.68	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER	$1.20	To Order

Photo	Part No	Description	Price (each)	Stock
	211641	STUD BOLT	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	214412	STUD BOLT	$13.14	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	949233	LH HEAD ASSEMBLY	949233 LH HEAD ASSEMBLY	$4,899.45	1
0002	816000	LH CYLINDER HEAD COVER	816000 LH CYLINDER HEAD COVER	$1,187.39	1
0003	324014	LH HEAD-CRANKCASE GASKET	324014 LH HEAD-CRANKCASE GASKET Also included in engine gasket set	$288.81	1
0004	243802	LH HEAD COVER GASKET	243802 LH HEAD COVER GASKET Also included in engine gasket set	$85.03 MSRP: ~~111.59~~ (23.8% off)	1
0005	235754	THREADED PLUG	235754 THREADED PLUG	$8.33	1
0006	801187	OIL PRESSURE REGULATOR VALVE	801187 OIL PRESSURE REGULATOR VALVE	$240.67	2
0007	229353	SOLENOID VALVE GASKET	229353 SOLENOID VALVE GASKET Also included in engine gasket set	$19.24 MSRP: ~~29.29~~ (34.3% off)	1
0008	14304221	SCREW	14304221 SCREW M5 X 16	$0.10	2
0009	11181574	WASHER	11181574 WASHER	$0.02	2
0010	772927	SINGLE IGNITION COIL	772927 SINGLE IGNITION COIL	$149.21	6
0011	223982	SPARK PLUG TUBE SEAL	223982 SPARK PLUG TUBE SEAL Also included in engine gasket set	$2.54 MSRP: ~~3.97~~ (36% off)	6
0012	333779	CALIBRATED STUD BOLT	333779 CALIBRATED STUD BOLT	$17.63	1
0013	248334	SCREW	248334 SCREW M6 X 12	$0.68	1
0014	14499421	WASHER	14499421 WASHER	$0.21	1
0015	293278	SCREW	293278 SCREW M6 X 1	$14.68	1
0016	986899	WASHER	986899 WASHER	$6.26	1
0017	214412	STUD BOLT	214412 STUD BOLT M6 X 25	$13.14	13
0018	339948	STUD BOLT	339948 STUD BOLT H. 14 mm	$20.84	1
0019	269228	STUD BOLT	269228 STUD BOLT M6 X 25	$6.66	2
0020	200458	CHECK VALVE	200458 CHECK VALVE	$9.77	2
0021	239614	GASKET	239614 GASKET Also included in engine gasket set	$6.73	1
0022	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	$3.32 MSRP: ~~4.17~~ (20.4% off)	6
0023	102725	CENTERING DOWEL	102725 CENTERING DOWEL	$1.17 MSRP: ~~2.25~~ (48% off)	4
0024	183524	NUT	183524 NUT	$3.68	28
0025	151117	WASHER	151117 WASHER	$1.20	28
0026	211641	STUD BOLT	211641 STUD BOLT M8 X 16- -Shank length 24	$1.04	12
0027	214412	STUD BOLT	214412 STUD BOLT	$13.14	2
0028	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	18
