Name: CRANKSHAFT
Rating: 5.0 (1 reviews)

View All

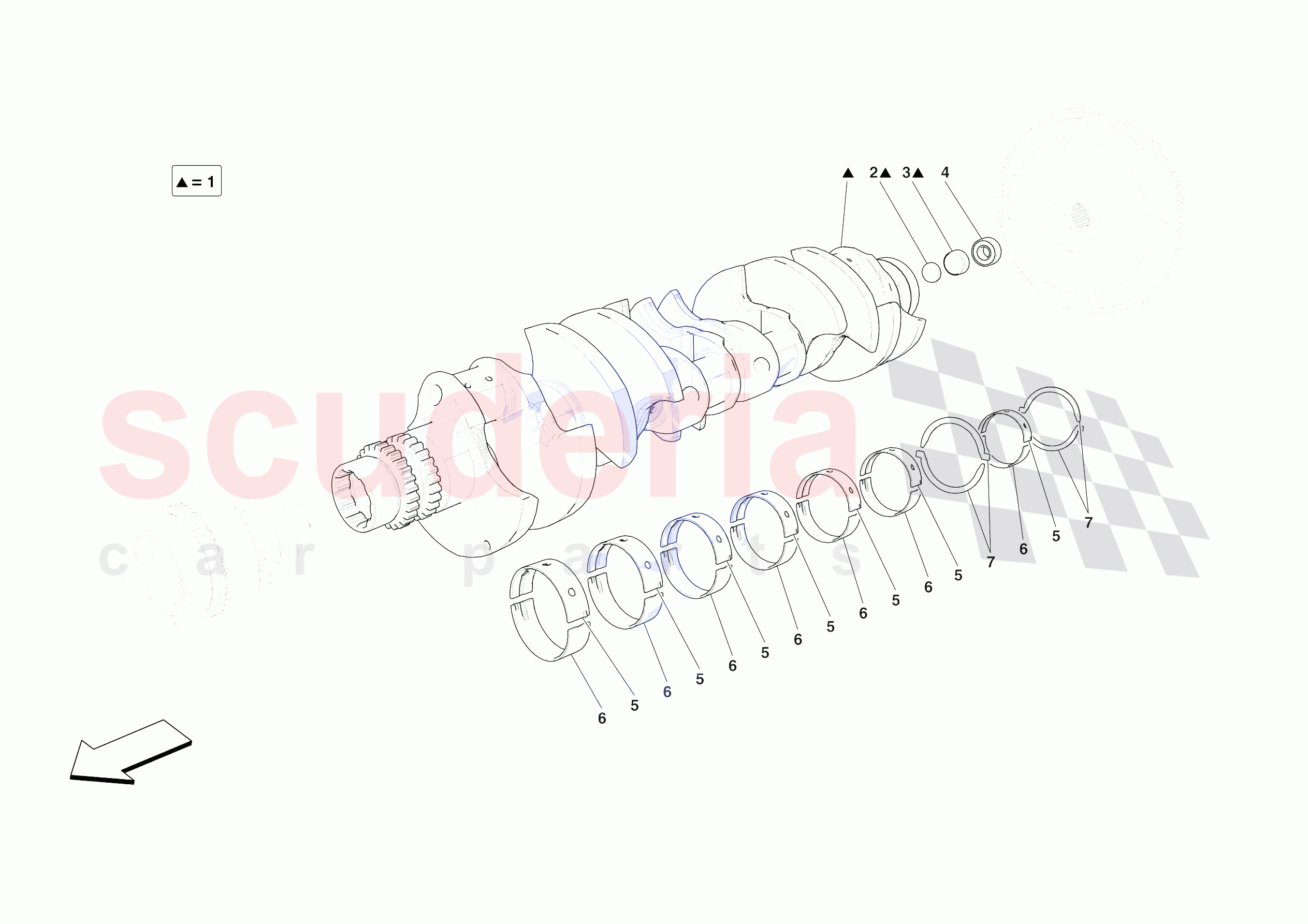

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	784962	COMPL. CRANKSHAFT	$6,616.33	To Order

Photo	Part No	Description	Price (each)	Stock
	14328801	PLUG	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	176396	THREADED PLUG	$5.71	To Order

Photo	Part No	Description	Price (each)	Stock
	103877	BEARING	$33.28	To Order

...and 2 more part variants. See table on right for more details.

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	261727	SHIM RING	$10.89	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	784962	COMPL. CRANKSHAFT	784962 COMPL. CRANKSHAFT	$6,616.33	1
0002	14328801	PLUG	14328801 PLUG	$0.34	1
0003	176396	THREADED PLUG	176396 THREADED PLUG	$5.71	1
0004	103877	BEARING	103877 BEARING	$33.28	1
0005	313686	UPPER HALF-BEARING	313686 UPPER HALF-BEARING Pink	$28.66	7
0005	271030	UPPER HALF-BEARING	271030 UPPER HALF-BEARING Green	$38.69	7
0005	271029	UPPER HALF-BEARING	271029 UPPER HALF-BEARING Yellow	$40.11	7
0005	800694	UPPER HALF-BEARING	800694 UPPER HALF-BEARING Orange	$28.66	7
0005	271031	UPPER HALF-BEARING	271031 UPPER HALF-BEARING Brown	$28.66	7
0006	313688	LOWER HALF-BEARING	313688 LOWER HALF-BEARING Pink	$28.66	7
0006	271025	LOWER HALF-BEARING	271025 LOWER HALF-BEARING Green	$38.69	7
0006	271024	LOWER HALF-BEARING	271024 LOWER HALF-BEARING Yellow	$40.11	7
0006	800695	LOWER HALF-BEARING	800695 LOWER HALF-BEARING Orange	$28.66	7
0006	271026	LOWER HALF-BEARING	271026 LOWER HALF-BEARING Brown	$28.66	7
0007	261727	SHIM RING	261727 SHIM RING	$10.89	4
