ELECTRIC STARTER MOTOR of Ferrari Ferrari Monza SPA2 Europe

View All

Ferrari Monza SPA2 Europe - ELECTRIC STARTER MOTOR

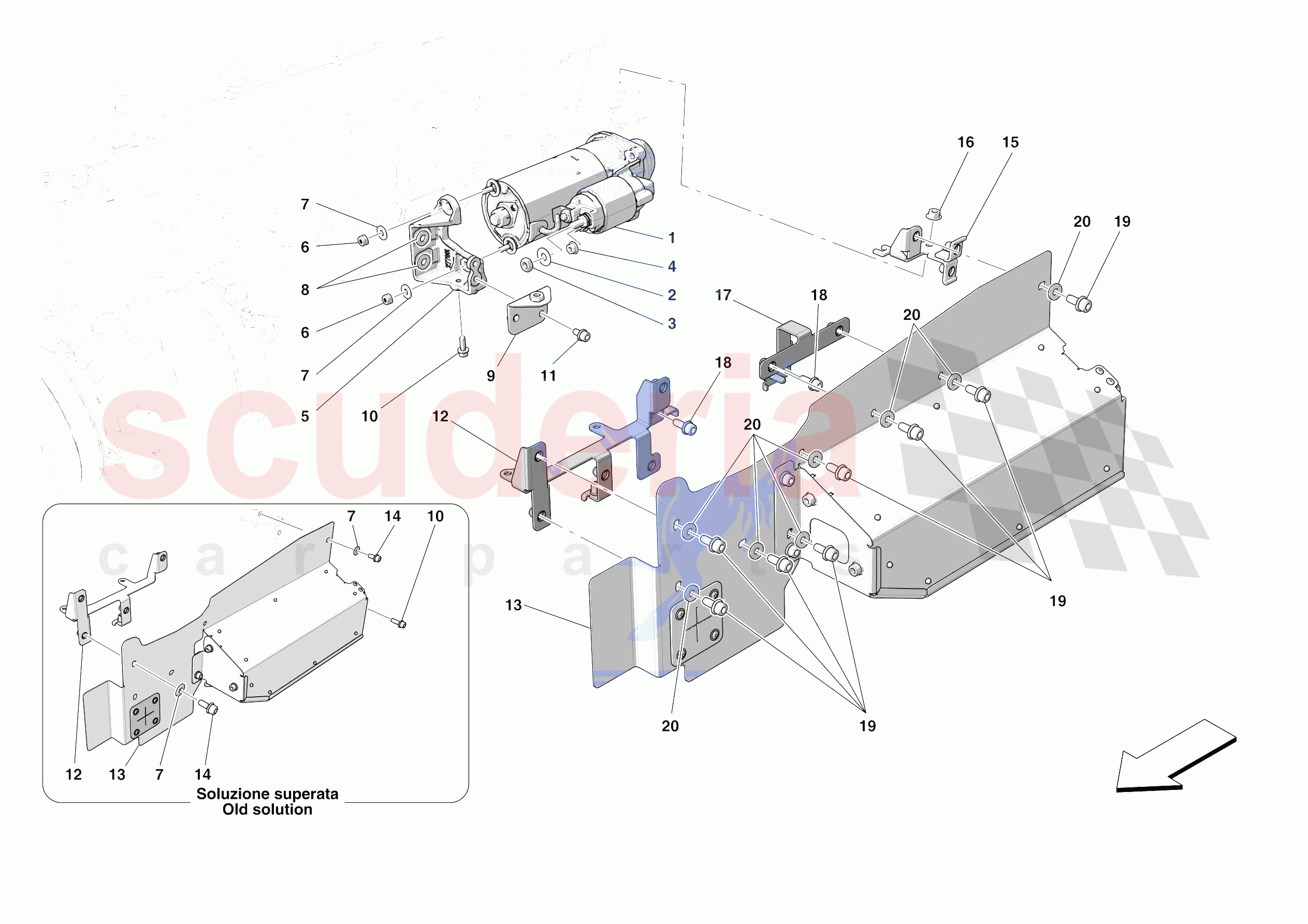

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	962187	STARTER MOTOR	Enquire	To Order
	962187	STARTER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277661	REAR STARTER MOTOR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102741	NUT M6 X 6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646621	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248471	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282190	WIRING HARNESS FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	959229	STARTER MOTOR SHIELD MOUNTING BRACKET	Enquire	To Order
	959229	STARTER MOTOR SHIELD MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	923106	COMPL. STARTER MOTOR HEAT SHIELD	Enquire	To Order
	923106	COMPL. STARTER MOTOR HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	936319	STARTER MOTOR SHIELD MOUNTING BRACKET	Enquire	To Order
	936319	STARTER MOTOR SHIELD MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040611	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	959239	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646621	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	962187	STARTER MOTOR	962187 STARTER MOTOR Applicable after depletion of 297969	-	1	Enquire
0001	962187	STARTER MOTOR	962187 STARTER MOTOR	-	1	Enquire
0002	12625224	WASHER	12625224 WASHER	-	1	Enquire
0003	147985	NUT	147985 NUT	-	1	Enquire
0004	14059211	NUT	14059211 NUT M6	-	1	Enquire
0005	277661	REAR STARTER MOTOR MOUNTING BRACKET	277661 REAR STARTER MOTOR MOUNTING BRACKET	-	1	Enquire
0006	102741	NUT M6 X 6	102741 NUT M6 X 6	-	2	Enquire
0007	12646621	WASHER	12646621 WASHER Applicable from engine No. 477557; D. 6.45 - 15 X 1.5	-	10	Enquire
0008	248471	SCREW	248471 SCREW M8 X 20	-	2	Enquire
0009	282190	WIRING HARNESS FASTENER BRACKET	282190 WIRING HARNESS FASTENER BRACKET	-	1	Enquire
0010	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	2	Enquire
0011	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM Applicable from engine No. 477557; M6 X 16	-	2	Enquire
0012	959229	STARTER MOTOR SHIELD MOUNTING BRACKET	959229 STARTER MOTOR SHIELD MOUNTING BRACKET For vehicles up to Ass.ly No. 477556 also order 923106 ref. 13, 959239 ref. 17, 248334 ref. 18, 231616 ref. 19 and 12646621 ref. 20.	-	1	Enquire
0012	959229	STARTER MOTOR SHIELD MOUNTING BRACKET	959229 STARTER MOTOR SHIELD MOUNTING BRACKET	-	1	Enquire
0013	923106	COMPL. STARTER MOTOR HEAT SHIELD	923106 COMPL. STARTER MOTOR HEAT SHIELD For vehicles up to Ass.ly No. 477556 also order 959229 ref. 12, 959239 ref. 17, 248334 ref. 18, 231616 ref. 19 and 12646621 ref. 20.	-	1	Enquire
0013	923106	COMPL. STARTER MOTOR HEAT SHIELD	923106 COMPL. STARTER MOTOR HEAT SHIELD	-	1	Enquire
0014	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	5	Enquire
0015	936319	STARTER MOTOR SHIELD MOUNTING BRACKET	936319 STARTER MOTOR SHIELD MOUNTING BRACKET	-	1	Enquire
0015	936319	STARTER MOTOR SHIELD MOUNTING BRACKET	936319 STARTER MOTOR SHIELD MOUNTING BRACKET	-	1	Enquire
0016	14040611	NUT	14040611 NUT	-	1	Enquire
0017	959239	BRACKET	959239 BRACKET Applicable from engine No. 477557	-	1	Enquire
0018	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	2	Enquire
0019	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	8	Enquire
0020	12646621	WASHER	12646621 WASHER D. 6.45 - 15 X 1.5	-	10	Enquire
