Name: FUEL PUMPS
Rating: 4.7 (1 reviews)

View All

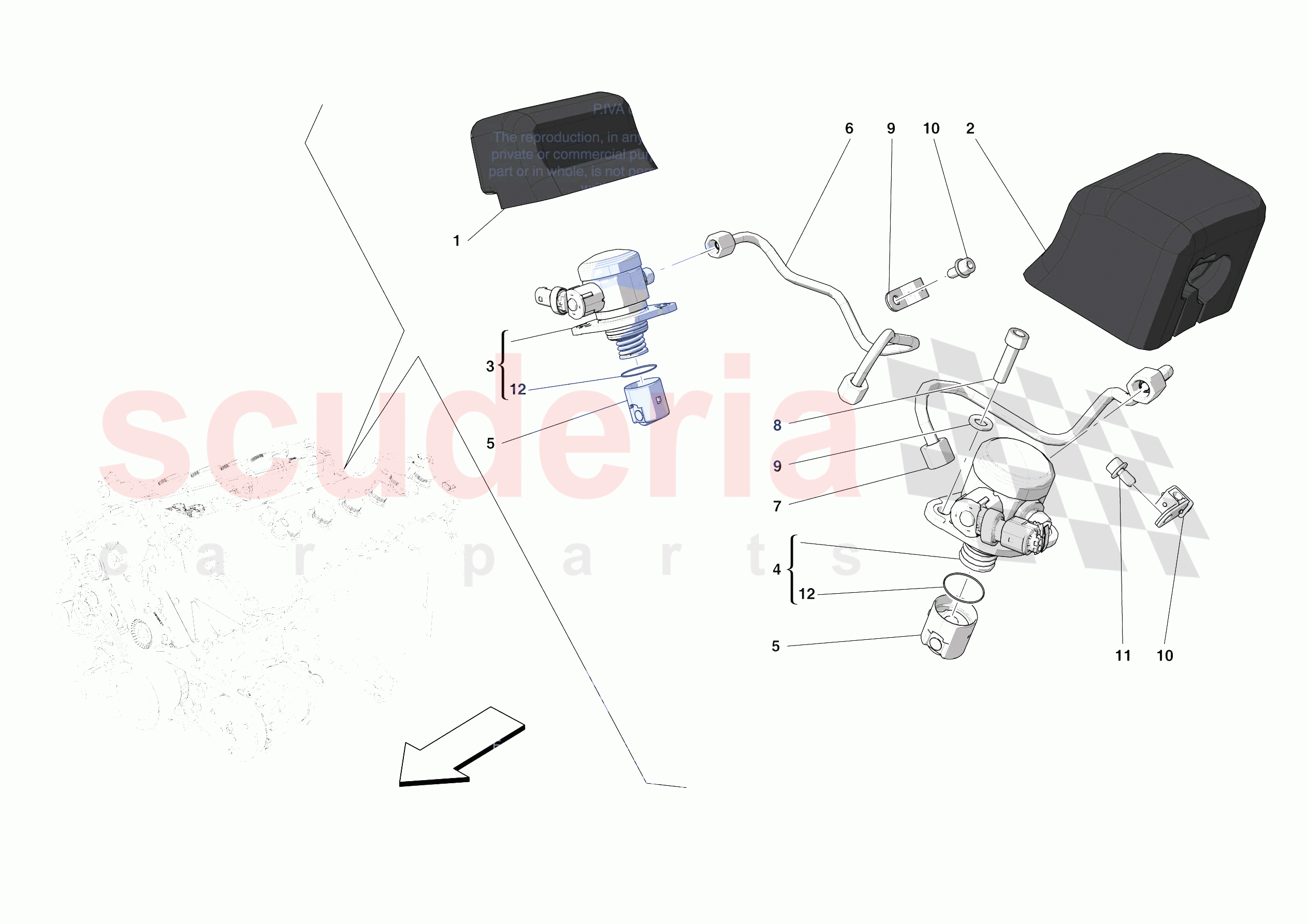

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	815913	RH FUEL PUMP	$650.30	To Order

Photo	Part No	Description	Price (each)	Stock
	815914	LH FUEL PUMP	$650.30	To Order

Photo	Part No	Description	Price (each)	Stock
	331787	HIGH PRESSURE PUMP CAM FOLLOWER	$68.98	To Order

Photo	Part No	Description	Price (each)	Stock
	334138	RH FUEL PIPE	$186.33	To Order

Photo	Part No	Description	Price (each)	Stock
	334139	LH FUEL PIPE	$172.00	To Order

Photo	Part No	Description	Price (each)	Stock
	14306434	SCREW	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	341730	FUEL PIPE MOUNTING BRACKET	$51.59	To Order

Photo	Part No	Description	Price (each)	Stock
	231627	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	763134	FUEL PUMP SEAL	$4.75	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	881951	RH GDI PUMP SOUNDPROOFING	881951 RH GDI PUMP SOUNDPROOFING Applicable after depletion of 746757	$83.42	1
0001	881951	RH GDI PUMP SOUNDPROOFING	881951 RH GDI PUMP SOUNDPROOFING	$83.42	1
0002	881952	LH GDI PUMP SOUNDPROOFING	881952 LH GDI PUMP SOUNDPROOFING Applicable after depletion of 746759	$80.26	1
0002	881952	LH GDI PUMP SOUNDPROOFING	881952 LH GDI PUMP SOUNDPROOFING	$80.26	1
0003	815913	RH FUEL PUMP	815913 RH FUEL PUMP Also order pipe ref. 6 RH fuel pipe	$650.30	1
0004	815914	LH FUEL PUMP	815914 LH FUEL PUMP Also order pipe ref. 7 LH fuel pipe	$650.30	1
0005	331787	HIGH PRESSURE PUMP CAM FOLLOWER	331787 HIGH PRESSURE PUMP CAM FOLLOWER	$68.98	2
0006	334138	RH FUEL PIPE	334138 RH FUEL PIPE	$186.33	1
0007	334139	LH FUEL PIPE	334139 LH FUEL PIPE	$172.00	1
0008	14306434	SCREW	14306434 SCREW M8 X 25	$0.37	4
0009	12638524	WASHER	12638524 WASHER D. 8.15 -15 X 1.5	$0.06 MSRP: ~~0.25~~ (76% off)	4
0010	341730	FUEL PIPE MOUNTING BRACKET	341730 FUEL PIPE MOUNTING BRACKET	$51.59	2
0011	231627	SCREW	231627 SCREW M8 X 16	$0.63 MSRP: ~~0.70~~ (10% off)	2
0012	763134	FUEL PUMP SEAL	763134 FUEL PUMP SEAL	$4.75	2
