Name: PISTONS AND CONNECTING RODS
Rating: 5.0 (1 reviews)

View All

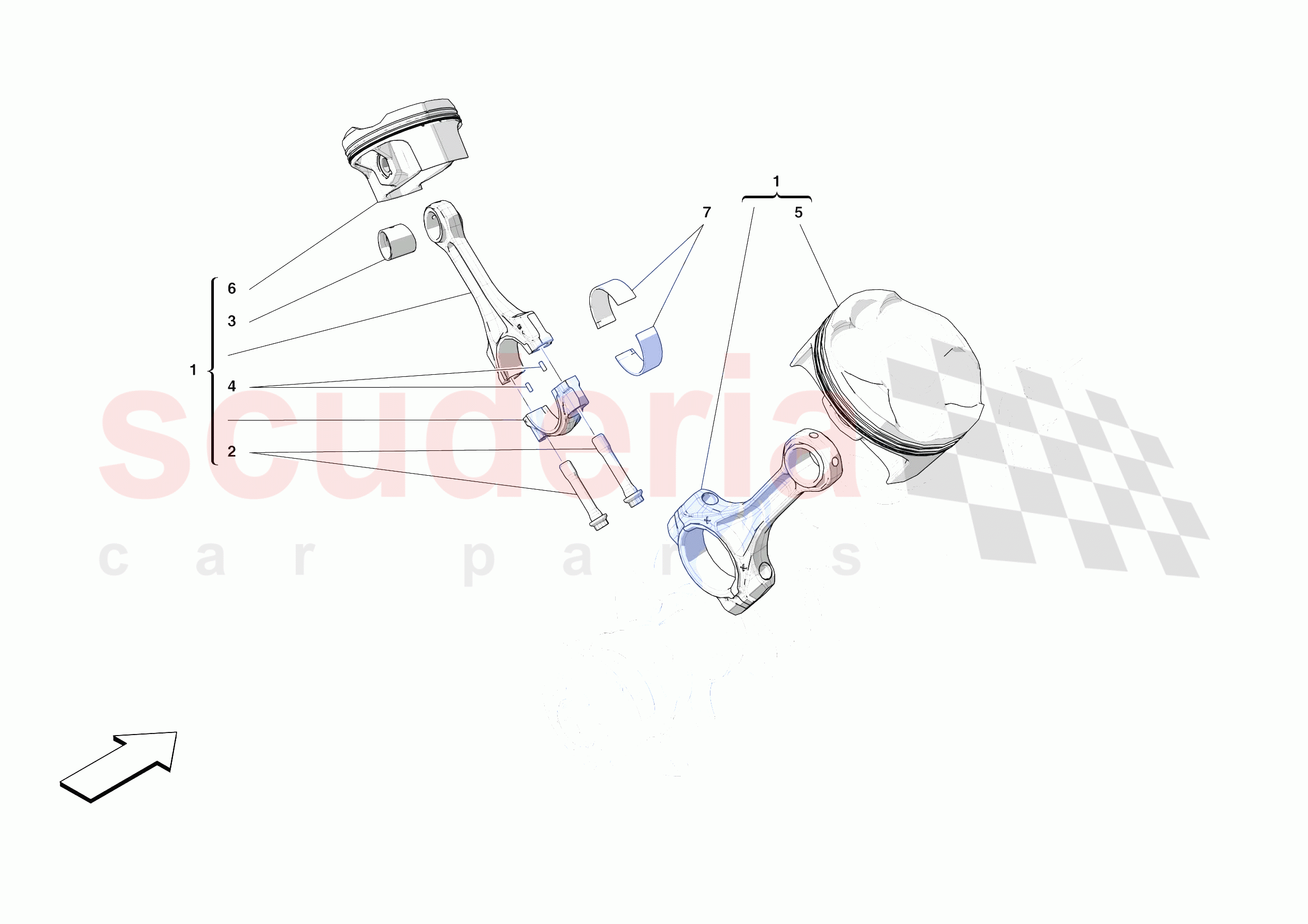

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	824391	COMPL. CONNECTING ROD AND CAP	$319.61	To Order

Photo	Part No	Description	Price (each)	Stock
	281320	SCREW	$186.33	To Order

Photo	Part No	Description	Price (each)	Stock
	300758	BUSH	$42.98	To Order

Photo	Part No	Description	Price (each)	Stock
	292751	ALIGNMENT PIN	$28.66	To Order

Photo	Part No	Description	Price (each)	Stock
	803899	COMPL. PISTON, RH CYLINDER BANK	$573.36	To Order

Photo	Part No	Description	Price (each)	Stock
	803900	COMPL. PISTON, LH CYLINDER BANK	$573.36	To Order

...and 4 more part variants. See table on right for more details.

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	824391	COMPL. CONNECTING ROD AND CAP	824391 COMPL. CONNECTING ROD AND CAP	$319.61	12
0002	281320	SCREW	281320 SCREW	$186.33	24
0003	300758	BUSH	300758 BUSH	$42.98	12
0004	292751	ALIGNMENT PIN	292751 ALIGNMENT PIN	$28.66	24
0005	803899	COMPL. PISTON, RH CYLINDER BANK	803899 COMPL. PISTON, RH CYLINDER BANK	$573.36	6
0006	803900	COMPL. PISTON, LH CYLINDER BANK	803900 COMPL. PISTON, LH CYLINDER BANK	$573.36	6
0007	304679	CONNECTING ROD HALF-BEARING	304679 CONNECTING ROD HALF-BEARING Purple - Lead free; No longer supplied	-	24	Enquire
0007	304680	CONNECTING ROD HALF-BEARING	304680 CONNECTING ROD HALF-BEARING Lead free; No longer supplied; Black	$20.84	24
0007	304681	CONNECTING ROD HALF-BEARING	304681 CONNECTING ROD HALF-BEARING Lead free; Blue	$21.48	24
0007	304682	CONNECTING ROD HALF-BEARING	304682 CONNECTING ROD HALF-BEARING Lead free; Red	$21.48	24
0007	823846	CONNECTING ROD HALF-BEARING	823846 CONNECTING ROD HALF-BEARING Green - Lead free	$20.84	24
0007	304683	CONNECTING ROD HALF-BEARING	304683 CONNECTING ROD HALF-BEARING Lead free; Pink	$21.48	24
0007	823845	CONNECTING ROD HALF-BEARING	823845 CONNECTING ROD HALF-BEARING Yellow - Lead free	$20.84	24
