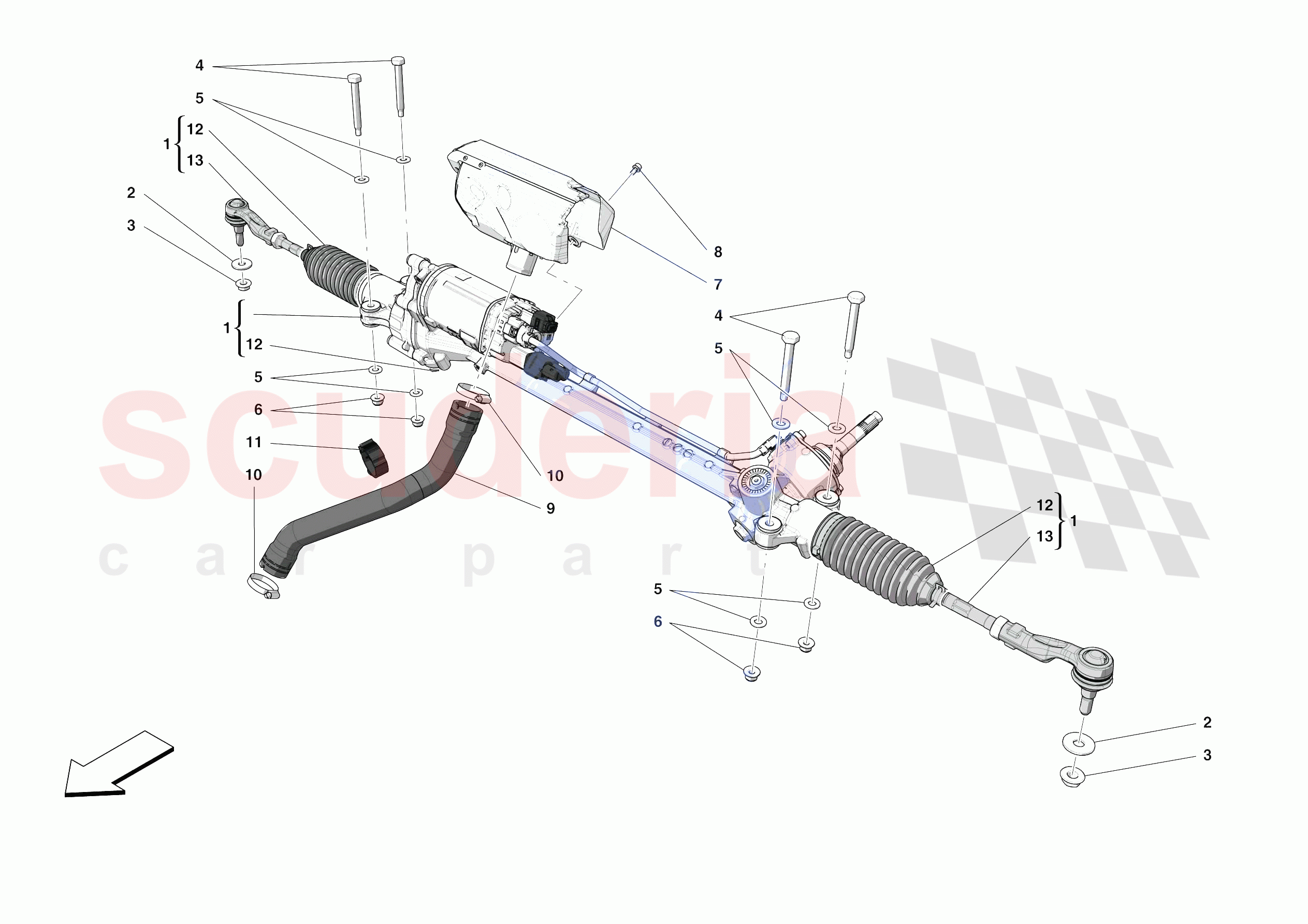

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	327735	COMPL. ELECTRIC STEERING BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316032	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149807	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277720	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058621	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	337238	COMPL. EPS MOTOR HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333073	EPS COOLING DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	278577	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318847	STEERING BOX GAITER REPLACEMENT KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	327739	ROD END FOR STEERING BOX	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	327735	COMPL. ELECTRIC STEERING BOX	327735 COMPL. ELECTRIC STEERING BOX	-	1	Enquire
0002	316032	WASHER	316032 WASHER	-	2	Enquire
0003	149807	NUT	149807 NUT	-	2	Enquire
0004	277720	SCREW	277720 SCREW M10 X 1.25 X 80	-	4	Enquire
0005	14496624	WASHER	14496624 WASHER D. 10.5-21 X 2	-	8	Enquire
0006	14058621	NUT	14058621 NUT M10 X 1.25 X 11.8	-	4	Enquire
0007	337238	COMPL. EPS MOTOR HEAT SHIELD	337238 COMPL. EPS MOTOR HEAT SHIELD	-	1	Enquire
0008	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	4	Enquire
0009	333073	EPS COOLING DUCT	333073 EPS COOLING DUCT	-	1	Enquire
0010	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	2	Enquire
0011	278577	CLIP	278577 CLIP	-	1	Enquire
0012	318847	STEERING BOX GAITER REPLACEMENT KIT	318847 STEERING BOX GAITER REPLACEMENT KIT Also includes Q.ty 1 rubber gaiter, Q.ty 1 valve body, Q.ty 1 clip for gaiter and Q.ty 1 pipe fastener clip	-	2	Enquire
0013	327739	ROD END FOR STEERING BOX	327739 ROD END FOR STEERING BOX L. 288.1 mm	-	2	Enquire
