REAR SUSPENSION - ARMS of Ferrari Ferrari Monza SPA1 Europe

View All

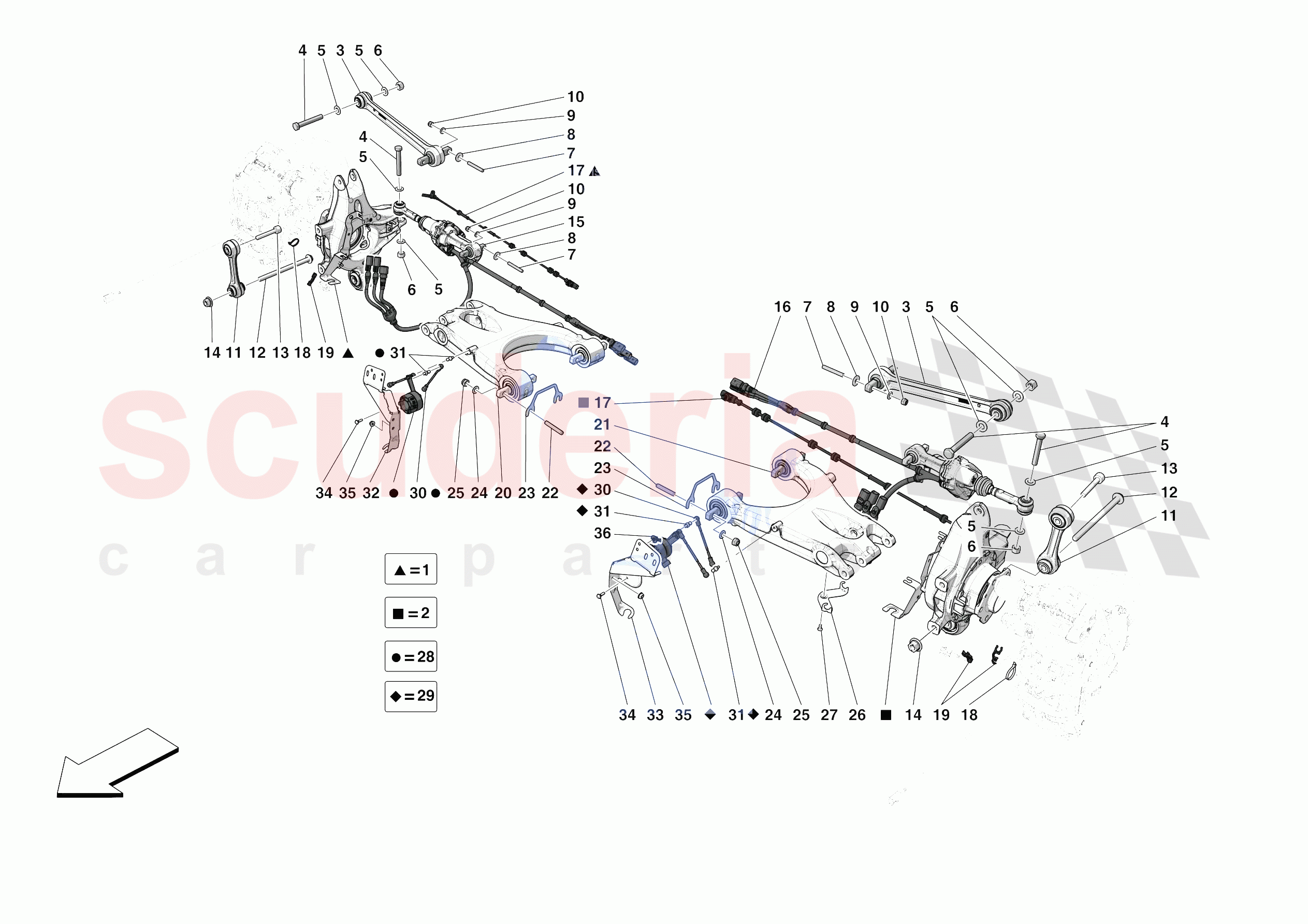

Ferrari Monza SPA1 Europe - REAR SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	299935	RH REAR HUB CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299933	COMPL. LH REAR HUB CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295792	REAR UPPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15541434	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14496721	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203666	NUT M12	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	302406	THREADED ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578321	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259688	ANTI-ROTATION LINKAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238656	SPECIAL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238258	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238063	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330992	COMPL. RH ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330990	COMPL. LH ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252514	ABS SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10815787	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310942	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	896445	COMPL. LOWER RH REAR ARM	Enquire	To Order
	911175	RH REAR LOWER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	896443	COMPL. LOWER LH REAR ARM	Enquire	To Order
	911176	LH LOWER REAR ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264528	THREADED ROD 10 X 1.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262545	ADJUSTER SHIM	Enquire	To Order
	262546	ADJUSTER SHIM	Enquire	To Order
	262539	ADJUSTER SHIM	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14496624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104114	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314125	ACTUATOR CABLE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81911600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259266	REAR RH MOTION SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259265	COMPL. REAR LH MOTION SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229653	POTENTIOMETER LINK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216973	BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326365	RH REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326364	LH REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217456	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303508	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	299935	RH REAR HUB CARRIER	299935 RH REAR HUB CARRIER	-	1	Enquire
0002	299933	COMPL. LH REAR HUB CARRIER	299933 COMPL. LH REAR HUB CARRIER	-	1	Enquire
0003	295792	REAR UPPER ARM	295792 REAR UPPER ARM	-	2	Enquire
0004	15541434	SCREW ARRIVING SOON	15541434 SCREW M12 X 1.25 X 80 ARRIVING SOON	-	4	Enquire
0005	14496721	WASHER	14496721 WASHER	-	6	Enquire
0006	203666	NUT M12 ARRIVING SOON	203666 NUT M12 ARRIVING SOON	-	5	Enquire
0007	302406	THREADED ROD	302406 THREADED ROD	-	8	Enquire
0008	13578321	WASHER	13578321 WASHER	-	8	Enquire
0009	14496524	WASHER	14496524 WASHER	-	8	Enquire
0010	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	8	Enquire
0011	259688	ANTI-ROTATION LINKAGE	259688 ANTI-ROTATION LINKAGE	-	2	Enquire
0012	238656	SPECIAL SCREW	238656 SPECIAL SCREW M14 X 1.5 X 210	-	2	Enquire
0013	238258	SCREW	238258 SCREW M12 X 1.25 X 75	-	2	Enquire
0014	238063	NUT	238063 NUT	-	2	Enquire
0015	330992	COMPL. RH ACTUATOR	330992 COMPL. RH ACTUATOR	-	1	Enquire
0016	330990	COMPL. LH ACTUATOR	330990 COMPL. LH ACTUATOR	-	1	Enquire
0017	252514	ABS SENSOR	252514 ABS SENSOR	-	2	Enquire
0018	10815787	CLAMP	10815787 CLAMP	-	2	Enquire
0019	310942	CLIP	310942 CLIP 3 compartments	-	4	Enquire
0020	896445	COMPL. LOWER RH REAR ARM	896445 COMPL. LOWER RH REAR ARM No longer supplied - Replaced by 911175	-	1	Enquire
0020	911175	RH REAR LOWER ARM	911175 RH REAR LOWER ARM	-	1	Enquire
0021	896443	COMPL. LOWER LH REAR ARM	896443 COMPL. LOWER LH REAR ARM No longer supplied - Replaced by 911176	-	1	Enquire
0021	911176	LH LOWER REAR ARM	911176 LH LOWER REAR ARM	-	1	Enquire
0022	264528	THREADED ROD 10 X 1.25	264528 THREADED ROD 10 X 1.25	-	8	Enquire
0023	262545	ADJUSTER SHIM	262545 ADJUSTER SHIM Th. 1 mm	-	4	Enquire
0023	262546	ADJUSTER SHIM	262546 ADJUSTER SHIM Th. 1.5 mm	-	4	Enquire
0023	262539	ADJUSTER SHIM	262539 ADJUSTER SHIM Th. 2 mm	-	4	Enquire
0023	262540	ADJUSTER SHIM	262540 ADJUSTER SHIM Th. 2.5 mm	-	4	Enquire
0023	262541	ADJUSTER SHIM	262541 ADJUSTER SHIM Th. 3 mm	-	4	Enquire
0023	262542	ADJUSTER SHIM	262542 ADJUSTER SHIM Th. 3.5 mm	-	4	Enquire
0023	262543	ADJUSTER SHIM	262543 ADJUSTER SHIM Th. 4 mm	-	4	Enquire
0024	14496624	WASHER	14496624 WASHER D. 10.5-21 X 2	-	8	Enquire
0025	104114	NUT	104114 NUT	-	8	Enquire
0026	314125	ACTUATOR CABLE FASTENER BRACKET	314125 ACTUATOR CABLE FASTENER BRACKET	-	2	Enquire
0027	81911600	SCREW	81911600 SCREW M6 X 1 X 18	-	2	Enquire
0028	259266	REAR RH MOTION SENSOR	259266 REAR RH MOTION SENSOR	-	1	Enquire
0029	259265	COMPL. REAR LH MOTION SENSOR	259265 COMPL. REAR LH MOTION SENSOR	-	1	Enquire
0030	229653	POTENTIOMETER LINK	229653 POTENTIOMETER LINK L. 115 mm	-	2	Enquire
0031	216973	BALL JOINT	216973 BALL JOINT	-	4	Enquire
0032	326365	RH REAR BRACKET	326365 RH REAR BRACKET	-	1	Enquire
0033	326364	LH REAR BRACKET	326364 LH REAR BRACKET	-	1	Enquire
0034	217456	SCREW	217456 SCREW M5 X 16	-	6	Enquire
0035	14040614	NUT	14040614 NUT	-	4	Enquire
0036	303508	CLIP	303508 CLIP	-	2	Enquire
