Name: PEDAL BOARD
Rating: 5.0 (1 reviews)

PEDAL BOARD of Ferrari Ferrari Monza SPA1 Europe

View All

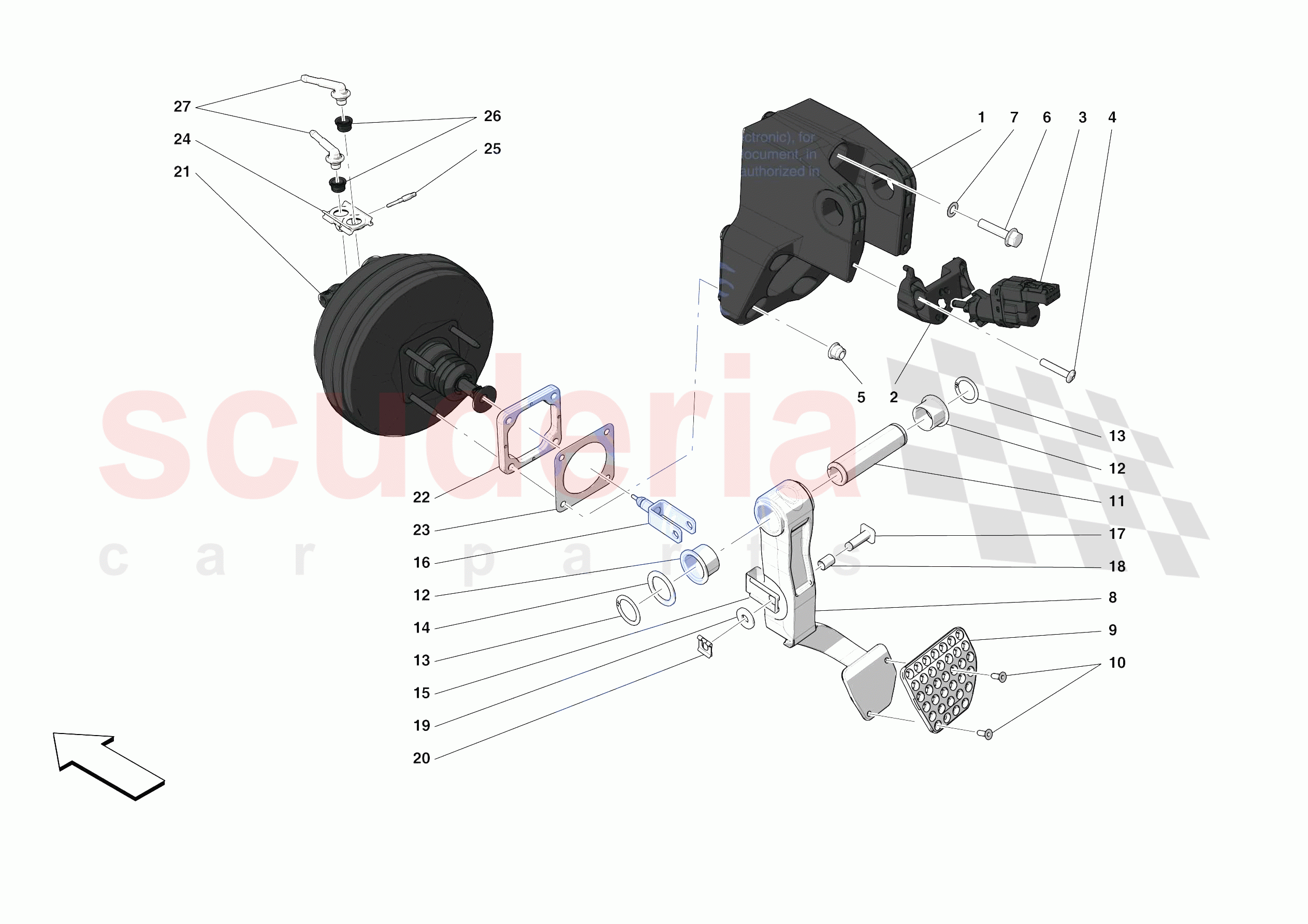

Ferrari Monza SPA1 Europe - PEDAL BOARD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	261612	PEDAL BOARD MOUNT	$516.03	To Order

Photo	Part No	Description	Price (each)	Stock
	317720	F1 SWITCH BRACKET	$68.79	To Order

Photo	Part No	Description	Price (each)	Stock
	958694	PUSH-BUTTON SWITCH	$33.68	To Order
	958694	PUSH-BUTTON SWITCH	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	240931	SCREW	$4.80	To Order

Photo	Part No	Description	Price (each)	Stock
	12578211	NUT	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	261832	BRAKE PEDAL	$1,412.03	To Order

Photo	Part No	Description	Price (each)	Stock
	240987	DRILLED PLATE	$272.77	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	240930	PIN	$85.03	To Order

Photo	Part No	Description	Price (each)	Stock
	147640	GASKET	$6.74	To Order

Photo	Part No	Description	Price (each)	Stock
	12700076	SEEGER RING FOR SHAFT	$9.69	To Order

Photo	Part No	Description	Price (each)	Stock
	240929	RUBBER WASHER	$10.76	To Order

Photo	Part No	Description	Price (each)	Stock
	245179	CAGE	$19.58	To Order

Photo	Part No	Description	Price (each)	Stock
	245178	BRAKE SERVO LINKAGE YOKE	$78.61	To Order

Photo	Part No	Description	Price (each)	Stock
	245180	PIN	$83.42	To Order

Photo	Part No	Description	Price (each)	Stock
	260639	BUSH	$14.68	To Order

Photo	Part No	Description	Price (each)	Stock
	245181	RUBBER WASHER	$7.83	To Order

Photo	Part No	Description	Price (each)	Stock
	11064176	SAFETY CLIP	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	261826	BRAKE SERVO	$563.98	To Order

Photo	Part No	Description	Price (each)	Stock
	196080	SPACER	$41.56	To Order

Photo	Part No	Description	Price (each)	Stock
	190378	GASKET	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	248081	ELBOW UNION RETAINER PLATE	$43.31	To Order

Photo	Part No	Description	Price (each)	Stock
	241537	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	241550	GASKET	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	237586	ELBOW UNION FOR BRAKE MASTER CYLINDER	$7.15	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	261612	PEDAL BOARD MOUNT	261612 PEDAL BOARD MOUNT	$516.03	1
0002	317720	F1 SWITCH BRACKET	317720 F1 SWITCH BRACKET	$68.79	1
0003	958694	PUSH-BUTTON SWITCH	958694 PUSH-BUTTON SWITCH Applicable after depletion of 318205	$33.68	1
0003	958694	PUSH-BUTTON SWITCH	958694 PUSH-BUTTON SWITCH	$33.68	1
0004	240931	SCREW	240931 SCREW	$4.80	2
0005	12578211	NUT	12578211 NUT	$0.31 MSRP: ~~1.25~~ (75.2% off)	4
0006	16287524	SCREW	16287524 SCREW M8 X 35	$1.36	1
0007	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	1
0008	261832	BRAKE PEDAL	261832 BRAKE PEDAL	$1,412.03	1
0009	240987	DRILLED PLATE	240987 DRILLED PLATE	$272.77	1
0010	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20 M6 X 16	$1.10 MSRP: ~~1.45~~ (24.1% off)	2
0011	240930	PIN	240930 PIN	$85.03	1
0012	147640	GASKET	147640 GASKET	$6.74 MSRP: ~~6.93~~ (2.7% off)	2
0013	12700076	SEEGER RING FOR SHAFT	12700076 SEEGER RING FOR SHAFT	$9.69	2
0014	240929	RUBBER WASHER	240929 RUBBER WASHER	$10.76	1
0015	245179	CAGE	245179 CAGE	$19.58	1
0016	245178	BRAKE SERVO LINKAGE YOKE	245178 BRAKE SERVO LINKAGE YOKE	$78.61	1
0017	245180	PIN	245180 PIN	$83.42	1
0018	260639	BUSH	260639 BUSH	$14.68	1
0019	245181	RUBBER WASHER	245181 RUBBER WASHER	$7.83	1
0020	11064176	SAFETY CLIP	11064176 SAFETY CLIP	$2.84	1
0021	261826	BRAKE SERVO	261826 BRAKE SERVO	$563.98	1
0022	196080	SPACER	196080 SPACER	$41.56	1
0023	190378	GASKET	190378 GASKET	$1.18	1
0024	248081	ELBOW UNION RETAINER PLATE	248081 ELBOW UNION RETAINER PLATE	$43.31	1
0025	241537	SCREW	241537 SCREW	$0.47	1
0026	241550	GASKET	241550 GASKET	$0.78	2
0027	237586	ELBOW UNION FOR BRAKE MASTER CYLINDER	237586 ELBOW UNION FOR BRAKE MASTER CYLINDER	$7.15	2
