CYLINDER HEADS - LH HEAD of Ferrari Ferrari Monza SPA1 Europe

View All

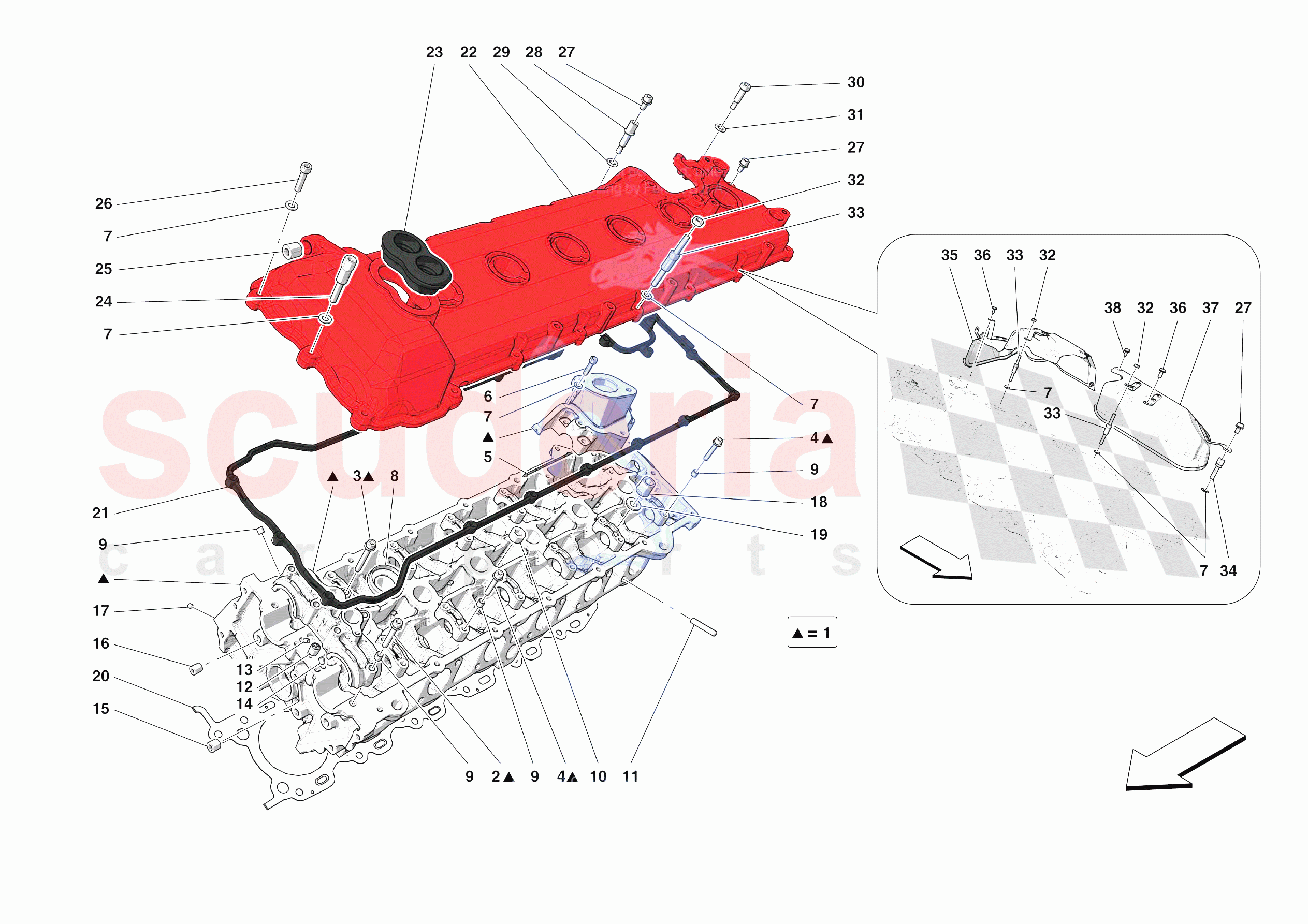

Ferrari Monza SPA1 Europe - CYLINDER HEADS - LH HEAD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	919201	LH CYLINDER HEAD	Enquire	To Order
	919201	LH CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243720	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243721	SCREW WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239614	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239502	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223982	SPARK PLUG TUBE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211641	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200458	NON RETURN VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226414	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342290	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282400	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183524	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER 11.25-22X2.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324014	LH HEAD-CRANKCASE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243802	LH HEAD COVER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	816000	LH CYLINDER HEAD COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229353	SOLENOID VALVE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157218	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	235754	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157218	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333779	CALIBRATED STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293278	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269228	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339948	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	821252	REAR LH HEAD HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11628424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	821250	FRONT LH HEAD HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625524	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	919201	LH CYLINDER HEAD	919201 LH CYLINDER HEAD	-	1	Enquire
0001	919201	LH CYLINDER HEAD	919201 LH CYLINDER HEAD	-	1	Enquire
0002	243720	SCREW	243720 SCREW M6 X 40	-	2	Enquire
0003	243721	SCREW WITH WASHER	243721 SCREW WITH WASHER M6 X 45	-	4	Enquire
0004	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 M6 X 35	-	24	Enquire
0005	239614	GASKET	239614 GASKET Also included in engine gasket set	-	1	Enquire
0006	239502	SCREW	239502 SCREW M6 X 25	-	1	Enquire
0007	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	19	Enquire
0008	223982	SPARK PLUG TUBE SEAL	223982 SPARK PLUG TUBE SEAL Also included in engine gasket set	-	6	Enquire
0009	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	4	Enquire
0010	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	-	6	Enquire
0011	211641	STUD BOLT	211641 STUD BOLT M8 X 16- -Shank length 24	-	12	Enquire
0012	200458	NON RETURN VALVE	200458 NON RETURN VALVE	-	2	Enquire
0013	226414	GRUB SCREW	226414 GRUB SCREW	-	1	Enquire
0014	342290	GRUB SCREW	342290 GRUB SCREW	-	1	Enquire
0015	282400	THREADED PLUG	282400 THREADED PLUG M12 X 11	-	2	Enquire
0016	282755	THREADED PLUG	282755 THREADED PLUG D. 10 X 1.25	-	5	Enquire
0017	199760	THREADED PLUG	199760 THREADED PLUG D. 6 X 1	-	6	Enquire
0018	183524	NUT	183524 NUT	-	14	Enquire
0019	151117	WASHER 11.25-22X2.5	151117 WASHER 11.25-22X2.5	-	14	Enquire
0020	324014	LH HEAD-CRANKCASE GASKET	324014 LH HEAD-CRANKCASE GASKET Also included in engine gasket set	-	1	Enquire
0021	243802	LH HEAD COVER GASKET	243802 LH HEAD COVER GASKET Also included in engine gasket set	-	1	Enquire
0022	816000	LH CYLINDER HEAD COVER	816000 LH CYLINDER HEAD COVER	-	1	Enquire
0023	229353	SOLENOID VALVE GASKET	229353 SOLENOID VALVE GASKET Also included in engine gasket set	-	1	Enquire
0024	157218	SCREW	157218 SCREW M6 X 25	-	10	Enquire
0025	235754	THREADED PLUG	235754 THREADED PLUG	-	1	Enquire
0026	157218	SCREW	157218 SCREW M6 X 25	-	10	Enquire
0027	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	1	Enquire
0028	333779	CALIBRATED STUD BOLT	333779 CALIBRATED STUD BOLT	-	1	Enquire
0029	14499421	WASHER	14499421 WASHER	-	1	Enquire
0030	293278	SCREW	293278 SCREW M6 X 1	-	1	Enquire
0031	986899	WASHER	986899 WASHER	-	1	Enquire
0032	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
0033	269228	STUD BOLT	269228 STUD BOLT M6 X 25	-	3	Enquire
0034	339948	STUD BOLT	339948 STUD BOLT H. 14 mm	-	3	Enquire
0035	821252	REAR LH HEAD HEAT SHIELD	821252 REAR LH HEAD HEAT SHIELD	-	1	Enquire
0036	11628424	SCREW	11628424 SCREW M6 X 14	-	3	Enquire
0037	821250	FRONT LH HEAD HEAT SHIELD	821250 FRONT LH HEAD HEAT SHIELD	-	1	Enquire
0038	11625524	SCREW	11625524 SCREW M6 X 12	-	2	Enquire
