Name: TIMING SYSTEM - TAPPETS AND SHAFTS
Rating: 4.9 (1 reviews)

TIMING SYSTEM - TAPPETS AND SHAFTS of Ferrari Ferrari LaFerrari

View All

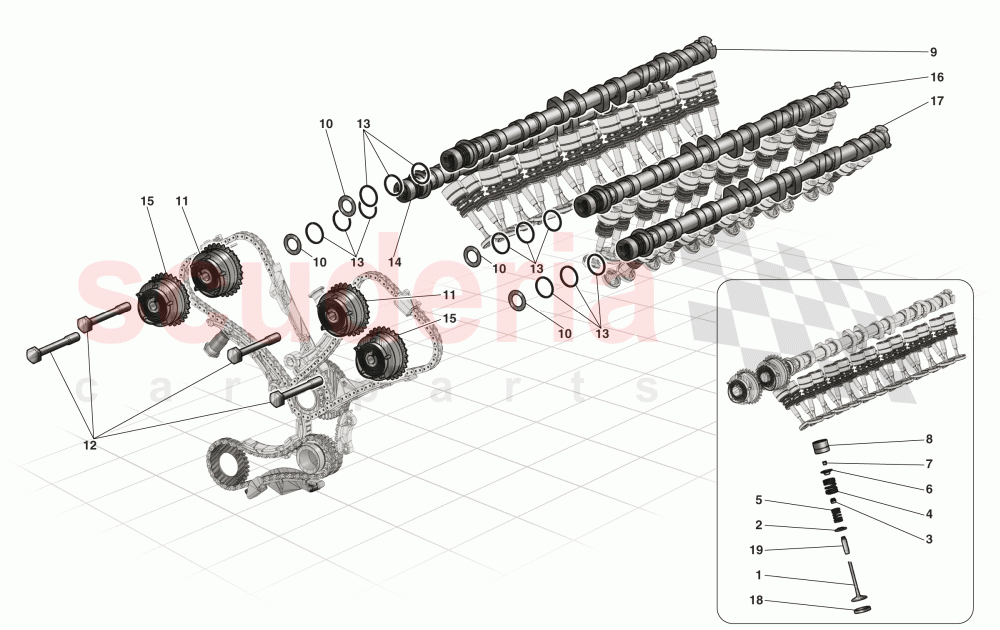

Ferrari LaFerrari - TIMING SYSTEM - TAPPETS AND SHAFTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	238485	EXHAUST VALVE	$27.38	To Order
	198581	INTAKE VALVE	$16.84	To Order

Photo	Part No	Description	Price (each)	Stock
	242574	LOWER STOP CAP	$11.38	To Order
	247484	LOWER STOP COLLAR	$6.24	To Order

Photo	Part No	Description	Price (each)	Stock
	221473	OIL SEAL	$1.91	To Order

Photo	Part No	Description	Price (each)	Stock
	238640	EXTERNAL VALVE RETURN SPRING	$10.89	To Order

Photo	Part No	Description	Price (each)	Stock
	238641	INTERNAL VALVE RETURN SPRING	$7.76	To Order

Photo	Part No	Description	Price (each)	Stock
	237390	UPPER STOP CAP	$10.10	To Order

Photo	Part No	Description	Price (each)	Stock
	179763	VALVE SPRING SEMI-CONE	$0.91	To Order

Photo	Part No	Description	Price (each)	Stock
	255431	HYDRAULIC TAPPET	$48.12	To Order

Photo	Part No	Description	Price (each)	Stock
	286638	RH INTAKE CAMSHAFT	$928.43	To Order

Photo	Part No	Description	Price (each)	Stock
	240559	DIAMOND COATED WASHER	$9.51	To Order

Photo	Part No	Description	Price (each)	Stock
	241906	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	$529.50	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	254892	SCREW	$14.15	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	197975	SEAL RING	$7.99	To Order

Photo	Part No	Description	Price (each)	Stock
	286639	RH EXHAUST CAMSHAFT	$928.43	To Order

Photo	Part No	Description	Price (each)	Stock
	248020	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	$529.50	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	286640	LH INTAKE CAMSHAFT	$928.43	To Order

Photo	Part No	Description	Price (each)	Stock
	286641	LH EXHAUST CAMSHAFT	$928.43	To Order

Photo	Part No	Description	Price (each)	Stock
	6222848	EXHAUST VALVE SEAT	$10.44	To Order
	6222847	INTAKE VALVE SEAT	$9.77	To Order

Photo	Part No	Description	Price (each)	Stock
	6213498	VALVE GUIDE	$3.36	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	238485	EXHAUST VALVE	238485 EXHAUST VALVE	$27.38	24
1	198581	INTAKE VALVE	198581 INTAKE VALVE	$16.84 MSRP: ~~23.97~~ (29.7% off)	24
2	242574	LOWER STOP CAP	242574 LOWER STOP CAP	$11.38	24
2	247484	LOWER STOP COLLAR	247484 LOWER STOP COLLAR	$6.24	24
3	221473	OIL SEAL	221473 OIL SEAL	$1.91 MSRP: ~~2.60~~ (26.5% off)	48
4	238640	EXTERNAL VALVE RETURN SPRING	238640 EXTERNAL VALVE RETURN SPRING	$10.89	48
5	238641	INTERNAL VALVE RETURN SPRING	238641 INTERNAL VALVE RETURN SPRING	$7.76	48
6	237390	UPPER STOP CAP	237390 UPPER STOP CAP	$10.10	48
7	179763	VALVE SPRING SEMI-CONE	179763 VALVE SPRING SEMI-CONE	$0.91	96
8	255431	HYDRAULIC TAPPET	255431 HYDRAULIC TAPPET	$48.12	48
9	286638	RH INTAKE CAMSHAFT	286638 RH INTAKE CAMSHAFT	$928.43	1
10	240559	DIAMOND COATED WASHER	240559 DIAMOND COATED WASHER	$9.51	4
11	241906	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT ARRIVING SOON	241906 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT ARRIVING SOON	$529.50	2
12	254892	SCREW ARRIVING SOON	254892 SCREW ARRIVING SOON	$14.15	4
13	197975	SEAL RING	197975 SEAL RING	$7.99 MSRP: ~~12.85~~ (37.8% off)	12
14	286639	RH EXHAUST CAMSHAFT	286639 RH EXHAUST CAMSHAFT	$928.43	1
15	248020	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT ARRIVING SOON	248020 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT ARRIVING SOON	$529.50	2
16	286640	LH INTAKE CAMSHAFT	286640 LH INTAKE CAMSHAFT	$928.43	1
17	286641	LH EXHAUST CAMSHAFT	286641 LH EXHAUST CAMSHAFT Applicable only for S.T. Schedule	$928.43	1
18	6222848	EXHAUST VALVE SEAT	6222848 EXHAUST VALVE SEAT	$10.44	24
18	6222847	INTAKE VALVE SEAT	6222847 INTAKE VALVE SEAT	$9.77	24
19	6213498	VALVE GUIDE	6213498 VALVE GUIDE	$3.36 MSRP: ~~4.33~~ (22.4% off)	48
