CRANKSHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari LaFerrari

View All

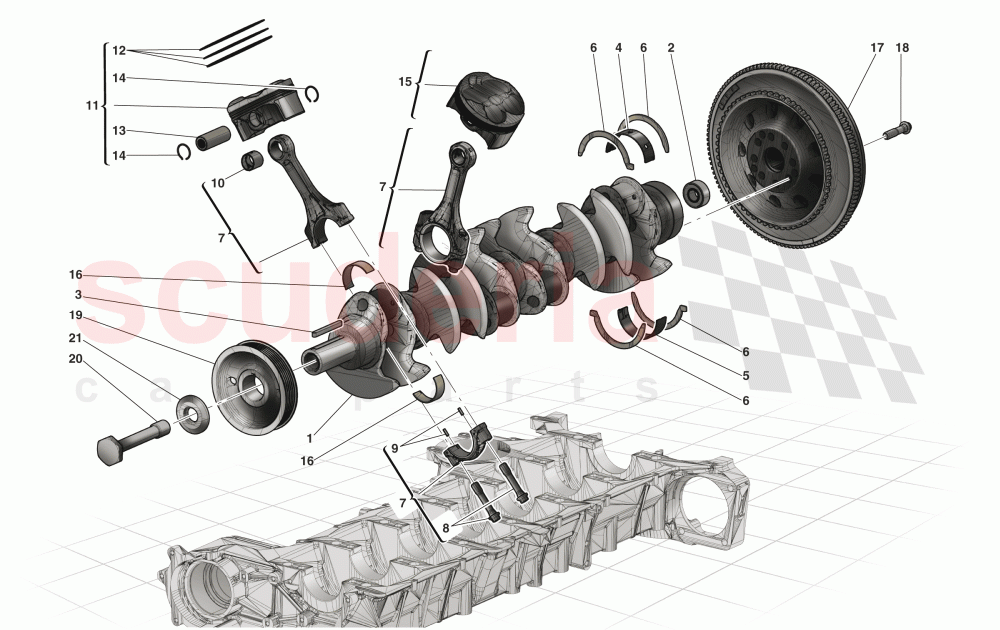

Ferrari LaFerrari - CRANKSHAFT - CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	306666	CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103877	GROOVED BALL BEARING D.30-35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190981	TAB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286834	UPPER HALF-BEARING	Enquire	To Order
	271030	UPPER HALF-BEARING	Enquire	To Order
	286833	UPPER HALF-BEARING	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	286838	LOWER HALF-BEARING	Enquire	To Order
	271025	LOWER HALF-BEARING	Enquire	To Order
	286837	LOWER HALF-BEARING	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	222874	SHIM RING	Enquire	To Order
	261727	SHIM RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267273	COMPL. CONNECTING ROD AND CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254806	CONNECTING ROD FASTENER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	224608	ALIGNMENT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234871	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	341501	RH CYLINDER BANK PISTON COMPLETE WITH RINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287944	COMPL. PISTON RING SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255232	GUDGEON PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255234	STOP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	341502	LH CYLINDER BANK PISTON COMPLETE WITH RINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262987	CONNECTING ROD HALF-BEARING	Enquire	To Order
	244418	CONNECTING ROD HALF-BEARING	Enquire	To Order
	261720	CONNECTING ROD HALF-BEARING	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	278154	FLYWHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229907	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302570	TORSION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196216	SCREW FOR DAMPER FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297847	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	306666	CRANKSHAFT	306666 CRANKSHAFT	-	1	Enquire
2	103877	GROOVED BALL BEARING D.30-35	103877 GROOVED BALL BEARING D.30-35	-	1	Enquire
3	190981	TAB	190981 TAB	-	1	Enquire
4	286834	UPPER HALF-BEARING	286834 UPPER HALF-BEARING Green; Not for EU GS	-	7	Enquire
4	271030	UPPER HALF-BEARING	271030 UPPER HALF-BEARING Green; Lead free; Applicable for EU GS	-	7	Enquire
4	286833	UPPER HALF-BEARING	286833 UPPER HALF-BEARING Yellow; Not for EU GS	-	7	Enquire
4	271029	UPPER HALF-BEARING	271029 UPPER HALF-BEARING Yellow; Lead free; Applicable for EU GS	-	7	Enquire
4	286832	UPPER MAIN HALF BEARING BLUE	286832 UPPER MAIN HALF BEARING BLUE Blue; Not for EU GS	-	7	Enquire
4	271028	UPPER HALF-BEARING	271028 UPPER HALF-BEARING Blue; Lead free; Applicable for EU GS	-	7	Enquire
5	286838	LOWER HALF-BEARING	286838 LOWER HALF-BEARING Green; Not for EU GS	-	7	Enquire
5	271025	LOWER HALF-BEARING	271025 LOWER HALF-BEARING Green; Lead free; Applicable for EU GS	-	7	Enquire
5	286837	LOWER HALF-BEARING	286837 LOWER HALF-BEARING Yellow; Not for EU GS	-	7	Enquire
5	271024	LOWER HALF-BEARING	271024 LOWER HALF-BEARING Yellow; Lead free; Applicable for EU GS	-	7	Enquire
5	200194	Lower Main Half Bearing Blue	200194 Lower Main Half Bearing Blue Blue; Not for EU GS	-	7	Enquire
5	271023	LOWER HALF-BEARING	271023 LOWER HALF-BEARING Blue; Lead free; Applicable for EU GS	-	7	Enquire
6	222874	SHIM RING	222874 SHIM RING Not for EU GS	-	4	Enquire
6	261727	SHIM RING	261727 SHIM RING Applicable for EU GS	-	4	Enquire
7	267273	COMPL. CONNECTING ROD AND CAP	267273 COMPL. CONNECTING ROD AND CAP	-	12	Enquire
8	254806	CONNECTING ROD FASTENER SCREW	254806 CONNECTING ROD FASTENER SCREW	-	24	Enquire
9	224608	ALIGNMENT PIN	224608 ALIGNMENT PIN	-	24	Enquire
10	234871	BUSHING	234871 BUSHING	-	12	Enquire
11	341501	RH CYLINDER BANK PISTON COMPLETE WITH RINGS	341501 RH CYLINDER BANK PISTON COMPLETE WITH RINGS Applicable from engine No. 341646	-	6	Enquire
12	287944	COMPL. PISTON RING SET	287944 COMPL. PISTON RING SET	-	12	Enquire
13	255232	GUDGEON PIN	255232 GUDGEON PIN Applicable until depletion	-	12	Enquire
14	255234	STOP RING	255234 STOP RING Applicable until depletion	-	24	Enquire
15	341502	LH CYLINDER BANK PISTON COMPLETE WITH RINGS	341502 LH CYLINDER BANK PISTON COMPLETE WITH RINGS Applicable from engine No. 341646	-	6	Enquire
16	262987	CONNECTING ROD HALF-BEARING	262987 CONNECTING ROD HALF-BEARING Pink; Lead free; Applicable for EU GS	-	24	Enquire
16	244418	CONNECTING ROD HALF-BEARING	244418 CONNECTING ROD HALF-BEARING Black; Not for EU GS	-	24	Enquire
16	261720	CONNECTING ROD HALF-BEARING	261720 CONNECTING ROD HALF-BEARING Black; Lead free; Applicable for EU GS; No longer supplied	-	24	Enquire
16	244417	CONNECTING ROD HALF-BEARING	244417 CONNECTING ROD HALF-BEARING Blue; Not for EU GS	-	24	Enquire
16	261719	CONNECTING ROD HALF-BEARING	261719 CONNECTING ROD HALF-BEARING Blue; Lead free; Applicable for EU GS	-	24	Enquire
16	244416	CONNECTING ROD HALF-BEARING	244416 CONNECTING ROD HALF-BEARING Red; Not for EU GS	-	24	Enquire
16	261718	CONNECTING ROD HALF-BEARING	261718 CONNECTING ROD HALF-BEARING Red; Lead free; Applicable for EU GS	-	24	Enquire
17	278154	FLYWHEEL	278154 FLYWHEEL	-	1	Enquire
18	229907	SCREW	229907 SCREW	-	8	Enquire
19	302570	TORSION DAMPER	302570 TORSION DAMPER	-	1	Enquire
20	196216	SCREW FOR DAMPER FIXING	196216 SCREW FOR DAMPER FIXING	-	1	Enquire
21	297847	WASHER	297847 WASHER	-	1	Enquire
