Name: LEFT HAND CYLINDER HEAD
Rating: 5.0 (1 reviews)

LEFT HAND CYLINDER HEAD of Ferrari Ferrari LaFerrari

View All

Ferrari LaFerrari - LEFT HAND CYLINDER HEAD

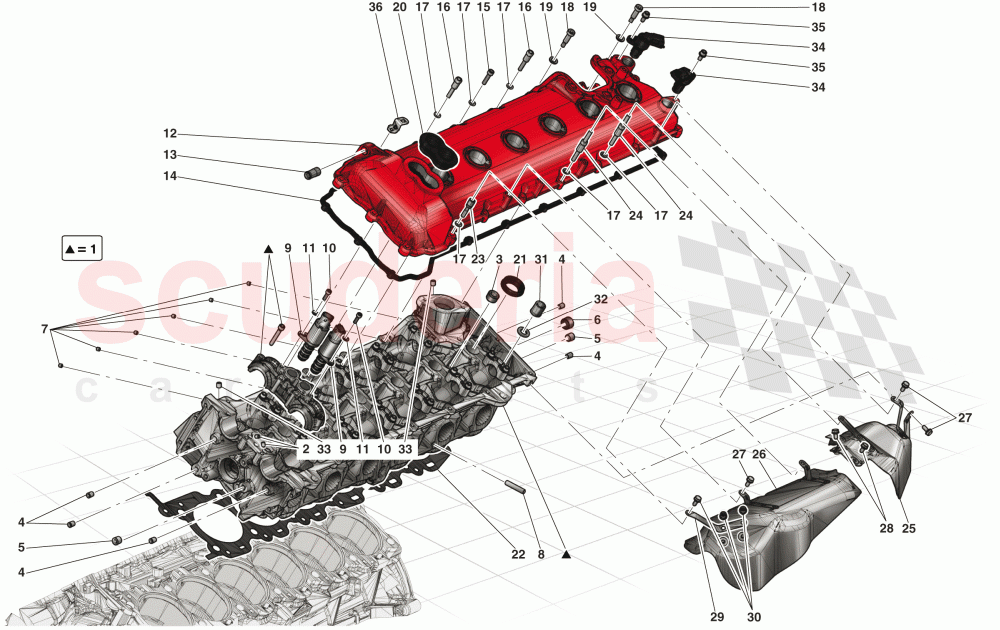

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	296080	LH HEAD	$4,284.55	To Order
	303927	LH HEAD	$4,441.32	To Order

Photo	Part No	Description	Price (each)	Stock
	256827	GRUB SCREW	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	$2.14	To Order

Photo	Part No	Description	Price (each)	Stock
	282400	THREADED PLUG	$3.91	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	211641	STUD BOLT	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	801187	OIL PRESSURE REGULATOR VALVE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	14304221	SCREW	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	292566	LH CYLINDER HEAD COVER	$759.72	To Order

Photo	Part No	Description	Price (each)	Stock
	271521	CONNECTOR	$6.84	To Order

Photo	Part No	Description	Price (each)	Stock
	243802	LH HEAD COVER GASKET	$85.03	To Order

Photo	Part No	Description	Price (each)	Stock
	214412	STUD BOLT	$13.14	To Order

Photo	Part No	Description	Price (each)	Stock
	300510	STUD BOLT	$15.66	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	293278	SCREW	$14.68	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	229353	SOLENOID VALVE GASKET	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	223982	SPARK PLUG TUBE SEAL	$2.54	To Order

Photo	Part No	Description	Price (each)	Stock
	339948	STUD BOLT	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	269228	STUD BOLT	$6.66	To Order

Photo	Part No	Description	Price (each)	Stock
	293215	REAR LH HEAD HEAT SHIELD	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	293214	FRONT LH HEAD HEAT SHIELD	$301.00	To Order

Photo	Part No	Description	Price (each)	Stock
	11628424	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	11625524	SCREW	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	291172	RH HEAD HEAT SHIELD BRACKET	$27.21	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER	$1.20	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	224573	TIMING SENSOR	$39.30	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	294472	WIRING HARNESS MOUNTING BRACKET	$28.66	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	296080	LH HEAD	296080 LH HEAD Applicable from engine No. 234044; Applicable after depletion of 287816	$4,284.55	1
1	303927	LH HEAD	303927 LH HEAD Applicable up to engine No. 234043; Applicable until depletion	$4,441.32	1
2	256827	GRUB SCREW	256827 GRUB SCREW	$5.58	2
3	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	$3.32 MSRP: ~~4.17~~ (20.4% off)	12
4	282755	THREADED PLUG	282755 THREADED PLUG	$2.14	5
5	282400	THREADED PLUG	282400 THREADED PLUG	$3.91	1
6	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	$3.32 MSRP: ~~4.17~~ (20.4% off)	1
7	199760	THREADED PLUG	199760 THREADED PLUG D. 6 X 1	$0.31	6
8	211641	STUD BOLT	211641 STUD BOLT	$1.04	12
9	801187	OIL PRESSURE REGULATOR VALVE	801187 OIL PRESSURE REGULATOR VALVE	$240.67	2
10	14304221	SCREW	14304221 SCREW M5 X 16	$0.10	2
11	11181574	WASHER	11181574 WASHER	$0.02	2
12	292566	LH CYLINDER HEAD COVER	292566 LH CYLINDER HEAD COVER	$759.72	1
13	271521	CONNECTOR	271521 CONNECTOR	$6.84	1
14	243802	LH HEAD COVER GASKET	243802 LH HEAD COVER GASKET	$85.03 MSRP: ~~111.59~~ (23.8% off)	1
15	214412	STUD BOLT	214412 STUD BOLT M6 X 25	$13.14	14
16	300510	STUD BOLT	300510 STUD BOLT	$15.66	2
17	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	18
18	293278	SCREW	293278 SCREW	$14.68	2
19	986899	WASHER	986899 WASHER	$6.26	2
20	229353	SOLENOID VALVE GASKET	229353 SOLENOID VALVE GASKET	$19.24 MSRP: ~~29.29~~ (34.3% off)	1
21	223982	SPARK PLUG TUBE SEAL	223982 SPARK PLUG TUBE SEAL	$2.54 MSRP: ~~3.97~~ (36% off)	6
23	339948	STUD BOLT	339948 STUD BOLT	$20.84	1
24	269228	STUD BOLT	269228 STUD BOLT M6 X 25	$6.66	2
25	293215	REAR LH HEAD HEAT SHIELD	293215 REAR LH HEAD HEAT SHIELD	$336.95	1
26	293214	FRONT LH HEAD HEAT SHIELD	293214 FRONT LH HEAD HEAT SHIELD	$301.00	1
27	11628424	SCREW	11628424 SCREW	$0.65	3
28	11625524	SCREW	11625524 SCREW	$0.79	2
29	291172	RH HEAD HEAT SHIELD BRACKET	291172 RH HEAD HEAT SHIELD BRACKET	$27.21	1
30	248334	SCREW	248334 SCREW M6 X 12	$0.68	3
31	321187	NUT	321187 NUT	-	14	Enquire
32	151117	WASHER	151117 WASHER	$1.20	14
33	102725	CENTERING DOWEL	102725 CENTERING DOWEL	$1.17 MSRP: ~~2.25~~ (48% off)	2
34	224573	TIMING SENSOR ARRIVING SOON	224573 TIMING SENSOR ARRIVING SOON	$39.30 MSRP: ~~55.44~~ (29.1% off)	2
35	248334	SCREW	248334 SCREW M6 X 14	$0.68	2
36	294472	WIRING HARNESS MOUNTING BRACKET	294472 WIRING HARNESS MOUNTING BRACKET	$28.66	1
