Transmission Pipe

Ferrari GTC4Lusso T

Find Your Part

Ferrari GTC4Lusso T - TRANSMISSION PIPE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
340747 TRANSMISSION SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
13398476 SNAP RING Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
314501 SHORT HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
780835 LONG HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 Enquire To Order
View All

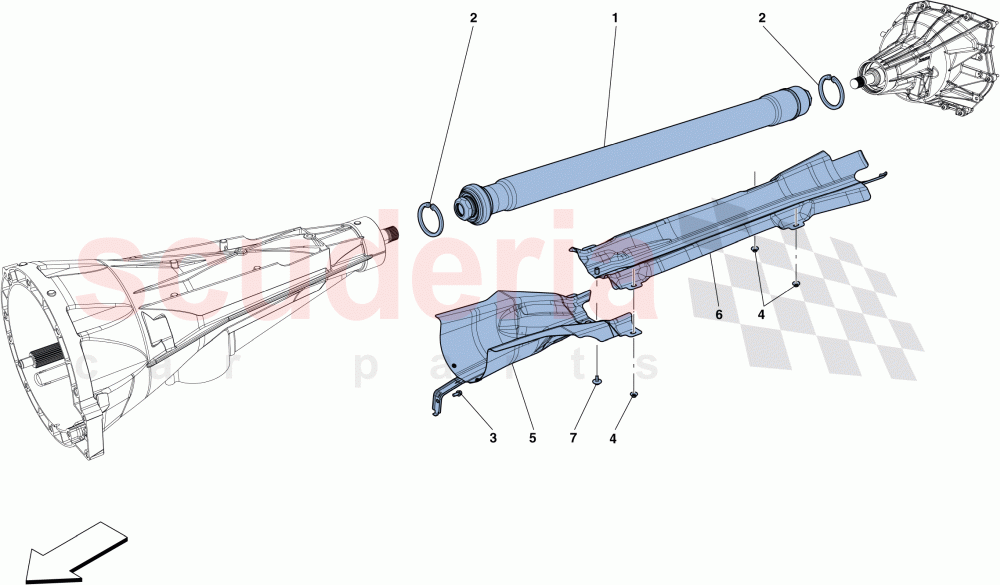

TRANSMISSION PIPE of Ferrari Ferrari GTC4Lusso T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 340747
TRANSMISSION SHAFT 		- 1 Enquire
2 13398476
SNAP RING 		- 2 Enquire
3 248334
SCREW M6 X 14MM 		- 1 Enquire
4 14059290
FLANGED NUT M6 		- 4 Enquire
5 314501
SHORT HEAT SHIELD 		- 1 Enquire
6 780835
LONG HEAT SHIELD 		- 1 Enquire
7 880041
Allen Head Bolt M6 X 26
M6 X 20 X 22 		- 1 Enquire
