Complete Pedal Board Assembly

Ferrari GTC4Lusso T

Find Your Part

Ferrari GTC4Lusso T - COMPLETE PEDAL BOARD ASSEMBLY

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
261612 PEDAL BOARD MOUNT Enquire To Order
Photo Part No Description Price (each) Stock
317720 F1 SWITCH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
240931 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
240930 PIN Enquire To Order
Photo Part No Description Price (each) Stock
147640 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
240929 RUBBER WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12700076 SEEGER RING FOR SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
261846 BRAKE PEDAL Enquire To Order
261832 BRAKE PEDAL Enquire To Order
Photo Part No Description Price (each) Stock
240987 DRILLED PLATE Enquire To Order
Photo Part No Description Price (each) Stock
62797600 Allen Bolt Countersunk M6 x 20 Enquire To Order
Photo Part No Description Price (each) Stock
12578211 NUT Enquire To Order
Photo Part No Description Price (each) Stock
11064176 SAFETY CLIP Enquire To Order
Photo Part No Description Price (each) Stock
245181 RUBBER WASHER Enquire To Order
Photo Part No Description Price (each) Stock
958694 PUSH-BUTTON SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
245178 BRAKE SERVO LINKAGE YOKE Enquire To Order
Photo Part No Description Price (each) Stock
245179 CAGE Enquire To Order
Photo Part No Description Price (each) Stock
245180 PIN Enquire To Order
Photo Part No Description Price (each) Stock
260639 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
16287524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
69855300 PRESS-FIT BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
12646624 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
243117 FLOOR HINGED ACCELERATOR PEDAL Enquire To Order
Photo Part No Description Price (each) Stock
243120 ACCELERATOR PEDAL PLATE Enquire To Order
Photo Part No Description Price (each) Stock
190378 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
196080 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
82467100 ACCELERATOR PEDAL BRACKET Enquire To Order
View All

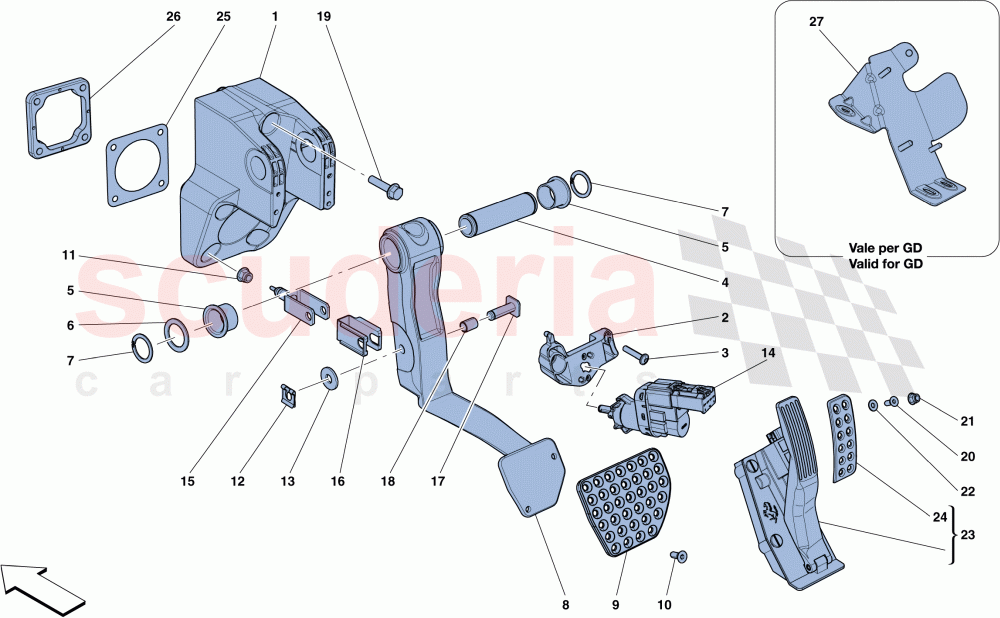

COMPLETE PEDAL BOARD ASSEMBLY of Ferrari Ferrari GTC4Lusso T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 261612
PEDAL BOARD MOUNT 		- 1 Enquire
2 317720
F1 SWITCH BRACKET 		- 1 Enquire
3 240931
SCREW 		- 2 Enquire
4 240930
PIN 		- 1 Enquire
5 147640
GASKET 		- 2 Enquire
6 240929
RUBBER WASHER 		- 1 Enquire
7 12700076
SEEGER RING FOR SHAFT 		- 2 Enquire
8 261846
BRAKE PEDAL
Applicable for GD 		- 1 Enquire
8 261832
BRAKE PEDAL
Not for GD 		- 1 Enquire
9 240987
DRILLED PLATE 		- 1 Enquire
10 62797600
Allen Bolt Countersunk M6 x 20
M6 X 16 		- 2 Enquire
11 12578211
NUT 		- 4 Enquire
12 11064176
SAFETY CLIP 		- 1 Enquire
13 245181
RUBBER WASHER 		- 1 Enquire
14 958694
PUSH-BUTTON SWITCH 		- 1 Enquire
15 245178
BRAKE SERVO LINKAGE YOKE 		- 1 Enquire
16 245179
CAGE 		- 1 Enquire
17 245180
PIN 		- 1 Enquire
18 260639
BUSH 		- 1 Enquire
19 16287524
SCREW
M8 X 35 		- 1 Enquire
20 69855300
PRESS-FIT BUTTON 		- 3 Enquire
21 14059290
FLANGED NUT M6 		- 3 Enquire
22 12646624
WASHER 		- 3 Enquire
23 243117
FLOOR HINGED ACCELERATOR PEDAL 		- 1 Enquire
24 243120
ACCELERATOR PEDAL PLATE 		- 1 Enquire
25 190378
GASKET 		- 1 Enquire
26 196080
SPACER 		- 1 Enquire
27 82467100
ACCELERATOR PEDAL BRACKET
Applicable for GD 		- 1 Enquire
