Name: GEARBOX HOUSING
Rating: 4.7 (1 reviews)

GEARBOX HOUSING of Ferrari Ferrari GTC4Lusso T

View All

Ferrari GTC4Lusso T - GEARBOX HOUSING

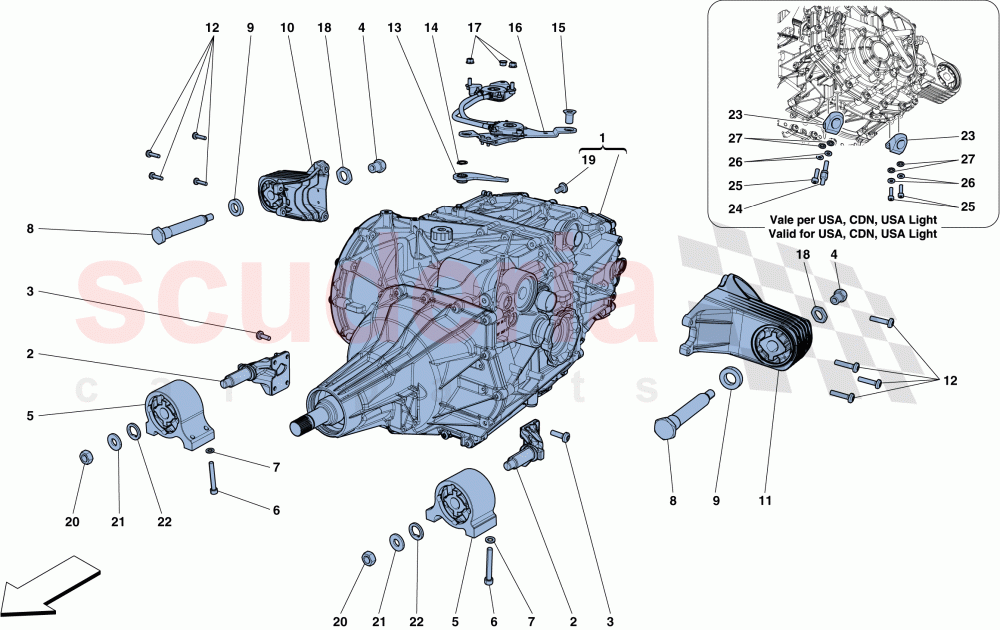

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	321441	COMPL. DCT GEARBOX	$31,210.86	To Order

Photo	Part No	Description	Price (each)	Stock
	301074	RH FRONT DCT GEARBOX STRUT	$224.63	To Order
	301073	LH FRONT DCT GEARBOX STRUT	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	247856	SCREW	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	287404	NUT	$13.70	To Order

Photo	Part No	Description	Price (each)	Stock
	319484	COMPL. RH BUSHING MOUNT	$372.69	To Order
	319482	LH BUSHING MOUNT	$369.04	To Order

Photo	Part No	Description	Price (each)	Stock
	14302234	SCREW	$0.91	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	243075	GEARBOX MOUNTING BUSH PIN	$141.19	To Order

Photo	Part No	Description	Price (each)	Stock
	243122	SPACER	$6.32	To Order

Photo	Part No	Description	Price (each)	Stock
	266362	COMPL. RH REAR STRUT	$417.18	To Order

Photo	Part No	Description	Price (each)	Stock
	266364	COMPL. LH REAR STRUT	$433.23	To Order

Photo	Part No	Description	Price (each)	Stock
	14306634	SCREW	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	238370	COMPLETE RELEASE LEVER	$70.21	To Order

Photo	Part No	Description	Price (each)	Stock
	11066176	SEEGER RING	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	243151	SCREW	$6.32	To Order

Photo	Part No	Description	Price (each)	Stock
	292667	COMPL. PARK LOCK RELEASE	$722.05	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	287405	SPACER	$11.67	To Order

Photo	Part No	Description	Price (each)	Stock
	263679	FUEL LEVEL PLUG	$114.66	To Order

Photo	Part No	Description	Price (each)	Stock
	12164024	NUT	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	12644924	WASHER	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	300597	SPLIT WASHER	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	322118	RETENTION BRACKET	$123.26	To Order

Photo	Part No	Description	Price (each)	Stock
	266645	STUD BOLT	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	14306474	SCREW	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	321441	COMPL. DCT GEARBOX	321441 COMPL. DCT GEARBOX	$31,210.86	1
2	301074	RH FRONT DCT GEARBOX STRUT	301074 RH FRONT DCT GEARBOX STRUT	$224.63	1
2	301073	LH FRONT DCT GEARBOX STRUT	301073 LH FRONT DCT GEARBOX STRUT	$224.63	1
3	247856	SCREW	247856 SCREW M8 X 1.25 X 25	$1.94	8
4	287404	NUT	287404 NUT	$13.70	2
5	319484	COMPL. RH BUSHING MOUNT	319484 COMPL. RH BUSHING MOUNT	$372.69	2
5	319482	LH BUSHING MOUNT	319482 LH BUSHING MOUNT	$369.04	2
6	14302234	SCREW	14302234 SCREW M8 X 55	$0.91	8
7	986899	WASHER	986899 WASHER	$6.26	8
8	243075	GEARBOX MOUNTING BUSH PIN	243075 GEARBOX MOUNTING BUSH PIN	$141.19	2
9	243122	SPACER	243122 SPACER	$6.32	2
10	266362	COMPL. RH REAR STRUT	266362 COMPL. RH REAR STRUT	$417.18	1
11	266364	COMPL. LH REAR STRUT	266364 COMPL. LH REAR STRUT	$433.23	1
12	14306634	SCREW	14306634 SCREW M8 X 1.25 X 35	$0.41	8
13	238370	COMPLETE RELEASE LEVER	238370 COMPLETE RELEASE LEVER	$70.21	1
14	11066176	SEEGER RING	11066176 SEEGER RING	$0.05	1
15	243151	SCREW	243151 SCREW M12 X 1.25 X 20	$6.32	2
16	292667	COMPL. PARK LOCK RELEASE	292667 COMPL. PARK LOCK RELEASE	$722.05	1
17	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	3
18	287405	SPACER	287405 SPACER	$11.67	2
19	263679	FUEL LEVEL PLUG	263679 FUEL LEVEL PLUG	$114.66	1
20	12164024	NUT	12164024 NUT	$1.65	2
21	12644924	WASHER	12644924 WASHER	$1.85	2
22	300597	SPLIT WASHER	300597 SPLIT WASHER	$19.24	2
23	322118	RETENTION BRACKET	322118 RETENTION BRACKET Applicable for USA, CDN, USA LIGHT	$123.26	2
24	266645	STUD BOLT	266645 STUD BOLT Applicable for USA, CDN, USA LIGHT	$19.24	1
25	14306474	SCREW	14306474 SCREW M8 X 25; Applicable for USA, CDN, USA LIGHT	$0.42	3
26	12638524	WASHER	12638524 WASHER Applicable for USA, CDN, USA LIGHT	$0.06 MSRP: ~~0.25~~ (76% off)	4
27	12601374	WASHER	12601374 WASHER Applicable for USA, CDN, USA LIGHT	$0.02 MSRP: ~~0.25~~ (92% off)	4
