Name: SILENCERS
Rating: 4.4 (1 reviews)

View All

Ferrari FF - SILENCERS

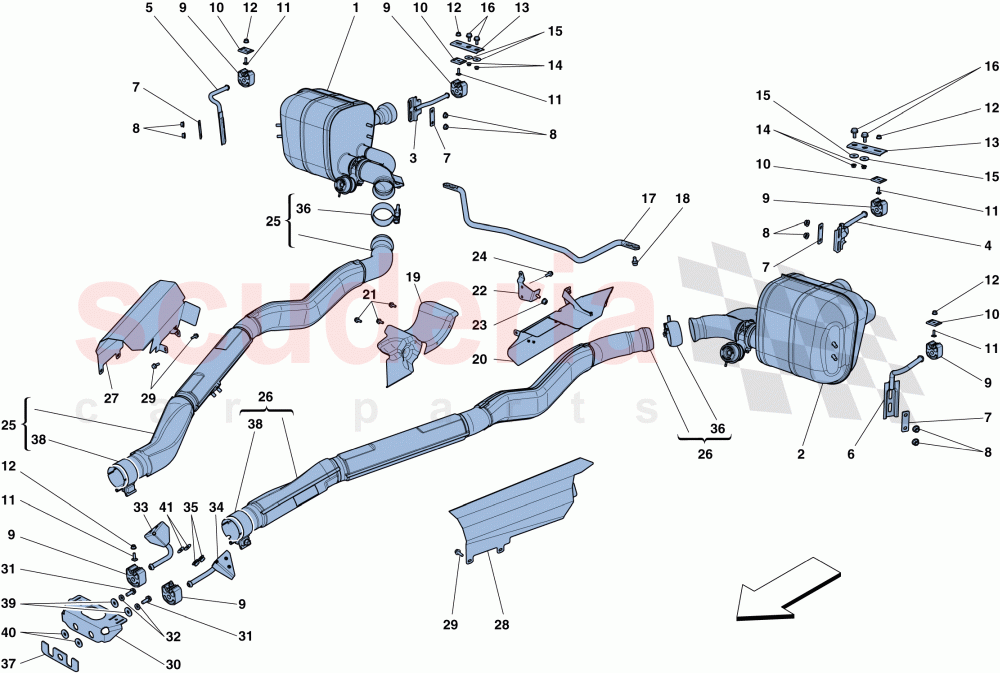

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	268174	REAR RH BRACKET	$51.59	To Order

Photo	Part No	Description	Price (each)	Stock
	268176	REAR LH BRACKET	$51.59	To Order

Photo	Part No	Description	Price (each)	Stock
	291412	RH LATERAL BRACKET	$67.38	To Order

Photo	Part No	Description	Price (each)	Stock
	291413	LH LATERAL BRACKET	$67.38	To Order

Photo	Part No	Description	Price (each)	Stock
	240597	PLATE	$11.30	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	FLANGED NUT M8 X 1.25	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	289529	FLEXIBLE SILENCER MOUNTING BUSH	$51.33	To Order

Photo	Part No	Description	Price (each)	Stock
	240598	BRACKET PLATE	$14.10	To Order

Photo	Part No	Description	Price (each)	Stock
	283425	SQUARE HEADED SCREW M6 X 18.5MM	$2.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14058421	NUT	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	266812	REAR SILENCER FASTENER BRACKET	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	13046224	NUT	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	16287127	SCREW	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	272615	SILENCER CROSS PIECE	$834.37	To Order

Photo	Part No	Description	Price (each)	Stock
	231627	SCREW	$0.63	To Order
	280460	SCREW	$4.70	To Order

Photo	Part No	Description	Price (each)	Stock
	272274	RH GEARBOX HEAT SHIELD	$215.00	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	263583	BRACKET	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	266421	RH REAR EXTENSION	$1,045.50	To Order

Photo	Part No	Description	Price (each)	Stock
	266422	LH REAR EXTENSION	$1,045.50	To Order

Photo	Part No	Description	Price (each)	Stock
	272668	RH FRONT GEARBOX HEAT SHIELD	$96.26	To Order

Photo	Part No	Description	Price (each)	Stock
	269417	LH FRONT GEARBOX HEAT SHIELD	$96.26	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	272447	EXTENSION MOUNTING BRACKET	$67.38	To Order

Photo	Part No	Description	Price (each)	Stock
	16043524	SCREW	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	267836	REMOVABLE BRACKET ON RH REAR EXTENSION	$75.95	To Order

Photo	Part No	Description	Price (each)	Stock
	267837	REMOVABLE BRACKET ON LH REAR EXTENSION	$75.95	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	FLANGED NUT M8 X 1.25	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	229100	SPHERICAL CLAMP	$43.31	To Order

Photo	Part No	Description	Price (each)	Stock
	280730	SHIM	$13.70	To Order

Photo	Part No	Description	Price (each)	Stock
	292231	RING CLAMP	$27.42	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	12648424	WASHER	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	$0.23	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
3	268174	REAR RH BRACKET	268174 REAR RH BRACKET	$51.59	1
4	268176	REAR LH BRACKET	268176 REAR LH BRACKET	$51.59	1
5	291412	RH LATERAL BRACKET	291412 RH LATERAL BRACKET	$67.38	1
6	291413	LH LATERAL BRACKET	291413 LH LATERAL BRACKET	$67.38 MSRP: ~~88.35~~ (23.7% off)	1
7	240597	PLATE	240597 PLATE	$11.30 MSRP: ~~14.74~~ (23.3% off)	4
8	14059311	FLANGED NUT M8 X 1.25	14059311 FLANGED NUT M8 X 1.25	$0.28 MSRP: ~~0.50~~ (44% off)	8
9	289529	FLEXIBLE SILENCER MOUNTING BUSH	289529 FLEXIBLE SILENCER MOUNTING BUSH	$51.33 MSRP: ~~65.08~~ (21.1% off)	6
10	240598	BRACKET PLATE	240598 BRACKET PLATE	$14.10 MSRP: ~~19.62~~ (28.1% off)	4
11	283425	SQUARE HEADED SCREW M6 X 18.5MM	283425 SQUARE HEADED SCREW M6 X 18.5MM M6 X 18.5	$2.51	6
12	14058421	NUT	14058421 NUT	$1.30	6
13	266812	REAR SILENCER FASTENER BRACKET	266812 REAR SILENCER FASTENER BRACKET	$19.24	2
14	13046224	NUT	13046224 NUT	$0.39	4
15	12647021	WASHER	12647021 WASHER	$0.32	4
16	16287127	SCREW	16287127 SCREW M8 X 20	$0.50	4
17	272615	SILENCER CROSS PIECE	272615 SILENCER CROSS PIECE	$834.37	1
18	231627	SCREW	231627 SCREW M8 X 16; No longer supplied; Replaced by 280460	$0.63 MSRP: ~~0.70~~ (10% off)	2
18	280460	SCREW	280460 SCREW M8 X 14	$4.70	4
19	272274	RH GEARBOX HEAT SHIELD	272274 RH GEARBOX HEAT SHIELD	$215.00	1
21	231619	SCREW	231619 SCREW M6 X 18	$0.31	3
22	263583	BRACKET	263583 BRACKET On LH strut	$33.68	1
23	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
24	16286124	SCREW	16286124 SCREW M6 X 20	$0.37	3
25	266421	RH REAR EXTENSION	266421 RH REAR EXTENSION	$1,045.50	1
26	266422	LH REAR EXTENSION	266422 LH REAR EXTENSION	$1,045.50	1
27	272668	RH FRONT GEARBOX HEAT SHIELD	272668 RH FRONT GEARBOX HEAT SHIELD	$96.26	1
28	269417	LH FRONT GEARBOX HEAT SHIELD	269417 LH FRONT GEARBOX HEAT SHIELD	$96.26	1
29	16286124	SCREW	16286124 SCREW M6 X 20	$0.37	8
30	272447	EXTENSION MOUNTING BRACKET	272447 EXTENSION MOUNTING BRACKET	$67.38	1
31	16043524	SCREW	16043524 SCREW	$0.10 MSRP: ~~0.40~~ (75% off)	2
32	11193874	WASHER	11193874 WASHER	$0.06	2
33	267836	REMOVABLE BRACKET ON RH REAR EXTENSION	267836 REMOVABLE BRACKET ON RH REAR EXTENSION	$75.95	1
34	267837	REMOVABLE BRACKET ON LH REAR EXTENSION	267837 REMOVABLE BRACKET ON LH REAR EXTENSION	$75.95	1
35	14059311	FLANGED NUT M8 X 1.25	14059311 FLANGED NUT M8 X 1.25	$0.28 MSRP: ~~0.50~~ (44% off)	4
36	229100	SPHERICAL CLAMP	229100 SPHERICAL CLAMP	$43.31 MSRP: ~~69.46~~ (37.6% off)	2
37	280730	SHIM	280730 SHIM	$13.70	1
38	292231	RING CLAMP	292231 RING CLAMP	$27.42	2
39	12647021	WASHER	12647021 WASHER	$0.32	2
40	12648424	WASHER	12648424 WASHER	$1.94	2
41	13578324	WASHER	13578324 WASHER	$0.23	4
