LUBRICATION SYSTEM: TANK

Find Your Part

Ferrari FF - LUBRICATION SYSTEM: TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
268596 OIL TANK $2,825.68 To Order
Photo Part No Description Price (each) Stock
210914 OIL TANK PICKUP $561.59 To Order
Photo Part No Description Price (each) Stock
11500524 STUD BOLT $0.39 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
293107 THREADED PLUG $90.10 To Order
Photo Part No Description Price (each) Stock
10261460 COPPER WASHER 16 X 24 X 1.5 $0.36 To Order
Photo Part No Description Price (each) Stock
11500524 STUD BOLT $0.39 To Order
13541124 STUD BOLT $23.50 To Order
Photo Part No Description Price (each) Stock
100332 OIL PICKUP FILTER $20.65 To Order
Photo Part No Description Price (each) Stock
125521 O-RING $11.20 To Order
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR $30.23 To Order
Photo Part No Description Price (each) Stock
291502 CONNECTOR $72.19 To Order
Photo Part No Description Price (each) Stock
180320 COPMLETE TANK PLUG $719.28 To Order
Photo Part No Description Price (each) Stock
180585 Oil Tank Cap Gasket $94.66 To Order
Photo Part No Description Price (each) Stock
269314 RUBBER PIPE $22.45 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
266769 VAPOUR ASPIRATOR PIPE $89.84 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
270213 COMPL. OIL DIPSTICK $141.19 To Order
Photo Part No Description Price (each) Stock
269835 FASTENER BRACKET $33.68 To Order
Photo Part No Description Price (each) Stock
81591700 SCREW $2.22 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
248471 SCREW $1.07 To Order
Photo Part No Description Price (each) Stock
12647021 WASHER $0.32 To Order
Photo Part No Description Price (each) Stock
267875 OIL VAPOUR PIPE FASTENER BRACKET $30.08 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
248454 BRACKET WITH SHEATH $7.83 To Order
Photo Part No Description Price (each) Stock
270851 PREFORMED PIPE WITH PCV VALVE $208.58 To Order
Photo Part No Description Price (each) Stock
266763 OIL DELIVERY PIPE $641.82 To Order
Photo Part No Description Price (each) Stock
250880 GASKET $2.54 To Order
Photo Part No Description Price (each) Stock
862084 GASKET $5.61 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
280761 OIL DELIVERY PIPE TO PUMP $458.69 To Order
Photo Part No Description Price (each) Stock
231622 SCREW $0.36 To Order
Photo Part No Description Price (each) Stock
272327 OIL RETURN PIPE FROM ENGINE $336.95 To Order
Photo Part No Description Price (each) Stock
277001 SHIELD $46.52 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
256527 OIL RETURN PIPE $430.02 To Order
Photo Part No Description Price (each) Stock
266765 OIL RETURN PIPE $516.03 To Order
Photo Part No Description Price (each) Stock
122791 O-RING $2.25 To Order
Photo Part No Description Price (each) Stock
249783 RUBBER PILLORY BLOCK $12.03 To Order
Photo Part No Description Price (each) Stock
258945 PIPE RETAINER FORK $25.66 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 To Order
Photo Part No Description Price (each) Stock
288451 OIL DELIVERY PIPE $417.18 To Order
Photo Part No Description Price (each) Stock
287815 OIL RETURN PIPE $401.34 To Order
Photo Part No Description Price (each) Stock
122791 O-RING $2.25 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 To Order
Photo Part No Description Price (each) Stock
14454481 GASKET $6.95 To Order
Photo Part No Description Price (each) Stock
14453981 GASKET $0.47 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
138150 CONNECTOR $57.75 To Order
Photo Part No Description Price (each) Stock
907923 DOWTY WASHER $41.04 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
271278 COMPL. BLOW-BY PIPE $192.05 To Order
284720 COMPL. BLOW-BY PIPE $301.00 To Order
Photo Part No Description Price (each) Stock
267300 DAMPED MOUNT $12.33 To Order
Photo Part No Description Price (each) Stock
243399 BUSH $0.79 To Order
Photo Part No Description Price (each) Stock
275627 PLATE $20.05 To Order
Photo Part No Description Price (each) Stock
231624 SCREW $0.44 To Order
Photo Part No Description Price (each) Stock
231625 SCREW $0.65 To Order
Photo Part No Description Price (each) Stock
14498801 WASHER $0.11 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
270850 PIPE COMPL. WITH ELECTRICAL CONNECTORS $97.86 To Order
284718 PIPE COMPL. WITH ELECTRICAL CONNECTORS $97.86 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
266787 PREFORMED PIPE $22.45 To Order
Photo Part No Description Price (each) Stock
294255 CHECK VALVE $336.75 To Order
View All

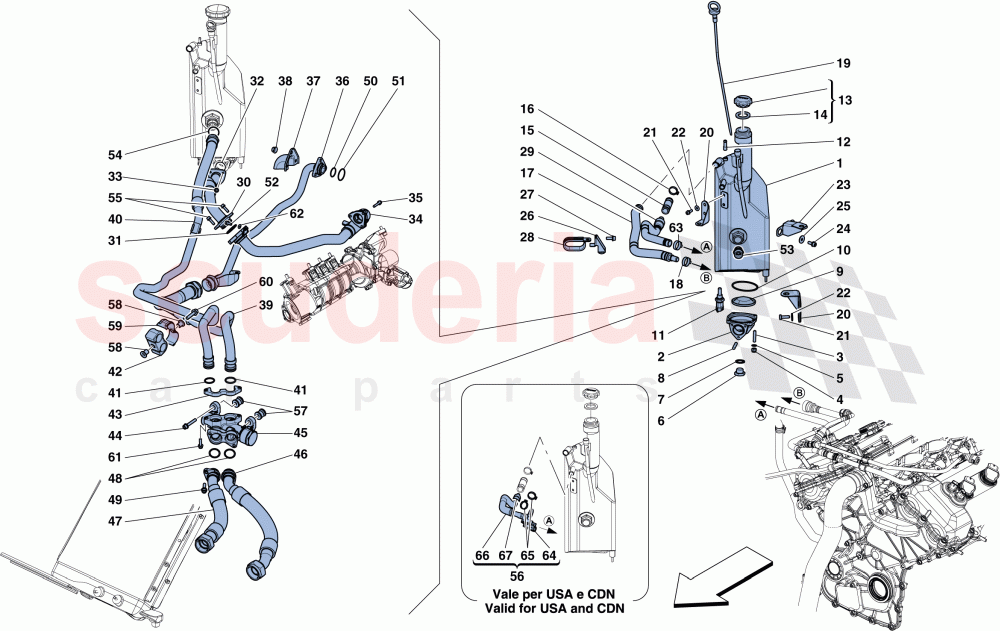

LUBRICATION SYSTEM: TANK of Ferrari Ferrari FF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 268596
OIL TANK 		$2,825.68 1
2 210914
OIL TANK PICKUP 		$561.59 (47.2% off) 1
3 11500524
STUD BOLT 		$0.39 (61% off) 4
4 14059290
FLANGED NUT M6 		$1.51 4
5 11197774
WASHER 		$0.06 (80% off) 4
6 293107
THREADED PLUG 		$90.10 1
7 10261460
COPPER WASHER 16 X 24 X 1.5 		$0.36 (64% off) 1
8 11500524
STUD BOLT
No longer supplied; Replaced by 13541124 		$0.39 (61% off) 3
8 13541124
STUD BOLT 		$23.50 3
9 100332
OIL PICKUP FILTER 		$20.65 1
10 125521
O-RING 		$11.20 1
11 180137
TEMPERATURE SENSOR 		$30.23 (8.4% off) 1
12 291502
CONNECTOR 		$72.19 1
13 180320
COPMLETE TANK PLUG 		$719.28 (12.5% off) 1
14 180585
Oil Tank Cap Gasket 		$94.66 (16.7% off) 1
15 269314
RUBBER PIPE
D. 16-23 X 66 		$22.45 1
16 262111
JUBILEE CLAMP 		$1.60 1
17 266769
VAPOUR ASPIRATOR PIPE 		$89.84 1
18 262111
JUBILEE CLAMP 		$1.60 1
19 270213
COMPL. OIL DIPSTICK 		$141.19 1
20 269835
FASTENER BRACKET 		$33.68 2
21 81591700
SCREW
M6 X 14 		$2.22 4
22 12643724
WASHER 		$0.06 (88% off) 4
24 248471
SCREW
M8 X 20 		$1.07 2
25 12647021
WASHER 		$0.32 2
26 267875
OIL VAPOUR PIPE FASTENER BRACKET 		$30.08 1
27 248334
SCREW
M6 X 16 		$0.68 1
28 248454
BRACKET WITH SHEATH 		$7.83 1
29 270851
PREFORMED PIPE WITH PCV VALVE
Not for USA, CDN, USA LIGHT 		$208.58 1
30 266763
OIL DELIVERY PIPE 		$641.82 1
31 250880
GASKET 		$2.54 1
32 862084
GASKET 		$5.61 1
33 14059290
FLANGED NUT M6 		$1.51 3
34 280761
OIL DELIVERY PIPE TO PUMP 		$458.69 1
35 231622
SCREW
M6 X 35 		$0.36 (28% off) 3
36 272327
OIL RETURN PIPE FROM ENGINE 		$336.95 1
37 277001
SHIELD 		$46.52 1
38 14040711
NUT 		$0.41 3
39 256527
OIL RETURN PIPE 		$430.02 1
40 266765
OIL RETURN PIPE 		$516.03 1
41 122791
O-RING 		$2.25 2
42 249783
RUBBER PILLORY BLOCK 		$12.03 1
43 258945
PIPE RETAINER FORK 		$25.66 1
44 231620
SCREW
M6 X 25 		$0.32 (8.6% off) 2
46 288451
OIL DELIVERY PIPE 		$417.18 (21.8% off) 1
47 287815
OIL RETURN PIPE 		$401.34 (20.5% off) 1
48 122791
O-RING 		$2.25 2
49 231620
SCREW
M6 X 25 		$0.32 (8.6% off) 2
50 14454481
GASKET 		$6.95 1
51 14453981
GASKET 		$0.47 1
52 248334
SCREW
M6 X 16 		$0.68 1
53 138150
CONNECTOR 		$57.75 1
54 907923
DOWTY WASHER 		$41.04 1
55 231619
SCREW
M6 X 22 		$0.31 2
56 271278
COMPL. BLOW-BY PIPE
Applicable for USA, CDN, USA LIGHT; Applicable up to Ass. No. 110465; No longer supplied 		$192.05 1
56 284720
COMPL. BLOW-BY PIPE
After depletion, order loose components; Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 110466; Applicable until depletion 		$301.00 1
57 267300
DAMPED MOUNT 		$12.33 3
58 243399
BUSH 		$0.79 2
59 275627
PLATE 		$20.05 1
60 231624
SCREW
M6 X 45 		$0.44 1
61 231625
SCREW
M6 X 40 		$0.65 3
62 14498801
WASHER 		$0.11 (45% off) 1
63 262111
JUBILEE CLAMP 		$1.60 1
64 270850
PIPE COMPL. WITH ELECTRICAL CONNECTORS
Applicable for USA, CDN, USA LIGHT; Applicable up to Ass. No. 110465 		$97.86 1
64 284718
PIPE COMPL. WITH ELECTRICAL CONNECTORS
Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 110466 		$97.86 1
65 262111
JUBILEE CLAMP
Applicable for USA, CDN, USA LIGHT 		$1.60 2
66 266787
PREFORMED PIPE
Applicable for USA, CDN, USA LIGHT 		$22.45 1
67 294255
CHECK VALVE
Applicable for USA, CDN, USA LIGHT 		$336.75 1
