FUEL FILLER SEAT

Find Your Part

Ferrari F8 Tributo Europe - FUEL FILLER SEAT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985807846 COMPL. FUEL FILLER FLAP $372.69 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
85143200 COMPL. FUEL FILLER FLAP ACTUATOR $83.60 To Order
Photo Part No Description Price (each) Stock
294780 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 To Order
Photo Part No Description Price (each) Stock
807848 COMPL. HINGE $101.07 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
81802300 RUBBER PAD $1.15 To Order
81802300 RUBBER PAD $1.15 To Order
Photo Part No Description Price (each) Stock
82249400 STRIKER $8.49 To Order
Photo Part No Description Price (each) Stock
87550700 RIGID FUEL DRAIN PIPE $417.18 To Order
Photo Part No Description Price (each) Stock
87550800 RUBBER HOSE UNION $141.19 To Order
Photo Part No Description Price (each) Stock
13433570 HOSE COLLAR $0.75 To Order
Photo Part No Description Price (each) Stock
13027024 SCREW M6 X 16MM $0.21 To Order
Photo Part No Description Price (each) Stock
13000390 Screw Collar $0.79 To Order
Photo Part No Description Price (each) Stock
303385 CLIP $0.31 To Order
Photo Part No Description Price (each) Stock
248061 CLIP $2.22 To Order
Photo Part No Description Price (each) Stock
786671 CLIP $1.26 To Order
Photo Part No Description Price (each) Stock
87950100 ACTUATOR CHORD CABLE GROMMET $6.37 To Order
Photo Part No Description Price (each) Stock
748925 RUBBER CABLE GROMMET $2.56 To Order
Photo Part No Description Price (each) Stock
81619400 SPACER $5.58 To Order
Photo Part No Description Price (each) Stock
70006824 FUEL FILLER FLAP KIT, BRUSHED FINISH CAVALLINO EMBLEM Enquire To Order
70006832 FUEL FILLER FLAP KIT, CHROME FINISH CAVALLINO EMBLEM $659.38 To Order
View All

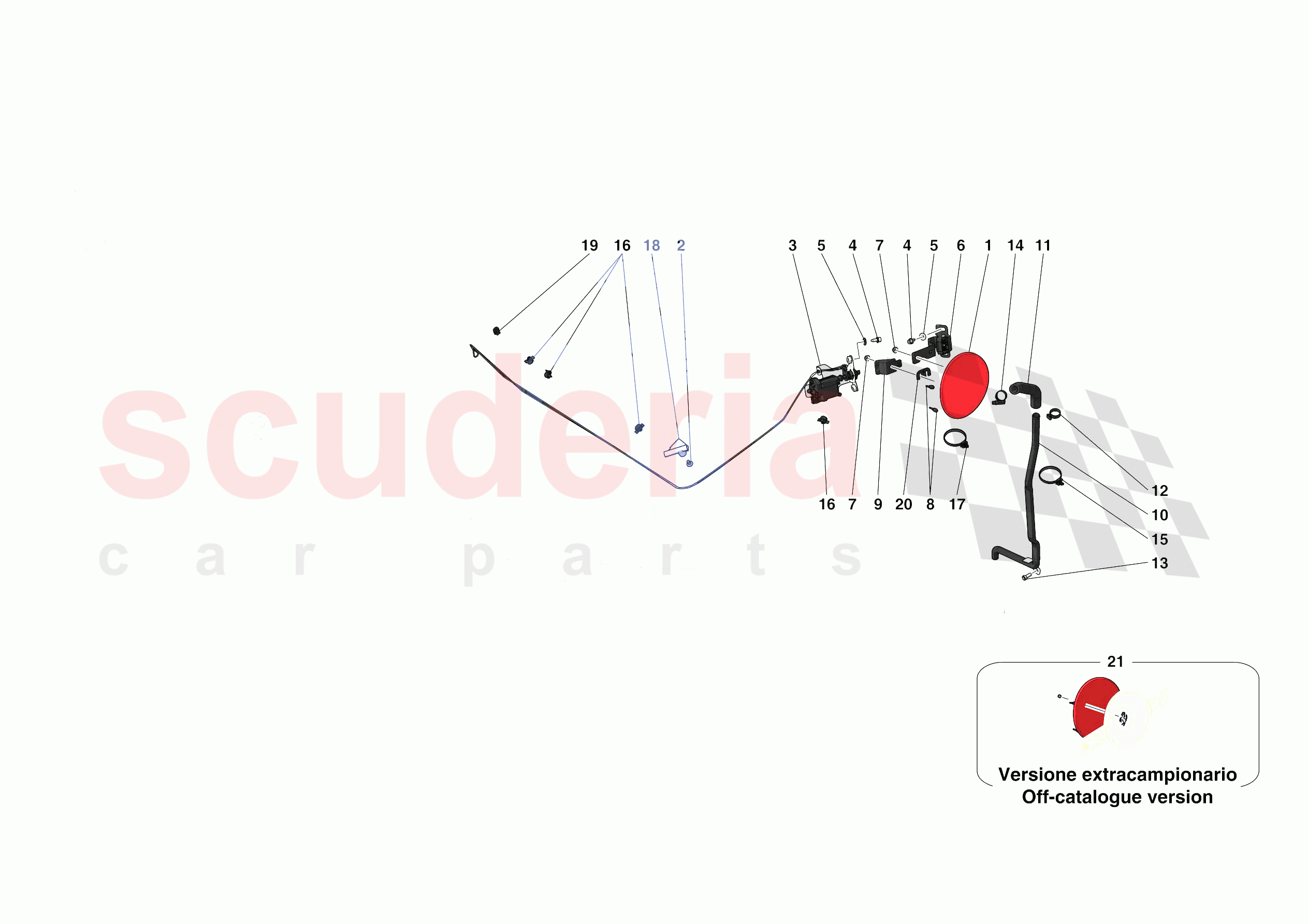

FUEL FILLER SEAT of Ferrari Ferrari F8 Tributo Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 985807846
COMPL. FUEL FILLER FLAP 		$372.69 1
0002 85833900
SCREW
M5 X 10
ARRIVING SOON 		$0.36 1
0003 85143200
COMPL. FUEL FILLER FLAP ACTUATOR 		$83.60 1
0004 294780
SCREW
M5 X 14 		$0.47 4
0005 12638124
WASHER 		$0.05 (92.9% off) 4
0006 807848
COMPL. HINGE 		$101.07 1
0007 14059290
FLANGED NUT M6 		$1.51 3
0008 81802300
RUBBER PAD 		$1.15 2
0008 81802300
RUBBER PAD 		$1.15 2
0009 82249400
STRIKER 		$8.49 1
0010 87550700
RIGID FUEL DRAIN PIPE 		$417.18 1
0011 87550800
RUBBER HOSE UNION 		$141.19 1
0012 13433570
HOSE COLLAR 		$0.75 1
0013 13027024
SCREW M6 X 16MM
M6 X 14 		$0.21 (79% off) 1
0014 13000390
Screw Collar 		$0.79 (60.5% off) 1
0015 303385
CLIP
170 mm 		$0.31 2
0016 248061
CLIP
Black 		$2.22 4
0017 786671
CLIP 		$1.26 1
0018 87950100
ACTUATOR CHORD CABLE GROMMET 		$6.37 1
0019 748925
RUBBER CABLE GROMMET 		$2.56 1
0020 81619400
SPACER 		$5.58 1
0021 70006824
FUEL FILLER FLAP KIT, BRUSHED FINISH CAVALLINO EMBLEM
Version for brushed finish Cavallino emblem; Off-catalogue version 		- 1 Enquire
0021 70006832
FUEL FILLER FLAP KIT, CHROME FINISH CAVALLINO EMBLEM
Version for chrome Cavallino emblem; Off-catalogue version 		$659.38 1
