FRONT SEATS - SEAT TRIM of Ferrari Ferrari F8 Tributo Europe

View All

Ferrari F8 Tributo Europe - FRONT SEATS - SEAT TRIM

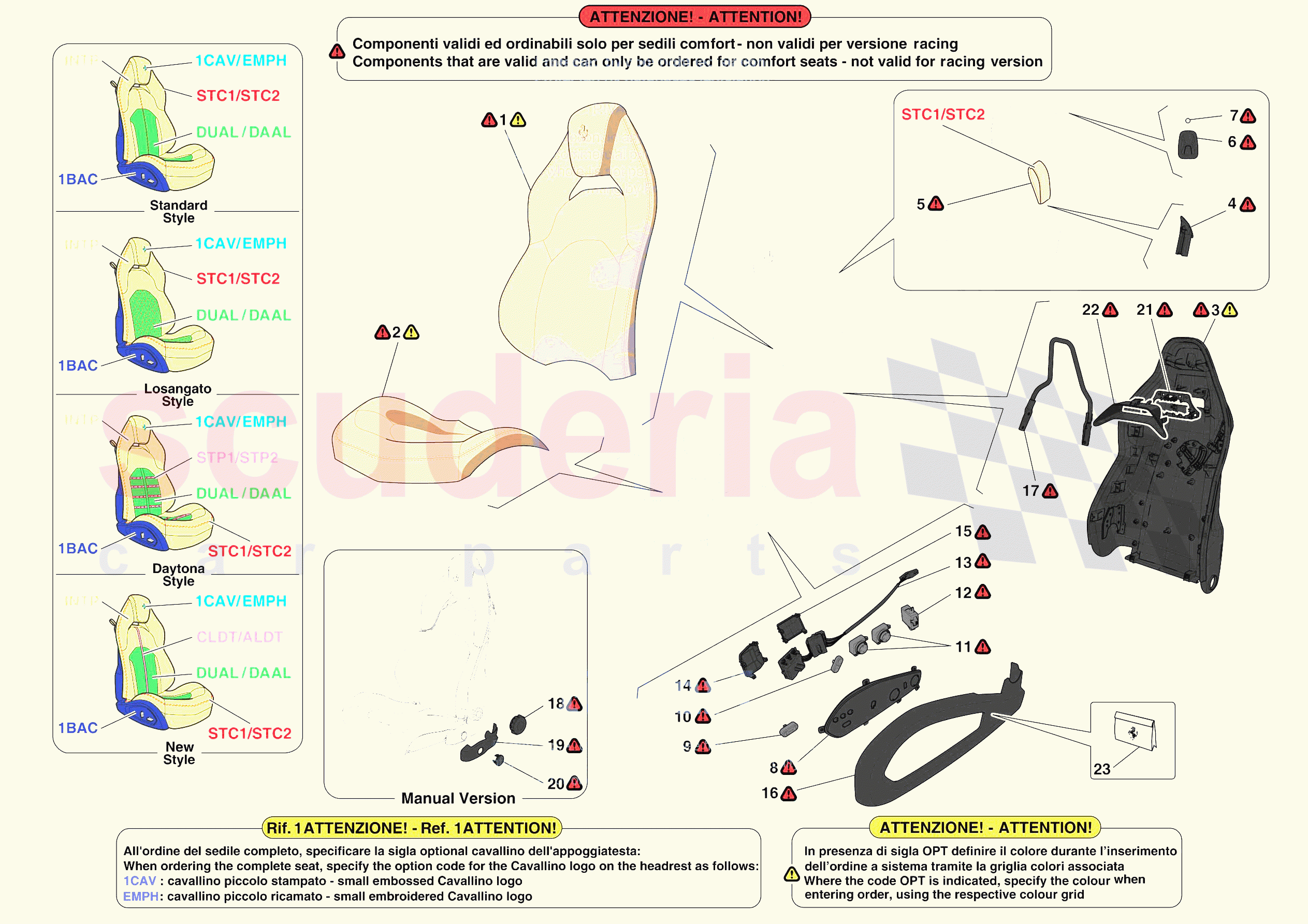

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	984843	BACKREST UPHOLSTERY	Enquire	To Order
	984846	BACKREST UPHOLSTERY	Enquire	To Order
	88490800	BACKREST UPHOLSTERY	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	984849	CUSHION COVER	Enquire	To Order
	984850	CUSHION COVER	Enquire	To Order
	88491400	CUSHION COVER	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	88756100	LH BACKREST BACKING SHELL	Enquire	To Order
	88755700	RH BACKREST BACKING SHELL	Enquire	To Order
	88756600	LH BACKREST BACKING SHELL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	86760200	LH RELEASE LEVER SURROUND	Enquire	To Order
	86760300	RH RELEASE LEVER SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	867604	RELEASE STRAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84852200	GARMENT HOOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84852300	GARMENT HOOK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89396800	LH BUTTON PANEL	Enquire	To Order
	89396900	RH BUTTON PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145096	SEAT CUSHION ADJUSTMENT BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82593500	ADJUSTMENT BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82593600	LH LUMBAR SUPPORT ADJUSTMENT JOYSTICK	Enquire	To Order
	82593700	RH LUMBAR SUPPORT ADJUSTMENT JOYSTICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89397600	HEATER BUTTONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145094	LH CUSHION/BACKREST ADJUSTMENT JOYSTICK	Enquire	To Order
	980145093	RH CUSHION/BACKREST ADJUSTMENT JOYSTICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145101	LH CUSHION JOYSTICK HOUSING	Enquire	To Order
	980145099	RH CUSHION JOYSTICK HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145098	LH BACKREST JOYSTICK HOUSING	Enquire	To Order
	980145097	RH BACKREST JOYSTICK HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	834788	LH SEAT CUSHION COVER PANEL	Enquire	To Order
	834787	RH SEAT CUSHION COVER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85389700	UPPER STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83479200	ADJUSTMENT KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84851900	LH SEAT CUSHION COVER PANEL	Enquire	To Order
	84851600	RH SEAT CUSHION COVER PANEL	Enquire	To Order
	834790	LH SEAT CUSHION COVER PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	84852000	BELT MOUNTING SHELL COVER CAP	Enquire	To Order
	834791	BELT MOUNTING SHELL COVER CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	984855	HEADREST TRIM INTERFACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	984856	HEADREST PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70007151	SEAT SHELL FASTENER KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	984843	BACKREST UPHOLSTERY	984843 BACKREST UPHOLSTERY Standard - Manual - INTP - DUAL - DAAL - 1CAV - EMPH - STC1 - STC2	-	2	Enquire
0001	984846	BACKREST UPHOLSTERY	984846 BACKREST UPHOLSTERY New style - Manual - INTP - DUAL - DAAL - CLDT - ALDT - 1CAV - EMPH - STC1 - STC2	-	2	Enquire
0001	88490800	BACKREST UPHOLSTERY	88490800 BACKREST UPHOLSTERY Daytona - Manual - INTP - DUAL - DAAL - STP1 - STP2 - 1CAV - EMPH - STC1 - STC2	-	2	Enquire
0001	88490900	BACKREST UPHOLSTERY	88490900 BACKREST UPHOLSTERY Diamond style pattern - Manual - INTP - DUAL - DAAL - 1CAV - EMPH - STC1 - STC2	-	2	Enquire
0001	984847	BACKREST UPHOLSTERY	984847 BACKREST UPHOLSTERY Standard - Full electric - INTP - DUAL - DAAL - 1CAV - EMPH - STC1 - STC2	-	2	Enquire
0001	984848	BACKREST UPHOLSTERY	984848 BACKREST UPHOLSTERY New style - Full electric - INTP - DUAL - DAAL - CLDT - ALDT - 1CAV - EMPH - STC1 - STC2	-	2	Enquire
0001	88491100	BACKREST UPHOLSTERY	88491100 BACKREST UPHOLSTERY Daytona - Full electric - INTP - DUAL - DAAL - STP1 - STP2 - 1CAV - EMPH - STC1 - STC2	-	2	Enquire
0001	88491200	BACKREST UPHOLSTERY	88491200 BACKREST UPHOLSTERY Diamond style pattern - Full electric - INTP - DUAL - DAAL - 1CAV - EMPH - STC1 - STC2	-	2	Enquire
0002	984849	CUSHION COVER	984849 CUSHION COVER Standard - Manual - INTP - DUAL - DAAL - STC1 - STC2	-	2	Enquire
0002	984850	CUSHION COVER	984850 CUSHION COVER New style - Manual - INTP - DUAL - DAAL - CLDT - ALDT - STC1 - STC2	-	2	Enquire
0002	88491400	CUSHION COVER	88491400 CUSHION COVER Daytona - Manual - INTP - DUAL - DAAL - STP1 - STP2 - STC1 - STC2	-	2	Enquire
0002	88491500	CUSHION COVER	88491500 CUSHION COVER Diamond style pattern - Manual - INTP - DUAL - DAAL - STC1 - STC2	-	2	Enquire
0002	984851	RH CUSHION UPHOLSTERY	984851 RH CUSHION UPHOLSTERY Standard - Full electric - INTP - DUAL - DAAL - STC1 - STC2	-	1	Enquire
0002	984852	RH CUSHION UPHOLSTERY	984852 RH CUSHION UPHOLSTERY New style - Full electric - INTP - DUAL - DAAL - CLDT - ALDT - STC1 - STC2	-	1	Enquire
0002	88492300	RH CUSHION UPHOLSTERY	88492300 RH CUSHION UPHOLSTERY Daytona - Full electric - INTP - DUAL - DAAL - STP1 - STP2 - STC1 - STC2	-	1	Enquire
0002	88492700	RH CUSHION UPHOLSTERY	88492700 RH CUSHION UPHOLSTERY Diamond style pattern - Full electric - INTP - DUAL - DAAL - STC1 - STC2	-	1	Enquire
0002	984853	LH CUSHION UPHOLSTERY	984853 LH CUSHION UPHOLSTERY Standard - Full electric - INTP - DUAL - DAAL - STC1 - STC2	-	1	Enquire
0002	984854	LH CUSHION UPHOLSTERY	984854 LH CUSHION UPHOLSTERY New style - Full electric - INTP - DUAL - DAAL - CLDT - ALDT - STC1 - STC2	-	1	Enquire
0002	88492200	LH CUSHION UPHOLSTERY	88492200 LH CUSHION UPHOLSTERY Daytona - Full electric - INTP - DUAL - DAAL - STP1 - STP2 - STC1 - STC2	-	1	Enquire
0002	88492600	LH CUSHION UPHOLSTERY	88492600 LH CUSHION UPHOLSTERY Diamond style pattern - Full electric - INTP - DUAL - DAAL - STC1 - STC2	-	1	Enquire
0003	88756100	LH BACKREST BACKING SHELL	88756100 LH BACKREST BACKING SHELL Manual - 1BAC	-	1	Enquire
0003	88755700	RH BACKREST BACKING SHELL	88755700 RH BACKREST BACKING SHELL Manual - 1BAC	-	1	Enquire
0003	88756600	LH BACKREST BACKING SHELL	88756600 LH BACKREST BACKING SHELL Full electric - 1BAC	-	1	Enquire
0003	88756300	RH BACKREST BACKING SHELL	88756300 RH BACKREST BACKING SHELL Full electric - 1BAC	-	1	Enquire
0004	86760200	LH RELEASE LEVER SURROUND	86760200 LH RELEASE LEVER SURROUND Black	-	1	Enquire
0004	86760300	RH RELEASE LEVER SURROUND	86760300 RH RELEASE LEVER SURROUND Black	-	1	Enquire
0005	867604	RELEASE STRAP	867604 RELEASE STRAP STC1 - STC2; Leather	-	2	Enquire
0006	84852200	GARMENT HOOK	84852200 GARMENT HOOK Black	-	2	Enquire
0007	84852300	GARMENT HOOK PLUG	84852300 GARMENT HOOK PLUG Black	-	2	Enquire
0008	89396800	LH BUTTON PANEL	89396800 LH BUTTON PANEL Full electric	-	1	Enquire
0008	89396900	RH BUTTON PANEL	89396900 RH BUTTON PANEL Full electric	-	1	Enquire
0009	980145096	SEAT CUSHION ADJUSTMENT BUTTON	980145096 SEAT CUSHION ADJUSTMENT BUTTON Full electric; Electric	-	2	Enquire
0010	82593500	ADJUSTMENT BUTTON	82593500 ADJUSTMENT BUTTON Full electric; Electric	-	2	Enquire
0011	82593600	LH LUMBAR SUPPORT ADJUSTMENT JOYSTICK	82593600 LH LUMBAR SUPPORT ADJUSTMENT JOYSTICK Full electric	-	1	Enquire
0011	82593700	RH LUMBAR SUPPORT ADJUSTMENT JOYSTICK	82593700 RH LUMBAR SUPPORT ADJUSTMENT JOYSTICK Full electric; Electric, full house	-	1	Enquire
0012	89397600	HEATER BUTTONS	89397600 HEATER BUTTONS Full electric	-	1	Enquire
0013	980145094	LH CUSHION/BACKREST ADJUSTMENT JOYSTICK	980145094 LH CUSHION/BACKREST ADJUSTMENT JOYSTICK Full electric	-	1	Enquire
0013	980145093	RH CUSHION/BACKREST ADJUSTMENT JOYSTICK	980145093 RH CUSHION/BACKREST ADJUSTMENT JOYSTICK Full electric	-	1	Enquire
0014	980145101	LH CUSHION JOYSTICK HOUSING	980145101 LH CUSHION JOYSTICK HOUSING Full electric; Electric	-	1	Enquire
0014	980145099	RH CUSHION JOYSTICK HOUSING	980145099 RH CUSHION JOYSTICK HOUSING Full electric; Electric	-	1	Enquire
0015	980145098	LH BACKREST JOYSTICK HOUSING	980145098 LH BACKREST JOYSTICK HOUSING Full electric; Electric	-	1	Enquire
0015	980145097	RH BACKREST JOYSTICK HOUSING	980145097 RH BACKREST JOYSTICK HOUSING Full electric; Electric	-	1	Enquire
0016	834788	LH SEAT CUSHION COVER PANEL	834788 LH SEAT CUSHION COVER PANEL Full electric; Electric	-	1	Enquire
0016	834787	RH SEAT CUSHION COVER PANEL	834787 RH SEAT CUSHION COVER PANEL Full electric; Electric	-	1	Enquire
0017	85389700	UPPER STRUCTURE	85389700 UPPER STRUCTURE	-	2	Enquire
0018	83479200	ADJUSTMENT KNOB	83479200 ADJUSTMENT KNOB Manual	-	2	Enquire
0019	84851900	LH SEAT CUSHION COVER PANEL	84851900 LH SEAT CUSHION COVER PANEL Plastic; Manual	-	1	Enquire
0019	84851600	RH SEAT CUSHION COVER PANEL	84851600 RH SEAT CUSHION COVER PANEL Plastic; Manual	-	1	Enquire
0019	834790	LH SEAT CUSHION COVER PANEL	834790 LH SEAT CUSHION COVER PANEL Leather; Manual	-	1	Enquire
0019	834789	RH SEAT CUSHION COVER PANEL	834789 RH SEAT CUSHION COVER PANEL Leather; Manual	-	1	Enquire
0020	84852000	BELT MOUNTING SHELL COVER CAP	84852000 BELT MOUNTING SHELL COVER CAP Plastic; Manual	-	2	Enquire
0020	834791	BELT MOUNTING SHELL COVER CAP	834791 BELT MOUNTING SHELL COVER CAP Leather; Manual	-	2	Enquire
0021	984855	HEADREST TRIM INTERFACE	984855 HEADREST TRIM INTERFACE	-	2	Enquire
0022	984856	HEADREST PLATE	984856 HEADREST PLATE	-	2	Enquire
0023	70007151	SEAT SHELL FASTENER KIT	70007151 SEAT SHELL FASTENER KIT	-	1	Enquire
