REAR SHIELDS of Ferrari Ferrari F8 Tributo Europe

View All

Ferrari F8 Tributo Europe - REAR SHIELDS

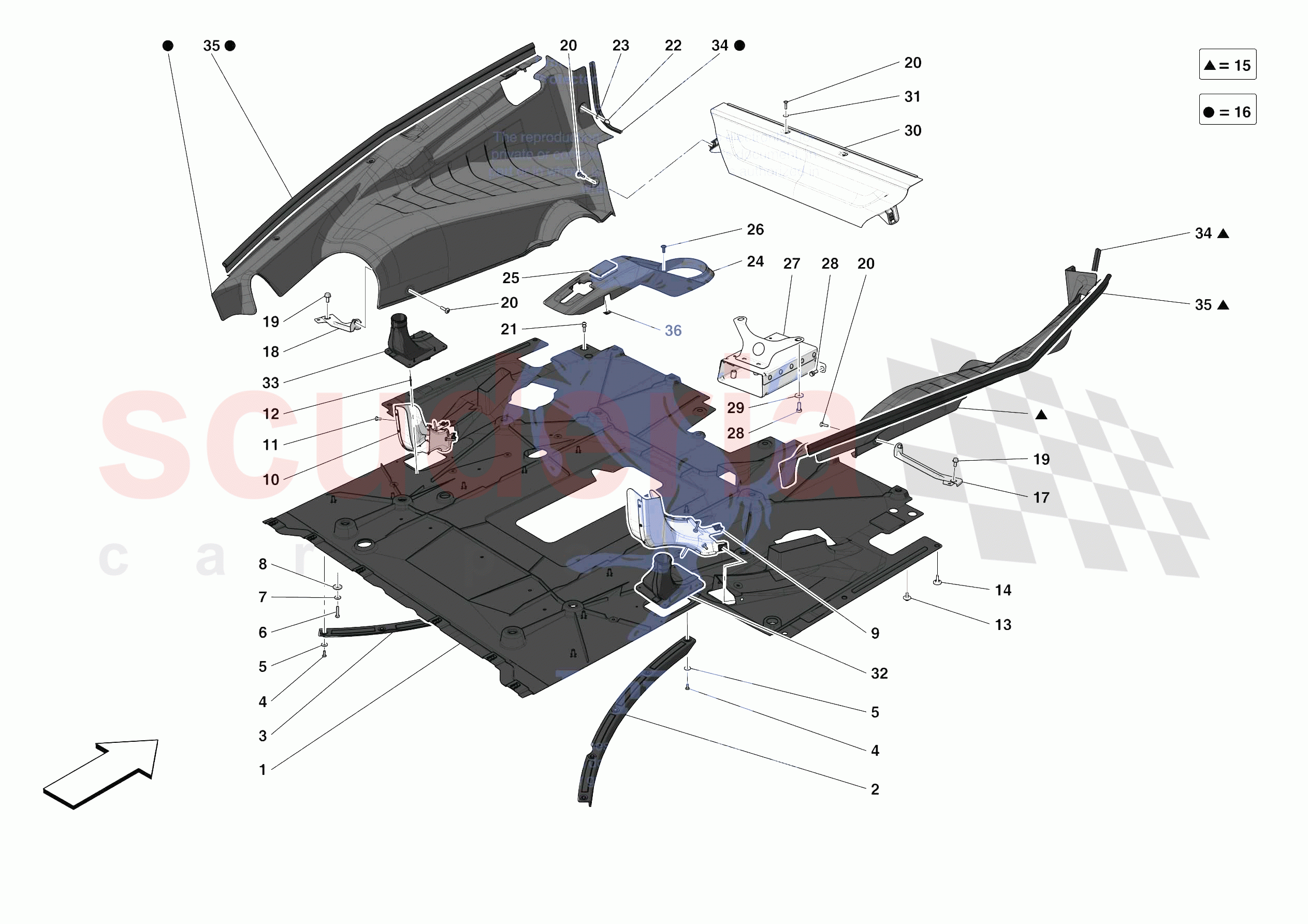

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	909606	REAR UNDERBODY SHIELD	Enquire	To Order
	922369	COMPL. REAR UNDERBODY SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	768520	RH REAR LATERAL DAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	768518	LH REAR LATERAL DAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12640624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	762216	COMPL. RH ENGINE AIR VENT DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	762226	COMPL. LH ENGINE AIR VENT DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13290024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14642294	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	782030	COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD	Enquire	To Order
	911776	COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD	Enquire	To Order
	880045	COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	782040	COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD	Enquire	To Order
	782017	COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD	Enquire	To Order
	813260	COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	878660	COMPL. LOWER FASTENER BRACKET FOR RH ENGINE COMPARTMENT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	878661	COMPL. LOWER FASTENER BRACKET FOR LH ENGINE COMPARTMENT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88831000	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85797600	SPECIAL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14042177	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86921700	COMPL. CENTRAL COSMETIC SHIELD	Enquire	To Order
	86935100	COMPL. CENTRAL COSMETIC SHIELD	Enquire	To Order
	70006751	COMPL. CENTRAL COSMETIC SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	917799	SERIAL NUMBER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	915271	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87546300	COMPL. ENGINE BUFFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13027024	SCREW M6 X 16MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10523401	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	907054	COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD	Enquire	To Order
	826052	COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD	Enquire	To Order
	70006752	COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880465	RH BRAKE AIR INTAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880475	LH BRAKE AIR INTAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	825854	FRONT SEAL FOR LATERAL SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86553700	LATERAL SEAL FOR LATERAL SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	768645	TYPE A PLATE FOR PIN	Enquire	To Order
	768645	TYPE A PLATE FOR PIN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	909606	REAR UNDERBODY SHIELD	909606 REAR UNDERBODY SHIELD	-	1	Enquire
0001	922369	COMPL. REAR UNDERBODY SHIELD	922369 COMPL. REAR UNDERBODY SHIELD Carbon version	-	1	Enquire
0002	768520	RH REAR LATERAL DAM	768520 RH REAR LATERAL DAM	-	1	Enquire
0003	768518	LH REAR LATERAL DAM	768518 LH REAR LATERAL DAM	-	1	Enquire
0004	85833700	SCREW	85833700 SCREW M5 X 16	-	10	Enquire
0005	12643724	WASHER	12643724 WASHER	-	10	Enquire
0006	231620	SCREW	231620 SCREW M6 X 20 X 22	-	4	Enquire
0007	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	4	Enquire
0008	12640624	WASHER	12640624 WASHER	-	4	Enquire
0009	762216	COMPL. RH ENGINE AIR VENT DUCT	762216 COMPL. RH ENGINE AIR VENT DUCT	-	1	Enquire
0010	762226	COMPL. LH ENGINE AIR VENT DUCT	762226 COMPL. LH ENGINE AIR VENT DUCT	-	1	Enquire
0011	13290024	SCREW	13290024 SCREW M6 X 14	-	6	Enquire
0012	14642294	RIVET	14642294 RIVET	-	8	Enquire
0013	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 20	-	11	Enquire
0014	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 22	-	6	Enquire
0015	782030	COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD	782030 COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD	-	1	Enquire
0015	911776	COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD	911776 COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD Naked weave carbon engine comp. shields	-	1	Enquire
0015	880045	COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD	880045 COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD Naked weave carbon engine lid subframe	-	1	Enquire
0015	70006747	COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD	70006747 COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD Version in coloured naked weave carbon - Engine comp. shields in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0015	70006748	COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD	70006748 COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD Version in coloured naked weave carbon - Engine lid subframe in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0016	782040	COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD	782040 COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD	-	1	Enquire
0016	782017	COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD	782017 COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD Naked weave carbon engine comp. shields	-	1	Enquire
0016	813260	COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD	813260 COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD Naked weave carbon engine lid subframe	-	1	Enquire
0016	70006749	COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD	70006749 COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD Version in coloured naked weave carbon - Engine comp. shields in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0016	70006750	COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD	70006750 COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD Version in coloured naked weave carbon - Engine lid subframe in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0017	878660	COMPL. LOWER FASTENER BRACKET FOR RH ENGINE COMPARTMENT SHIELD	878660 COMPL. LOWER FASTENER BRACKET FOR RH ENGINE COMPARTMENT SHIELD	-	1	Enquire
0018	878661	COMPL. LOWER FASTENER BRACKET FOR LH ENGINE COMPARTMENT SHIELD	878661 COMPL. LOWER FASTENER BRACKET FOR LH ENGINE COMPARTMENT SHIELD	-	1	Enquire
0019	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM M6 X 14	-	4	Enquire
0020	88831000	GRUB SCREW	88831000 GRUB SCREW M5 X 14	-	12	Enquire
0021	85797600	SPECIAL SCREW	85797600 SPECIAL SCREW M5	-	2	Enquire
0022	14042177	NUT	14042177 NUT	-	2	Enquire
0023	62769800	WASHER	62769800 WASHER	-	14	Enquire
0024	86921700	COMPL. CENTRAL COSMETIC SHIELD	86921700 COMPL. CENTRAL COSMETIC SHIELD	-	1	Enquire
0024	86935100	COMPL. CENTRAL COSMETIC SHIELD	86935100 COMPL. CENTRAL COSMETIC SHIELD Naked weave carbon engine comp. shields; Carbon	-	1	Enquire
0024	70006751	COMPL. CENTRAL COSMETIC SHIELD	70006751 COMPL. CENTRAL COSMETIC SHIELD Version in coloured naked weave carbon - Naked weave carbon engine comp. shields - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0025	917799	SERIAL NUMBER PLATE	917799 SERIAL NUMBER PLATE	-	1	Enquire
0026	915271	SCREW	915271 SCREW M6 X 15	-	2	Enquire
0027	87546300	COMPL. ENGINE BUFFER	87546300 COMPL. ENGINE BUFFER	-	1	Enquire
0028	13027024	SCREW M6 X 16MM	13027024 SCREW M6 X 16MM M6 X 14	-	4	Enquire
0029	10523401	WASHER	10523401 WASHER	-	4	Enquire
0030	907054	COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD	907054 COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD	-	1	Enquire
0030	826052	COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD	826052 COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD Naked weave carbon engine comp. shields	-	1	Enquire
0030	70006752	COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD	70006752 COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD Version in coloured naked weave carbon - Naked weave carbon engine comp. shields - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0031	62769800	WASHER	62769800 WASHER	-	4	Enquire
0032	880465	RH BRAKE AIR INTAKE	880465 RH BRAKE AIR INTAKE	-	1	Enquire
0033	880475	LH BRAKE AIR INTAKE	880475 LH BRAKE AIR INTAKE	-	1	Enquire
0034	825854	FRONT SEAL FOR LATERAL SHIELD	825854 FRONT SEAL FOR LATERAL SHIELD	-	2	Enquire
0035	86553700	LATERAL SEAL FOR LATERAL SHIELD	86553700 LATERAL SEAL FOR LATERAL SHIELD	-	2	Enquire
0036	768645	TYPE A PLATE FOR PIN	768645 TYPE A PLATE FOR PIN	-	2	Enquire
0036	768645	TYPE A PLATE FOR PIN	768645 TYPE A PLATE FOR PIN	-	2	Enquire
