Ferrari F8 Spider Europe RH - A/C SYSTEM - AIR CONDITIONER SYSTEM

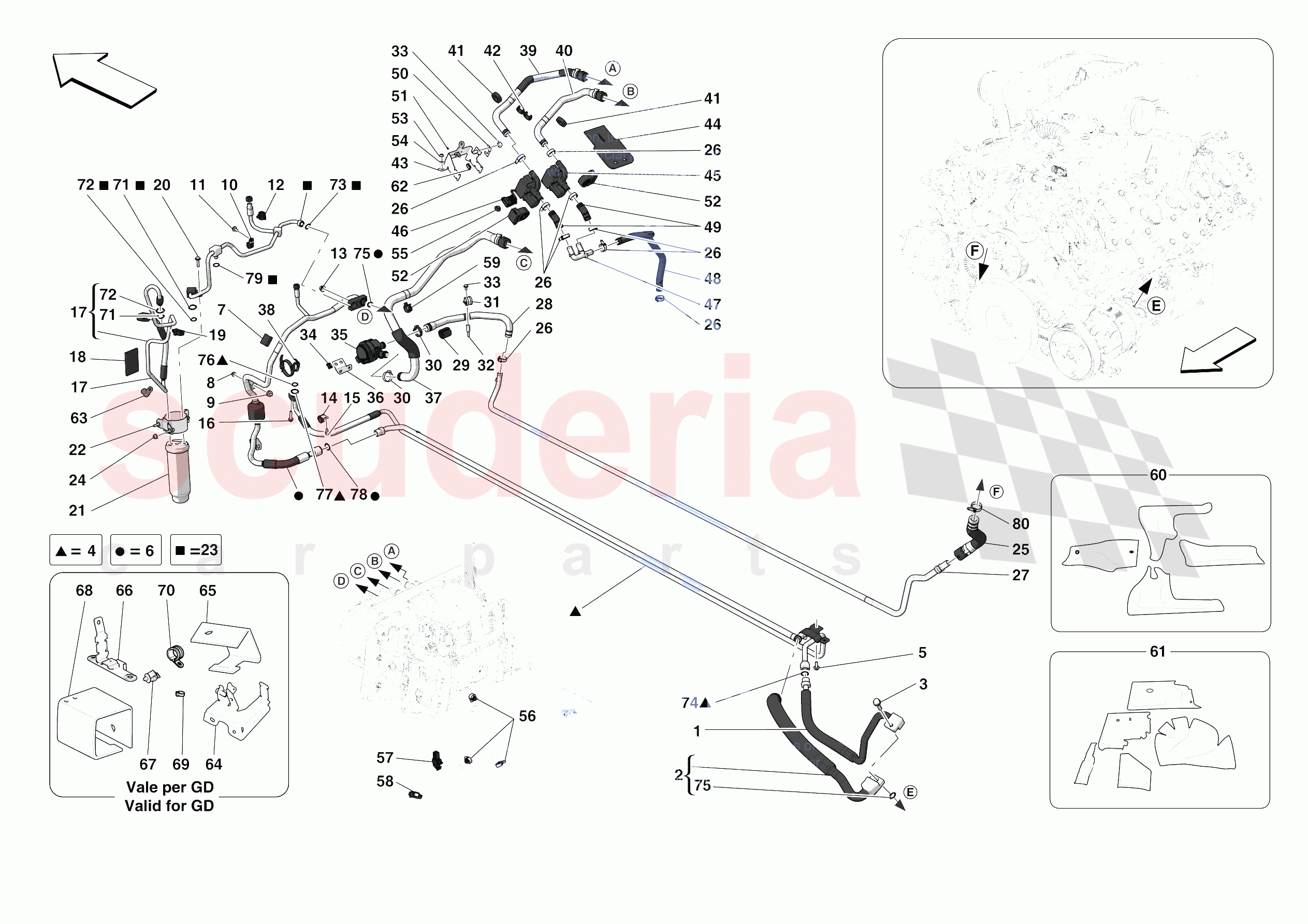

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
86240500 PIPE FROM COMPRESSOR TO UNDERBODY Enquire To Order
Photo Part No Description Price (each) Stock
86854500 FREON RETURN PIPE TO COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
14306724 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
88898300 UNDERBODY FREON DELIVERY-RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
88898700 PIPE FROM HVAC TO UNDERBODY Enquire To Order
819306 PIPE FROM HVAC TO UNDERBODY Enquire To Order
Photo Part No Description Price (each) Stock
308399 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
14040614 NUT Enquire To Order
Photo Part No Description Price (each) Stock
239829 VIBRATION DAMPER Enquire To Order
Photo Part No Description Price (each) Stock
262380 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
11625824 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
263230 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
10441490 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
13837017 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
88898500 PIPE FROM DISCONNECTOR TO RECEIVER DRIER Enquire To Order
785303 PIPE FROM DISCONNECTOR TO RECEIVER DRIER Enquire To Order
Photo Part No Description Price (each) Stock
255515 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
250318 SNAP CLIP Enquire To Order
Photo Part No Description Price (each) Stock
11612826 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
67085100 GAS FILTER Enquire To Order
Photo Part No Description Price (each) Stock
82155900 DEHYDRATOR FILTER BRACKET Enquire To Order
82886600 DEHYDRATOR FILTER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
86403000 PIPE FROM FILTER TO HVAC Enquire To Order
86927400 PIPE FROM FILTER TO HVAC Enquire To Order
Photo Part No Description Price (each) Stock
14040611 NUT Enquire To Order
Photo Part No Description Price (each) Stock
86228900 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
86253700 UNDERBODY WATER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
86280800 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
316986 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
320600 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
178772 SPACER STUD Enquire To Order
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 Enquire To Order
Photo Part No Description Price (each) Stock
291645 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
291349 WATER RECIRCULATION PUMP Enquire To Order
Photo Part No Description Price (each) Stock
86051000 RECIRCULATION PUMP MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
86280900 HOSE Enquire To Order
86928400 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
231214 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
82761900 RH TGK VALVE CONNECTOR PIPE Enquire To Order
82887200 RH TGK VALVE CONNECTOR PIPE Enquire To Order
Photo Part No Description Price (each) Stock
82302700 LH TGK VALVE CONNECTOR PIPE Enquire To Order
82887300 LH TGK VALVE CONNECTOR PIPE Enquire To Order
Photo Part No Description Price (each) Stock
83444200 DRIP BAFFLE RING Enquire To Order
Photo Part No Description Price (each) Stock
82329900 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
82328500 TGK VALVE BLOCK MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
83560800 GUARD Enquire To Order
Photo Part No Description Price (each) Stock
67444900 LH TGK VALVE Enquire To Order
Photo Part No Description Price (each) Stock
67635900 RH TGK VALVE Enquire To Order
Photo Part No Description Price (each) Stock
290953 RIGID TGK VALVE OUTLET PIPE Enquire To Order
Photo Part No Description Price (each) Stock
291115 HOSE Enquire To Order
82887400 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
291116 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
162606 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
82331800 RUBBER SPACER BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
174623 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
14059211 NUT Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
303385 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
13000390 Screw Collar Enquire To Order
Photo Part No Description Price (each) Stock
266156 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
177553 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
270085 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
82923400 AC MOBILE DUCT INSULATION KIT Enquire To Order
83030200 AC MOBILE DUCT INSULATION KIT Enquire To Order
Photo Part No Description Price (each) Stock
82923500 HVAC UNIT INSULATION KIT Enquire To Order
Photo Part No Description Price (each) Stock
255515 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
84058400 LH TGK VALVE MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
83689600 WATER PIPE RUBBER GUARD Enquire To Order
Photo Part No Description Price (each) Stock
83413300 RH TGK VALVE MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
241708 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
83689500 WATER PIPE RUBBER GUARD Enquire To Order
Photo Part No Description Price (each) Stock
292980 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath Enquire To Order
Photo Part No Description Price (each) Stock
10318884 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
14450484 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
11342484 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
14453084 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
11342784 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
14450684 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
10319184 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
14453284 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
14452884 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire To Order
262111 JUBILEE CLAMP Enquire To Order
View All
A/C SYSTEM - AIR CONDITIONER SYSTEM of Ferrari Ferrari F8 Spider Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 86240500
PIPE FROM COMPRESSOR TO UNDERBODY 		- 1 Enquire
0002 86854500
FREON RETURN PIPE TO COMPRESSOR 		- 1 Enquire
0003 14306724
SCREW
M8 X 35 		- 1 Enquire
0004 88898300
UNDERBODY FREON DELIVERY-RETURN PIPE 		- 1 Enquire
0005 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER
M6 X 18 		- 1 Enquire
0006 88898700
PIPE FROM HVAC TO UNDERBODY 		- 1 Enquire
0006 819306
PIPE FROM HVAC TO UNDERBODY 		- 1 Enquire
0007 308399
SPACER 		- 1 Enquire
0008 14040614
NUT 		- 2 Enquire
0009 239829
VIBRATION DAMPER 		- 2 Enquire
0010 262380
CLIP 		- 1 Enquire
0011 11625824
SCREW
M6 X 18 		- 4 Enquire
0012 263230
CLIP 		- 1 Enquire
0013 14040711
NUT M8 FLANGED 		- 1 Enquire
0014 10441490
BRACKET WITH SHEATH
D. 14 		- 2 Enquire
0015 248334
SCREW M6 X 14MM
M6 X 14 		- 3 Enquire
0016 13837017
SCREW
M6 X 30 		- 2 Enquire
0017 88898500
PIPE FROM DISCONNECTOR TO RECEIVER DRIER 		- 1 Enquire
0017 785303
PIPE FROM DISCONNECTOR TO RECEIVER DRIER 		- 1 Enquire
0018 255515
BUSH 		- 2 Enquire
0019 250318
SNAP CLIP 		- 2 Enquire
0020 11612826
SCREW
M6 X 25 		- 2 Enquire
0021 67085100
GAS FILTER 		- 1 Enquire
0022 82155900
DEHYDRATOR FILTER BRACKET 		- 1 Enquire
0022 82886600
DEHYDRATOR FILTER BRACKET 		- 1 Enquire
0023 86403000
PIPE FROM FILTER TO HVAC 		- 1 Enquire
0023 86927400
PIPE FROM FILTER TO HVAC 		- 1 Enquire
0024 14040611
NUT 		- 2 Enquire
0025 86228900
HOSE 		- 1 Enquire
0026 262111
JUBILEE CLAMP 		- 1 Enquire
0027 86253700
UNDERBODY WATER PIPE 		- 1 Enquire
0028 86280800
HOSE 		- 1 Enquire
0029 316986
SPACER 		- 1 Enquire
0030 262111
JUBILEE CLAMP 		- 2 Enquire
0031 320600
CLIP 		- 1 Enquire
0032 178772
SPACER STUD 		- 1 Enquire
0033 880041
Allen Head Bolt M6 X 26
M6 X 14 		- 2 Enquire
0034 291645
CLIP 		- 2 Enquire
0035 291349
WATER RECIRCULATION PUMP 		- 1 Enquire
0036 86051000
RECIRCULATION PUMP MOUNTING BRACKET 		- 1 Enquire
0037 86280900
HOSE 		- 1 Enquire
0037 86928400
HOSE 		- 1 Enquire
0038 231214
CLIP 		- 1 Enquire
0039 82761900
RH TGK VALVE CONNECTOR PIPE 		- 1 Enquire
0039 82887200
RH TGK VALVE CONNECTOR PIPE 		- 1 Enquire
0040 82302700
LH TGK VALVE CONNECTOR PIPE 		- 1 Enquire
0040 82887300
LH TGK VALVE CONNECTOR PIPE 		- 1 Enquire
0041 83444200
DRIP BAFFLE RING 		- 2 Enquire
0042 82329900
CLIP 		- 1 Enquire
0043 82328500
TGK VALVE BLOCK MOUNTING BRACKET 		- 1 Enquire
0044 83560800
GUARD 		- 1 Enquire
0045 67444900
LH TGK VALVE 		- 1 Enquire
0046 67635900
RH TGK VALVE 		- 1 Enquire
0047 290953
RIGID TGK VALVE OUTLET PIPE 		- 1 Enquire
0048 291115
HOSE 		- 1 Enquire
0048 82887400
HOSE 		- 1 Enquire
0049 291116
HOSE 		- 2 Enquire
0050 162606
CLIP 		- 1 Enquire
0051 82331800
RUBBER SPACER BUTTON 		- 2 Enquire
0052 174623
BUSH 		- 2 Enquire
0053 14059211
NUT
M6 		- 2 Enquire
0054 10519424
WASHER 		- 2 Enquire
0055 303385
CLIP 		- 1 Enquire
0056 13000390
Screw Collar 		- 3 Enquire
0057 266156
CLIP 		- 1 Enquire
0058 177553
CLAMP 		- 1 Enquire
0059 270085
CLIP 		- 1 Enquire
0060 82923400
AC MOBILE DUCT INSULATION KIT 		- 1 Enquire
0060 83030200
AC MOBILE DUCT INSULATION KIT 		- 1 Enquire
0061 82923500
HVAC UNIT INSULATION KIT 		- 1 Enquire
0062 255515
BUSH 		- 1 Enquire
0063 10441290
BRACKET WITH SHEATH
D. 10 		- 1 Enquire
0064 84058400
LH TGK VALVE MOUNTING BRACKET 		- 1 Enquire
0065 83689600
WATER PIPE RUBBER GUARD 		- 1 Enquire
0066 83413300
RH TGK VALVE MOUNTING BRACKET 		- 1 Enquire
0067 241708
CLIP 		- 1 Enquire
0068 83689500
WATER PIPE RUBBER GUARD 		- 1 Enquire
0069 292980
COLLAR 		- 1 Enquire
0070 291225
P clip Bracket With Sheath 		- 1 Enquire
0071 10318884
GASKET 		- 2 Enquire
0072 14450484
GASKET 		- 2 Enquire
0073 11342484
GASKET 		- 1 Enquire
0074 14453084
GASKET 		- 1 Enquire
0075 11342784
GASKET 		- 2 Enquire
0076 14450684
GASKET 		- 1 Enquire
0077 10319184
GASKET 		- 1 Enquire
0078 14453284
GASKET 		- 1 Enquire
0079 14452884
GASKET 		- 1 Enquire
0080 262111
JUBILEE CLAMP
D.17 - 25 		- 1 Enquire
0080 262111
JUBILEE CLAMP 		- 1 Enquire

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
