Name: REAR SCREEN
Rating: 4.6 (1 reviews)

View All

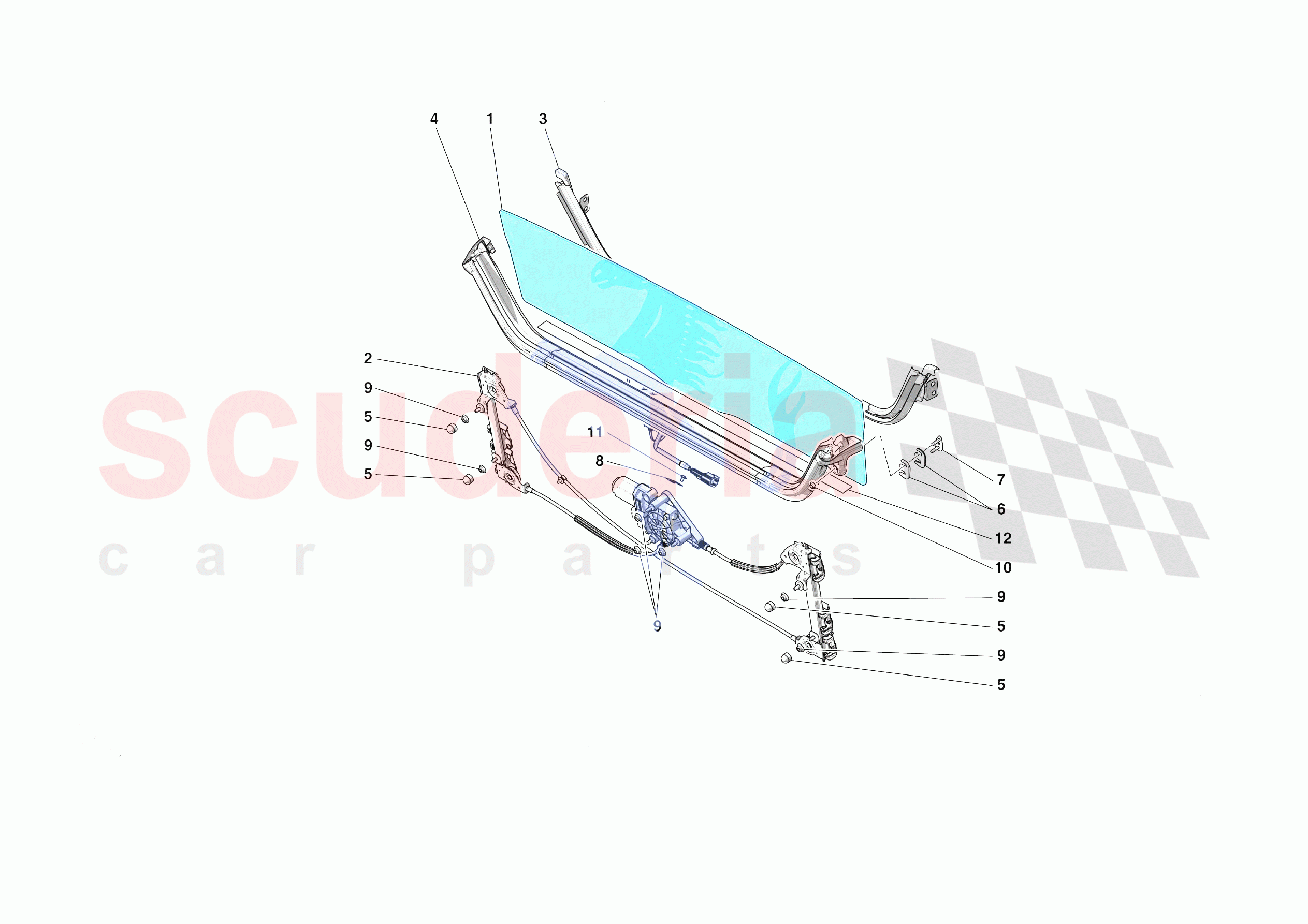

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	82202400	OPENING REAR SCREEN	$729.41	To Order

Photo	Part No	Description	Price (each)	Stock
	83072100	REAR SCREEN LIFTER	$923.92	To Order

Photo	Part No	Description	Price (each)	Stock
	82201100	INTERNAL REAR SCREEN SEAL	$587.70	To Order

Photo	Part No	Description	Price (each)	Stock
	891744	EXTERNAL REAR SCREEN SEAL	$609.29	To Order

Photo	Part No	Description	Price (each)	Stock
	85148300	PLUG	$2.63	To Order

Photo	Part No	Description	Price (each)	Stock
	84413000	PLATE	$17.20	To Order

Photo	Part No	Description	Price (each)	Stock
	155751	CLIP	$4.64	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	84801200	ADHESIVE STRIP	$9.13	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	82202400	OPENING REAR SCREEN	82202400 OPENING REAR SCREEN	$729.41	1
0002	83072100	REAR SCREEN LIFTER	83072100 REAR SCREEN LIFTER Applies until depletion	$923.92	1
0003	82201100	INTERNAL REAR SCREEN SEAL	82201100 INTERNAL REAR SCREEN SEAL	$587.70	1
0004	891744	EXTERNAL REAR SCREEN SEAL	891744 EXTERNAL REAR SCREEN SEAL	$609.29	1
0005	85148300	PLUG	85148300 PLUG	$2.63	4
0006	84413900	SHIM	84413900 SHIM	$2.74	2
0006	85422500	SHIM	85422500 SHIM Th. 3 mm	$4.59	2
0007	84413000	PLATE	84413000 PLATE	$17.20	2
0008	155751	CLIP	155751 CLIP	$4.64 MSRP: ~~4.95~~ (6.3% off)	1
0009	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M6 X 6.2	$1.51	7
0010	13046011	NUT	13046011 NUT M5 X 5	$0.39	4
0011	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 8 ARRIVING SOON	$0.36	1
0012	84801200	ADHESIVE STRIP	84801200 ADHESIVE STRIP	$9.13	1
