FRONT SUBSTRUCTURE of Ferrari Ferrari F8 Spider Europe RH

View All

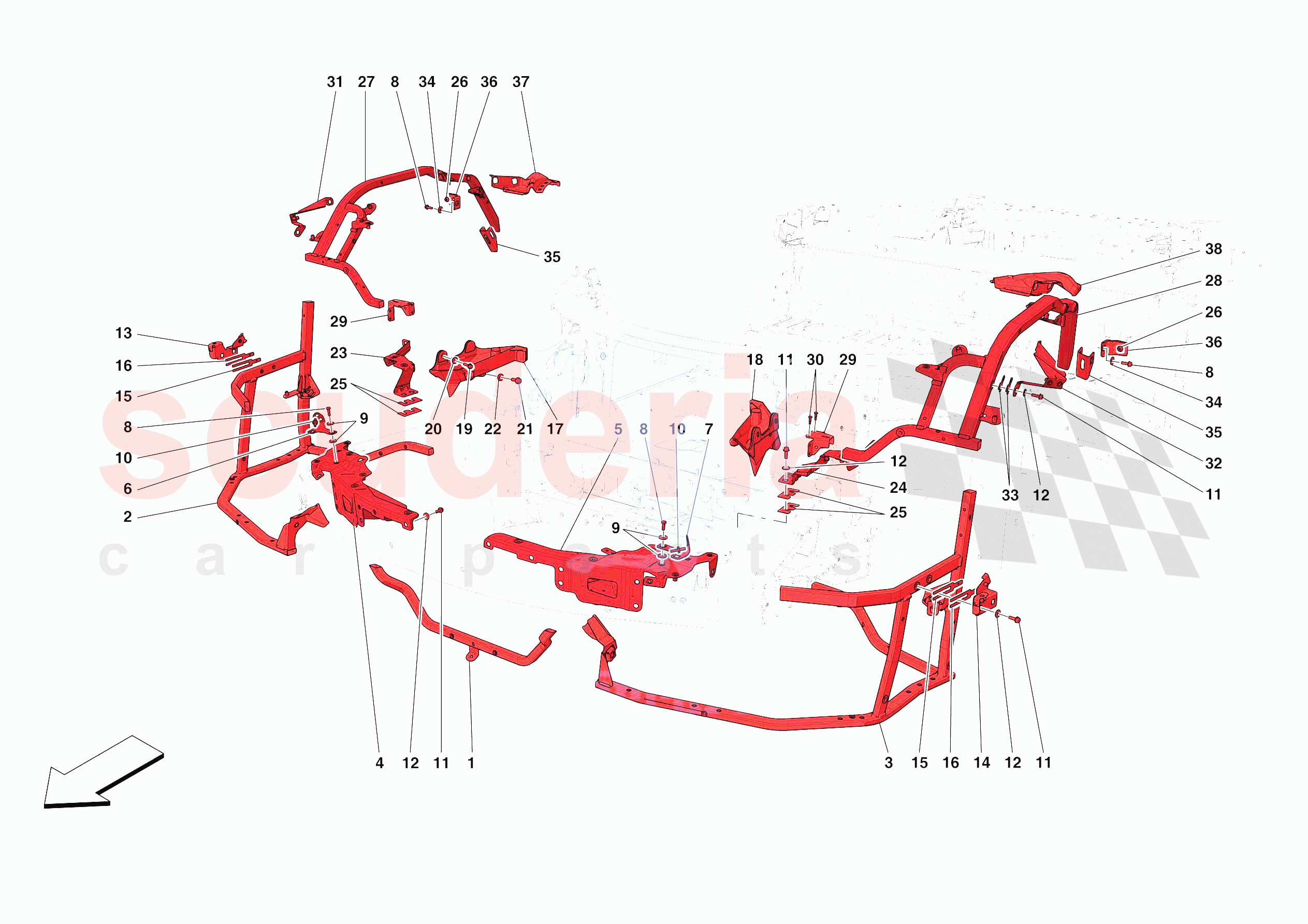

Ferrari F8 Spider Europe RH - FRONT SUBSTRUCTURE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	89295511	COMPL. FRONT BUMPER CARRIER TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985854837	COMPL. RH FRONT SUBFRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985854846	COMPL. LH FRONT SUBFRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985854845	RH FENDER BRACKET EXTENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985854860	LH FENDER BRACKET EXTENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	936101	RH FENDER BRACKET EXTENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	936102	LH FENDER BRACKET EXTENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68040000	WASHER 6 X 20 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	878810	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985854823	COMPL. RH HEADLIGHT FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985854824	COMPL. LH HEADLIGHT FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87549700	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87549900	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89244811	RH RADIATOR MOUNT AND LUGGAGE COMPARTMENT TUB REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89244711	LH RADIATOR MOUNT AND LUGGAGE COMPARTMENT TUB REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	854821	COMPL. INNER FASTENER BRACKET FOR RH HEADLIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	854841	COMPL. INNER FASTENER BRACKET FOR LH HEADLIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80709900	SHIM	Enquire	To Order
	80712500	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985854843	COMPL. RH FENDER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985854850	COMPL. LH FENDER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86766811	TRELLIS MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14639591	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985854855	COMPL. EXTERNAL RH FENDER FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985854833	COMPL. EXTERNAL LH FENDER FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87583800	ADJUSTMENT SHIM	Enquire	To Order
	87583700	ADJUSTMENT SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85455811	BRACKET FOR ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86674711	LOWER FASTENER BRACKET FOR FRONT FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87295111	RH UNDERWINDSCREEN TRIM BOX ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87295011	LH UNDERWINDSCREEN TRIM BOX ELEMENT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	89295511	COMPL. FRONT BUMPER CARRIER TUBE	89295511 COMPL. FRONT BUMPER CARRIER TUBE	-	1	Enquire
0002	985854837	COMPL. RH FRONT SUBFRAME	985854837 COMPL. RH FRONT SUBFRAME	-	1	Enquire
0003	985854846	COMPL. LH FRONT SUBFRAME	985854846 COMPL. LH FRONT SUBFRAME	-	1	Enquire
0004	985854845	RH FENDER BRACKET EXTENSION	985854845 RH FENDER BRACKET EXTENSION	-	1	Enquire
0005	985854860	LH FENDER BRACKET EXTENSION	985854860 LH FENDER BRACKET EXTENSION	-	1	Enquire
0006	936101	RH FENDER BRACKET EXTENSION	936101 RH FENDER BRACKET EXTENSION	-	1	Enquire
0007	936102	LH FENDER BRACKET EXTENSION	936102 LH FENDER BRACKET EXTENSION	-	1	Enquire
0008	10902424	SCREW	10902424 SCREW M6 X 20	-	8	Enquire
0009	68040000	WASHER 6 X 20 X 2	68040000 WASHER 6 X 20 X 2	-	8	Enquire
0010	878810	SCREW	878810 SCREW	-	4	Enquire
0011	16286121	SCREW	16286121 SCREW M6 X 20	-	32	Enquire
0012	12643724	WASHER	12643724 WASHER	-	34	Enquire
0013	985854823	COMPL. RH HEADLIGHT FASTENER BRACKET	985854823 COMPL. RH HEADLIGHT FASTENER BRACKET	-	1	Enquire
0014	985854824	COMPL. LH HEADLIGHT FASTENER BRACKET	985854824 COMPL. LH HEADLIGHT FASTENER BRACKET	-	1	Enquire
0015	87549700	SHIM	87549700 SHIM Th. 1 mm	-	2	Enquire
0016	87549900	SHIM	87549900 SHIM Th. 1.5 mm	-	2	Enquire
0017	89244811	RH RADIATOR MOUNT AND LUGGAGE COMPARTMENT TUB REINFORCEMENT	89244811 RH RADIATOR MOUNT AND LUGGAGE COMPARTMENT TUB REINFORCEMENT	-	1	Enquire
0018	89244711	LH RADIATOR MOUNT AND LUGGAGE COMPARTMENT TUB REINFORCEMENT	89244711 LH RADIATOR MOUNT AND LUGGAGE COMPARTMENT TUB REINFORCEMENT	-	1	Enquire
0019	231625	SCREW	231625 SCREW M6 X 25	-	2	Enquire
0020	860172	WASHER	860172 WASHER	-	2	Enquire
0021	16287524	SCREW	16287524 SCREW M8 X 25	-	6	Enquire
0022	13578324	WASHER	13578324 WASHER	-	6	Enquire
0023	854821	COMPL. INNER FASTENER BRACKET FOR RH HEADLIGHT	854821 COMPL. INNER FASTENER BRACKET FOR RH HEADLIGHT	-	1	Enquire
0024	854841	COMPL. INNER FASTENER BRACKET FOR LH HEADLIGHT	854841 COMPL. INNER FASTENER BRACKET FOR LH HEADLIGHT	-	1	Enquire
0025	80709900	SHIM	80709900 SHIM Th. 1 mm	-	2	Enquire
0025	80712500	SHIM	80712500 SHIM Th. 1.5 mm	-	2	Enquire
0026	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M6 X 6	-	4	Enquire
0027	985854843	COMPL. RH FENDER MOUNTING	985854843 COMPL. RH FENDER MOUNTING	-	1	Enquire
0028	985854850	COMPL. LH FENDER MOUNTING	985854850 COMPL. LH FENDER MOUNTING	-	1	Enquire
0029	86766811	TRELLIS MOUNTING BRACKET	86766811 TRELLIS MOUNTING BRACKET	-	2	Enquire
0030	14639591	RIVET	14639591 RIVET	-	12	Enquire
0031	985854855	COMPL. EXTERNAL RH FENDER FASTENER BRACKET	985854855 COMPL. EXTERNAL RH FENDER FASTENER BRACKET	-	1	Enquire
0032	985854833	COMPL. EXTERNAL LH FENDER FASTENER BRACKET	985854833 COMPL. EXTERNAL LH FENDER FASTENER BRACKET	-	1	Enquire
0033	87583800	ADJUSTMENT SHIM	87583800 ADJUSTMENT SHIM Th. 1 mm	-	4	Enquire
0033	87583700	ADJUSTMENT SHIM	87583700 ADJUSTMENT SHIM Th. 1.5 mm	-	4	Enquire
0034	12647724	WASHER	12647724 WASHER	-	10	Enquire
0035	85455811	BRACKET FOR ADJUSTER	85455811 BRACKET FOR ADJUSTER	-	2	Enquire
0036	86674711	LOWER FASTENER BRACKET FOR FRONT FENDER	86674711 LOWER FASTENER BRACKET FOR FRONT FENDER	-	4	Enquire
0037	87295111	RH UNDERWINDSCREEN TRIM BOX ELEMENT	87295111 RH UNDERWINDSCREEN TRIM BOX ELEMENT	-	1	Enquire
0038	87295011	LH UNDERWINDSCREEN TRIM BOX ELEMENT	87295011 LH UNDERWINDSCREEN TRIM BOX ELEMENT	-	1	Enquire
