Ferrari F12 TDF - SECONDARY AIR SYSTEM

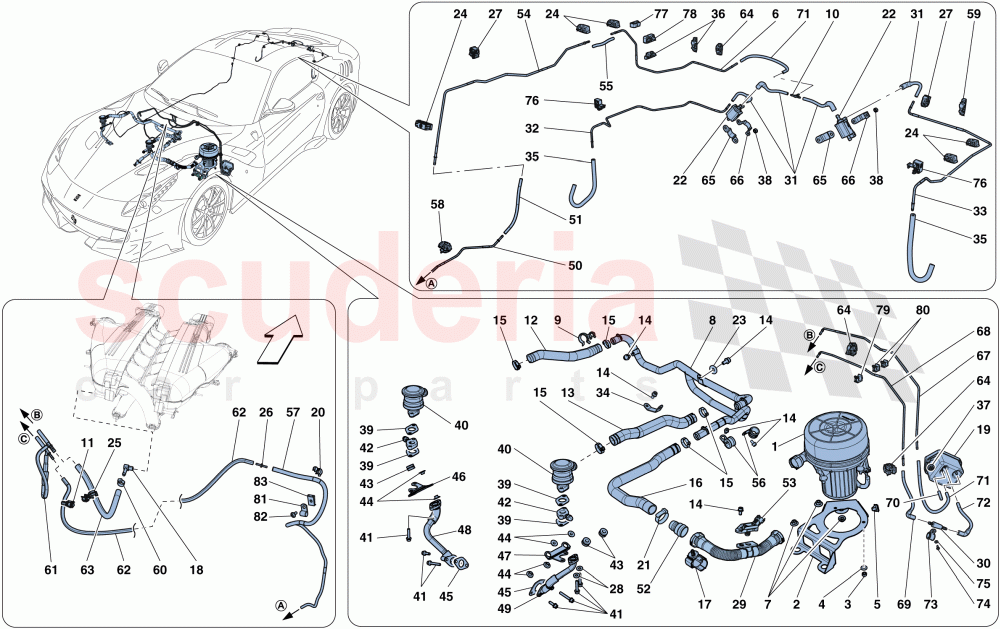

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

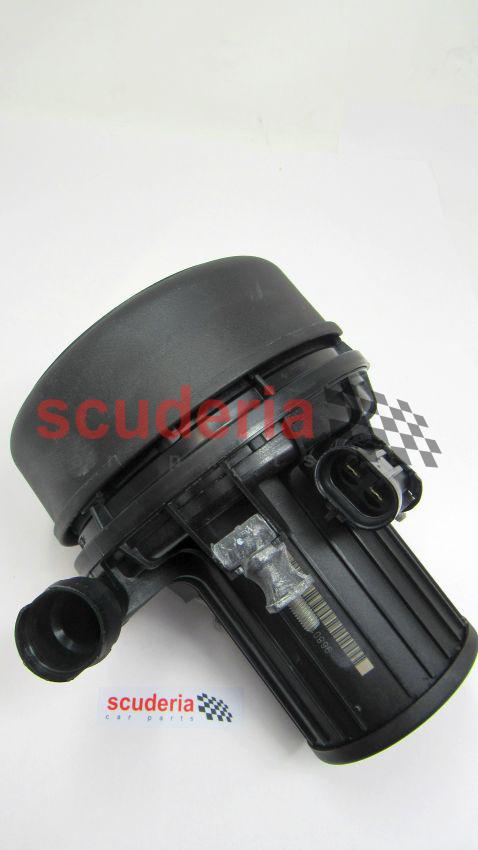

	247795	SECONDARY AIR SYSTEM PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272314	PUMP MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11194674	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291283	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293314	RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289538	ALUMINIUM PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	225165	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257691	3-WAY CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319429	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279862	RH CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	274855	LH CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13128970	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279692	ENGINE SIDE SECONDARY AIR SYSTEM HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82051100	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319271	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198339	VACUUM ACCUMULATOR TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	225165	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178309	SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294206	CLIP	Enquire	To Order
	280281	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305301	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199696	BRAIDED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234284	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288959	SECONDARY AIR SYSTEM PIPE WITH SENSOR CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295349	VACUUM RETAINER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294268	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281020	RIGID PIPE BETWEEN RH BYPASS FLEXIBLE HOSES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269073	RIGID PIPE BETWEEN LH BYPASS FLEXIBLE HOSES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289882	PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339752	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190409	CLIP	Enquire	To Order
	294207	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186781	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284235	SECONDARY AIR SYSTEM VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order
	231625	SCREW	Enquire	To Order
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286011	SPACER ASSEMBLY	Enquire	To Order
	264020	SPACER ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177576	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	819489	FLANGED BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202980	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258254	RH VALVE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258252	LH VALVE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256598	PIPE FROM AIR VALVE TO RH HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256596	PIPE FROM AIR VALVE TO LH HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284631	EMISSIONS CONTROL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264088	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267093	COUPLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282849	PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284629	RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199691	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10450690	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289048	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284622	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190409	CLIP	Enquire	To Order
	294207	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	327787	COMPL. VACUUM PIPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319519	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319507	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234285	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329823	SOLENOID VALVE MOUNTING BRACKET	Enquire	To Order
	294259	SOLENOID VALVE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294260	SOLENOID VALVE MOUNTING BRACKET	Enquire	To Order
	329824	SOLENOID VALVE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295778	RUBBER PIPE	Enquire	To Order
	274272	TANK ACTUATOR RIGID PIPE ON FIREWALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295777	RUBBER PIPE	Enquire	To Order
	274271	TANK VACUUM RIGID PIPE ON FIREWALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294265	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	225098	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169456	R.H. PIPE VALVE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294265	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15516204	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294205	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294206	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294207	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140130	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141546	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10418501	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	247795	SECONDARY AIR SYSTEM PUMP	247795 SECONDARY AIR SYSTEM PUMP	-	1	Enquire
2	272314	PUMP MOUNTING BRACKET	272314 PUMP MOUNTING BRACKET	-	1	Enquire
3	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	3	Enquire
4	11194674	WASHER	11194674 WASHER	-	3	Enquire
5	291283	CLIP	291283 CLIP	-	1	Enquire
6	293314	RIGID PIPE	293314 RIGID PIPE	-	1	Enquire
7	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	3	Enquire
8	289538	ALUMINIUM PIPE	289538 ALUMINIUM PIPE	-	1	Enquire
9	225165	CLIP	225165 CLIP	-	1	Enquire
10	257691	3-WAY CONNECTOR	257691 3-WAY CONNECTOR	-	1	Enquire
11	319429	CLIP	319429 CLIP	-	1	Enquire
12	279862	RH CONNECTOR PIPE	279862 RH CONNECTOR PIPE	-	1	Enquire
13	274855	LH CONNECTOR PIPE	274855 LH CONNECTOR PIPE	-	1	Enquire
14	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	6	Enquire
15	13128970	COLLAR	13128970 COLLAR	-	5	Enquire
16	279692	ENGINE SIDE SECONDARY AIR SYSTEM HOSE CONNECTOR	279692 ENGINE SIDE SECONDARY AIR SYSTEM HOSE CONNECTOR	-	1	Enquire
17	82051100	CLIP	82051100 CLIP	-	1	Enquire
18	319271	CONNECTOR	319271 CONNECTOR	-	1	Enquire
19	198339	VACUUM ACCUMULATOR TANK	198339 VACUUM ACCUMULATOR TANK	-	1	Enquire
20	225165	CLIP	225165 CLIP	-	1	Enquire
21	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
22	178309	SOLENOID VALVE	178309 SOLENOID VALVE	-	2	Enquire
23	12643724	WASHER	12643724 WASHER	-	1	Enquire
24	294206	CLIP	294206 CLIP 2 compartments	-	1	Enquire
24	280281	CLIP	280281 CLIP 2 compartments	-	4	Enquire
25	305301	CLIP	305301 CLIP	-	1	Enquire
26	199696	BRAIDED CONNECTOR	199696 BRAIDED CONNECTOR	-	1	Enquire
27	234284	CLIP	234284 CLIP 1 compartment	-	2	Enquire
28	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D. 6.40-12 X 0.5	-	4	Enquire
29	288959	SECONDARY AIR SYSTEM PIPE WITH SENSOR CARRIER	288959 SECONDARY AIR SYSTEM PIPE WITH SENSOR CARRIER	-	1	Enquire
30	295349	VACUUM RETAINER VALVE	295349 VACUUM RETAINER VALVE	-	1	Enquire
31	294268	RUBBER PIPE	294268 RUBBER PIPE	-	4	Enquire
32	281020	RIGID PIPE BETWEEN RH BYPASS FLEXIBLE HOSES	281020 RIGID PIPE BETWEEN RH BYPASS FLEXIBLE HOSES	-	1	Enquire
33	269073	RIGID PIPE BETWEEN LH BYPASS FLEXIBLE HOSES	269073 RIGID PIPE BETWEEN LH BYPASS FLEXIBLE HOSES	-	1	Enquire
34	289882	PIPE MOUNTING BRACKET	289882 PIPE MOUNTING BRACKET	-	1	Enquire
35	339752	RUBBER PIPE	339752 RUBBER PIPE D. 3.5-8 X 250	-	2	Enquire
36	190409	CLIP	190409 CLIP Applicable for GD	-	2	Enquire
36	294207	CLIP	294207 CLIP 3 compartments; Not for GD	-	2	Enquire
37	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
38	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M5	-	4	Enquire
39	186781	GASKET	186781 GASKET Also comes with engine gasket set	-	4	Enquire
40	284235	SECONDARY AIR SYSTEM VALVE	284235 SECONDARY AIR SYSTEM VALVE	-	2	Enquire
41	231620	SCREW	231620 SCREW M6 X 30	-	4	Enquire
41	231625	SCREW	231625 SCREW M6 X 40	-	2	Enquire
41	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	2	Enquire
42	286011	SPACER ASSEMBLY	286011 SPACER ASSEMBLY LH side	-	1	Enquire
42	264020	SPACER ASSEMBLY	264020 SPACER ASSEMBLY RH side	-	1	Enquire
43	177576	CABLE GROMMET	177576 CABLE GROMMET	-	4	Enquire
44	819489	FLANGED BUSHING	819489 FLANGED BUSHING	-	8	Enquire
45	202980	GASKET	202980 GASKET Also comes with engine gasket set	-	2	Enquire
46	258254	RH VALVE FASTENER BRACKET	258254 RH VALVE FASTENER BRACKET	-	1	Enquire
47	258252	LH VALVE FASTENER BRACKET	258252 LH VALVE FASTENER BRACKET	-	1	Enquire
48	256598	PIPE FROM AIR VALVE TO RH HEAD	256598 PIPE FROM AIR VALVE TO RH HEAD	-	1	Enquire
49	256596	PIPE FROM AIR VALVE TO LH HEAD	256596 PIPE FROM AIR VALVE TO LH HEAD	-	1	Enquire
50	284631	EMISSIONS CONTROL PIPE	284631 EMISSIONS CONTROL PIPE	-	1	Enquire
51	264088	RUBBER PIPE	264088 RUBBER PIPE D. 3.5-8 X 185	-	1	Enquire
52	267093	COUPLING	267093 COUPLING	-	1	Enquire
53	282849	PRESSURE SENSOR	282849 PRESSURE SENSOR	-	1	Enquire
54	284629	RIGID PIPE	284629 RIGID PIPE	-	1	Enquire
55	199691	RUBBER PIPE	199691 RUBBER PIPE	-	1	Enquire
56	10450690	BRACKET WITH SHEATH	10450690 BRACKET WITH SHEATH	-	2	Enquire
57	289048	RUBBER PIPE	289048 RUBBER PIPE	-	1	Enquire
58	284622	CLIP	284622 CLIP 3 compartments	-	2	Enquire
59	190409	CLIP	190409 CLIP Applicable for GD	-	1	Enquire
59	294207	CLIP	294207 CLIP 3 compartments; Not for GD	-	1	Enquire
60	13432070	HOSE COLLAR	13432070 HOSE COLLAR	-	1	Enquire
61	327787	COMPL. VACUUM PIPING	327787 COMPL. VACUUM PIPING	-	1	Enquire
62	319519	RUBBER PIPE	319519 RUBBER PIPE	-	1	Enquire
63	319507	RUBBER PIPE	319507 RUBBER PIPE	-	1	Enquire
64	234285	CLIP	234285 CLIP 2 compartments	-	3	Enquire
65	329823	SOLENOID VALVE MOUNTING BRACKET	329823 SOLENOID VALVE MOUNTING BRACKET Applicable from Ass. No. 134599	-	2	Enquire
65	294259	SOLENOID VALVE MOUNTING BRACKET	294259 SOLENOID VALVE MOUNTING BRACKET Applicable up to Ass. No. 134598	-	2	Enquire
66	294260	SOLENOID VALVE MOUNTING BRACKET	294260 SOLENOID VALVE MOUNTING BRACKET Applicable up to Ass. No. 134598	-	2	Enquire
66	329824	SOLENOID VALVE MOUNTING BRACKET	329824 SOLENOID VALVE MOUNTING BRACKET Applicable from Ass. No. 134599	-	2	Enquire
67	295778	RUBBER PIPE	295778 RUBBER PIPE Applicable for GD	-	1	Enquire
67	274272	TANK ACTUATOR RIGID PIPE ON FIREWALL	274272 TANK ACTUATOR RIGID PIPE ON FIREWALL Not for GD	-	1	Enquire
68	295777	RUBBER PIPE	295777 RUBBER PIPE Applicable for GD	-	1	Enquire
68	274271	TANK VACUUM RIGID PIPE ON FIREWALL	274271 TANK VACUUM RIGID PIPE ON FIREWALL Not for GD	-	1	Enquire
69	294265	RUBBER PIPE	294265 RUBBER PIPE	-	1	Enquire
70	225098	PLUG	225098 PLUG	-	1	Enquire
71	169456	R.H. PIPE VALVE TUBE	169456 R.H. PIPE VALVE TUBE	-	2	Enquire
72	294265	RUBBER PIPE	294265 RUBBER PIPE	-	1	Enquire
73	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	1	Enquire
74	15516204	SCREW	15516204 SCREW	-	1	Enquire
75	62769800	WASHER	62769800 WASHER	-	1	Enquire
76	294205	CLIP	294205 CLIP 1 compartment	-	2	Enquire
77	294206	CLIP	294206 CLIP 2 compartments	-	1	Enquire
78	294207	CLIP	294207 CLIP 3 compartments	-	1	Enquire
79	140130	CLIP	140130 CLIP Applicable for GD	-	4	Enquire
80	141546	CLIP	141546 CLIP Applicable for GD	-	8	Enquire
81	10418501	BRACKET	10418501 BRACKET	-	1	Enquire
82	85833700	SCREW	85833700 SCREW M5 X 12	-	1	Enquire
83	68700800	CLIP	68700800 CLIP	-	1	Enquire
