LUBRICATION SYSTEM: TANK of Ferrari Ferrari F12 TDF

View All

Ferrari F12 TDF - LUBRICATION SYSTEM: TANK

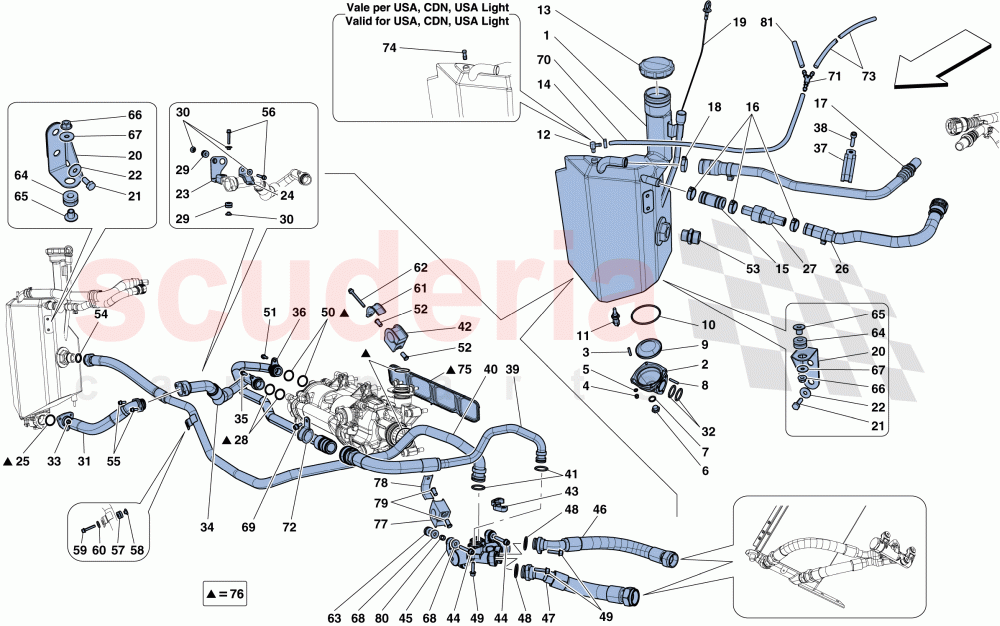

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	313729	ENGINE OIL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210914	OIL TANK PICKUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500524	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293107	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100332	OIL PICKUP FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125521	O-RING D78.97-8X100	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	290538	THREADED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180320	COPMLETE TANK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241986	COLLAR FOR HOSE UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257673	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284102	COMPL. VAPOUR ASPIRATOR PIPE	Enquire	To Order
	323561	OIL VAPOUR PIPE FROM RESERVOIR TO DISCONNECTOR UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	327148	COMPL. OIL DIPSTICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269835	FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326791	PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326821	PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284101	VAPOUR PIPE FROM VALVE TO HEADS	Enquire	To Order
	323560	VAPOUR PIPE FROM DISCONNECTOR UNION TO PCV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294255	CHECK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104212	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240607	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	819489	FLANGED BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104212	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318530	OIL PIPE FROM DISCONNECTER UNION TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311558	ENGINE OIL RETURN PIPE FROM ENGINE TO DISCONNECTER UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284099	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311647	ENGINE OIL RETURN PIPE FROM DISCONNECTER UNION TO THERMOSTAT VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311743	ENGINE OIL RETURN PIPE FROM VALVE TO RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122791	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315530	RETAINER BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311723	ENGINE OIL PIPE RETAINER FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316675	COMPL. OIL THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317220	OIL DELIVERY PIPE FROM VALVE TO RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315531	OIL RETURN PIPE FROM RADIATOR TO VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122791	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121903	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304075	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138149	THREADED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898271	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315540	RETAINER BLOCK FASTENER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255495	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267300	DAMPED MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294896	RUBBER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293755	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258855	3-WAY CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	322190	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	118901	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14326101	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275528	PUMP SEAL FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	794125	OIL PUMP GASKET KIT	Enquire	To Order
	308330	OIL PUMP GASKET KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315529	RETAINER BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315539	RETAINER BLOCK FASTENER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315649	FLANGED BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295197	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170530	RUBBER PIPE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	313729	ENGINE OIL TANK	313729 ENGINE OIL TANK	-	1	Enquire
2	210914	OIL TANK PICKUP	210914 OIL TANK PICKUP	-	1	Enquire
3	11500524	STUD BOLT	11500524 STUD BOLT	-	4	Enquire
4	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
5	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D. 6.40-12 X 0.5	-	4	Enquire
6	293107	THREADED PLUG	293107 THREADED PLUG	-	1	Enquire
7	10261460	GASKET	10261460 GASKET	-	1	Enquire
8	13541124	STUD BOLT	13541124 STUD BOLT	-	3	Enquire
9	100332	OIL PICKUP FILTER	100332 OIL PICKUP FILTER	-	1	Enquire
10	125521	O-RING D78.97-8X100	125521 O-RING D78.97-8X100	-	1	Enquire
11	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR	-	1	Enquire
12	290538	THREADED CONNECTOR	290538 THREADED CONNECTOR Not for USA, CDN, USA LIGHT	-	1	Enquire
13	180320	COPMLETE TANK PLUG	180320 COPMLETE TANK PLUG	-	1	Enquire
14	241986	COLLAR FOR HOSE UNION	241986 COLLAR FOR HOSE UNION Not for USA, CDN, USA LIGHT	-	2	Enquire
15	257673	RUBBER PIPE	257673 RUBBER PIPE	-	1	Enquire
16	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	3	Enquire
17	284102	COMPL. VAPOUR ASPIRATOR PIPE	284102 COMPL. VAPOUR ASPIRATOR PIPE Applicable for USA, CDN, USA LIGHT	-	1	Enquire
17	323561	OIL VAPOUR PIPE FROM RESERVOIR TO DISCONNECTOR UNION	323561 OIL VAPOUR PIPE FROM RESERVOIR TO DISCONNECTOR UNION Not for USA, CDN, USA LIGHT	-	1	Enquire
18	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
19	327148	COMPL. OIL DIPSTICK	327148 COMPL. OIL DIPSTICK	-	1	Enquire
20	269835	FASTENER BRACKET	269835 FASTENER BRACKET	-	2	Enquire
21	10902424	SCREW	10902424 SCREW M6 X 20	-	2	Enquire
21	81591700	SCREW	81591700 SCREW M6 X 14	-	2	Enquire
22	12643724	WASHER	12643724 WASHER	-	4	Enquire
23	326791	PIPE MOUNTING BRACKET	326791 PIPE MOUNTING BRACKET	-	1	Enquire
24	326821	PIPE MOUNTING BRACKET	326821 PIPE MOUNTING BRACKET	-	1	Enquire
25	862084	GASKET	862084 GASKET Also comes with engine gasket set	-	1	Enquire
26	284101	VAPOUR PIPE FROM VALVE TO HEADS	284101 VAPOUR PIPE FROM VALVE TO HEADS Applicable for USA, CDN, USA LIGHT	-	1	Enquire
26	323560	VAPOUR PIPE FROM DISCONNECTOR UNION TO PCV	323560 VAPOUR PIPE FROM DISCONNECTOR UNION TO PCV Not for USA, CDN, USA LIGHT	-	1	Enquire
27	294255	CHECK VALVE	294255 CHECK VALVE	-	1	Enquire
28	104212	O-RING	104212 O-RING	-	2	Enquire
29	240607	GROMMET	240607 GROMMET	-	2	Enquire
30	819489	FLANGED BUSHING	819489 FLANGED BUSHING	-	4	Enquire
32	104212	O-RING	104212 O-RING	-	2	Enquire
33	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	3	Enquire
34	318530	OIL PIPE FROM DISCONNECTER UNION TO PUMP	318530 OIL PIPE FROM DISCONNECTER UNION TO PUMP	-	1	Enquire
35	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	1	Enquire
36	311558	ENGINE OIL RETURN PIPE FROM ENGINE TO DISCONNECTER UNION	311558 ENGINE OIL RETURN PIPE FROM ENGINE TO DISCONNECTER UNION	-	1	Enquire
37	284099	BRACKET WITH SHEATH	284099 BRACKET WITH SHEATH	-	1	Enquire
38	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	1	Enquire
39	311647	ENGINE OIL RETURN PIPE FROM DISCONNECTER UNION TO THERMOSTAT VALVE	311647 ENGINE OIL RETURN PIPE FROM DISCONNECTER UNION TO THERMOSTAT VALVE	-	1	Enquire
40	311743	ENGINE OIL RETURN PIPE FROM VALVE TO RESERVOIR	311743 ENGINE OIL RETURN PIPE FROM VALVE TO RESERVOIR	-	1	Enquire
41	122791	O-RING	122791 O-RING	-	2	Enquire
42	315530	RETAINER BLOCK	315530 RETAINER BLOCK	-	1	Enquire
43	311723	ENGINE OIL PIPE RETAINER FORK	311723 ENGINE OIL PIPE RETAINER FORK	-	1	Enquire
44	231625	SCREW	231625 SCREW M6 X 50; Applicable for mounting 267300	-	3	Enquire
45	316675	COMPL. OIL THERMOSTAT	316675 COMPL. OIL THERMOSTAT	-	1	Enquire
46	317220	OIL DELIVERY PIPE FROM VALVE TO RADIATOR	317220 OIL DELIVERY PIPE FROM VALVE TO RADIATOR	-	1	Enquire
47	315531	OIL RETURN PIPE FROM RADIATOR TO VALVE	315531 OIL RETURN PIPE FROM RADIATOR TO VALVE	-	1	Enquire
48	122791	O-RING	122791 O-RING	-	2	Enquire
49	231620	SCREW	231620 SCREW M6 X 25	-	4	Enquire
50	121903	GASKET	121903 GASKET	-	2	Enquire
51	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	1	Enquire
52	304075	BUSH	304075 BUSH	-	2	Enquire
53	138149	THREADED CONNECTOR	138149 THREADED CONNECTOR	-	1	Enquire
54	898271	GASKET	898271 GASKET	-	1	Enquire
55	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	1	Enquire
56	231622	SCREW	231622 SCREW M6 X 35	-	2	Enquire
57	812273	CABLE GROMMET	812273 CABLE GROMMET	-	1	Enquire
58	149707	SPACER	149707 SPACER	-	1	Enquire
59	231625	SCREW	231625 SCREW M6 X 25	-	1	Enquire
60	12643724	WASHER	12643724 WASHER	-	1	Enquire
61	315540	RETAINER BLOCK FASTENER PLATE	315540 RETAINER BLOCK FASTENER PLATE	-	1	Enquire
62	255495	SCREW	255495 SCREW M6 X 65	-	2	Enquire
63	267300	DAMPED MOUNT	267300 DAMPED MOUNT	-	1	Enquire
64	812273	CABLE GROMMET	812273 CABLE GROMMET	-	2	Enquire
65	149707	SPACER	149707 SPACER	-	2	Enquire
66	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	3	Enquire
67	12643724	WASHER	12643724 WASHER	-	3	Enquire
68	294896	RUBBER SPACER	294896 RUBBER SPACER	-	6	Enquire
69	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	1	Enquire
70	293755	RUBBER PIPE	293755 RUBBER PIPE D. 6 X 9 X 825; Not for USA, CDN, USA LIGHT	-	1	Enquire
71	258855	3-WAY CONNECTOR	258855 3-WAY CONNECTOR Not for USA, CDN, USA LIGHT	-	1	Enquire
72	322190	BRACKET	322190 BRACKET	-	1	Enquire
73	118901	RUBBER PIPE	118901 RUBBER PIPE Not for USA, CDN, USA LIGHT	-	1	Enquire
74	14326101	THREADED PLUG	14326101 THREADED PLUG Applicable for USA, CDN, USA LIGHT	-	1	Enquire
75	275528	PUMP SEAL FILTER	275528 PUMP SEAL FILTER	-	1	Enquire
76	794125	OIL PUMP GASKET KIT	794125 OIL PUMP GASKET KIT Applicable from engine No. 320663	-	1	Enquire
76	308330	OIL PUMP GASKET KIT	308330 OIL PUMP GASKET KIT Applicable up to engine No. 320662	-	1	Enquire
77	315529	RETAINER BLOCK	315529 RETAINER BLOCK	-	1	Enquire
78	315539	RETAINER BLOCK FASTENER PLATE	315539 RETAINER BLOCK FASTENER PLATE	-	1	Enquire
79	315649	FLANGED BUSHING	315649 FLANGED BUSHING	-	2	Enquire
80	295197	SPACER	295197 SPACER	-	3	Enquire
81	170530	RUBBER PIPE	170530 RUBBER PIPE Not for USA, CDN, USA LIGHT	-	1	Enquire
