Ferrari F12 TDF - AIR INTAKE

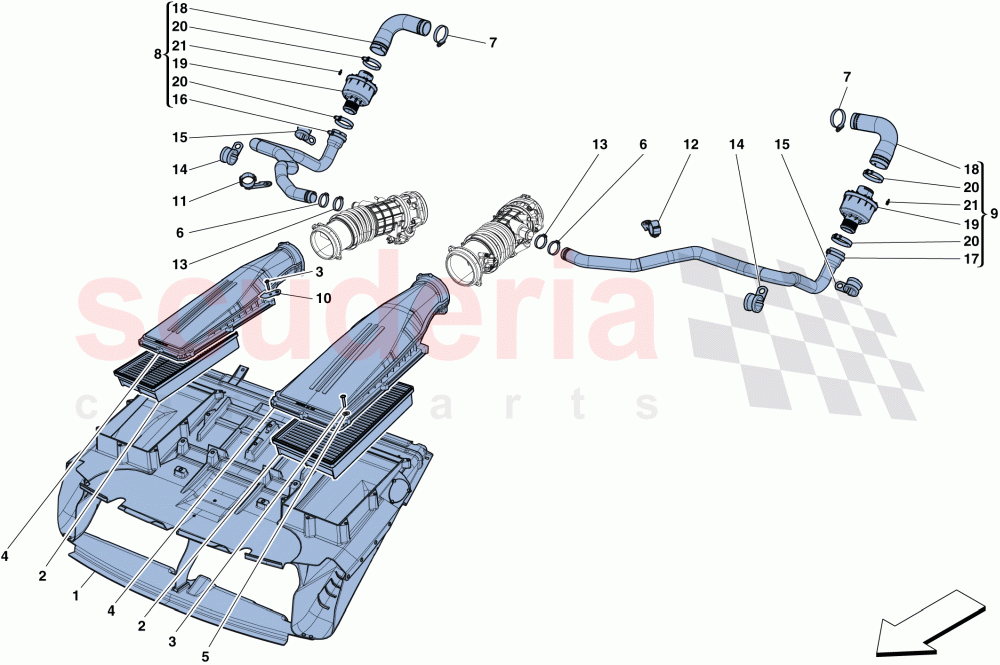

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	325753	AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	842754	AIR FILTER	Enquire	ARRIVING SOON
	223039	Air Filter	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	88831000	GRUB SCREW	Enquire	To Order
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	322480	FILTER BOX COVER	Enquire	To Order
	331987	FILTER BOX COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86321000	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11449470	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	324181	RESONATOR COMPL. WITH RH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324186	RESONATOR COMPL. WITH LH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	325431	LH FASTENER BRACKET	Enquire	To Order
	325430	LH FASTENER BRACKET	Enquire	To Order
	325429	RH FASTENER BRACKET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	325021	COMPL. RH PIPE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	325024	COMPL. LH PIPE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	329863	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10448890	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	327477	RH PIPE FROM INTAKE TO DISCONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	327476	LH PIPE FROM INTAKE TO DISCONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324320	PIPE FROM DISCONNECTOR TO FIREWALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310096	SOUND GENERATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	314100	RIVET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	325753	AIR DUCT	325753 AIR DUCT	-	1	Enquire
2	842754	AIR FILTER ARRIVING SOON	842754 AIR FILTER Applicable for USA, CDN, USA LIGHT ARRIVING SOON	-	2	Enquire
2	223039	Air Filter ARRIVING SOON	223039 Air Filter Not for USA, CDN, USA LIGHT ARRIVING SOON	-	2	Enquire
3	88831000	GRUB SCREW	88831000 GRUB SCREW M5 X 25	-	14	Enquire
3	81591700	SCREW	81591700 SCREW M5 X 25; No longer supplied; Replaced by 85834000	-	14	Enquire
4	322480	FILTER BOX COVER	322480 FILTER BOX COVER Carbon	-	2	Enquire
4	331987	FILTER BOX COVER	331987 FILTER BOX COVER Standard	-	2	Enquire
5	86321000	WASHER	86321000 WASHER Applicable for carbon filter box cover	-	12	Enquire
6	11449470	COLLAR	11449470 COLLAR No longer supplied	-	2	Enquire
7	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	2	Enquire
8	324181	RESONATOR COMPL. WITH RH PIPE	324181 RESONATOR COMPL. WITH RH PIPE After depletion, order loose components; Applicable until depletion	-	1	Enquire
9	324186	RESONATOR COMPL. WITH LH PIPE	324186 RESONATOR COMPL. WITH LH PIPE After depletion, order loose components; Applicable until depletion	-	1	Enquire
10	325431	LH FASTENER BRACKET	325431 LH FASTENER BRACKET Carbon	-	1	Enquire
10	325430	LH FASTENER BRACKET	325430 LH FASTENER BRACKET Standard	-	1	Enquire
10	325429	RH FASTENER BRACKET	325429 RH FASTENER BRACKET Carbon	-	1	Enquire
10	325427	RH FASTENER BRACKET	325427 RH FASTENER BRACKET Standard	-	1	Enquire
11	325021	COMPL. RH PIPE FASTENER BRACKET	325021 COMPL. RH PIPE FASTENER BRACKET	-	1	Enquire
12	325024	COMPL. LH PIPE FASTENER BRACKET	325024 COMPL. LH PIPE FASTENER BRACKET	-	1	Enquire
13	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	2	Enquire
14	329863	BRACKET WITH SHEATH	329863 BRACKET WITH SHEATH	-	2	Enquire
15	10448890	BRACKET WITH SHEATH	10448890 BRACKET WITH SHEATH	-	2	Enquire
16	327477	RH PIPE FROM INTAKE TO DISCONNECTOR	327477 RH PIPE FROM INTAKE TO DISCONNECTOR	-	1	Enquire
17	327476	LH PIPE FROM INTAKE TO DISCONNECTOR	327476 LH PIPE FROM INTAKE TO DISCONNECTOR	-	1	Enquire
18	324320	PIPE FROM DISCONNECTOR TO FIREWALL	324320 PIPE FROM DISCONNECTOR TO FIREWALL	-	2	Enquire
19	310096	SOUND GENERATOR	310096 SOUND GENERATOR	-	2	Enquire
20	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	4	Enquire
21	314100	RIVET	314100 RIVET	-	4	Enquire
