SECONDARY AIR SYSTEM -Applicable from Ass.ly No. 108753- of Ferrari Ferrari F12 Berlinetta

View All

Ferrari F12 Berlinetta - SECONDARY AIR SYSTEM -Applicable from Ass.ly No. 108753-

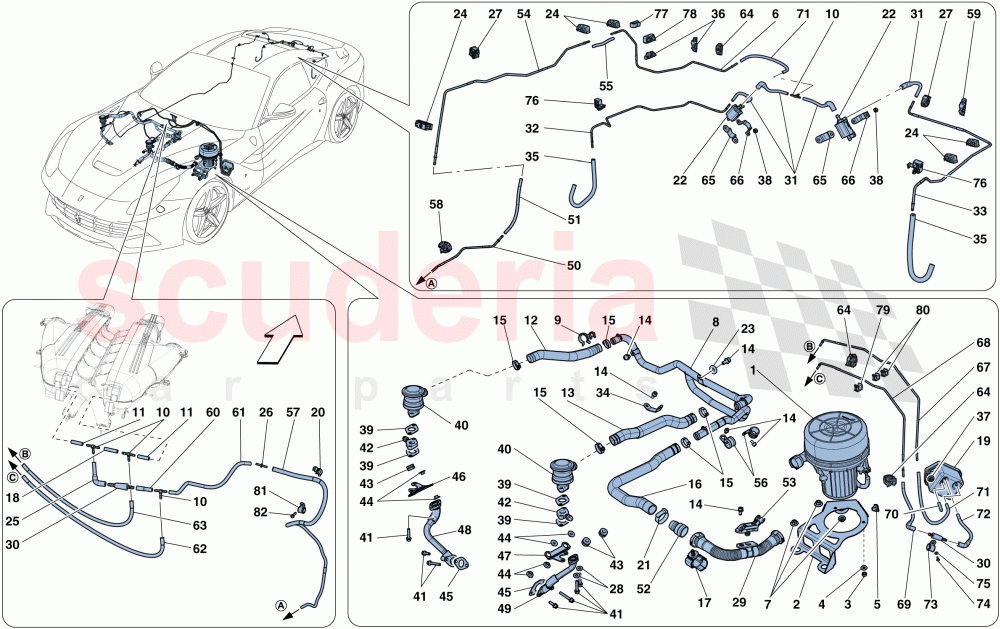

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	247795	SECONDARY AIR SYSTEM PUMP	$754.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	272314	PUMP MOUNTING BRACKET	$85.03	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11194674	WASHER	$0.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	291283	CLIP	$0.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	293314	RIGID PIPE	$65.77	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	289538	ALUMINIUM PIPE	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	225165	CLIP	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	257691	3-WAY CONNECTOR	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	122759	RUBBER PIPE	$6.06	To Order

Photo	Part No	Description	Price (each)	Stock
	279862	RH CONNECTOR PIPE	$107.49	To Order

Photo	Part No	Description	Price (each)	Stock
	274855	LH CONNECTOR PIPE	$113.91	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	13128970	COLLAR	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	279692	ENGINE SIDE SECONDARY AIR SYSTEM HOSE CONNECTOR	$673.92	To Order

Photo	Part No	Description	Price (each)	Stock
	82051100	CLIP	$0.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	170530	RUBBER PIPE	$5.49	To Order

Photo	Part No	Description	Price (each)	Stock
	198339	VACUUM ACCUMULATOR TANK	$48.12	To Order

Photo	Part No	Description	Price (each)	Stock
	225165	CLIP	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	178309	SOLENOID VALVE	$102.68	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	294206	CLIP	$5.43	To Order
	280281	CLIP	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	295677	RUBBER PIPE	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	199696	BRAIDED CONNECTOR	$10.96	To Order

Photo	Part No	Description	Price (each)	Stock
	234284	CLIP	$0.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	288959	SECONDARY AIR SYSTEM PIPE WITH SENSOR CARRIER	$176.49	To Order

Photo	Part No	Description	Price (each)	Stock
	295349	VACUUM RETAINER VALVE	$46.52	To Order

Photo	Part No	Description	Price (each)	Stock
	281020	RIGID PIPE BETWEEN RH BYPASS FLEXIBLE HOSES	$57.75	To Order

Photo	Part No	Description	Price (each)	Stock
	269073	RIGID PIPE BETWEEN LH BYPASS FLEXIBLE HOSES	$56.14	To Order

Photo	Part No	Description	Price (each)	Stock
	289882	PIPE MOUNTING BRACKET	$9.13	To Order

Photo	Part No	Description	Price (each)	Stock
	339752	RUBBER PIPE	$25.66	To Order

Photo	Part No	Description	Price (each)	Stock
	190409	CLIP	$6.24	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.43	IN STOCK
	11566227	SCREW	$1.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	186781	GASKET	$5.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	284235	SECONDARY AIR SYSTEM VALVE	$256.72	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	IN STOCK
	231619	SCREW	$0.31	IN STOCK
	231625	SCREW	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	286011	SPACER ASSEMBLY	$47.57	To Order
	264020	SPACER ASSEMBLY	$67.38	To Order

Photo	Part No	Description	Price (each)	Stock
	177576	CABLE GROMMET	$2.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	819489	FLANGED BUSHING	$14.75	To Order

Photo	Part No	Description	Price (each)	Stock
	202980	GASKET	$3.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	258254	RH VALVE FASTENER BRACKET	$12.66	To Order

Photo	Part No	Description	Price (each)	Stock
	258252	LH VALVE FASTENER BRACKET	$12.66	To Order

Photo	Part No	Description	Price (each)	Stock
	256598	PIPE FROM AIR VALVE TO RH HEAD	$304.86	To Order

Photo	Part No	Description	Price (each)	Stock
	256596	PIPE FROM AIR VALVE TO LH HEAD	$304.57	To Order

Photo	Part No	Description	Price (each)	Stock
	284631	EMISSIONS CONTROL PIPE	$75.40	To Order

Photo	Part No	Description	Price (each)	Stock
	264088	RUBBER PIPE	$9.29	To Order

Photo	Part No	Description	Price (each)	Stock
	267093	COUPLING	$27.26	To Order

Photo	Part No	Description	Price (each)	Stock
	282849	PRESSURE SENSOR	$36.89	To Order

Photo	Part No	Description	Price (each)	Stock
	284629	RIGID PIPE	$77.00	To Order

Photo	Part No	Description	Price (each)	Stock
	199691	RUBBER PIPE	$5.49	To Order

Photo	Part No	Description	Price (each)	Stock
	10450690	BRACKET WITH SHEATH	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	284622	CLIP	$1.88	To Order

Photo	Part No	Description	Price (each)	Stock
	190409	CLIP	$6.24	To Order

Photo	Part No	Description	Price (each)	Stock
	295441	RUBBER PIPE	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	159542	RUBBER PIPE	$4.31	To Order

Photo	Part No	Description	Price (each)	Stock
	295414	RUBBER PIPE	$12.03	To Order

Photo	Part No	Description	Price (each)	Stock
	295413	RUBBER PIPE	$15.38	To Order

Photo	Part No	Description	Price (each)	Stock
	234285	CLIP	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	294259	SOLENOID VALVE MOUNTING BRACKET	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	294260	SOLENOID VALVE MOUNTING BRACKET	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	295778	RUBBER PIPE	$35.28	To Order
	274272	TANK ACTUATOR RIGID PIPE ON FIREWALL	$44.91	To Order

Photo	Part No	Description	Price (each)	Stock
	295777	RUBBER PIPE	$31.90	To Order
	274271	TANK VACUUM RIGID PIPE ON FIREWALL	$44.91	To Order

Photo	Part No	Description	Price (each)	Stock
	225098	PLUG	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	169456	R.H. PIPE VALVE TUBE	$5.07	To Order

Photo	Part No	Description	Price (each)	Stock
	294265	RUBBER PIPE	$17.39	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15516204	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	$0.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	294205	CLIP	$5.43	To Order

Photo	Part No	Description	Price (each)	Stock
	294206	CLIP	$5.43	To Order

Photo	Part No	Description	Price (each)	Stock
	294207	CLIP	$5.43	To Order

Photo	Part No	Description	Price (each)	Stock
	140130	CLIP	$0.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	141546	CLIP	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	10418501	BRACKET	$3.16	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	IN STOCK

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	247795	SECONDARY AIR SYSTEM PUMP IN STOCK	247795 SECONDARY AIR SYSTEM PUMP Applicable from Ass. No. 108753 IN STOCK	$754.15 MSRP: ~~1,054.04~~ (28.5% off)	1
2	272314	PUMP MOUNTING BRACKET	272314 PUMP MOUNTING BRACKET Applicable from Ass. No. 108753	$85.03	1
3	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 Applicable from Ass. No. 108753 IN STOCK	$1.43	3
4	11194674	WASHER IN STOCK	11194674 WASHER Applicable from Ass. No. 108753 IN STOCK	$0.45	3
5	291283	CLIP IN STOCK	291283 CLIP Applicable from Ass. No. 108753 IN STOCK	$0.55	1
6	293314	RIGID PIPE	293314 RIGID PIPE Applicable from Ass. No. 108753	$65.77	1
7	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 Applicable from Ass. No. 108753 IN STOCK	$1.43	3
8	289538	ALUMINIUM PIPE	289538 ALUMINIUM PIPE Applicable from Ass. No. 108753	$320.90	1
9	225165	CLIP	225165 CLIP Applicable from Ass. No. 108753	$0.36	1
10	257691	3-WAY CONNECTOR	257691 3-WAY CONNECTOR Applicable from Ass. No. 108753	$1.47	4
11	122759	RUBBER PIPE	122759 RUBBER PIPE Applicable from Ass. No. 108753	$6.06	2
12	279862	RH CONNECTOR PIPE	279862 RH CONNECTOR PIPE Applicable from Ass. No. 108753	$107.49	1
13	274855	LH CONNECTOR PIPE	274855 LH CONNECTOR PIPE Applicable from Ass. No. 108753	$113.91	1
14	248334	SCREW	248334 SCREW M6 X 12; Applicable from Ass. No. 108753	$0.68	6
15	13128970	COLLAR	13128970 COLLAR Applicable from Ass. No. 108753	$1.57	5
16	279692	ENGINE SIDE SECONDARY AIR SYSTEM HOSE CONNECTOR	279692 ENGINE SIDE SECONDARY AIR SYSTEM HOSE CONNECTOR Applicable from Ass. No. 108753	$673.92	1
17	82051100	CLIP IN STOCK	82051100 CLIP Applicable from Ass. No. 108753 IN STOCK	$0.94	1
18	170530	RUBBER PIPE	170530 RUBBER PIPE Applicable from Ass. No. 108753	$5.49	1
19	198339	VACUUM ACCUMULATOR TANK	198339 VACUUM ACCUMULATOR TANK Applicable from Ass. No. 108753	$48.12	1
20	225165	CLIP	225165 CLIP Applicable from Ass. No. 108753	$0.36	1
22	178309	SOLENOID VALVE ARRIVING SOON	178309 SOLENOID VALVE Applicable from Ass. No. 108753 ARRIVING SOON	$102.68 MSRP: ~~138.94~~ (26.1% off)	2
23	12643724	WASHER IN STOCK	12643724 WASHER Applicable from Ass. No. 108753 IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	1
24	294206	CLIP	294206 CLIP 2 compartments; Applicable from Ass. No. 108753	$5.43	1
24	280281	CLIP	280281 CLIP 2 compartments; Applicable from Ass. No. 108753	$1.38	4
25	295677	RUBBER PIPE	295677 RUBBER PIPE Applicable from Ass. No. 108753	$22.45	1
26	199696	BRAIDED CONNECTOR	199696 BRAIDED CONNECTOR Applicable from Ass. No. 108753	$10.96	1
27	234284	CLIP IN STOCK	234284 CLIP 1 compartment; Applicable from Ass. No. 108753 IN STOCK	$0.60	2
28	11197774	WASHER IN STOCK	11197774 WASHER D. 6.40-12 X 0.5; Applicable from Ass. No. 108753 IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	4
29	288959	SECONDARY AIR SYSTEM PIPE WITH SENSOR CARRIER	288959 SECONDARY AIR SYSTEM PIPE WITH SENSOR CARRIER Applicable from Ass. No. 108753	$176.49	1
30	295349	VACUUM RETAINER VALVE	295349 VACUUM RETAINER VALVE Applicable from Ass. No. 108753	$46.52	2
32	281020	RIGID PIPE BETWEEN RH BYPASS FLEXIBLE HOSES	281020 RIGID PIPE BETWEEN RH BYPASS FLEXIBLE HOSES Applicable from Ass. No. 108753	$57.75	1
33	269073	RIGID PIPE BETWEEN LH BYPASS FLEXIBLE HOSES	269073 RIGID PIPE BETWEEN LH BYPASS FLEXIBLE HOSES Applicable from Ass. No. 108753	$56.14	1
34	289882	PIPE MOUNTING BRACKET	289882 PIPE MOUNTING BRACKET Applicable from Ass. No. 108753	$9.13	1
35	339752	RUBBER PIPE	339752 RUBBER PIPE D. 3.5-8 X 250; Applicable from Ass. No. 108753	$25.66	2
36	190409	CLIP	190409 CLIP Applicable from Ass. No. 108753	$6.24	2
37	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 Applicable from Ass. No. 108753 IN STOCK	$1.43	2
38	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 M5; Applicable from Ass. No. 108753 IN STOCK	$1.43	4
38	11566227	SCREW IN STOCK	11566227 SCREW M5 X 14; Applicable from Ass. No. 108753; No longer supplied; Replaced by 14059111 IN STOCK	$1.22	4
39	186781	GASKET IN STOCK	186781 GASKET Applicable from Ass. No. 108753 IN STOCK	$5.28 MSRP: ~~6.35~~ (16.9% off)	4
40	284235	SECONDARY AIR SYSTEM VALVE	284235 SECONDARY AIR SYSTEM VALVE Applicable from Ass. No. 108753	$256.72	2
41	231620	SCREW IN STOCK	231620 SCREW Applicable from Ass. No. 108753 IN STOCK	$0.32 MSRP: ~~0.35~~ (8.6% off)	4
41	231619	SCREW IN STOCK	231619 SCREW M6 X 20; Applicable from Ass. No. 108753 IN STOCK	$0.31	2
41	231625	SCREW IN STOCK	231625 SCREW M6 X 40; Applicable from Ass. No. 108753 IN STOCK	$0.66	2
42	286011	SPACER ASSEMBLY	286011 SPACER ASSEMBLY LH side; Applicable from Ass. No. 108753	$47.57	1
42	264020	SPACER ASSEMBLY	264020 SPACER ASSEMBLY RH side; Applicable from Ass. No. 108753	$67.38	1
43	177576	CABLE GROMMET IN STOCK	177576 CABLE GROMMET Applicable from Ass. No. 108753 IN STOCK	$2.20	4
44	819489	FLANGED BUSHING	819489 FLANGED BUSHING Applicable from Ass. No. 108753	$14.75	8
45	202980	GASKET IN STOCK	202980 GASKET Applicable from Ass. No. 108753 IN STOCK	$3.03 MSRP: ~~3.74~~ (19% off)	2
46	258254	RH VALVE FASTENER BRACKET	258254 RH VALVE FASTENER BRACKET Applicable from Ass. No. 108753	$12.66	1
47	258252	LH VALVE FASTENER BRACKET	258252 LH VALVE FASTENER BRACKET Applicable from Ass. No. 108753	$12.66	1
48	256598	PIPE FROM AIR VALVE TO RH HEAD	256598 PIPE FROM AIR VALVE TO RH HEAD Applicable from Ass. No. 108753	$304.86	1
49	256596	PIPE FROM AIR VALVE TO LH HEAD	256596 PIPE FROM AIR VALVE TO LH HEAD Applicable from Ass. No. 108753	$304.57	1
50	284631	EMISSIONS CONTROL PIPE	284631 EMISSIONS CONTROL PIPE Applicable from Ass. No. 108753	$75.40	1
51	264088	RUBBER PIPE	264088 RUBBER PIPE D. 3.5-8 X 185; Applicable from Ass. No. 108753	$9.29	1
52	267093	COUPLING	267093 COUPLING Applicable from Ass. No. 108753	$27.26	1
53	282849	PRESSURE SENSOR	282849 PRESSURE SENSOR Applicable from Ass. No. 108753	$36.89	1
54	284629	RIGID PIPE	284629 RIGID PIPE Applicable from Ass. No. 108753	$77.00	1
55	199691	RUBBER PIPE	199691 RUBBER PIPE Applicable from Ass. No. 108753	$5.49	1
56	10450690	BRACKET WITH SHEATH	10450690 BRACKET WITH SHEATH Applicable from Ass. No. 108753	$0.70 MSRP: ~~1.70~~ (58.8% off)	2
58	284622	CLIP	284622 CLIP 3 compartments; Applicable from Ass. No. 108753	$1.88	2
59	190409	CLIP	190409 CLIP Applicable from Ass. No. 108753	$6.24	1
60	295441	RUBBER PIPE	295441 RUBBER PIPE Applicable from Ass. No. 108753	$19.24	1
61	159542	RUBBER PIPE	159542 RUBBER PIPE Applicable from Ass. No. 108753	$4.31	1
62	295414	RUBBER PIPE	295414 RUBBER PIPE Applicable from Ass. No. 108753	$12.03	1
63	295413	RUBBER PIPE	295413 RUBBER PIPE Applicable from Ass. No. 108753	$15.38	1
64	234285	CLIP IN STOCK	234285 CLIP 2 compartments; Applicable from Ass. No. 108753 IN STOCK	$0.68	3
65	294259	SOLENOID VALVE MOUNTING BRACKET	294259 SOLENOID VALVE MOUNTING BRACKET Applicable from Ass. No. 108753	$19.24	2
66	294260	SOLENOID VALVE MOUNTING BRACKET	294260 SOLENOID VALVE MOUNTING BRACKET Applicable from Ass. No. 108753	$24.05	2
67	295778	RUBBER PIPE	295778 RUBBER PIPE Applicable for GD; Applicable from Ass. No. 108753	$35.28	1
67	274272	TANK ACTUATOR RIGID PIPE ON FIREWALL	274272 TANK ACTUATOR RIGID PIPE ON FIREWALL Not for GD; Applicable from Ass. No. 108753	$44.91	1
68	295777	RUBBER PIPE	295777 RUBBER PIPE Applicable for GD; Applicable from Ass. No. 108753	$31.90	1
68	274271	TANK VACUUM RIGID PIPE ON FIREWALL	274271 TANK VACUUM RIGID PIPE ON FIREWALL Not for GD; Applicable from Ass. No. 108753	$44.91	1
70	225098	PLUG IN STOCK	225098 PLUG Applicable from Ass. No. 108753 IN STOCK	$1.43	1
71	169456	R.H. PIPE VALVE TUBE	169456 R.H. PIPE VALVE TUBE Applicable from Ass. No. 108753	$5.07	2
72	294265	RUBBER PIPE	294265 RUBBER PIPE Applicable from Ass. No. 108753	$17.39	1
73	10441290	BRACKET WITH SHEATH IN STOCK	10441290 BRACKET WITH SHEATH Applicable from Ass. No. 108753 IN STOCK	$0.57 MSRP: ~~1.68~~ (66.1% off)	1
74	15516204	SCREW	15516204 SCREW Applicable from Ass. No. 108753	$0.31	1
75	62769800	WASHER IN STOCK	62769800 WASHER Applicable from Ass. No. 108753 IN STOCK	$0.23 MSRP: ~~0.30~~ (23.3% off)	1
76	294205	CLIP	294205 CLIP 1 compartment; Applicable from Ass. No. 108753	$5.43	2
77	294206	CLIP	294206 CLIP 2 compartments; Applicable from Ass. No. 108753	$5.43	1
78	294207	CLIP	294207 CLIP 3 compartments; Applicable from Ass. No. 108753	$5.43	1
79	140130	CLIP IN STOCK	140130 CLIP Applicable for GD; Applicable from Ass. No. 108753 IN STOCK	$0.15 MSRP: ~~0.54~~ (72.2% off)	4
80	141546	CLIP	141546 CLIP Applicable for GD; Applicable from Ass. No. 108753	$0.23	8
81	10418501	BRACKET	10418501 BRACKET Applicable for GD; Applicable from Ass. No. 108753	$3.16 MSRP: ~~5.89~~ (46.3% off)	1
82	85833900	SCREW IN STOCK	85833900 SCREW M5 X 12; Applicable for GD; Applicable from Ass. No. 108753 IN STOCK	$0.36	1
