SECONDARY AIR SYSTEM of Ferrari Ferrari F12 Berlinetta

View All

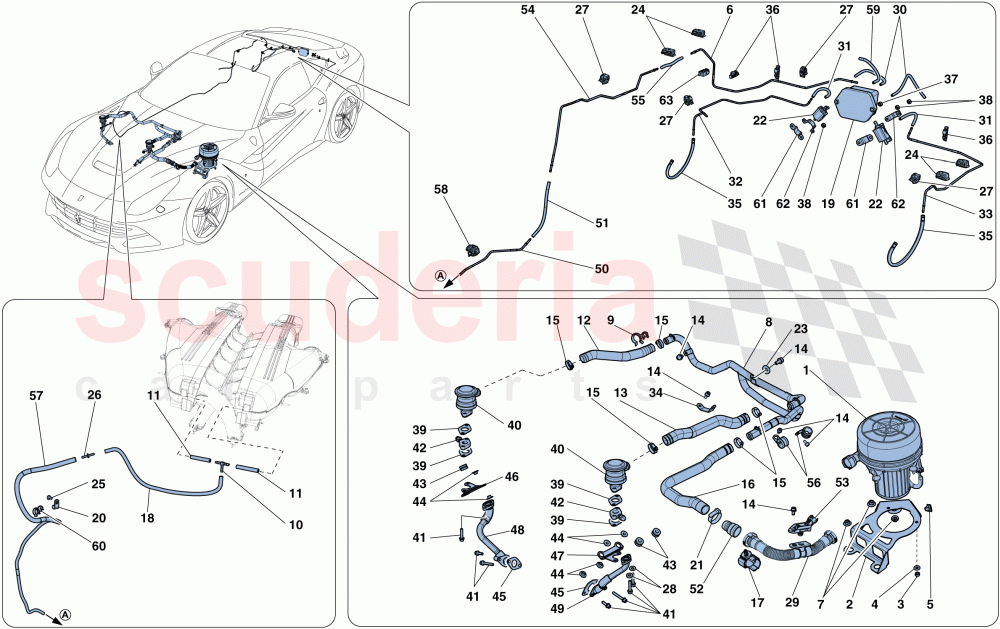

Ferrari F12 Berlinetta - SECONDARY AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	247795	SECONDARY AIR SYSTEM PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272314	PUMP MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11194674	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291283	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293314	RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289538	ALUMINIUM PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	225165	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257691	3-WAY CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169695	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279862	RH CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	274855	LH CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13128970	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279692	ENGINE SIDE SECONDARY AIR SYSTEM HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82051100	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124346	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198339	VACUUM ACCUMULATOR TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10418501	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178309	SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280281	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199696	BRAIDED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234285	CLIP	Enquire	To Order
	234284	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288959	SECONDARY AIR SYSTEM PIPE WITH SENSOR CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168248	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294268	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281020	RIGID PIPE BETWEEN RH BYPASS FLEXIBLE HOSES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269073	RIGID PIPE BETWEEN LH BYPASS FLEXIBLE HOSES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289882	PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339752	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190409	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order
	11566227	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	186781	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284235	SECONDARY AIR SYSTEM VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286011	SPACER ASSEMBLY	Enquire	To Order
	264020	SPACER ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177576	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	819489	FLANGED BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202980	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258254	RH VALVE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258252	LH VALVE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256598	PIPE FROM AIR VALVE TO RH HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256596	PIPE FROM AIR VALVE TO LH HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284631	EMISSIONS CONTROL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264088	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267093	COUPLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282849	PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284629	RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168248	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10450690	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284622	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255096	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150738	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294259	SOLENOID VALVE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294260	SOLENOID VALVE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294206	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	247795	SECONDARY AIR SYSTEM PUMP	247795 SECONDARY AIR SYSTEM PUMP Applicable up to Ass. No. 108752	-	1	Enquire
2	272314	PUMP MOUNTING BRACKET	272314 PUMP MOUNTING BRACKET Applicable up to Ass. No. 108752	-	1	Enquire
3	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable up to Ass. No. 108752	-	3	Enquire
4	11194674	WASHER	11194674 WASHER Applicable up to Ass. No. 108752	-	3	Enquire
5	291283	CLIP	291283 CLIP Applicable up to Ass. No. 108752	-	1	Enquire
6	293314	RIGID PIPE	293314 RIGID PIPE Applicable up to Ass. No. 108752	-	1	Enquire
7	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable up to Ass. No. 108752	-	3	Enquire
8	289538	ALUMINIUM PIPE	289538 ALUMINIUM PIPE Applicable up to Ass. No. 108752	-	1	Enquire
9	225165	CLIP	225165 CLIP Applicable up to Ass. No. 108752	-	1	Enquire
10	257691	3-WAY CONNECTOR	257691 3-WAY CONNECTOR Applicable up to Ass. No. 108752	-	1	Enquire
11	169695	RUBBER PIPE	169695 RUBBER PIPE D. 3.5-8 X 55; Applicable up to Ass. No. 108752	-	2	Enquire
12	279862	RH CONNECTOR PIPE	279862 RH CONNECTOR PIPE Applicable up to Ass. No. 108752	-	1	Enquire
13	274855	LH CONNECTOR PIPE	274855 LH CONNECTOR PIPE Applicable up to Ass. No. 108752	-	1	Enquire
14	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12; Applicable up to Ass. No. 108752	-	6	Enquire
15	13128970	COLLAR	13128970 COLLAR Applicable up to Ass. No. 108752	-	5	Enquire
16	279692	ENGINE SIDE SECONDARY AIR SYSTEM HOSE CONNECTOR	279692 ENGINE SIDE SECONDARY AIR SYSTEM HOSE CONNECTOR Applicable up to Ass. No. 108752	-	1	Enquire
17	82051100	CLIP	82051100 CLIP Applicable up to Ass. No. 108752	-	1	Enquire
18	124346	RUBBER PIPE	124346 RUBBER PIPE D. 3.5-8 X 380; Applicable up to Ass. No. 108752	-	1	Enquire
19	198339	VACUUM ACCUMULATOR TANK	198339 VACUUM ACCUMULATOR TANK Applicable up to Ass. No. 108752	-	1	Enquire
20	10418501	BRACKET	10418501 BRACKET Applicable up to Ass. No. 108752; No longer supplied	-	1	Enquire
22	178309	SOLENOID VALVE	178309 SOLENOID VALVE Applicable up to Ass. No. 108752	-	2	Enquire
23	12643724	WASHER	12643724 WASHER Applicable up to Ass. No. 108752	-	1	Enquire
24	280281	CLIP	280281 CLIP 2 compartments; Applicable up to Ass. No. 108752	-	4	Enquire
25	85833700	SCREW	85833700 SCREW M5 X 12; Applicable up to Ass. No. 108752; No longer supplied	-	1	Enquire
26	199696	BRAIDED CONNECTOR	199696 BRAIDED CONNECTOR Applicable up to Ass. No. 108752	-	1	Enquire
27	234285	CLIP	234285 CLIP 2 compartments; Applicable up to Ass. No. 108752	-	1	Enquire
27	234284	CLIP	234284 CLIP 1 compartment; Applicable up to Ass. No. 108752	-	4	Enquire
28	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D. 6.40-12 X 0.5; Applicable up to Ass. No. 108752	-	4	Enquire
29	288959	SECONDARY AIR SYSTEM PIPE WITH SENSOR CARRIER	288959 SECONDARY AIR SYSTEM PIPE WITH SENSOR CARRIER Applicable up to Ass. No. 108752	-	1	Enquire
30	168248	RUBBER PIPE	168248 RUBBER PIPE From reservoir to valves; Applicable up to Ass. No. 108752	-	2	Enquire
31	294268	RUBBER PIPE	294268 RUBBER PIPE From valves to rigid pipes; Applicable up to Ass. No. 108752	-	2	Enquire
32	281020	RIGID PIPE BETWEEN RH BYPASS FLEXIBLE HOSES	281020 RIGID PIPE BETWEEN RH BYPASS FLEXIBLE HOSES Applicable up to Ass. No. 108752	-	1	Enquire
33	269073	RIGID PIPE BETWEEN LH BYPASS FLEXIBLE HOSES	269073 RIGID PIPE BETWEEN LH BYPASS FLEXIBLE HOSES Applicable up to Ass. No. 108752	-	1	Enquire
34	289882	PIPE MOUNTING BRACKET	289882 PIPE MOUNTING BRACKET Applicable up to Ass. No. 108752	-	1	Enquire
35	339752	RUBBER PIPE	339752 RUBBER PIPE D. 3.5-8 X 250; Applicable up to Ass. No. 108752	-	2	Enquire
36	190409	CLIP	190409 CLIP Applicable up to Ass. No. 108752	-	3	Enquire
37	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable up to Ass. No. 108752	-	2	Enquire
38	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M5; Applicable up to Ass. No. 108752	-	4	Enquire
38	11566227	SCREW ARRIVING SOON	11566227 SCREW M5 X 14; Applicable up to Ass. No. 108752; No longer supplied; Replaced by 14059111 ARRIVING SOON	-	4	Enquire
39	186781	GASKET	186781 GASKET Applicable up to Ass. No. 108752	-	4	Enquire
40	284235	SECONDARY AIR SYSTEM VALVE	284235 SECONDARY AIR SYSTEM VALVE Applicable up to Ass. No. 108752	-	2	Enquire
41	231620	SCREW	231620 SCREW Applicable up to Ass. No. 108752	-	4	Enquire
41	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20; Applicable up to Ass. No. 108752	-	2	Enquire
41	231625	SCREW	231625 SCREW M6 X 40; Applicable up to Ass. No. 108752	-	2	Enquire
42	286011	SPACER ASSEMBLY	286011 SPACER ASSEMBLY LH side; Applicable up to Ass. No. 108752	-	1	Enquire
42	264020	SPACER ASSEMBLY	264020 SPACER ASSEMBLY RH side; Applicable up to Ass. No. 108752	-	1	Enquire
43	177576	CABLE GROMMET	177576 CABLE GROMMET Applicable up to Ass. No. 108752	-	4	Enquire
44	819489	FLANGED BUSHING	819489 FLANGED BUSHING Applicable up to Ass. No. 108752	-	8	Enquire
45	202980	GASKET	202980 GASKET Applicable up to Ass. No. 108752	-	2	Enquire
46	258254	RH VALVE FASTENER BRACKET	258254 RH VALVE FASTENER BRACKET Applicable up to Ass. No. 108752	-	1	Enquire
47	258252	LH VALVE FASTENER BRACKET	258252 LH VALVE FASTENER BRACKET Applicable up to Ass. No. 108752	-	1	Enquire
48	256598	PIPE FROM AIR VALVE TO RH HEAD	256598 PIPE FROM AIR VALVE TO RH HEAD Applicable up to Ass. No. 108752	-	1	Enquire
49	256596	PIPE FROM AIR VALVE TO LH HEAD	256596 PIPE FROM AIR VALVE TO LH HEAD Applicable up to Ass. No. 108752	-	1	Enquire
50	284631	EMISSIONS CONTROL PIPE	284631 EMISSIONS CONTROL PIPE Applicable up to Ass. No. 108752	-	1	Enquire
51	264088	RUBBER PIPE	264088 RUBBER PIPE D. 3.5-8 X 185; Applicable up to Ass. No. 108752	-	1	Enquire
52	267093	COUPLING	267093 COUPLING Applicable up to Ass. No. 108752	-	1	Enquire
53	282849	PRESSURE SENSOR	282849 PRESSURE SENSOR Applicable up to Ass. No. 108752	-	1	Enquire
54	284629	RIGID PIPE	284629 RIGID PIPE Applicable up to Ass. No. 108752	-	1	Enquire
55	168248	RUBBER PIPE	168248 RUBBER PIPE Applicable up to Ass. No. 108752	-	1	Enquire
56	10450690	BRACKET WITH SHEATH	10450690 BRACKET WITH SHEATH Applicable up to Ass. No. 108752	-	2	Enquire
58	284622	CLIP	284622 CLIP 3 compartments; Applicable up to Ass. No. 108752	-	2	Enquire
59	255096	RUBBER PIPE	255096 RUBBER PIPE D. 3.5 X 140; Applicable up to Ass. No. 108752	-	1	Enquire
60	150738	CLIP	150738 CLIP Applicable up to Ass. No. 108752	-	1	Enquire
61	294259	SOLENOID VALVE MOUNTING BRACKET	294259 SOLENOID VALVE MOUNTING BRACKET Applicable up to Ass. No. 108752	-	2	Enquire
62	294260	SOLENOID VALVE MOUNTING BRACKET	294260 SOLENOID VALVE MOUNTING BRACKET Applicable up to Ass. No. 108752	-	2	Enquire
63	294206	CLIP	294206 CLIP 2 compartments; Applicable up to Ass. No. 108752	-	2	Enquire
