EMISSIONS CONTROL SYSTEM of Ferrari Ferrari Daytona SP3 USA

View All

Ferrari Daytona SP3 USA - EMISSIONS CONTROL SYSTEM

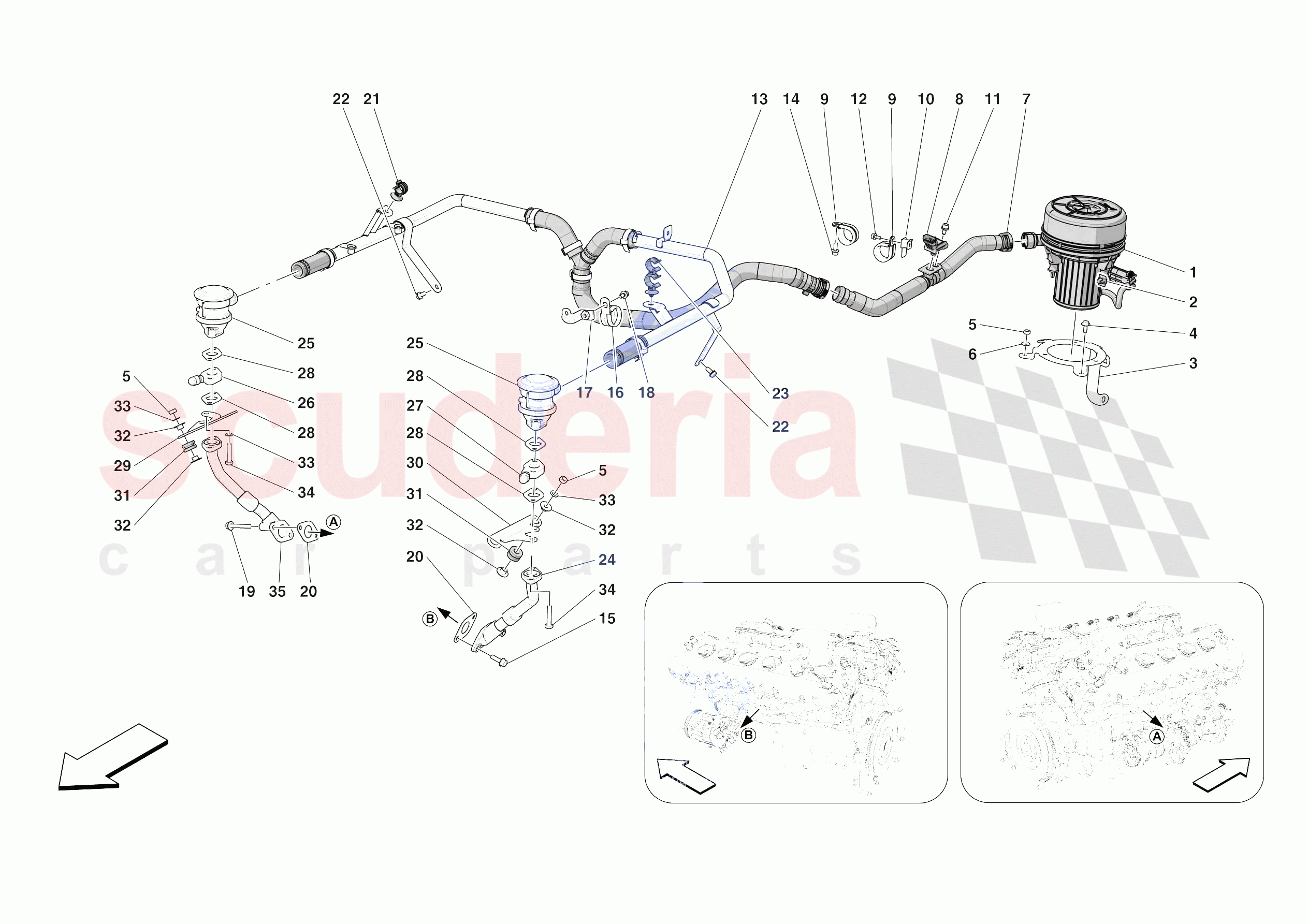

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	247795	SECONDARY AIR SYSTEM PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253769	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	906089	SECONDARY AIR PUMP MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625714	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11194674	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	846678	SECONDARY AIR SYSTEM PIPE COMPL. WITH SENSOR CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282849	PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307048	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	789570	COMPL. PIPE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	797723	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	844995	COMPL. PIPE FOR PRE-ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10442190	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	777837	SECONDARY AIR SYSTEM PIPE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202980	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198273	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11628424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	763505	CLIP SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331918	COMPL. LH SECONDARY AIR INLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284235	SECONDARY AIR SYSTEM VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264020	SPACER ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286011	SPACER ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186781	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331919	RH SECONDARY AIR PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331920	LH SECONDARY AIR PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177576	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	819489	FLANGED BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331917	COMPL. RH SECONDARY AIR INLET PIPE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	247795	SECONDARY AIR SYSTEM PUMP	247795 SECONDARY AIR SYSTEM PUMP	-	1	Enquire
0002	253769	CLIP	253769 CLIP	-	1	Enquire
0003	906089	SECONDARY AIR PUMP MOUNTING BRACKET	906089 SECONDARY AIR PUMP MOUNTING BRACKET	-	1	Enquire
0004	11625714	SCREW	11625714 SCREW M6 X 16	-	2	Enquire
0005	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
0006	11194674	WASHER	11194674 WASHER	-	4	Enquire
0007	846678	SECONDARY AIR SYSTEM PIPE COMPL. WITH SENSOR CARRIER	846678 SECONDARY AIR SYSTEM PIPE COMPL. WITH SENSOR CARRIER	-	1	Enquire
0008	282849	PRESSURE SENSOR	282849 PRESSURE SENSOR	-	1	Enquire
0009	307048	BRACKET WITH SHEATH	307048 BRACKET WITH SHEATH	-	2	Enquire
0010	789570	COMPL. PIPE BRACKET	789570 COMPL. PIPE BRACKET	-	1	Enquire
0011	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	1	Enquire
0012	797723	SCREW	797723 SCREW M5 X 12	-	2	Enquire
0013	844995	COMPL. PIPE FOR PRE-ASSEMBLY	844995 COMPL. PIPE FOR PRE-ASSEMBLY	-	1	Enquire
0014	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	1	Enquire
0015	16286124	SCREW	16286124 SCREW M6 X 20	-	2	Enquire
0016	10442190	BRACKET WITH SHEATH	10442190 BRACKET WITH SHEATH	-	1	Enquire
0017	777837	SECONDARY AIR SYSTEM PIPE FASTENER BRACKET	777837 SECONDARY AIR SYSTEM PIPE FASTENER BRACKET	-	1	Enquire
0018	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	1	Enquire
0019	16286524	SCREW	16286524 SCREW M6 X 40	-	2	Enquire
0020	202980	GASKET	202980 GASKET Also included in engine gasket set	-	2	Enquire
0021	198273	CLIP	198273 CLIP	-	2	Enquire
0022	11628424	SCREW	11628424 SCREW M6 X 14	-	1	Enquire
0023	763505	CLIP SET	763505 CLIP SET	-	1	Enquire
0024	331918	COMPL. LH SECONDARY AIR INLET PIPE	331918 COMPL. LH SECONDARY AIR INLET PIPE	-	1	Enquire
0025	284235	SECONDARY AIR SYSTEM VALVE	284235 SECONDARY AIR SYSTEM VALVE	-	2	Enquire
0026	264020	SPACER ASSEMBLY	264020 SPACER ASSEMBLY	-	1	Enquire
0027	286011	SPACER ASSEMBLY	286011 SPACER ASSEMBLY	-	1	Enquire
0028	186781	GASKET	186781 GASKET	-	4	Enquire
0029	331919	RH SECONDARY AIR PIPE MOUNTING BRACKET	331919 RH SECONDARY AIR PIPE MOUNTING BRACKET	-	1	Enquire
0030	331920	LH SECONDARY AIR PIPE MOUNTING BRACKET	331920 LH SECONDARY AIR PIPE MOUNTING BRACKET	-	1	Enquire
0031	177576	CABLE GROMMET	177576 CABLE GROMMET	-	4	Enquire
0032	819489	FLANGED BUSHING	819489 FLANGED BUSHING	-	8	Enquire
0033	12601274	WASHER	12601274 WASHER D. 6.40-12 X 0.5	-	8	Enquire
0034	231620	SCREW	231620 SCREW M6 X 20 X 22	-	4	Enquire
0035	331917	COMPL. RH SECONDARY AIR INLET PIPE	331917 COMPL. RH SECONDARY AIR INLET PIPE	-	1	Enquire
