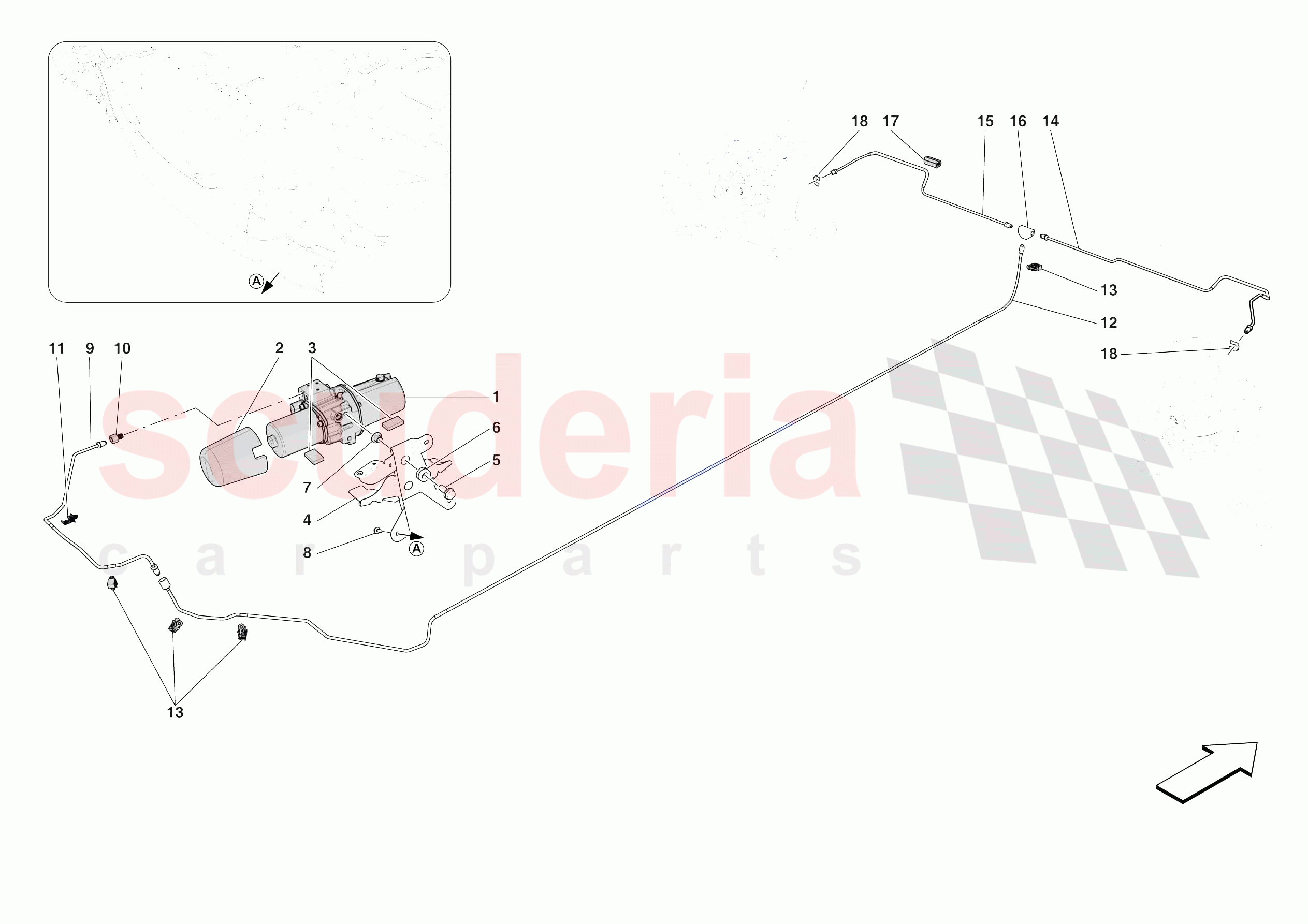

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	844230	ELECTRIC PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285319	INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264740	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300756	LIFT PUMP MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255047	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255048	GROMMET SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	766923	LIFT SYSTEM PIPE FROM PUMP TO TUNNEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254931	ADAPTER SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291408	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	895551	UNDERBODY LIFT SYSTEM PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249650	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333410	LIFT SYSTEM PIPE FROM BLOCK TO RH FRONT WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296025	LIFT SYSTEM PIPE FROM BLOCK TO LH FRONT WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292189	LIFT SYSTEM DISTRIBUTOR BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262737	RUBBER RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	844230	ELECTRIC PUMP	844230 ELECTRIC PUMP	-	1	Enquire
0002	285319	INSULATION	285319 INSULATION	-	1	Enquire
0003	264740	BUSH	264740 BUSH 40 X 24 mm	-	2	Enquire
0004	300756	LIFT PUMP MOUNTING BRACKET	300756 LIFT PUMP MOUNTING BRACKET	-	1	Enquire
0005	304224	SCREW	304224 SCREW M10 X 1.5 X 28	-	2	Enquire
0006	255047	CABLE GROMMET	255047 CABLE GROMMET D13	-	2	Enquire
0007	255048	GROMMET SHIM	255048 GROMMET SHIM	-	2	Enquire
0008	85833700	SCREW	85833700 SCREW M5 X 16	-	4	Enquire
0009	766923	LIFT SYSTEM PIPE FROM PUMP TO TUNNEL	766923 LIFT SYSTEM PIPE FROM PUMP TO TUNNEL	-	1	Enquire
0010	254931	ADAPTER SOCKET	254931 ADAPTER SOCKET M10	-	1	Enquire
0011	291408	CLIP	291408 CLIP	-	1	Enquire
0012	895551	UNDERBODY LIFT SYSTEM PIPE	895551 UNDERBODY LIFT SYSTEM PIPE	-	1	Enquire
0013	249650	CLIP	249650 CLIP	-	4	Enquire
0014	333410	LIFT SYSTEM PIPE FROM BLOCK TO RH FRONT WHEEL	333410 LIFT SYSTEM PIPE FROM BLOCK TO RH FRONT WHEEL	-	1	Enquire
0015	296025	LIFT SYSTEM PIPE FROM BLOCK TO LH FRONT WHEEL	296025 LIFT SYSTEM PIPE FROM BLOCK TO LH FRONT WHEEL	-	1	Enquire
0016	292189	LIFT SYSTEM DISTRIBUTOR BLOCK	292189 LIFT SYSTEM DISTRIBUTOR BLOCK	-	1	Enquire
0017	262737	RUBBER RETAINER	262737 RUBBER RETAINER	-	1	Enquire
0018	116374	CLIP	116374 CLIP	-	2	Enquire
