BATTERY of Ferrari Ferrari California (2012-2014)

View All

Ferrari California (2012-2014) - BATTERY

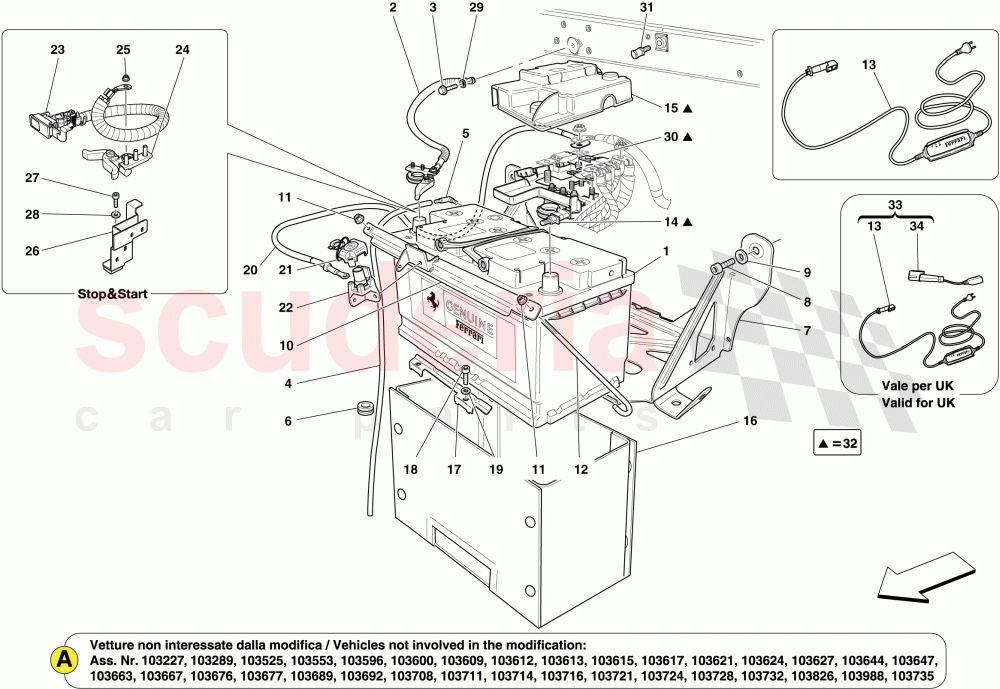

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	191374	12 V-100 AH-850 A BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256383	NEGATIVE BATTERY CABLE	Enquire	To Order
	274898	NEGATIVE BATTERY CABLE	Enquire	To Order
	255391	NEGATIVE BATTERY CABLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	Enquire	To Order
	16286124	SCREW	Enquire	To Order
	16287127	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245745	BATTERY VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199631	UNION FOR BATTERY BLEEDER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10397480	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250104	BRACKET FOR BATTERY FIXING	Enquire	To Order
	250104	BRACKET FOR BATTERY FIXING	Enquire	To Order
	283826	BATTERY FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646704	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251251	UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292882	BATTERY FASTENER TIE-ROD	Enquire	To Order
	188272	TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	803883	BATTERY CHARGER KIT	Enquire	To Order
	803880	BATTERY CHARGER KIT	Enquire	To Order
	70002820	BATTERY CHARGER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251161	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250100	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250102	BRACKET FOR BATTERY FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251314	PROTECTION BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251290	BATTERY TERMINAL WITH MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254264	BATTERY SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10816794	BATTERY DISCONNECTOR TERMINAL CLAMP WITH LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264797	POLE AND FUSE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278366	FUSE VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181878	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277403	COMPL. BATTERY ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	95998029	WALL ADAPTER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	191374	12 V-100 AH-850 A BATTERY	191374 12 V-100 AH-850 A BATTERY Not for HELE; Not for Stop & Start	-	1	Enquire
2	256383	NEGATIVE BATTERY CABLE	256383 NEGATIVE BATTERY CABLE Applicable for HELE; Applicable for Stop & Start; Applicable up to Ass. No. 103178	-	1	Enquire
2	274898	NEGATIVE BATTERY CABLE	274898 NEGATIVE BATTERY CABLE Applicable for HELE; Applicable for Stop & Start; not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
2	255391	NEGATIVE BATTERY CABLE	255391 NEGATIVE BATTERY CABLE Not for HELE; Not for Stop & Start; Applicable up to Ass. No. 103178	-	1	Enquire
2	274865	NEGATIVE BATTERY CABLE	274865 NEGATIVE BATTERY CABLE Not for HELE; Not for Stop & Start; not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
3	14305324	SCREW	14305324 SCREW No longer supplied; Replaced by 16286124	-	1	Enquire
3	16286124	SCREW	16286124 SCREW	-	1	Enquire
3	16287127	SCREW	16287127 SCREW No longer supplied; Replaced by 14305324	-	1	Enquire
4	245745	BATTERY VENT PIPE	245745 BATTERY VENT PIPE	-	1	Enquire
5	199631	UNION FOR BATTERY BLEEDER PIPE	199631 UNION FOR BATTERY BLEEDER PIPE	-	1	Enquire
6	10397480	CABLE GROMMET	10397480 CABLE GROMMET	-	1	Enquire
7	250104	BRACKET FOR BATTERY FIXING	250104 BRACKET FOR BATTERY FIXING Not for UK	-	1	Enquire
7	250104	BRACKET FOR BATTERY FIXING	250104 BRACKET FOR BATTERY FIXING Applicable for UK; Applicable up to Ass. No. 103178	-	1	Enquire
7	283826	BATTERY FASTENER BRACKET	283826 BATTERY FASTENER BRACKET not affected by modification; Applicable for GD; Applicable from Ass. No. 103179	-	1	Enquire
8	14306424	SCREW	14306424 SCREW	-	5	Enquire
9	12646704	WASHER	12646704 WASHER	-	4	Enquire
10	251251	UPPER BRACKET	251251 UPPER BRACKET	-	1	Enquire
11	14059211	NUT	14059211 NUT	-	2	Enquire
12	292882	BATTERY FASTENER TIE-ROD	292882 BATTERY FASTENER TIE-ROD No longer supplied; Replaced by 188272	-	2	Enquire
12	188272	TIE-ROD	188272 TIE-ROD	-	2	Enquire
13	803883	BATTERY CHARGER KIT	803883 BATTERY CHARGER KIT Optional; Applicable for J	-	1	Enquire
13	803880	BATTERY CHARGER KIT	803880 BATTERY CHARGER KIT Optional; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
13	70002820	BATTERY CHARGER KIT	70002820 BATTERY CHARGER KIT Optional; Not for AUS, USA, CDN, J, USA LIGHT	-	1	Enquire
15	251161	COVER	251161 COVER After depletion, order compl. 277403 ref. 32; Applicable until depletion	-	1	Enquire
16	250100	COVER	250100 COVER	-	1	Enquire
17	250102	BRACKET FOR BATTERY FIXING	250102 BRACKET FOR BATTERY FIXING	-	1	Enquire
18	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	-	2	Enquire
19	12638524	WASHER	12638524 WASHER	-	2	Enquire
21	251314	PROTECTION BOOT	251314 PROTECTION BOOT	-	1	Enquire
22	251290	BATTERY TERMINAL WITH MOUNT	251290 BATTERY TERMINAL WITH MOUNT	-	1	Enquire
23	254264	BATTERY SENSOR	254264 BATTERY SENSOR Applicable for HELE; Applicable for Stop & Start	-	1	Enquire
24	10816794	BATTERY DISCONNECTOR TERMINAL CLAMP WITH LEVER	10816794 BATTERY DISCONNECTOR TERMINAL CLAMP WITH LEVER Applicable for HELE; Applicable for Stop & Start; Supplied with negative cable Part No. 274898, ref. 2	-	1	Enquire
25	14059311	NUT	14059311 NUT Applicable for HELE; Applicable for Stop & Start	-	1	Enquire
26	264797	POLE AND FUSE MOUNTING BRACKET	264797 POLE AND FUSE MOUNTING BRACKET Applicable for HELE; Applicable for Stop & Start	-	1	Enquire
27	14305324	SCREW	14305324 SCREW	-	1	Enquire
28	12643724	WASHER	12643724 WASHER	-	1	Enquire
29	12643724	WASHER	12643724 WASHER	-	1	Enquire
30	278366	FUSE VALVE	278366 FUSE VALVE	-	1	Enquire
31	181878	CLAMP	181878 CLAMP Not for HELE; Not for Stop & Start	-	1	Enquire
32	277403	COMPL. BATTERY ECU	277403 COMPL. BATTERY ECU	-	1	Enquire
34	95998029	WALL ADAPTER	95998029 WALL ADAPTER Optional; Applicable for UK	-	1	Enquire
