PASSENGER COMPARTMENT ECUs of Ferrari Ferrari California (2012-2014)

View All

Ferrari California (2012-2014) - PASSENGER COMPARTMENT ECUs

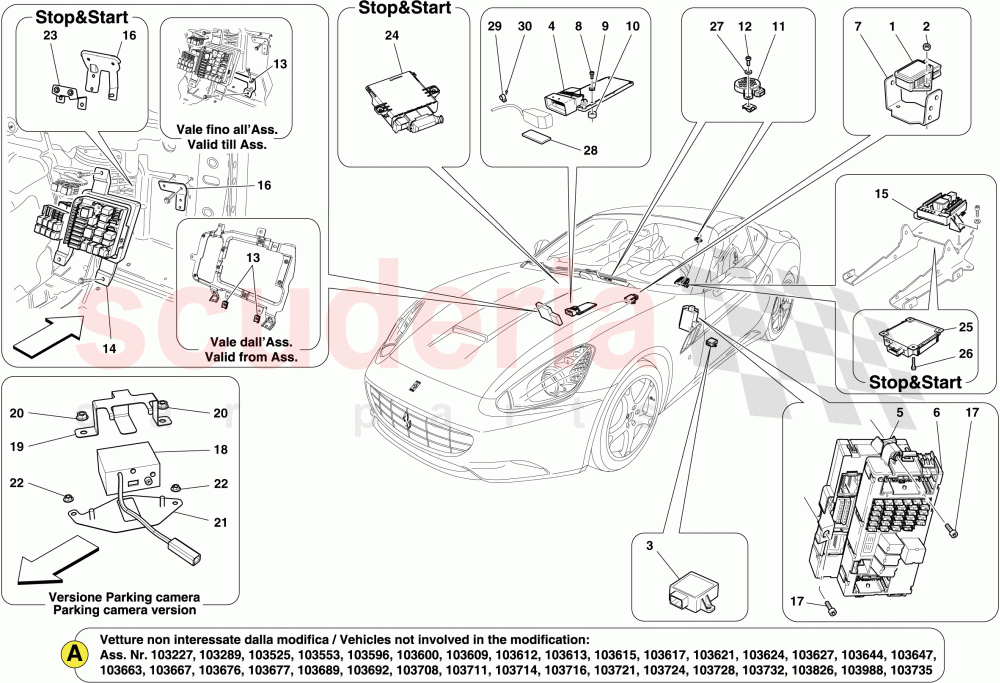

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	317783	YAW SENSOR	Enquire	To Order
	307688	YAW SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058319	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251159	HYDRAULIC STEERING CONTROL ELECTRIC UNIT	Enquire	To Order
	311721	POWER STEERING CONTROL ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281498	MAGNERIDE ECU	Enquire	To Order
	250594	MAGNERIDE CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229377	BODY COMPUTER NODE	Enquire	To Order
	229377	BODY COMPUTER NODE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245788	DASHBOARD ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80529400	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62790300	NUT	Enquire	To Order
	14303474	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65708600	SPACER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223469	BUZZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order
	252274	SCREW WITH WASHER	Enquire	To Order
	14304220	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	CLIP	Enquire	To Order
	245742	LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245741	UPPER BRACKET	Enquire	To Order
	266726	UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234996	PARKING CAMERA ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221567	ECU FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250404	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264097	VOLTAGE STABILIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254265	180W VOLTAGE STABILIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12642821	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249582	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441690	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	317783	YAW SENSOR	317783 YAW SENSOR Applicable after depletion of 206070	-	1	Enquire
1	307688	YAW SENSOR	307688 YAW SENSOR Applicable until depletion	-	1	Enquire
2	14058319	NUT	14058319 NUT	-	2	Enquire
3	251159	HYDRAULIC STEERING CONTROL ELECTRIC UNIT	251159 HYDRAULIC STEERING CONTROL ELECTRIC UNIT	-	1	Enquire
3	311721	POWER STEERING CONTROL ECU	311721 POWER STEERING CONTROL ECU Special Handling Pack	-	1	Enquire
4	281498	MAGNERIDE ECU	281498 MAGNERIDE ECU Dual Mode Magneride; not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
4	250594	MAGNERIDE CONTROL UNIT	250594 MAGNERIDE CONTROL UNIT Dual Mode Magneride; Applicable up to Ass. No. 103178	-	1	Enquire
5	229377	BODY COMPUTER NODE	229377 BODY COMPUTER NODE Not for HELE; Not for Stop & Start; Applicable for CINA, USA, CDN, USA LIGHT; Applicable up to Ass. No. 95669	-	1	Enquire
5	229377	BODY COMPUTER NODE	229377 BODY COMPUTER NODE Not for HELE; Not for Stop & Start; Not for CINA, USA, CDN, USA LIGHT	-	1	Enquire
6	245788	DASHBOARD ECU	245788 DASHBOARD ECU	-	1	Enquire
7	80529400	BRACKET	80529400 BRACKET	-	1	Enquire
8	62790300	NUT	62790300 NUT No longer supplied; Replaced by 14303474	-	4	Enquire
8	14303474	SCREW	14303474 SCREW	-	4	Enquire
9	11181474	WASHER	11181474 WASHER	-	4	Enquire
10	65708600	SPACER BUSHING	65708600 SPACER BUSHING	-	4	Enquire
11	223469	BUZZER	223469 BUZZER	-	2	Enquire
12	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM Fastening rear buzzer	-	2	Enquire
12	252274	SCREW WITH WASHER	252274 SCREW WITH WASHER Fastening front buzzer	-	2	Enquire
12	14304220	SCREW	14304220 SCREW No longer supplied	-	2	Enquire
13	62766300	CLIP	62766300 CLIP M6; Applicable from Ass. No. 102768	-	2	Enquire
13	245742	LOWER BRACKET	245742 LOWER BRACKET Applicable up to Ass. No. 102767	-	1	Enquire
16	245741	UPPER BRACKET	245741 UPPER BRACKET Not for HELE; Not for Stop & Start; Not for GD	-	1	Enquire
16	266726	UPPER BRACKET	266726 UPPER BRACKET Applicable for HELE; Applicable for Stop & Start; Not for GD	-	1	Enquire
17	231624	SCREW	231624 SCREW	-	2	Enquire
18	234996	PARKING CAMERA ECU	234996 PARKING CAMERA ECU Version with parking camera	-	1	Enquire
19	221567	ECU FASTENER BRACKET	221567 ECU FASTENER BRACKET Version with parking camera	-	1	Enquire
20	14059211	NUT	14059211 NUT Version with parking camera	-	2	Enquire
21	250404	BRACKET	250404 BRACKET Version with parking camera	-	1	Enquire
22	13046011	NUT	13046011 NUT Version with parking camera	-	2	Enquire
23	266452	RELAY MOUNTING BRACKET	266452 RELAY MOUNTING BRACKET Applicable for Stop & Start; Applicable for EU GS; Applicable up to Ass. No. 106179	-	1	Enquire
24	264097	VOLTAGE STABILIZER	264097 VOLTAGE STABILIZER Applicable for HELE; Applicable for Stop & Start	-	1	Enquire
25	254265	180W VOLTAGE STABILIZER	254265 180W VOLTAGE STABILIZER Applicable for HELE; Applicable for Stop & Start	-	1	Enquire
26	11566227	SCREW ARRIVING SOON	11566227 SCREW Applicable for HELE; Applicable for Stop & Start ARRIVING SOON	-	3	Enquire
27	12642821	WASHER	12642821 WASHER	-	2	Enquire
28	249582	PLUG	249582 PLUG	-	1	Enquire
29	10441690	BRACKET WITH SHEATH	10441690 BRACKET WITH SHEATH	-	1	Enquire
30	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM	-	1	Enquire
