Ferrari California (2012-2014) - SILENCERS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
262792 RH REAR SILENCER $21,840.82 To Order
253352 RH REAR SILENCER $2,596.74 To Order
277778 RH REAR SILENCER $2,936.25 To Order
Photo Part No Description Price (each) Stock
262793 LH REAR SILENCER $5,430.98 To Order
277779 LH REAR SILENCER $2,936.25 To Order
253353 LH REAR SILENCER $2,596.74 To Order
Photo Part No Description Price (each) Stock
274774 RH EXHAUST EXTENSION $1,747.39 To Order
Photo Part No Description Price (each) Stock
274775 LH EXHAUST EXTENSION $1,747.39 To Order
Photo Part No Description Price (each) Stock
254296 CENTRAL COMPENSATOR $1,596.66 To Order
274511 CENTRAL COMPENSATOR $1,217.79 To Order
Photo Part No Description Price (each) Stock
291492 MOUNTING BUSHING $561.59 To Order
252174 BUFFER FOR SUPPORT, SILENCER $208.58 To Order
Photo Part No Description Price (each) Stock
14066017 NUT $2.66 To Order
14059311 FLANGED NUT M8 X 1.25 $0.29 IN STOCK
Photo Part No Description Price (each) Stock
250765 BRACKET $51.33 To Order
283045 BRACKET $203.04 To Order
Photo Part No Description Price (each) Stock
16043524 SCREW $0.10 To Order
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12647021 WASHER $0.31 IN STOCK
87904300 WASHER $1.47 To Order
Photo Part No Description Price (each) Stock
289529 FLEXIBLE SILENCER MOUNTING BUSH $48.12 IN STOCK
289529 FLEXIBLE SILENCER MOUNTING BUSH $48.12 IN STOCK
Photo Part No Description Price (each) Stock
283425 SQUARE HEADED SCREW M6 X 18.5MM $2.54 IN STOCK
Photo Part No Description Price (each) Stock
14058421 NUT $1.15 IN STOCK
Photo Part No Description Price (each) Stock
287982 RH LATERAL BRACKET $513.46 To Order
250507 L.H. SIDE BRACKET $369.01 To Order
287983 LH LATERAL BRACKET $513.46 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
287984 RH REAR BRACKET $513.46 To Order
250505 L.H. REAR BRACKET $430.52 To Order
287985 LH REAR BRACKET $513.46 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
240597 PLATE $10.57 IN STOCK
Photo Part No Description Price (each) Stock
14059311 FLANGED NUT M8 X 1.25 $0.29 IN STOCK
Photo Part No Description Price (each) Stock
289529 FLEXIBLE SILENCER MOUNTING BUSH $48.12 IN STOCK
289529 FLEXIBLE SILENCER MOUNTING BUSH $48.12 IN STOCK
Photo Part No Description Price (each) Stock
283425 SQUARE HEADED SCREW M6 X 18.5MM $2.54 IN STOCK
Photo Part No Description Price (each) Stock
229100 SPHERICAL CLAMP $40.10 IN STOCK
Photo Part No Description Price (each) Stock
244297 R.H. MUFFLER BRACKET $175.65 To Order
244298 L.H. MUFFLER BRACKET $175.65 To Order
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
288137 SILENCER CROSS MEMBER $113.91 To Order
264074 SILENCER CROSS MEMBER $369.01 To Order
264074 SILENCER CROSS MEMBER $369.01 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
12642078 WASHER $0.94 To Order
Photo Part No Description Price (each) Stock
16043224 SCREW $0.16 To Order
Photo Part No Description Price (each) Stock
240582 R.H. REAR MUFFLER BRACKET $30.44 To Order
240583 L.H. REAR MUFFLER BRACKET $30.44 To Order
Photo Part No Description Price (each) Stock
16043524 SCREW $0.10 To Order
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.42 IN STOCK
Photo Part No Description Price (each) Stock
240598 BRACKET PLATE $14.10 IN STOCK
Photo Part No Description Price (each) Stock
14058421 NUT $1.15 IN STOCK
Photo Part No Description Price (each) Stock
80955200 REAR SILENCER BRACKET $481.36 To Order
Photo Part No Description Price (each) Stock
185307 Exhaust Clamp $29.69 To Order
Photo Part No Description Price (each) Stock
272534 SHIM $6.56 To Order
Photo Part No Description Price (each) Stock
12647021 WASHER $0.31 IN STOCK
Photo Part No Description Price (each) Stock
14066017 NUT $2.66 To Order
View All

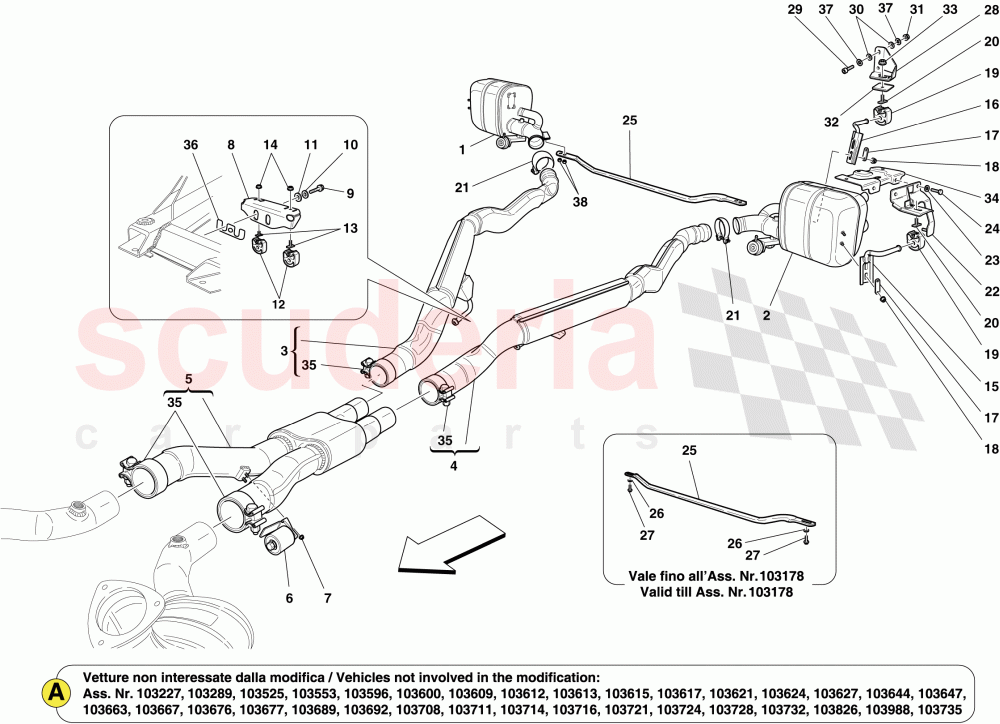

SILENCERS of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 262792
RH REAR SILENCER
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		$21,840.82 1
1 253352
RH REAR SILENCER
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable from Ass. No. 87136 up to Ass. No. 103178 		$2,596.74 (30.1% off) 1
1 277778
RH REAR SILENCER
not affected by modification; Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable from Ass. No. 103179 		$2,936.25 1
2 262793
LH REAR SILENCER
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		$5,430.98 1
2 277779
LH REAR SILENCER
not affected by modification; Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable from Ass. No. 103179 		$2,936.25 1
2 253353
LH REAR SILENCER
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable from Ass. No. 87136 up to Ass. No. 103178 		$2,596.74 (7.8% off) 1
3 274774
RH EXHAUST EXTENSION
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		$1,747.39 1
4 274775
LH EXHAUST EXTENSION
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		$1,747.39 1
5 254296
CENTRAL COMPENSATOR
Applicable up to Ass. No. 103178 		$1,596.66 1
5 274511
CENTRAL COMPENSATOR
not affected by modification; Applicable from Ass. No. 103179 		$1,217.79 1
6 291492
MOUNTING BUSHING
Applicable from Ass. No. 107082 		$561.59 2
6 252174
BUFFER FOR SUPPORT, SILENCER
Applicable up to Ass. No. 107081 		$208.58 2
7 14066017
NUT
No longer supplied; Replaced by 14059311 		$2.66 4
7 14059311
FLANGED NUT M8 X 1.25
IN STOCK 		$0.29 (42% off) 4
8 250765
BRACKET
Applicable up to Ass. No. 103178 		$51.33 1
8 283045
BRACKET
not affected by modification; Applicable from Ass. No. 103179 		$203.04 1
9 16043524
SCREW 		$0.10 (75% off) 2
10 11193874
WASHER
IN STOCK 		$0.06 2
11 12647021
WASHER
No longer supplied; Replaced by 13578405
IN STOCK 		$0.31 2
11 87904300
WASHER 		$1.47 2
12 289529
FLEXIBLE SILENCER MOUNTING BUSH
Applicable up to Ass. No. 107081
IN STOCK 		$48.12 (26.1% off) 2
12 289529
FLEXIBLE SILENCER MOUNTING BUSH
Applicable from Ass. No. 107082
IN STOCK 		$48.12 (26.1% off) 2
13 283425
SQUARE HEADED SCREW M6 X 18.5MM
IN STOCK 		$2.54 2
14 14058421
NUT
IN STOCK 		$1.15 2
15 287982
RH LATERAL BRACKET
Applicable from Ass. No. 104982 		$513.46 1
15 250507
L.H. SIDE BRACKET
Applicable up to Ass. No. 104981 		$369.01 (12.3% off) 1
15 287983
LH LATERAL BRACKET
Applicable from Ass. No. 104982 		$513.46 1
15 250506
R.H. SIDE BRACKET
Applicable up to Ass. No. 104981 		$369.01 (12.3% off) 1
16 287984
RH REAR BRACKET
Applicable from Ass. No. 104982 		$513.46 1
16 250505
L.H. REAR BRACKET
Applicable up to Ass. No. 104981 		$430.52 (14.2% off) 1
16 287985
LH REAR BRACKET
Applicable from Ass. No. 104982 		$513.46 1
16 250499
R.H. REAR BRACKET
Applicable up to Ass. No. 104981 		$430.52 (14.2% off) 1
17 240597
PLATE
IN STOCK 		$10.57 (28.3% off) 4
18 14059311
FLANGED NUT M8 X 1.25
IN STOCK 		$0.29 (42% off) 8
19 289529
FLEXIBLE SILENCER MOUNTING BUSH
Applicable from Ass. No. 107082
IN STOCK 		$48.12 (26.1% off) 4
19 289529
FLEXIBLE SILENCER MOUNTING BUSH
Applicable up to Ass. No. 107081
IN STOCK 		$48.12 (26.1% off) 4
20 283425
SQUARE HEADED SCREW M6 X 18.5MM
IN STOCK 		$2.54 4
21 229100
SPHERICAL CLAMP
IN STOCK 		$40.10 (42.3% off) 2
22 244297
R.H. MUFFLER BRACKET 		$175.65 1
22 244298
L.H. MUFFLER BRACKET 		$175.65 1
23 11193874
WASHER
IN STOCK 		$0.06 4
24 16043524
SCREW 		$0.10 (75% off) 4
25 288137
SILENCER CROSS MEMBER
not affected by modification; Applicable from Ass. No. 103179 		$113.91 1
25 264074
SILENCER CROSS MEMBER
Applicable up to Ass. No. 103178; Not for Mechanical gearbox 		$369.01 1
25 264074
SILENCER CROSS MEMBER
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable from Ass. No. 91553 up to Ass. No. 103178 		$369.01 1
25 264074
SILENCER CROSS MEMBER
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable from Ass. No. 89389 up to Ass. No. 103178 		$369.01 1
25 264074
SILENCER CROSS MEMBER
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable from Ass. No. 90609 up to Ass. No. 103178 		$369.01 1
25 240445
SILENCER CROSS MEMBER
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable up to Ass. No. 91552 		$209.10 (47.7% off) 1
25 240445
SILENCER CROSS MEMBER
Applicable for Mechanical gearbox 		$209.10 (47.7% off) 1
25 240445
SILENCER CROSS MEMBER
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable up to Ass. No. 90608 		$209.10 (47.7% off) 1
25 240445
SILENCER CROSS MEMBER
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable up to Ass. No. 89388 		$209.10 (47.7% off) 1
26 12642078
WASHER
Applicable up to Ass. No. 103178 		$0.94 2
27 16043224
SCREW
Applicable up to Ass. No. 103178 		$0.16 (68% off) 2
28 240582
R.H. REAR MUFFLER BRACKET 		$30.44 (24.4% off) 1
28 240583
L.H. REAR MUFFLER BRACKET 		$30.44 (24.3% off) 1
29 16043524
SCREW 		$0.10 (75% off) 4
30 11193874
WASHER
IN STOCK 		$0.06 4
31 14040711
NUT
IN STOCK 		$0.42 4
32 240598
BRACKET PLATE
IN STOCK 		$14.10 (28.1% off) 2
33 14058421
NUT
IN STOCK 		$1.15 2
34 80955200
REAR SILENCER BRACKET 		$481.36 2

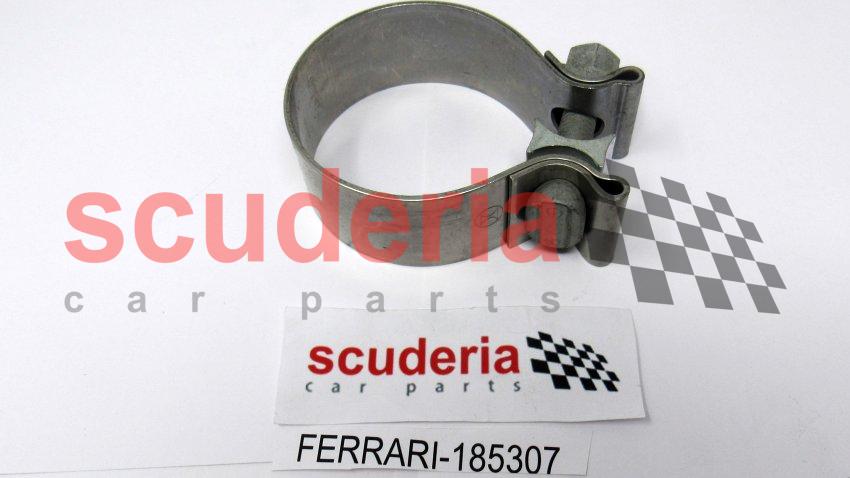

35 185307
Exhaust Clamp 		$29.69 (13.3% off) 4
36 272534
SHIM 		$6.56 1
37 12647021
WASHER
IN STOCK 		$0.31 4
38 14066017
NUT
Applicable from Ass. No. 103179 		$2.66 4
