Ferrari California (2012-2014) - SECONDARY AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
198339 VACUUM ACCUMULATOR TANK $48.12 To Order
Photo Part No Description Price (each) Stock
225098 PLUG $1.43 IN STOCK
Photo Part No Description Price (each) Stock
314698 OIL BREATHER PIPE $4.96 To Order
Photo Part No Description Price (each) Stock
15689501 SCREW $0.28 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 IN STOCK
Photo Part No Description Price (each) Stock
12620477 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
160888 CLIP $3.10 IN STOCK
Photo Part No Description Price (each) Stock
247795 SECONDARY AIR SYSTEM PUMP $754.15 IN STOCK
181197 Secondary Air Pump $513.46 IN STOCK
Photo Part No Description Price (each) Stock
282724 SECONDARY AIR PUMP FASTENER BRACKET $369.04 To Order
253156 SECONDARY AIR PUMP MOUNTING BRACKET $401.13 To Order
256917 SECONDARY AIR PUMP MOUNTING BRACKET $133.17 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
162606 CLIP $1.38 IN STOCK
291283 CLIP $0.55 IN STOCK
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
272519 PIPE FROM AIR PUMP TO AIR VALVE PIPE $272.77 To Order
Photo Part No Description Price (each) Stock
226356 CLAMP $0.47 IN STOCK
Photo Part No Description Price (each) Stock
239161 COMPLETE SECONDARY AIR PIPE $224.63 To Order
Photo Part No Description Price (each) Stock
171175 SECONDARY AIR VALVE $320.90 ARRIVING SOON
Photo Part No Description Price (each) Stock
282430 PIPE FOR LH SECONDARY AIR VALVE $673.92 To Order
Photo Part No Description Price (each) Stock
251578 R.H. AIR VALVE FIXING BRACKET $43.31 To Order
Photo Part No Description Price (each) Stock
251073 L.H. AIR VALVE FIXING BRACKET $57.75 To Order
Photo Part No Description Price (each) Stock
186781 GASKET $5.28 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
264020 SPACER ASSEMBLY $67.38 To Order
Photo Part No Description Price (each) Stock
257977 THREADED UNION $73.80 To Order
Photo Part No Description Price (each) Stock
150595 CAP NUT $0.89 To Order
Photo Part No Description Price (each) Stock
249300 BRACKET $9.61 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
165608 RUBBER PIPE $2.54 To Order
289103 RUBBER PIPE $12.66 To Order
Photo Part No Description Price (each) Stock
270708 RIGID PIPE $82.74 To Order
283324 RIGID PIPE $99.47 To Order
250435 RIGID PIPE $85.03 To Order
Photo Part No Description Price (each) Stock
243631 RUBBER PIPE $5.20 To Order
168248 RUBBER PIPE $35.28 To Order
Photo Part No Description Price (each) Stock
115147 RUBBER PIPE $4.96 To Order
163092 RUBBER PIPE $1.15 To Order
Photo Part No Description Price (each) Stock
14304124 SCREW $0.16 To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
289103 RUBBER PIPE $12.66 To Order
243633 RUBBER PIPE $107.49 To Order
Photo Part No Description Price (each) Stock
259262 RIGID PIPE FOR BY-PASS VALVE ACTUATION $174.03 To Order
Photo Part No Description Price (each) Stock
148203 RUBBER PIPE $28.87 To Order
147123 RUBBER PIPE $25.66 To Order
148204 RUBBER PIPE $22.45 IN STOCK
Photo Part No Description Price (each) Stock
148204 RUBBER PIPE $22.45 IN STOCK
148204 RUBBER PIPE $22.45 IN STOCK
Photo Part No Description Price (each) Stock
260831 PIPE FROM UNDERFLOOR PIPE TO SHIELD $51.33 To Order
260089 PIPE FROM UNDERFLOOR PIPE TO SHIELD $65.77 To Order
279518 PIPE FROM UNDERBODY PIPE TO FIREWALL $57.75 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
169455 L.H. PIPE VALVE TUBE $2.40 To Order
Photo Part No Description Price (each) Stock
247701 UNDERFLOOR PIPE $46.52 To Order
272511 UNDERBODY PIPE $67.38 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.57 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
12646624 WASHER $0.21 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 IN STOCK
Photo Part No Description Price (each) Stock
12620477 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
128016 CONNECTOR $10.60 To Order
Photo Part No Description Price (each) Stock
244411 R.H. AIR VALVE PIPE $33.68 To Order
Photo Part No Description Price (each) Stock
303385 CLIP $0.29 IN STOCK
Photo Part No Description Price (each) Stock
264020 SPACER ASSEMBLY $67.38 To Order
Photo Part No Description Price (each) Stock
226356 CLAMP $0.47 IN STOCK
Photo Part No Description Price (each) Stock
281963 RH RIGID BYPASS VALVE ACTUATION PIPE $188.53 To Order
Photo Part No Description Price (each) Stock
281964 LH RIGID BYPASS VALVE ACTUATION PIPE $42.04 To Order
Photo Part No Description Price (each) Stock
289103 RUBBER PIPE $12.66 To Order
Photo Part No Description Price (each) Stock
279177 BRACKET $19.24 To Order
Photo Part No Description Price (each) Stock
272512 RUBBER PIPE $8.66 To Order
Photo Part No Description Price (each) Stock
198271 CLIP $0.92 To Order
View All

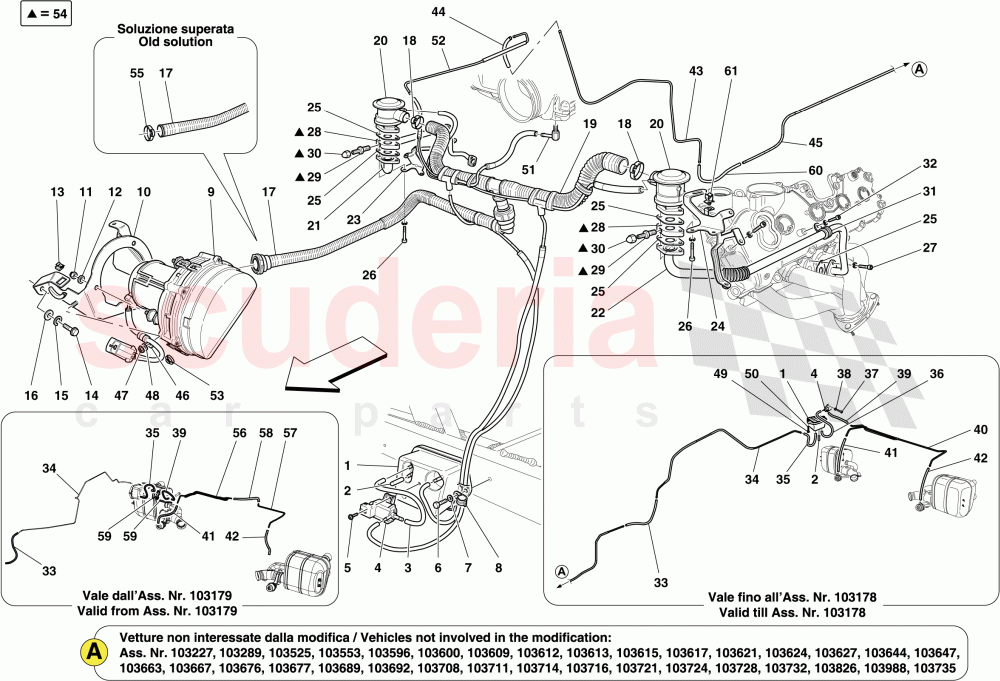

SECONDARY AIR SYSTEM of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 198339
VACUUM ACCUMULATOR TANK 		$48.12 2
2 225098
PLUG
IN STOCK 		$1.43 2
3 314698
OIL BREATHER PIPE 		$4.96 1
5 15689501
SCREW
IN STOCK 		$0.28 2
6 231620
SCREW
IN STOCK 		$0.32 (8.6% off) 2
7 12620477
WASHER
IN STOCK 		$0.06 2
8 160888
CLIP
IN STOCK 		$3.10 1
9 247795
SECONDARY AIR SYSTEM PUMP
Applicable from Ass. No. 88374
IN STOCK 		$754.15 (28.5% off) 1
9 181197
Secondary Air Pump
Applicable up to Ass. No. 88373
IN STOCK 		$513.46 (22.6% off) 1
10 282724
SECONDARY AIR PUMP FASTENER BRACKET
not affected by modification; Applicable from Ass. No. 103179 		$369.04 1
10 253156
SECONDARY AIR PUMP MOUNTING BRACKET
Applicable up to Ass. No. 88373 		$401.13 1
10 256917
SECONDARY AIR PUMP MOUNTING BRACKET
Applicable from Ass. No. 88374 up to Ass. No. 103178 		$133.17 1
11 14059290
FLANGED NUT M6
IN STOCK 		$1.43 3
12 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
13 162606
CLIP
Applicable up to Ass. No. 88373
IN STOCK 		$1.38 (6.1% off) 1
13 291283
CLIP
Applicable from Ass. No. 88374
IN STOCK 		$0.55 1
14 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 3
15 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
16 12643724
WASHER
IN STOCK 		$0.06 (88% off) 3
17 272519
PIPE FROM AIR PUMP TO AIR VALVE PIPE
not affected by modification; Applicable from Ass. No. 103179 		$272.77 1
18 226356
CLAMP
IN STOCK 		$0.47 2
19 239161
COMPLETE SECONDARY AIR PIPE 		$224.63 1
20 171175
SECONDARY AIR VALVE
ARRIVING SOON 		$320.90 2
22 282430
PIPE FOR LH SECONDARY AIR VALVE 		$673.92 1
23 251578
R.H. AIR VALVE FIXING BRACKET 		$43.31 1
24 251073
L.H. AIR VALVE FIXING BRACKET 		$57.75 1
25 186781
GASKET
IN STOCK 		$5.28 (16.9% off) 6
26 231620
SCREW
IN STOCK 		$0.32 (8.6% off) 4
27 231619
SCREW
M6 X 18
IN STOCK 		$0.31 4
28 264020
SPACER ASSEMBLY
Applicable up to engine No. 167887 		$67.38 2
29 257977
THREADED UNION
Applicable up to engine No. 167887 		$73.80 2
30 150595
CAP NUT
Applicable until depletion 		$0.89 (40.7% off) 2
31 249300
BRACKET 		$9.61 2
32 248334
SCREW 		$0.68 2
33 165608
RUBBER PIPE
Applicable up to Ass. No. 103178 		$2.54 1
33 289103
RUBBER PIPE
not affected by modification; Applicable from Ass. No. 103179 		$12.66 1
34 270708
RIGID PIPE
Applicable for HELE; Applicable for Stop & Start; Applicable up to Ass. No. 103178 		$82.74 1
34 283324
RIGID PIPE
Applicable for HELE; Applicable for Stop & Start; not affected by modification; Applicable from Ass. No. 103179 		$99.47 1
34 250435
RIGID PIPE
Not for HELE; Not for Stop & Start; Applicable until depletion 		$85.03 1
35 243631
RUBBER PIPE
Applicable up to Ass. No. 103178 		$5.20 1
35 168248
RUBBER PIPE
not affected by modification; Applicable from Ass. No. 103179 		$35.28 1
36 115147
RUBBER PIPE
Applicable up to Ass. No. 103178 		$4.96 (14% off) 1
36 163092
RUBBER PIPE
not affected by modification; Applicable from Ass. No. 103179 		$1.15 1
37 14304124
SCREW 		$0.16 (78.7% off) 2
38 12604178
Washer 		- 2 Enquire
39 289103
RUBBER PIPE
not affected by modification; Applicable from Ass. No. 103179 		$12.66 1
39 243633
RUBBER PIPE
Applicable up to Ass. No. 103178 		$107.49 1
40 259262
RIGID PIPE FOR BY-PASS VALVE ACTUATION
Applicable up to Ass. No. 103178 		$174.03 1
41 148203
RUBBER PIPE
Applicable up to Ass. No. 103178 		$28.87 1
41 147123
RUBBER PIPE
not affected by modification; Applicable from Ass. No. 103179 		$25.66 1
41 148204
RUBBER PIPE
No longer supplied; Replaced by 148203
IN STOCK 		$22.45 1
42 148204
RUBBER PIPE
Applicable up to Ass. No. 103178
IN STOCK 		$22.45 1
42 148204
RUBBER PIPE
not affected by modification; Applicable from Ass. No. 103179
IN STOCK 		$22.45 1
43 260831
PIPE FROM UNDERFLOOR PIPE TO SHIELD
Applicable for GD; Applicable from Ass. No. 90609 		$51.33 1
43 260089
PIPE FROM UNDERFLOOR PIPE TO SHIELD
Not for GD; Applicable from Ass. No. 90609 up to Ass. No. 103178 		$65.77 1
43 279518
PIPE FROM UNDERBODY PIPE TO FIREWALL
not affected by modification; Applicable from Ass. No. 103179 		$57.75 1
43 244452
PIPE FROM UNDERFLOOR PIPE TO SHIELD
Applicable up to Ass. No. 90608 		$32.08 1
44 169455
L.H. PIPE VALVE TUBE 		$2.40 1
45 247701
UNDERFLOOR PIPE
Applicable up to Ass. No. 103178 		$46.52 1
45 272511
UNDERBODY PIPE
not affected by modification; Applicable from Ass. No. 103179 		$67.38 1
46 10441290
BRACKET WITH SHEATH
Applicable up to Ass. No. 88373
IN STOCK 		$0.57 (66.1% off) 1
47 14059290
FLANGED NUT M6
Applicable up to Ass. No. 88373
IN STOCK 		$1.43 1
48 12646624
WASHER
Applicable up to Ass. No. 88373 		$0.21 (27.6% off) 1
49 231620
SCREW
IN STOCK 		$0.32 (8.6% off) 2
50 12620477
WASHER
IN STOCK 		$0.06 2
51 128016
CONNECTOR 		$10.60 1
52 244411
R.H. AIR VALVE PIPE 		$33.68 1
53 303385
CLIP
Applicable from Ass. No. 88374
IN STOCK 		$0.29 1
54 264020
SPACER ASSEMBLY
Applicable after depletion of Part Nos. 252813, 210868 and 150595; Applicable from engine No. 167888 		$67.38 1
55 226356

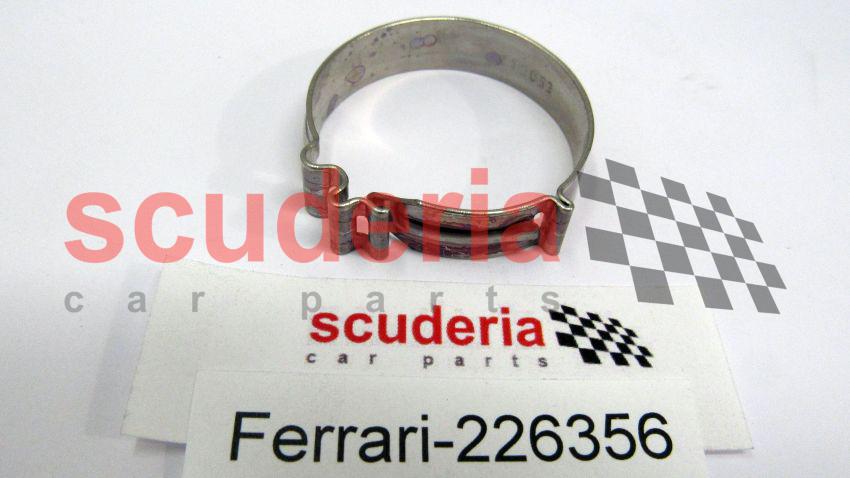

CLAMP
Applicable for pipe 245710 ref. 17
IN STOCK 		$0.47 1
56 281963
RH RIGID BYPASS VALVE ACTUATION PIPE
not affected by modification; Applicable from Ass. No. 103179 		$188.53 1
57 281964
LH RIGID BYPASS VALVE ACTUATION PIPE
not affected by modification; Applicable from Ass. No. 103179 		$42.04 1
58 289103
RUBBER PIPE
not affected by modification; Applicable from Ass. No. 103179 		$12.66 1
59 279177
BRACKET
not affected by modification; Applicable from Ass. No. 103179 		$19.24 1
60 272512
RUBBER PIPE
not affected by modification; Applicable from Ass. No. 103179 		$8.66 1
61 198271
CLIP 		$0.92 2

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
